WorksheetsSlab Design Challenge Q3
Total questions: 11
Worksheet time: 11mins
What are the key factors to consider in the design of a one-way slab?
Color of the slab
Weather conditions
span length, and support conditions.
Number of windows in the building
Explain the difference between one-way slab design and two-way slab design.
One-way slab design distributes the load in one direction, while two-way slab design distributes the load in both directions.
One-way slab design is used for shorter spans, while two-way slab design is used for longer spans.
One-way slab design distributes the load in both directions, while two-way slab design distributes the load in one direction.
One-way slab design is used when the ratio of longer span to shorter span is less than or equal to 2, while two-way slab design is used when the ratio is greater than 2.
How is load distributed in slabs? Provide an example.
Load in slabs is distributed through thermal action, with the load being transferred to the supporting pillars and footings.
Load in slabs is distributed through gravitational action, with the load being transferred to the supporting walls and foundation.
Load in slabs is distributed through magnetic action, with the load being transferred to the supporting beams and columns.
Load in slabs is distributed through flexural action, with the load being transferred to the supporting beams and columns.
What methods can be used to control deflection in slabs?
Using thinner materials
increasing the depth of the slab, adding reinforcement
Providing inadequate support and restraint at the edges
Removing all reinforcement
Calculate the bending moment for a slab with a uniformly distributed load of 5 kN/m and a span of 6 meters.
The bending moment for the given slab is 60 kNm.
The bending moment for the given slab is 22.5 kNm.
The bending moment for the given slab is 30 kNm.
The bending moment for the given slab is 10 kNm.
Compare the load distribution in a one-way slab and a two-way slab under similar loading conditions.
In a one-way slab, the load distribution is primarily upward, while in a two-way slab, the load is distributed downward.
In a one-way slab, the load distribution is primarily in both directions, while in a two-way slab, the load is distributed in one direction.
In a one-way slab, the load distribution is primarily in one direction, while in a two-way slab, the load is distributed in both directions.
In a one-way slab, the load distribution is primarily in a circular pattern, while in a two-way slab, the load is distributed in a linear pattern.
Explain the concept of effective span in slab design.
The effective span in slab design is the distance between the centers of supports used to calculate bending moment and deflection.
The effective span in slab design is the distance between the supports used to calculate the total load on the slab
The effective span in slab design is the distance between the top and bottom surfaces of the slab
The effective span in slab design is the thickness of the slab
Discuss the importance of deflection control in slab design and its impact on the overall structure.
Deflection control in slab design is not important as it has no impact on the overall structure
Deflection control in slab design only impacts the aesthetics of the building
Excessive deflection in slab design is beneficial for the overall structure
It impacts the overall structure by ensuring the stability, serviceability, and durability of the building.
What are the advantages of using post-tensioned slabs in building construction?
Post-tensioned slabs are more prone to cracking compared to traditional slabs
Post-tensioned slabs allow for longer spans and thinner slabs, resulting in reduced floor-to-floor height
Post-tensioned slabs have higher construction costs compared to traditional slabs
Post-tensioned slabs have lower load-bearing capacity compared to traditional slabs

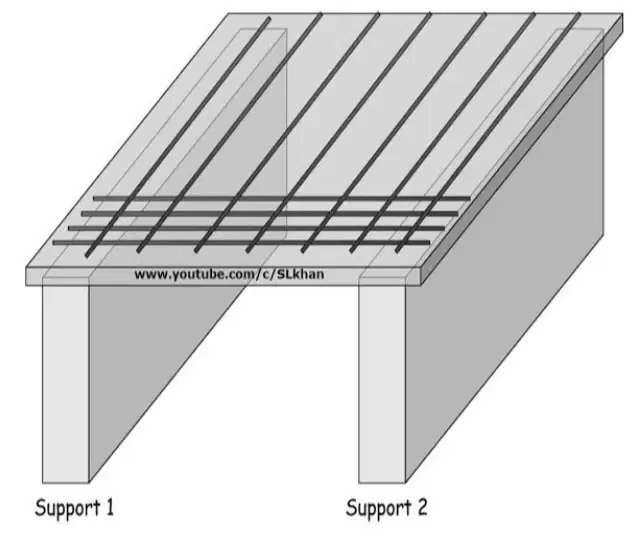

In which Direction main reinforcement will be placed if the x-direction is shorter length and y-direction is longer (One way slab)
In which Direction main reinforcement will be placed if the x-direction is shorter length and y-direction is longer (If Slab is Twoway slab)
