WorksheetsINSTALLATION AND MAINTENANCE (EIM)-TLE 10 Q2 QUIZ No. 1 REVIEWER
Total questions: 40
Worksheet time: 21mins
Name
Class
Date
1.
It is device used in measuring current, voltage, and resistance in a circuit.
a)
Voltohmmeter
b)
Ohmmeter
c)
Voltmeter
2.
It has a moving coil assembly which is characterized by needle pointer.
a)
Measuring Terminal
b)
The analog multimeter Tester
c)
Digital Multimeter Tester
3.
____________ have a numeric display, and may also show a graphical bar representing the measured value.
a)
Measuring Terminal
b)
The analog multi – tester+
c)
Digital Multimeter Tester
4.
____________ used to adjust pointer to the left infinity
a)
Zero Corrector Adjusting Knob
b)
Zero Ohms Adjusting Knob
c)
Range Selector Knob
5.
It is used to adjust pointer to the right infinity
a)
Zero Corrector Adjusting Knob
b)
Zero Ohms Adjusting Knob
c)
Range Selector Knob
6.
____________ is a moving needle that stops on a number that is printed on the background behind the moving needle.
a)
Indicator Scale
b)
Needle Pointer/Indicator Pointer
c)
Range Selector Knob
7.
____________ a series of markings used in indicating value of quantity using Multitester.
a)
Indicator Scale
b)
Needle Pointer/Indicator Pointer
c)
Range Selector Knob
8.
____________ makes it possible to select different functions and range of the multimeter.
a)
Indicator Scale
b)
Zero Corrector Adjusting Knob
c)
Range Selector Knob
9.
It is used to connect the circuit to the electrical components being tested.
a)
Testers
b)
Test Probe
c)
Pen
10.
It is the unit of measurement for resistance
a)
Ampere
b)
Volts
c)
Ohms
11.
This is a color for positive probe using multimeter.
a)
Red
b)
Black
c)
White
12.
This is a color for negative probe using multimeter.
a)
Red
b)
Black
c)
White
13.
It is the part of the multi meter used to connect the test probe.
a)
Measuring Terminal positive and negative
b)
Black meter
c)
Red meter
14.
It is the scale of the VOM (voltohmmeter) intended for resistance reading.
a)
Ohmmeter scale
b)
Black Meter scale
c)
Red meter scale
15.
It is intended for measuring direct current voltage (DCV).
a)
Ohmmeter scale
b)
Black Meter scale
c)
Red meter scale
16.
It is the scale intended for measuring alternating current voltage (ACV).
a)
Ohmmeter scale
b)
Black Meter scale
c)
Red meter scale
17.
It is the symbol for resistance.
a)
A
b)
Ω
c)
V
18.
The unit of measurement of voltage.
a)
Ampere (A)
b)
Watts (W)
c)
Volts (v)
19.
The unit of measurement of power.
a)
Ampere (A)
b)
Watts (W)
c)
Volts (v)
20.
It is the term for a multi meter’s test mode that can be used to test switches, fuses, electrical connections, conductors and other components.
a)
Sensitivity
b)
Continuity
c)
Impedance
21.
The Italian physicist, chemist, and pioneer of electricity and power where the unit of voltage derived from.
a)
Alessandro Voltage
b)
Alessandro Volta
c)
Alexander Volta
22.
It is an instrument that measure the difference in electrical potential between two points in an electric circuit.
a)
Voltmeter
b)
Ammeter
c)
Ohmmeter
23.
The standard voltage output of a dry cell.
a)
1.5v
b)
3.5v
c)
9v
24.
It is the maximum standard voltage in the Philippines.
a)
250v
b)
110v
c)
220v
25.
_________ is a type of voltmeter that moves a pointer across a scale in proportion to the circuit’s voltage.
a)
Analog voltmeter
b)
Digital voltmeter
26.
_____________ provides a numerical display.
a)
Analog voltmeter
b)
Digital voltmeter
27.
In order for a voltmeter to measure a devices voltage, it must be connected in _________ to that device.
a)
Parallel
b)
Series
c)
Series-Parallel
28.
The Voltmeter scale for both AC and DC voltages are _________ .
a)
Parallel
b)
Series
c)
Linear
29.
For voltage reading, zero is located on the _______ side of the voltmeter scale.
a)
Left
b)
Right
c)
Center
30.
For voltage reading, zero is located on the _______ side of the ohmmeter scale.
a)
Left
b)
Right
c)
Center
31.
In reading the amount of voltage, always start with the _______ range to avoid reading voltage higher than the tester setting.
a)
Lowest
b)
Highest
c)
Middle
32.
What is the value per division for the voltage scale of range 250dcv
a)
1v
b)
2v
c)
5
33.
What is the value per division for the voltage scale of range 2.5acv
a)
0.5
b)
0.05
c)
0.50
34.
What is the value per division for the voltage scale of range 10dcv
a)
.20
b)
1
c)
2
35.
What is the value per division for the voltage scale of range 50acv
a)
1
b)
2
c)
5

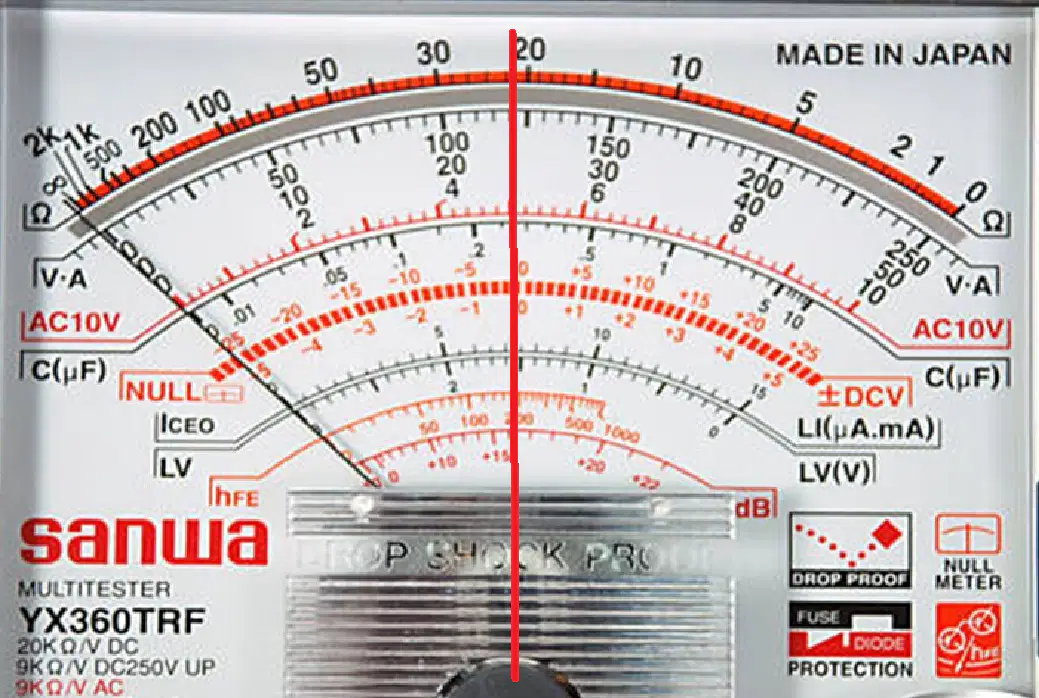

36.
Interpret/give the actual scale reading using range Rx1.
a)
4 Ω
b)
40 Ω
c)
.4Ω

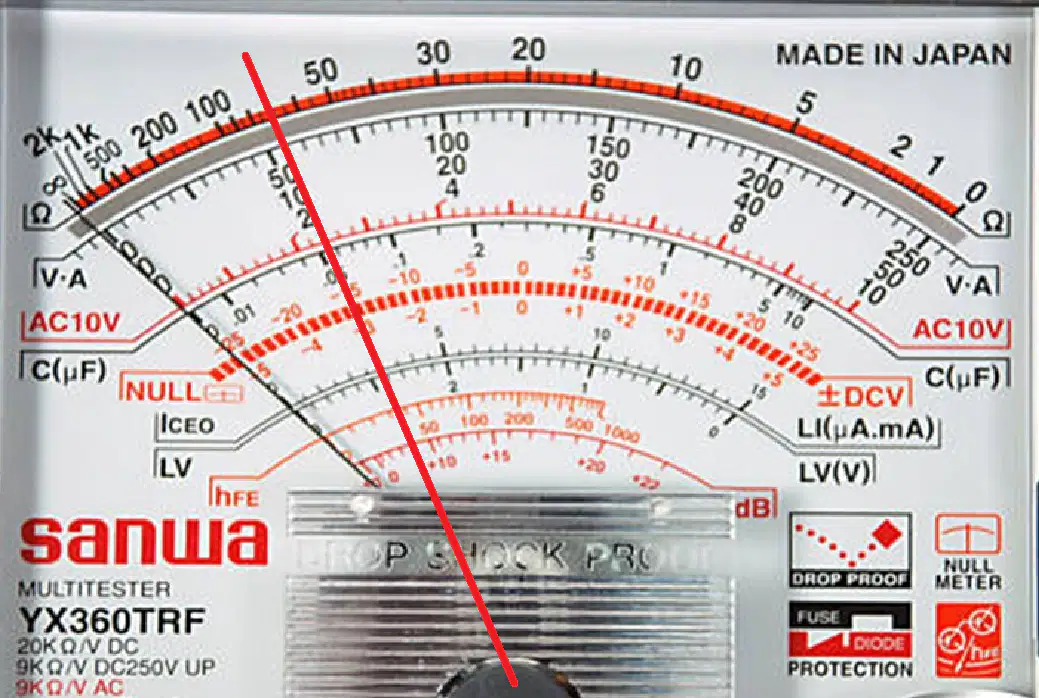

37.
Interpret/give the actual scale reading using range Rx10.
a)
26 Ω
b)
260 Ω
c)
260KΩ

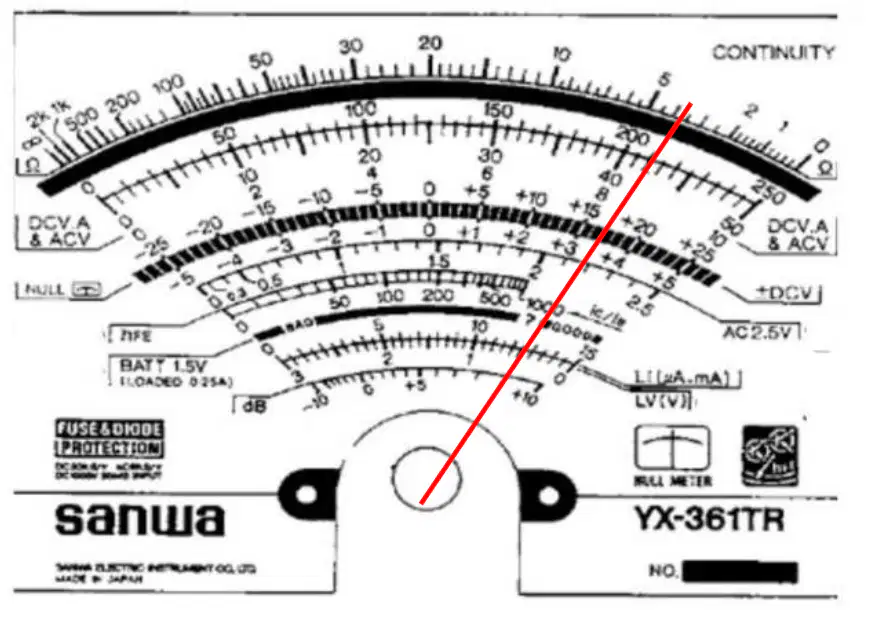

38.
Interpret/give the actual voltage scale reading using range 2.5dcv.
a)
1.20v
b)
120v
c)
4.80v

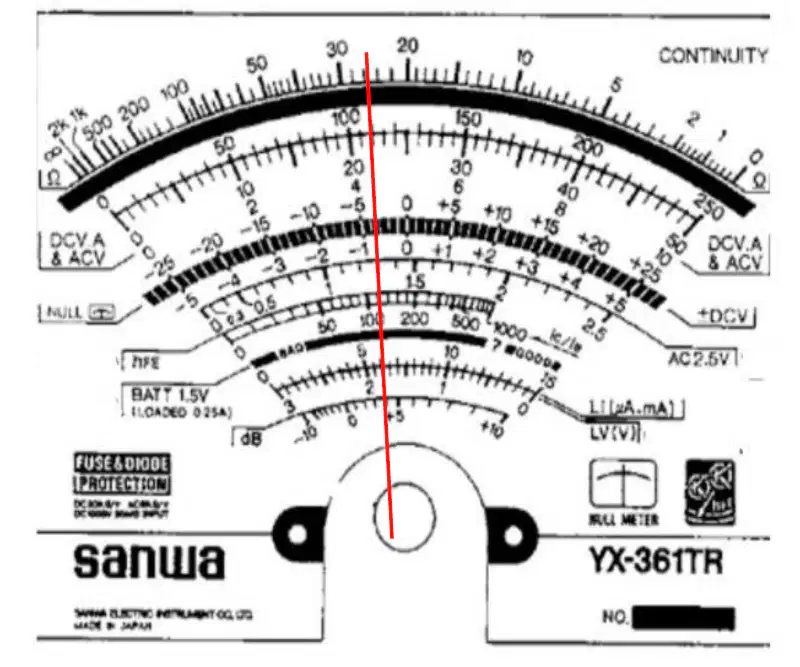

39.
Interpret/give the actual voltage scale reading using range 250dcv.
a)
.55v
b)
55v
c)
50.5v
40.
Interpret/give the actual voltage scale reading using range 10acv.
a)
4.8v
b)
5v
c)
4.5v
