WorksheetsFMS Fall Semester Exam
Total questions: 63
Worksheet time: 1hrs 3mins
What is the name of the competition for this robotics season?
Over Under
Next Level
It doesn't have a name
Vex Robotics
When cutting metal, what should you always have on?
A hat
Socks
Goggles
Gloves
What tool is used to cut metal/aluminum?
Nothing. Metal/aluminum doesn't cut.
A file
Another piece of metal
Saw or Dremmel
What is the primary material used in building a robot for the competition?
Plastic
Metal
Wood
Glass
What safety measure should be taken while operating a Dremmel?
Wearing gloves
Wearing goggles
Wearing a hat
Wearing socks
What is the purpose of a file in robotics?
To store data
To cut metal/aluminum
To sand or smooth out metal after cutting it
To measure distances
What can Omni wheels do that the other wheels can't do?
Drive in straight lines only
Nothing. They work the same as the other wheels.
Go sideways because of the extra wheels
This is a VEX V5 claw kit. It is preassembled for your enjoyment. Which statement is good advice?
Never take it apart
Disassemble it for extra credit.
Do take it apart.
Do take it apart.To impress your teacher, take it apart
What are this?
Hex Wrenches
Box End Wrenches
Open End Wrenches
Pliers
What is this? Hint: It is the kind we will use in class.
Battery
Motor
Brain
Wireless transmitter
What is included in the Vex Robotics Control System?
wireless transmitter
battery
brain
All of the above
What is the main function of a VEX V5 brain in a robot?
To provide power to the robot
To control the movements of the robot
To communicate with the wireless transmitter
All of the above
What is the primary safety equipment required when handling a VEX V5 claw kit?
Gloves
Goggles
Helmet
None of the above
What is the main advantage of using metal in building a robot for the competition?
Metal is lighter than other materials
Metal is more durable and strong
Metal is easier to cut and shape
Metal is cheaper than other materials
What is the main function of Omni wheels in a robot?
To provide power to the robot
To control the movements of the robot
To allow the robot to move sideways
All of the above
What is the primary safety equipment required when cutting metal/aluminum?
Gloves
Goggles
Helmet
None of the above
What is the main advantage of using a VEX V5 claw kit in a robot?
It provides extra grip to the robot
It makes the robot look more attractive
It increases the weight of the robot
None of the above
What is the main disadvantage of using a VEX V5 claw kit in a robot?
Can add too much weight to the robot
None
Cannot pick up the acorn (tri-balls)
What is the main function of a VEX V5 motor in a robot?
To provide power to the robot
To control the movements of the robot
To communicate with the wireless transmitter
All of the above
What is the primary safety equipment required when operating a VEX V5 motor?
Gloves
Goggles
Helmet
None of the above
What is the main disadvantage of using Omni wheels in a robot?
Can add too much weight to the robot
Cannot provide enough grip
Cannot move in straight lines
None of the above
What may be used to modify the amount of torque delivered to a wheel from a motor?
Standoffs
Chains
Bearings
Gears
What is the name of this part?
High Strength Shaft Adapter
Metal Shaft
Low Profile Nut
4 Post Standoff Retainer

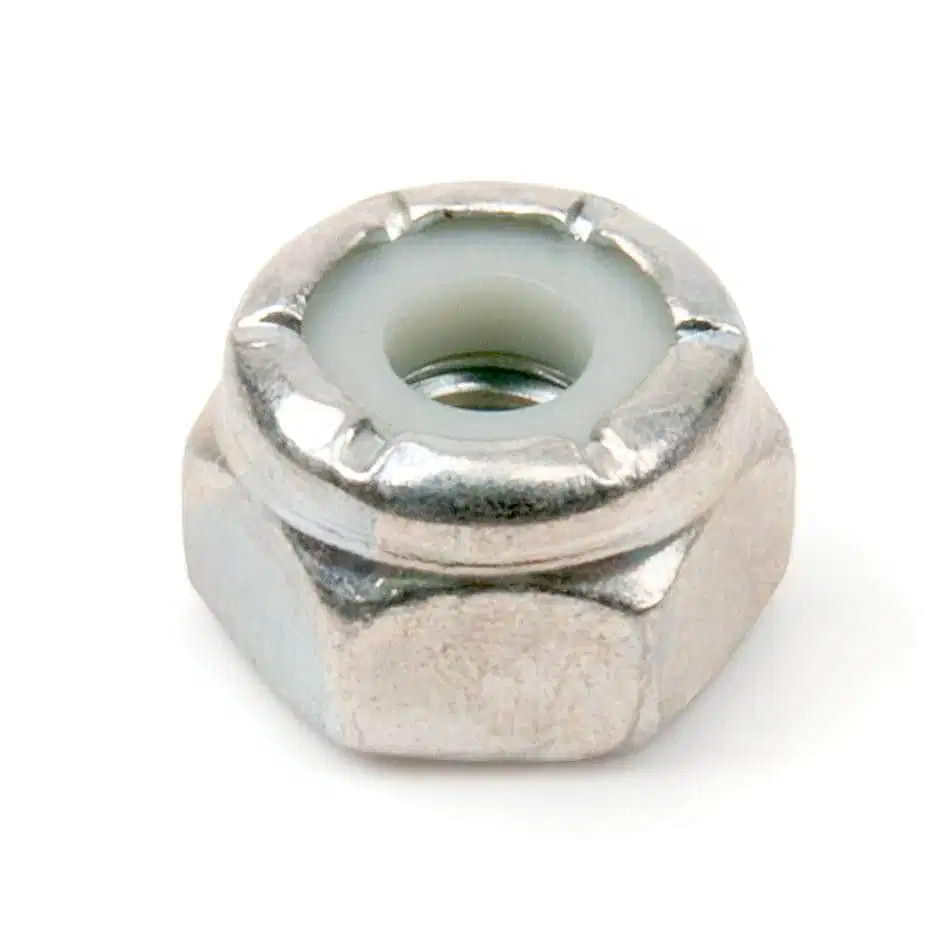

What is the name of this part?
washer add on
Ziplock nut
Nylock nut
Nut retainer
What is the main function of a VEX V5 battery in a robot?
To provide power to the robot
To control the movements of the robot
To communicate with the wireless transmitter
All of the above
What is the primary safety equipment required when assembling a VEX V5 robot?
Gloves
Goggles
Helmet
None of the above
What is the main advantage of using a VEX V5 motor in a robot?
It provides extra power to the robot
It makes the robot move faster
It increases the weight of the robot
None of the above
What is the name of this part?
Dog collar
Screws
Nut
Metal shaft collars

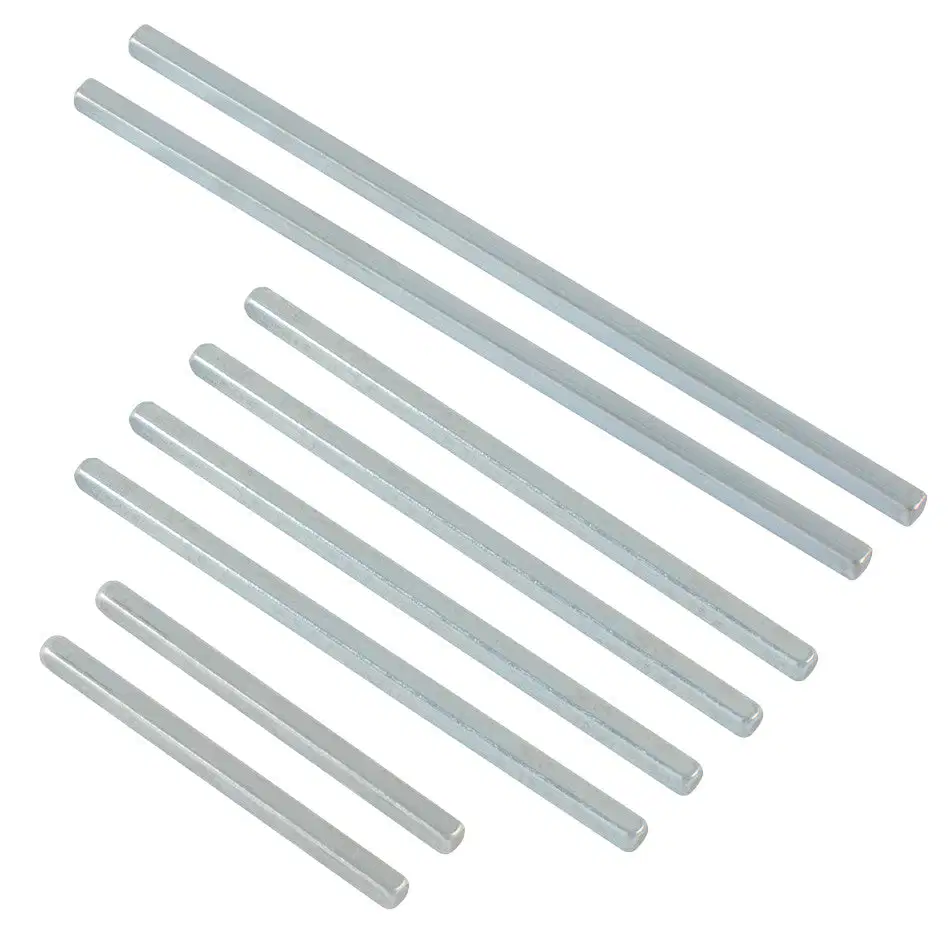

What is the name of this part?
Standoff
Cylinder
Shaft
Pole
Why isn't food allowed in the robotics room?
mice
Because students won't share
Metal shaving are everywhere
It's okay to eat with permission
What is the main function of a VEX V5 wireless transmitter in a robot?
To provide power to the robot
To control the movements of the robot
To communicate with the VEX V5 brain
All of the above
What is the primary safety equipment required when handling a VEX V5 wireless transmitter?
Gloves
Goggles
Helmet
None of the above
What is the main advantage of using a VEX V5 wireless transmitter in a robot?
It provides extra power to the robot
It makes the robot move faster
It allows the robot to be controlled remotely
None of the above
What is the item pictured?
Wireless transmitter
brain
battery
wireless sensor

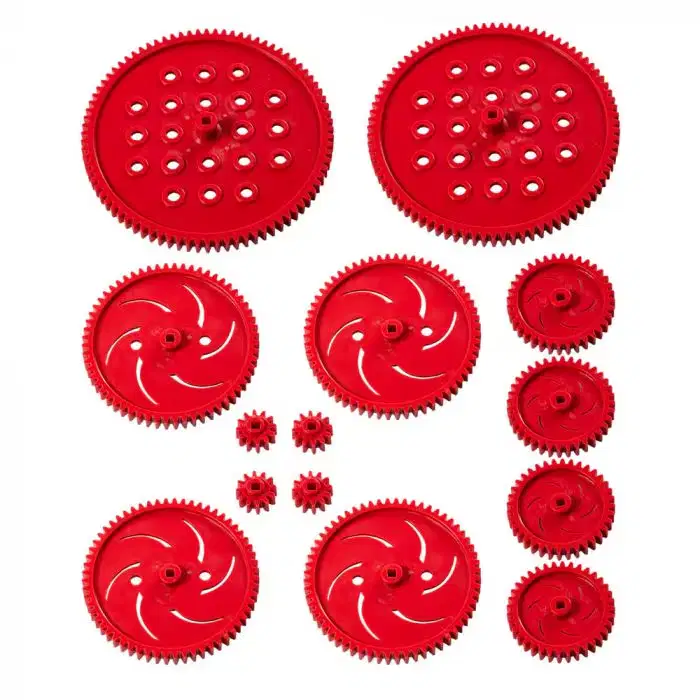

What is the robotics piece shown?
Gears
Sockets
What is the pictured item?
15x5 plate
2x20 plate
20x5 plate
15x7 plate
What is this VEX Robot part?
Rack and Pinion
Spur Gear
Sprocket Gear
Vex Cortex
What is this VEX Robot part?
Alen wrench
Axel
Spur Gear
Vex Collar Shaft

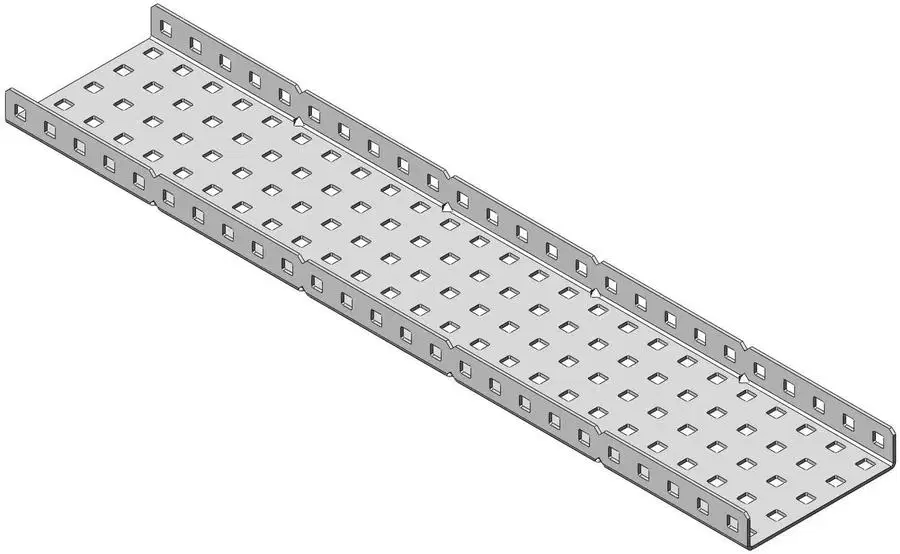

What is this VEX Robot part?
Vex Cortex
Vex Axel
Vex Collar Shaft
Vex " C " Channel
What is this VEX Robot part?
Vex Wheel
Vex Collar Shaft
Vex Spacer
Vex Spur Gear
How do you check battery?
press the button on the brain
press the button on the battery
press the button on the controller
all answers are correct
What is this Vex Robotics piece?
Battery
Brain
Remote
Wireless Transmitter
What is the name of this part?
Low Profile Nut
Brain
Shaft
Shaft Collar Retainer
What is the name of this part?
Travel Tire
Balloon Wheel
Omni Wheel
What is the name of this part?
Travel Tire
Balloon Wheel
Omni Wheel
Imagine this scenario: Emma, Ava, and Mia are in the robotics competition and their robot suddenly stops! What happens to their team?
They are given extra time to fix their model
They cannot operate for remainder of match
They are disqualified from the match
They receive a warning and a deduction of points
________ is a spinning force directed in a circle, most often rotating an object.
Friction
Center of gravity
Torque
Load
At what part of the competition does the autonomous programming competition start?
At the end
At the beginning
all by itself
How long does the autonomous programming competition last?
2 minutes
45 seconds
15 seconds
1 minute
What can you do near the end of the competition that can award you up to an extra 20 points?
Hang the highest off the ground
Carry more than 1 tri-ball
Go on the other side of the field
Remove all tri-balls away from your scoring goal
What is the rule about driving your robot on the table?
Both answers are correct
how do you start driving
you press drive on brain
you press drive on controller
all of the above
push button on motor
what piece is this
wire
brain
controller
battery
If you wear glasses they work as safety goggles
True
False
How do we clean up at the end of an activity?
Everything is cleaned up before anyone leaves
You only need to clean up your stuff
You only need to put away what you used
none of the above
Why is "horseplay" not allowed?
You could hurt someone else
You could hurt yourself
you could break something
All of the above

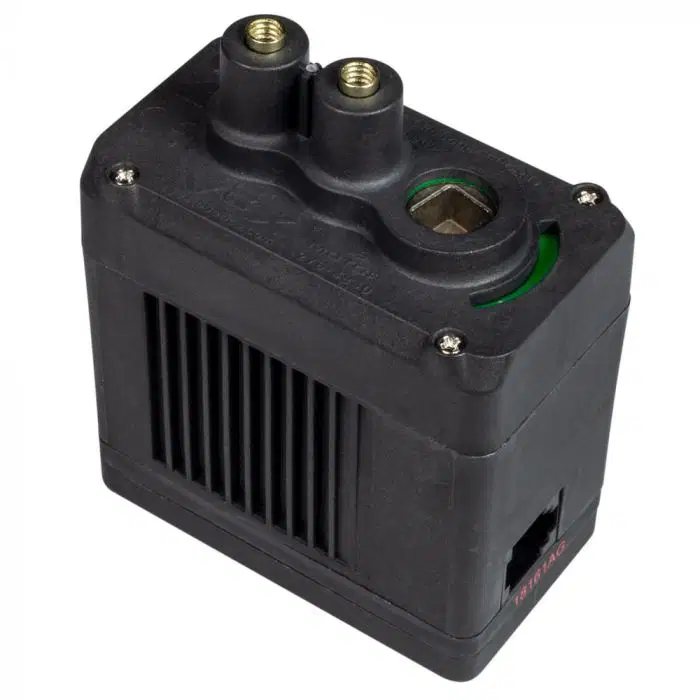

What is the name of this part?
Omni Wheel
Shaft Collar
Smart Motor
Brain
What is the name of this part?
1 Post Standoff Retainer
Star Drive Screw
2" Standoff
16 C-Channel
What is the name of this part?
High Strength Shaft Adapter
Shaft
Low Profile Nut
4 Post Standoff Retainer
What is the name of this part?
Star Drive Screw
Standoff
Travel Tire
Rubber Shaft Collar
Oliver, Mia, and Isla are participating in a robotics competition using VEX VRC. They need to program their robot for the competition. How can they do this?
They can use tinkercad
They can use Scratch
They can't
They can use
VEXcode V5
What is this tool used for?
Paper cutter
cutting finger nails
cutting metal
