WorksheetsCharts and Symbols
Total questions: 16
Worksheet time: 12mins
What color is the dry land shown on Admiralty charts?
Blue
Yellow
Green
White
Using your training almanac what does this symbol mean
Wreck Least Depth unkown more than 20 meters
Major Light
Visible wreck
Tidal Diamond
What do spot depths on a chart represent?
Depth in Meters
Pressure
Temperature
Wind Speed
What do the underline heights on a chart indicate?
Height at high tide
Height above sea level
Height at low tide
Drying Height
What is the angle between the Equator and the Pole?
180 degrees
60 degrees
90 degrees
45 degrees
What does 1 minute of latitude equal in nautical miles?
1 NM
0.5 NM
1.5 NM
2 NM
What is the term for the line on a chart that connects points of equal depth?
Isobar
Depth Contour Line
Latitude Line
Meridian Line
What does the symbol '⚓' represent on a nautical chart?
Marina
Shipwreck
Anchorage Area
Port
Write down 5 chart features you see in the image above ?
What is the symbol for a lighthouse/ Major Light on Admiralty Chart ?
Which Publication provide information about chart symbols? Chose four
Symbols and abbreviations booklets
Chart 5011
Almanc
On the rear of some charts
The boat logbook

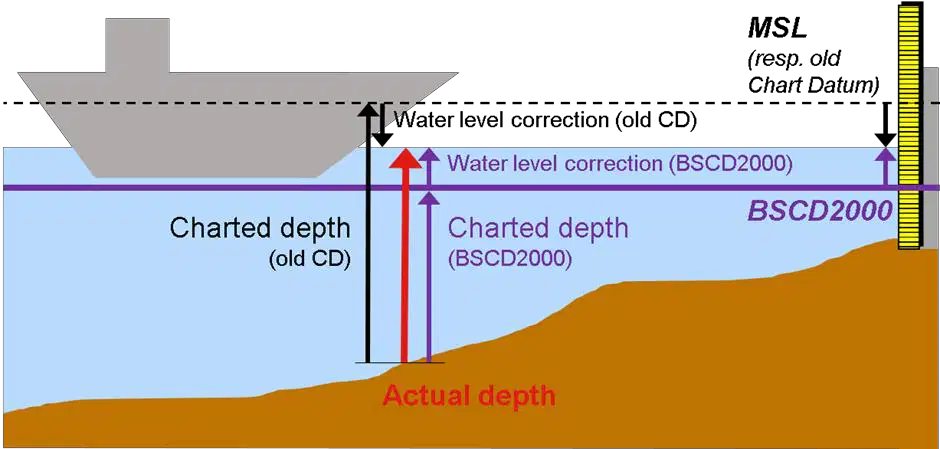

All charted depth are measured from ?
Chart datum
LAT
LONG
MHWS
On RS2 when tying a finder which knot do we use ?
Figure of 8
Barrel Knot
Clove Hitch
Rolling Hitch
On RS1 and RS3 when tying a finder which knot do we use ?
Figure of 8
Barrel Knot
Clove Hitch
When doing engine checks we use WOBBLE , O refers to ?
(a)
When doing engine checks we use WOBBLE , B refers to ?
(a)
