WorksheetsLoadline and Draft Mark
Total questions: 15
Worksheet time: 8mins
How the Winter load line is placed with respect to plimsoll line?
at same level
1/48th of plimsoll draft above plimsoll line
1/48th of plimsoll draft below plimsoll line
230 mm above
Standard load line markings are for
Only Oil tankers
Only Container and RORO ship
All ships
Only Dry cargo ship
International loadline mark is placed
Any where on ship side
amidships
40% of length from bow
only on one side

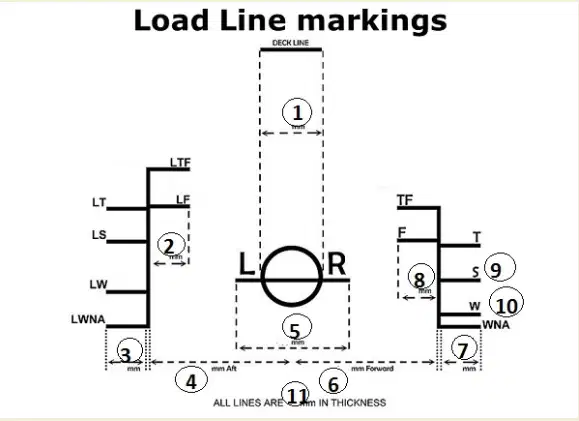

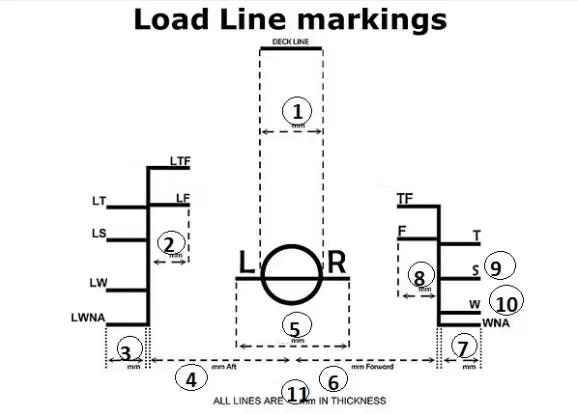

In accompanying diagram, what are dimensions (mms) of marker 4
450
540
230
300
Timber loadline markings are used by
Ships carrying timber
All ships
Ships carring timber and fulfilling specific conditions
Ships carrying timber
Loadline zoes are seasonal
True
False
The complete Load line markings consist of which 3 vital parts?
draft markings, deck line and loadline disc
summer loadline, Winter loadline and disc
deck line, Loadline disc and load lines
deck line, port of registry and draft marks
In accompanying diagram, what are dimensions (mms) of marker 7
540
450
250
230
Purpose of a loadline is to ensure that
the ship can load more cargo
the ship should have sufficient draft
the ship follows government order
the ship has sufficient reserve buoyancy
Exact location of International loadline is decided by
The Master of ship
Charterer
Insurance company
Classification society
In accompanying diagram, what are dimensions (mms) of marker 3
300
230
540
25
International loadline mark is
not a permanent mark
Embossed or punched on ship sid
just painted on ship side
None of above
Load line marking is compulsary for ship's length over
24m
100M
250M
50M
The mark that indicates the safe limit to which a ship may be loaded became generally known as
Fresh water draft
Plimsoll's mark
Summer draf
None of these
In accompanying diagram, what is the difference between the marking and summer loadline draft for marker 10
1/36
1/24
1/48
230mm
