WorksheetsCircuits Task Cards 1-20
Total questions: 20
Worksheet time: 30mins
Name
Class
Date

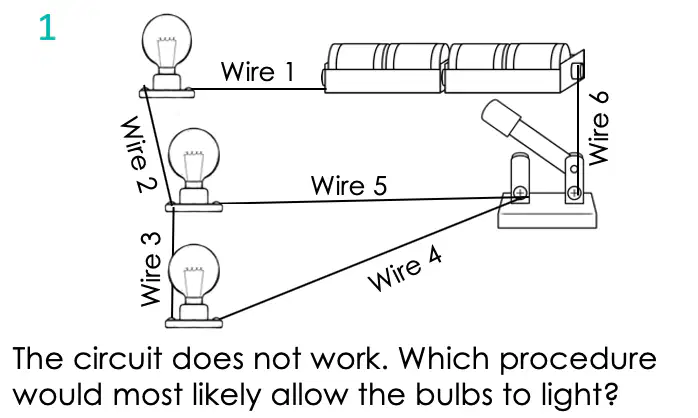

1.
1.
a)
Close the switch.
b)
Remove Wire 1.
c)
Remove Wire 6.
d)
Remove a battery.

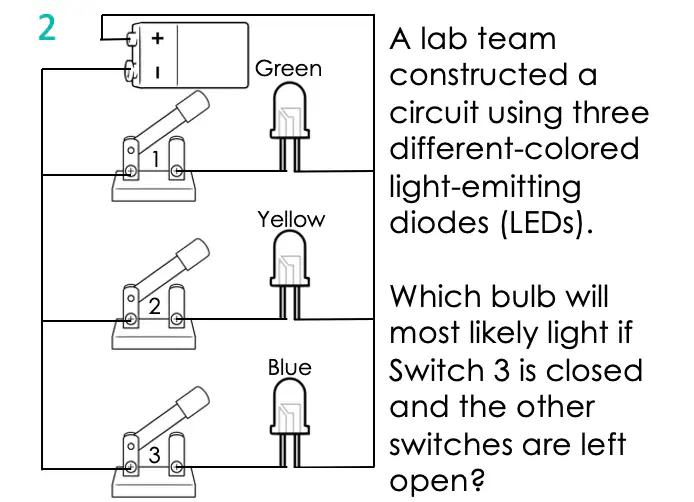

2.
2.
a)
Green
b)
Yellow
c)
Blue
d)
All of them

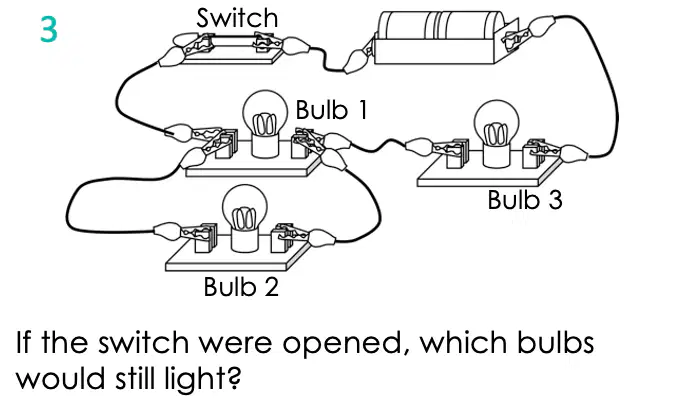

3.
3.
a)
Bulbs 1 and 3 only
b)
Bulb 2 only
c)
All three bulbs
d)
None of the bulbs

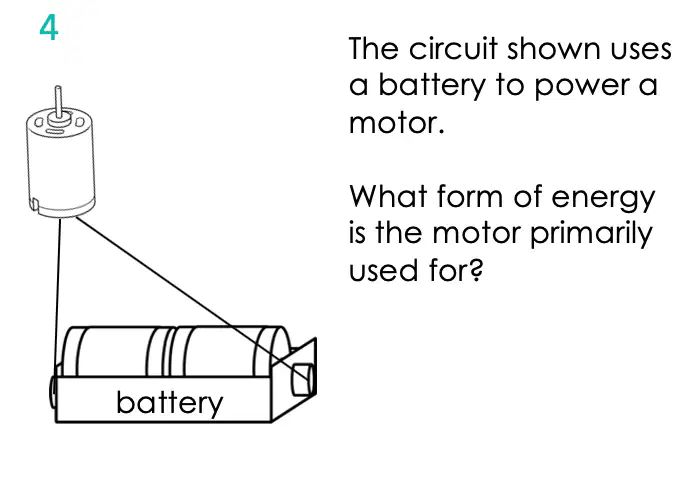

4.
4.
a)
sound
b)
mechanical
c)
light
d)
thermal
5.
5.
a)
A
b)
B
c)
C

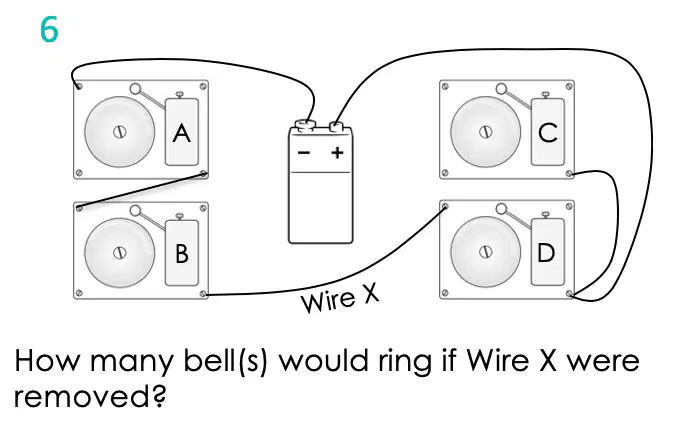

6.
6.
a)
0
b)
1
c)
2
d)
All of them

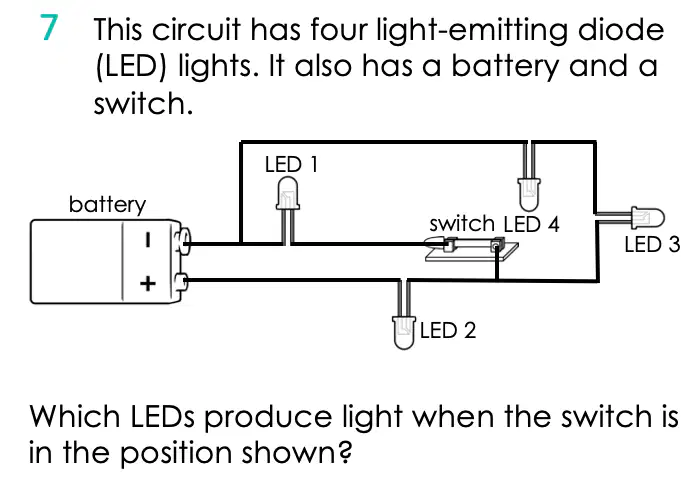

7.
7.
a)
LED 2 only
b)
LED 1, 3, and 4
c)
LED 2 and 3
d)
LED 1, 2, 3, and 4

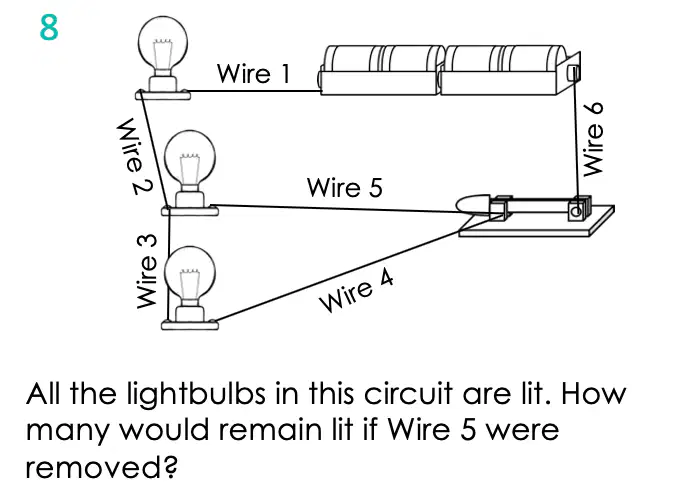

8.
8.
a)
0
b)
1
c)
2
d)
3

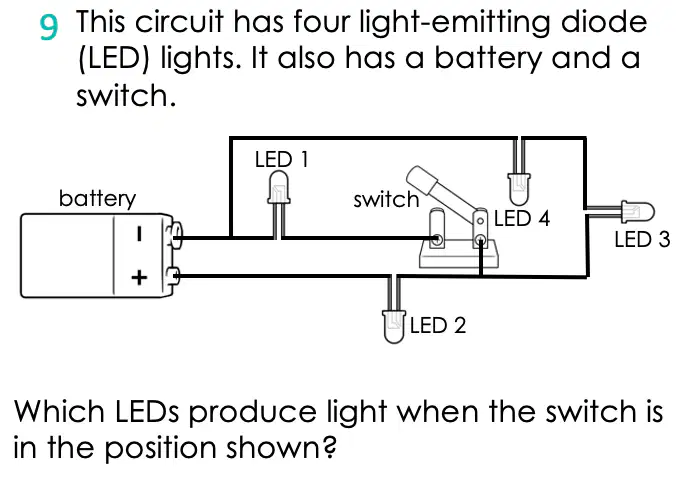

9.
9.
a)
LED 1 and 2
b)
LED 3 only
c)
LED 2 and 4
d)
LED 2, 3, and 4

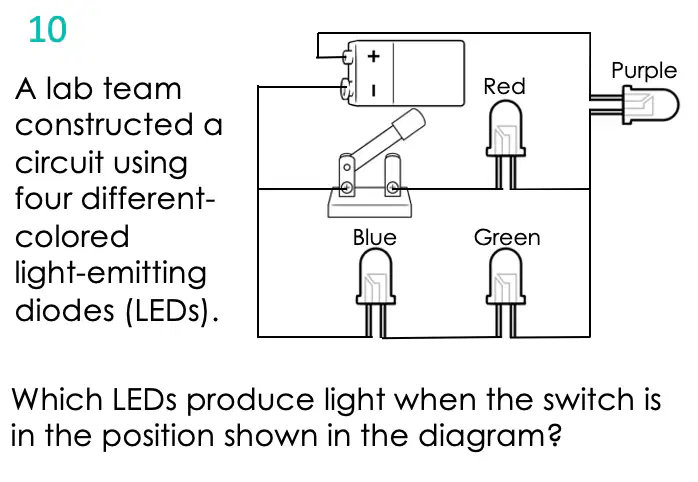

10.
10.
a)
blue, green, and purple
b)
blue and green
c)
red, green, and purple
d)
red only

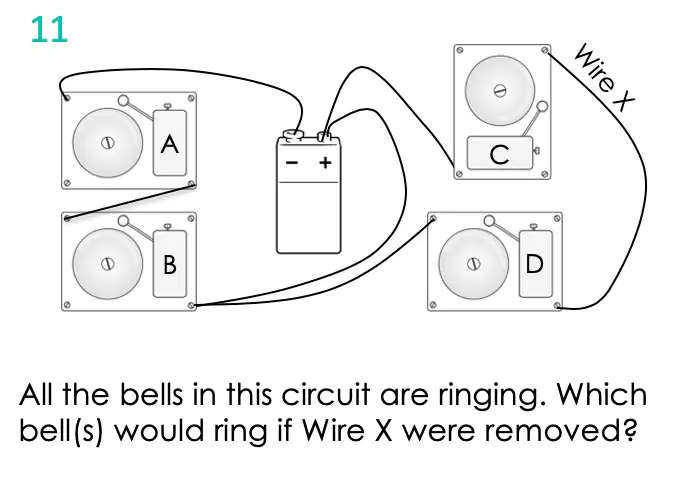

11.
11.
a)
A and B
b)
A, B, C, and D
c)
C and D
d)
None of them

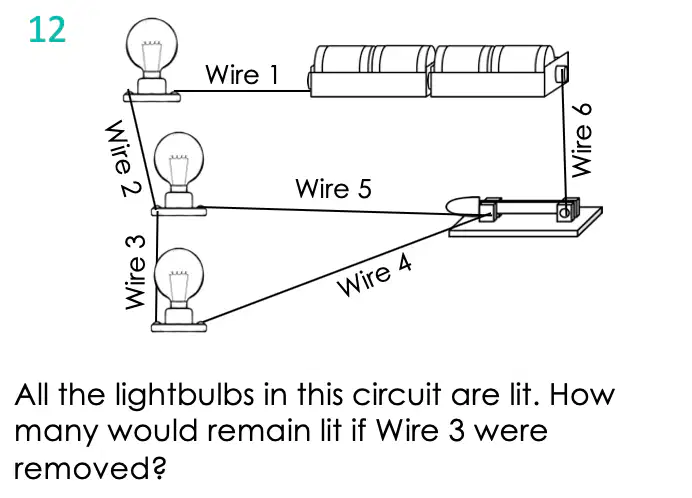

12.
12.
a)
All of them
b)
1
c)
2
d)
None of them

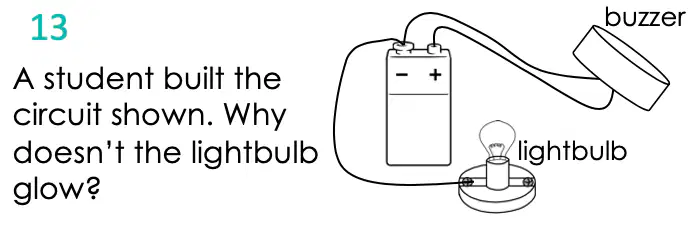

13.
13.
a)
The lightbulb is not part of a closed circuit.
b)
The buzzer is using too much energy from the battery.
c)
The circuit needs a closed switch between the buzzer and the battery.
d)
The lightbulb is in contact with too many wires.

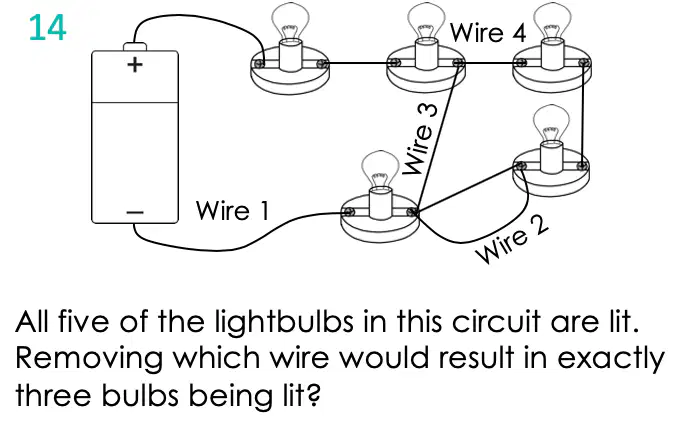

14.
14.
a)
Wire 1
b)
Wire 2
c)
Wire 3
d)
Wire 4
15.
15.
a)
Connect the non-wired end of LED 4 to the positive end of the battery.
b)
Close the switch.
c)
Connect the non-wired end of LED 4 to the wired end of LED 4.
d)
Connect the non-wired end of LED 4 to the negative end of the battery.

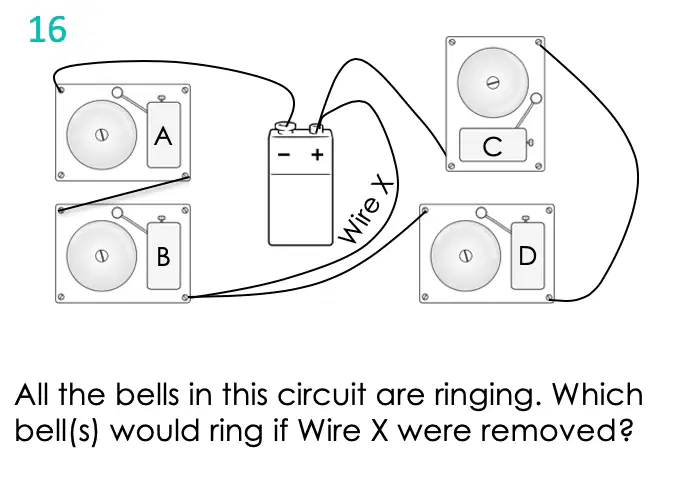

16.
16.
a)
A and B
b)
A, B, and C
c)
All of them
d)
C and D

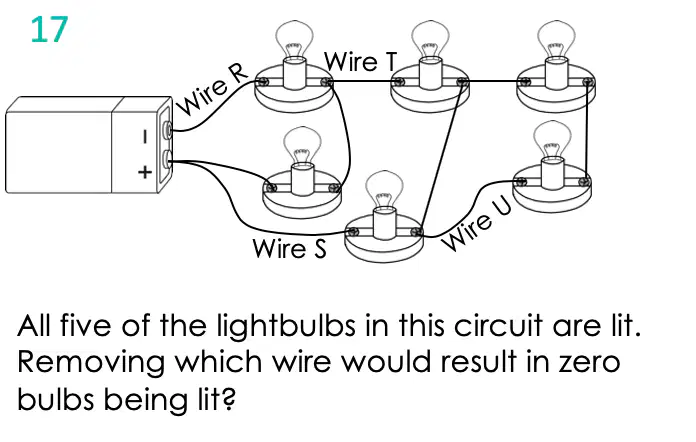

17.
17.
a)
Wire R
b)
Wire S
c)
Wire T
d)
Wire U

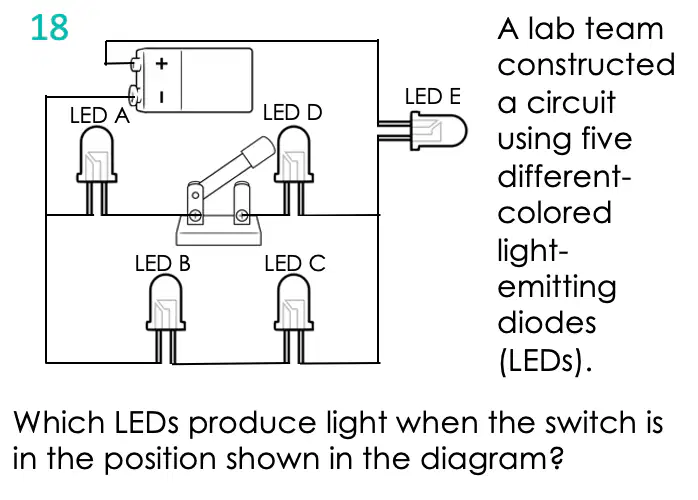

18.
18.
a)
A, D, and E
b)
A, B, C, E
c)
B, C, and E
d)
A and D only
19.
19.
a)
Switch 1
b)
Switches 1 and 3
c)
Switch 2
d)
Leave all switches open
20.
20.
a)
Switch X and Y only
b)
Switches X and Z only
c)
Switch Z only
d)
Switch X only
