WorksheetsRobocell Quiz
Total questions: 21
Worksheet time: 16mins

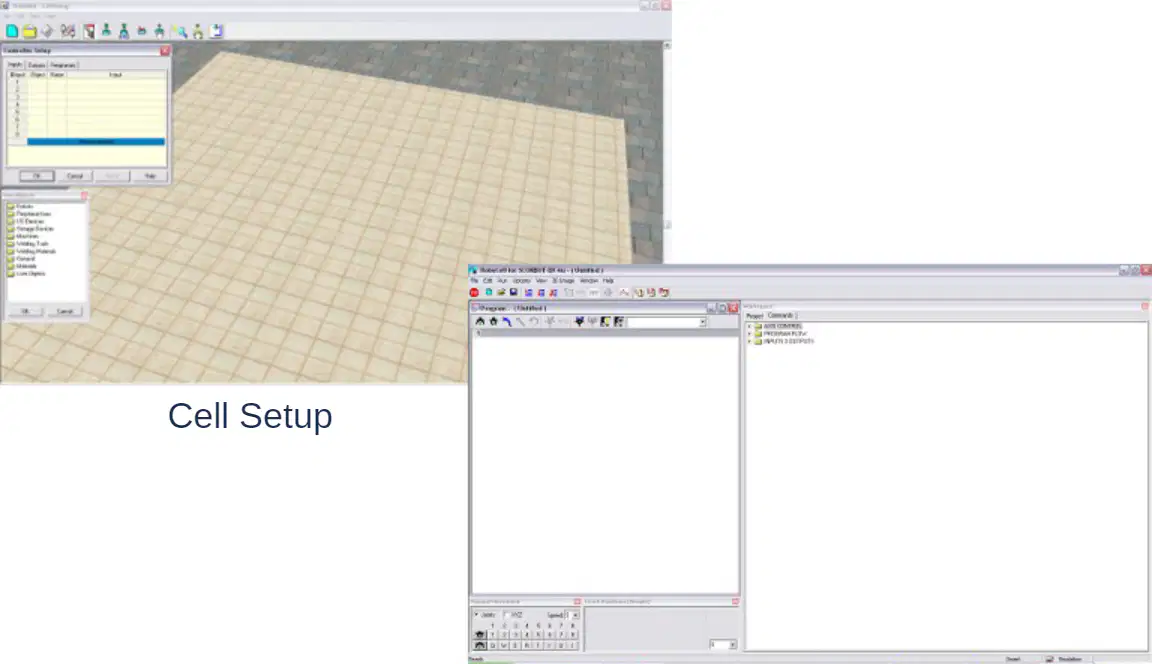

What is the name of the program environment shown in the image for setting up a cell layout for robotic programming?
AutoCell
RoboCell
CellDesign
SetupCell
Which section of the RoboCell program is specifically mentioned in the image for setting up the environment?
Program Setup
Cell Setup
Environment Setup
Layout Setup
How do you zoom in and out in the environment described in the learning material?
Press the left mouse button and move the mouse up and down
Slide side to side with the right mouse button held down
Slide the vertical scroll bar on the right hand side up and down
Slide up and down with the right mouse button held down

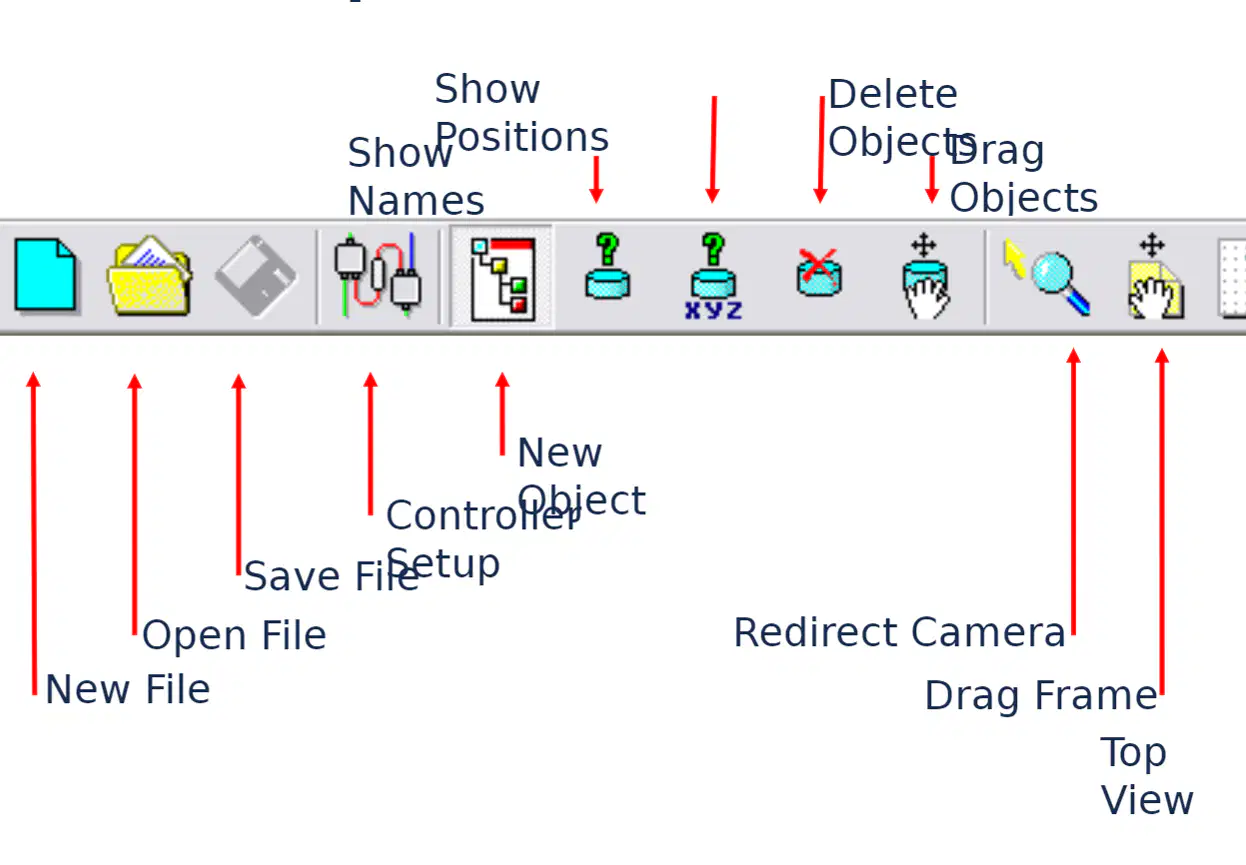

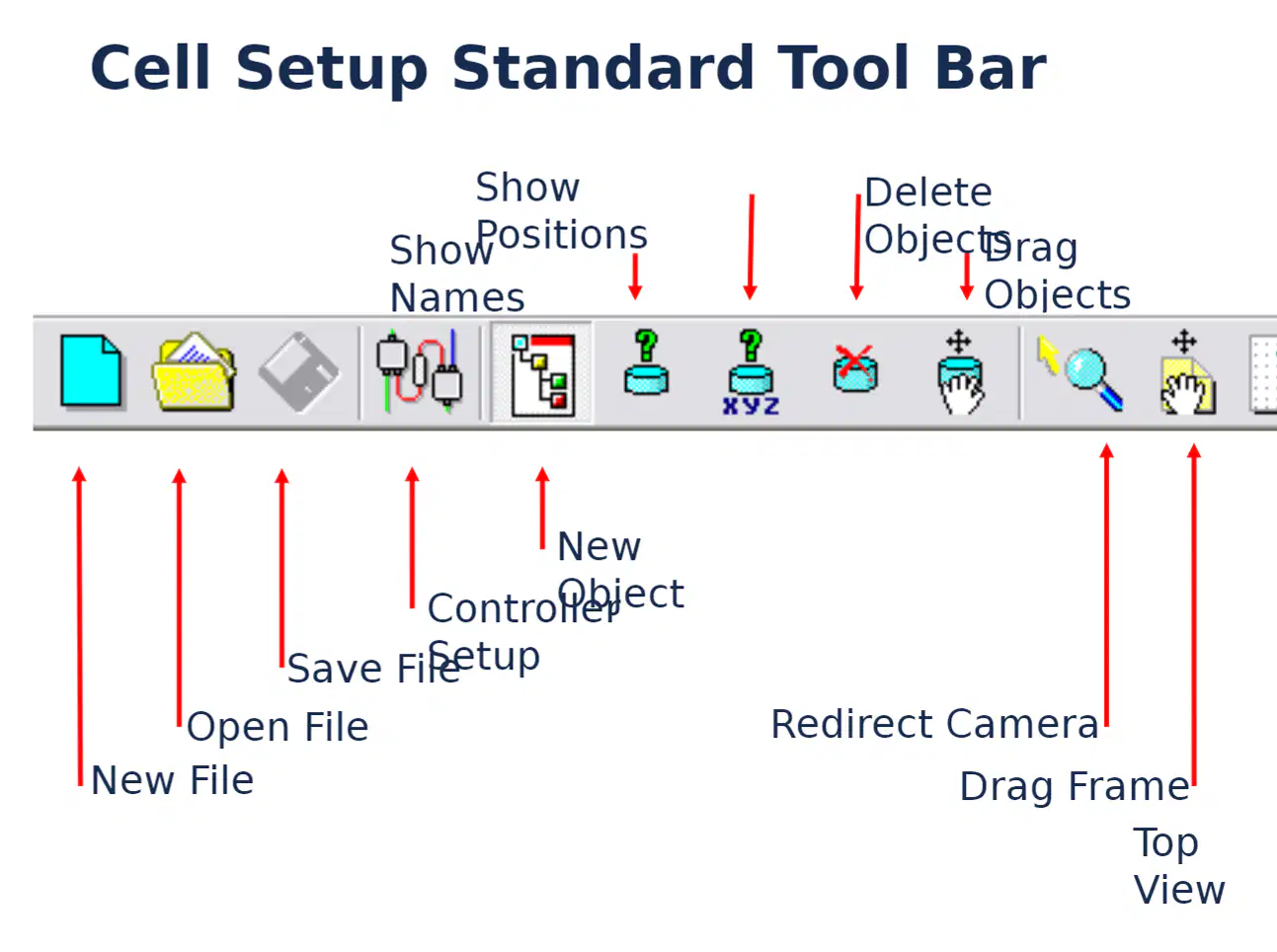

What function does the icon with a magnifying glass and a yellow background perform in the Cell Setup Standard Tool Bar?
Save File
Show Positions
Delete Objects
Redirect Camera
Which icon would you use to create a new project in the Cell Setup Standard Tool Bar?
The icon with a folder and a star
The icon with a floppy disk
The icon with a trash bin
The icon with a camera and an arrow
How can you identify the 'Top View' function in the Cell Setup Standard Tool Bar?
It is the icon with a camera and an arrow
It is the icon with a magnifying glass
It is the icon with a grid and an arrow
It is the icon with a floppy disk
Which icon is used to delete objects in the Cell Setup Standard Tool Bar?
The icon with a magnifying glass
The icon with a floppy disk
The icon with a trash bin
The icon with a grid and an arrow

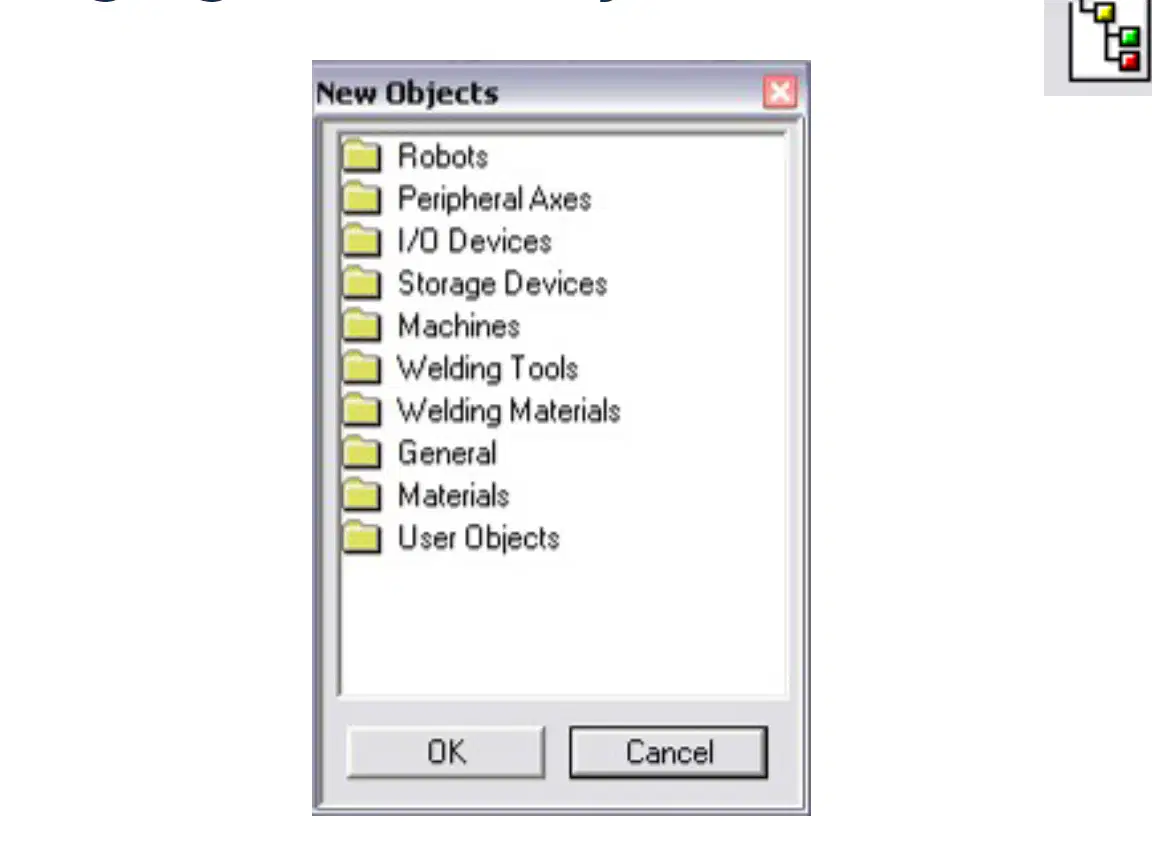

Which category of new objects can be brought into the system according to the image provided?
Animals
Robots
Plants
Vehicles
What is the last category listed in the 'New Objects' window shown in the image?
User Objects
Materials
General
Peripheral Axes
Which of the following is not a category listed in the 'New Objects' window in the image?
Machines
Welding Tools
Software
I/O Devices
Identify the object labeled as 'ER 4u' in the New Objects Menu.
A small purple robotic arm
A green and black slidebase
A large blue robotic arm
An orange experiment table
What category in the New Object Menu would you find a 'Table' under?
Materials
User Objects
General
None of the above
Which of the following is NOT a category in the New Object Menu?
General
Materials
User Objects
Furniture
Under which category would you find 'Cube', 'Cylinder', and 'Ball' in the New Object Menu?
General
Materials
User Objects
None of the above
What action should you take to see the attributes of an object that can be changed?
Right-click on the object
Double-click on the object
Drag the object
Press the delete key
What happens when you select 'Delete Object'?
The object is duplicated
The object is moved to a different location
The object is resized
The object is removed from the workspace
What is the first step in setting up a new work cell example according to the document?
Select Robot ER 4u
Start new CellSetup
Create a new empty CE
Open an existing project
Which robot is selected for the new work cell in the example provided?
ER 2u
ER 4u
ER 9u
ER 5u
What are the dimensions of the new table to be created as per the instructions?
500mm x 500mm
1000mm x 500mm
1500mm x 1000mm
1000mm x 1000mm
What is the main action described on this page for interacting with objects in the cell?
Rotate the objects in the cell
Move the objects in the cell
Resize the objects in the cell
Delete the objects in the cell
According to the instructions, how should the robot be positioned?
The robot should be positioned outside the cell
The robot should be positioned hanging off the edge of the table
The robot should be positioned properly on the table
The robot should be positioned upside down
