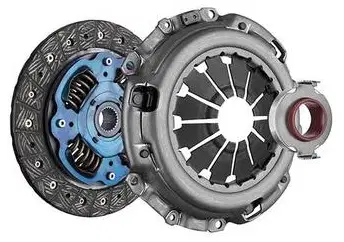

WorksheetsClutch operating systems
Total questions: 20
Worksheet time: 10mins
Name
Class
Date
1.
Which of the below is a commonly used type of clutch operating system?
a)
Cable operated clutch
b)
Electronically operated clutch
c)
Rod/linkage operated clutch
d)
Electromechanically operated clutch
2.
Which of the below is a commonly used type of clutch operating system?
a)
Hydraulically operated clutch
b)
Electronically operated clutch
c)
Rod/linkage operated clutch
d)
Electromechanically operated clutch
3.
What name is given to the clutch operating system shown below?
a)
Cable operated clutch
b)
Electronically operated clutch
c)
Rod/linkage operated clutch
d)
Electromechanically operated clutch
4.
What name is given to the clutch operating system shown below?
a)
Hydraulically operated clutch
b)
Electronically operated clutch
c)
Rod/linkage operated clutch
d)
Electromechanically operated clutch
5.
What name is given to the component labelled with the letter A in the diagram below?
a)
Clutch cable
b)
Clutch pedal
c)
Clutch fork
d)
Clutch pedal return spring
6.
What name is given to the component labelled with the letter B in the diagram below?
a)
Clutch cable
b)
Clutch pedal
c)
Clutch fork
d)
Clutch pedal return spring
7.
What name is given to the component labelled with the letter C in the diagram below?
a)
Clutch cable
b)
Clutch pedal
c)
Clutch fork return spring
d)
Clutch pedal return spring
8.
What name is given to the component labelled with the letter D in the diagram below?
a)
Clutch cable
b)
Clutch pedal
c)
Clutch fork return spring
d)
Clutch pedal return spring
9.
What name is given to the component labelled with the letter E in the diagram below?
a)
Clutch cable
b)
Clutch pedal
c)
Clutch fork return spring
d)
Clutch pedal return spring
10.
What name is given to the component labelled with the letter A in the diagram below?
a)
Clutch fluid reservoir
b)
Clutch master cylinder
c)
Clutch hydraulic hose
d)
Clutch pedal
11.
What name is given to the component labelled with the letter B in the diagram below?
a)
Clutch fluid reservoir
b)
Clutch master cylinder
c)
Clutch slave cylinder
d)
Clutch pedal
12.
What name is given to the component labelled with the letter C in the diagram below?
a)
Clutch fluid reservoir
b)
Clutch master cylinder
c)
Clutch hydraulic hose
d)
Clutch pedal
13.
What name is given to the component labelled with the letter D in the diagram below?
a)
Clutch slave cylinder
b)
Clutch master cylinder
c)
Clutch hydraulic hose
d)
Clutch pedal
14.
What name is given to the component labelled with the letter E in the diagram below?
a)
Clutch slave cylinder
b)
Clutch master cylinder
c)
Clutch hydraulic hose
d)
Clutch fork
15.
What name is given to the component labelled with the letter F in the diagram below?
a)
Clutch slave cylinder
b)
Clutch master cylinder
c)
Clutch hydraulic hose
d)
Clutch pedal
16.
Clutch slip may be caused by?
a)
The clutch shaft spigot bearing
b)
Lack of clearance at the release bearing
c)
Too much clearance at the thrust bearing
d)
Worn crankshaft thrust washers
17.
An adjuster is provided in the mechanical linkage between the pedal and the clutch to?
a)
Enable a clearance to be set in the operating mechanism
b)
Allow the pedal to be set to suit various drivers’ leg length
c)
To ensure that the release bearing is always in contact with the clutch cover
d)
Take up clearance or free movement in the operating linkage
18.
The driver has difficulty selecting gears and despite pressing the clutch can hear grinding noises. Which of the below is the most likely cause?
a)
Clutch slip caused by incorrectly adjusted clutch cable
b)
Clutch drag caused by air in the clutch hydraulic system
c)
Lack of oil in the gearbox
d)
Worn clutch plate due to high mileage
19.
If a technician identifies air in a hydraulic clutch operating system, which actions are required?
a)
Top up reservoir, add a pressure gauge and pump clutch pedal
b)
Top up reservoir, start engine and pump clutch pedal
c)
Top up reservoir, open a bleed screw and pump clutch pedal
d)
Top up reservoir, add a pressure gauge and monitor reading
20.

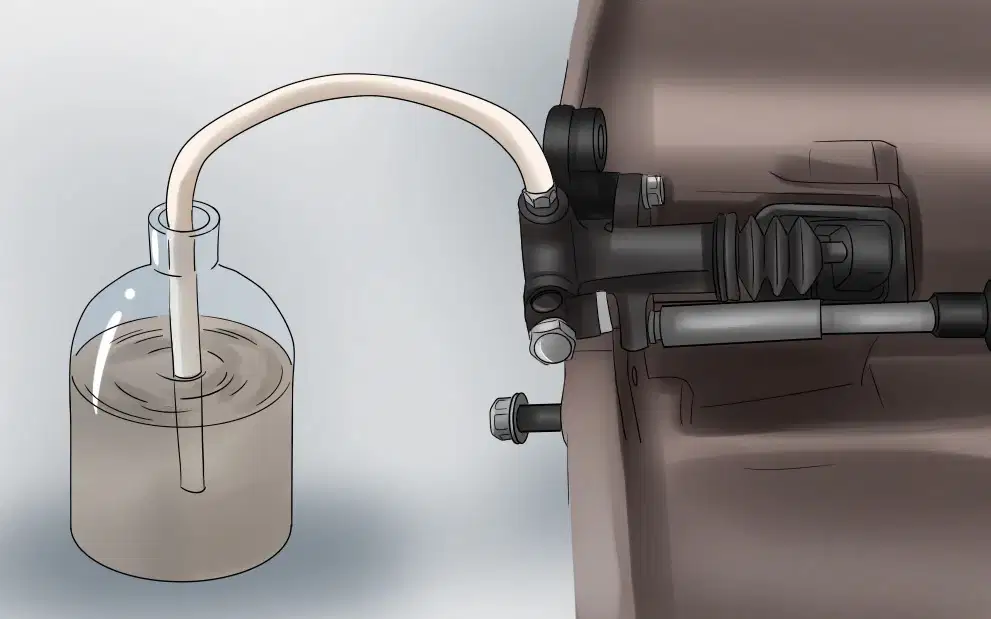

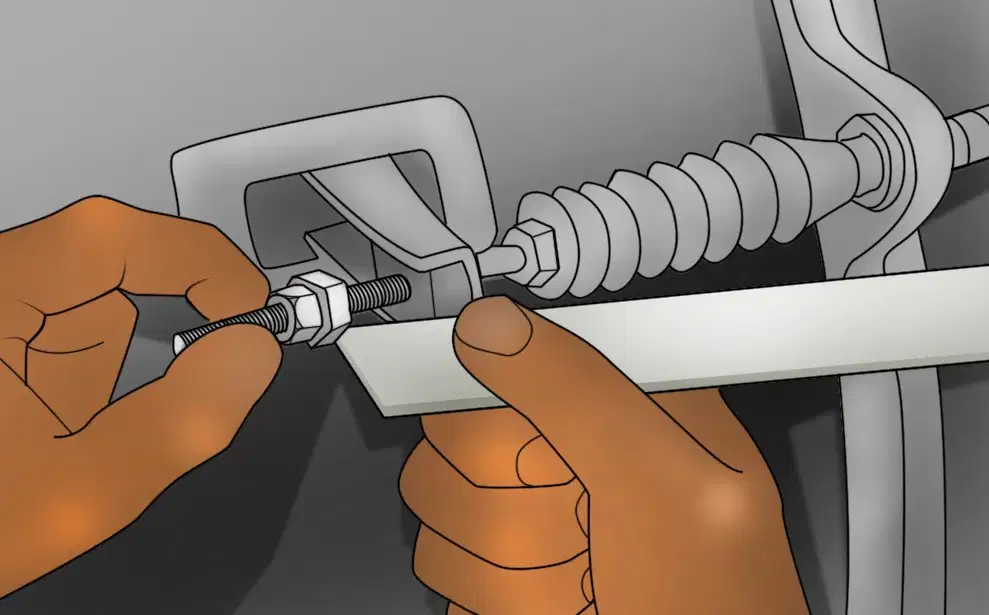

What maintenance task is being carried out in the image below?
a)
Adjusting the clutch cable freeplay
b)
Bleeding the clutch of air
c)
Draining the gearbox oil
d)
Topping up the ATF (Automatic Transmission Fluid)
