Worksheetsfinal ccna2
Total questions: 112
Worksheet time: 3615secs

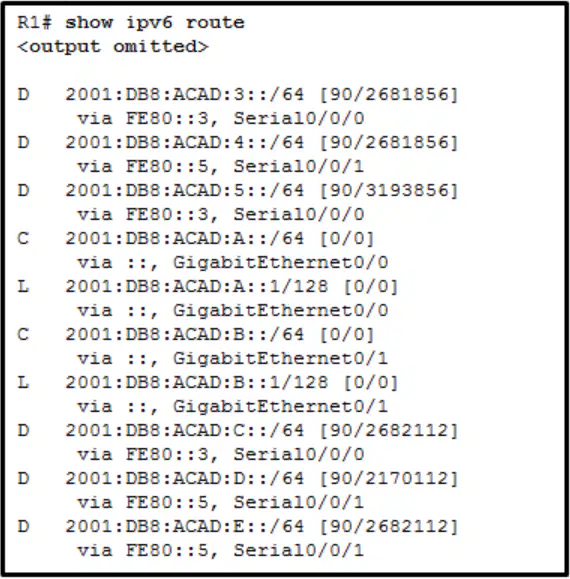

Refer to the exhibit. What will router R1 do with a packet that has a destination IPv6 address of 2001:db8:cafe:5::1?
forward the packet out GigabitEthernet0/0
forward the packet out GigabitEthernet0/1
forward the packet out Serial0/0/0
drop the packet

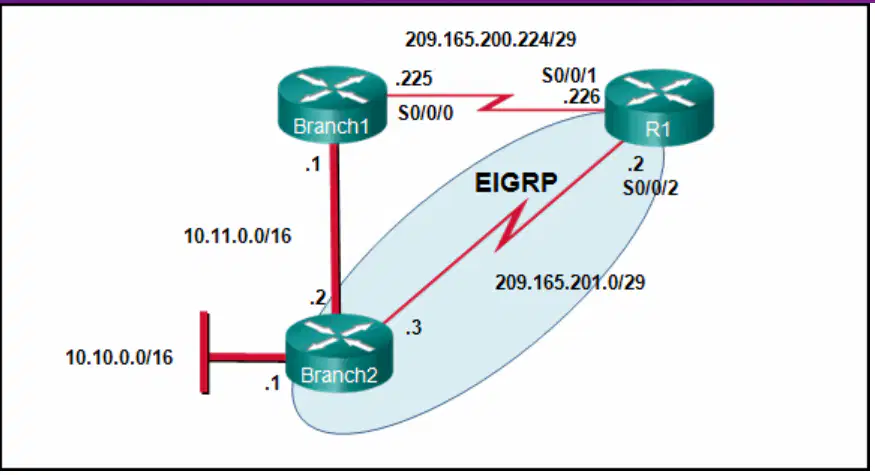

Refer to the exhibit. Currently router R1 uses an EIGRP route learned from Branch2 to reach the 10.10.0.0/16 network. Which floating static route would create a backup route to the 10.10.0.0/16 network in the event that the link between R1 and Branch2 goes down?
ip route 10.10.0.0 255.255.0.0 Serial 0/0/0 100
ip route 10.10.0.0 255.255.0.0 209.165.200.226 100
ip route 10.10.0.0 255.255.0.0 209.165.200.225 100
ip route 10.10.0.0 255.255.0.0 209.165.200.225 50
Refer to the exhibit. R1 was configured with the static route command ip route 209.165.200.224 255.255.255.224 S0/0/0 and consequently users on network 172.16.0.0/16 are unable to reach resources on the Internet. How should this static route be changed to allow user traffic from the LAN to reach the Internet?
Add an administrative distance of 254
Change the destination network and mask to 0.0.0.0 0.0.0.0
Change the exit interface to S0/0/1.
Add the next-hop neighbor address of 209.165.200.226.
Which option shows a correctly configured IPv4 default static route?
ip route 0.0.0.0 255.255.255.0 S0/0/0
ip route 0.0.0.0 0.0.0.0 S0/0/0
ip route 0.0.0.0 255.255.255.255 S0/0/0
ip route 0.0.0.0 255.0.0.0 S0/0/0
Refer to the exhibit. Which static route command can be entered on R1 to forward traffic to the LAN connected to R2?
ipv6 route 2001:db8:12:10::/64 S0/0/0
ipv6 route 2001:db8:12:10::/64 S0/0/1 fe80::2
ipv6 route 2001:db8:12:10::/64 S0/0/0 fe80::2
ipv6 route 2001:db8:12:10::/64 S0/0/1 2001:db8:12:10::1
What is a method to launch a VLAN hopping attack?
introducing a rogue switch and enabling trunking
sending spoofed native VLAN information
sending spoofed IP addresses from the attacking host
flooding the switch with MAC addresses
A cybersecurity analyst is using the macof tool to evaluate configurations of switches deployed in the backbone network of an organization. Which type of LAN attack is the analyst targeting during this evaluation?
VLAN hopping
DHCP spoofing
MAC address table overflow
VLAN double-tagging

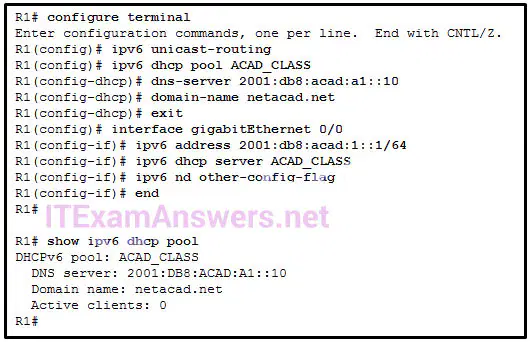

Refer to the exhibit. A network administrator is configuring a router as a DHCPv6 server. The administrator issues a show ipv6 dhcp pool command to verify the configuration. Which statement explains the reason that the number of active clients is 0?
The default gateway address is not provided in the pool.
The state is not maintained by the DHCPv6 server under stateless DHCPv6 operation.
The IPv6 DHCP pool configuration has no IPv6 address range specified.
No clients have communicated with the DHCPv6 server yet.

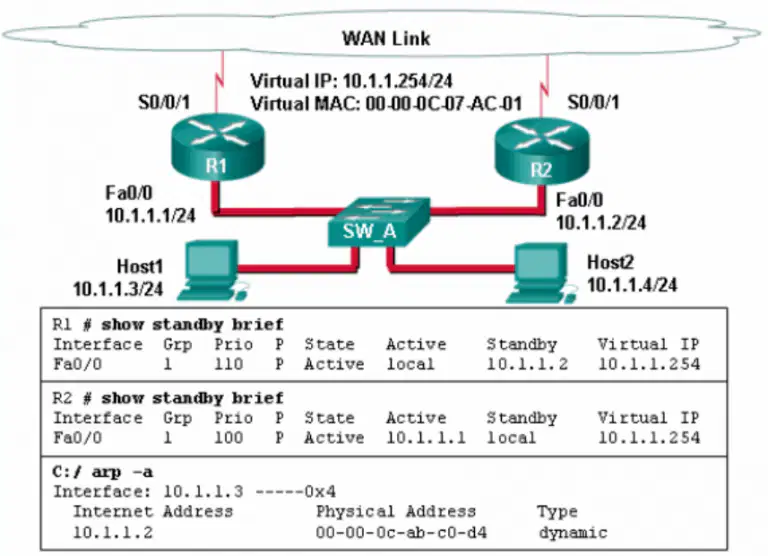

Refer to the exhibit. A network administrator configured routers R1 and R2 as part of HSRP group 1. After the routers have been reloaded, a user on Host1 complained of lack of connectivity to the Internet The network administrator issued the show standby brief command on both routers to verify the HSRP operations. In addition, the administrator observed the ARP table on Host1. Which entry should be seen in the ARP table on Host1 in order to gain connectivity to the Internet?
the virtual IP address and the virtual MAC address for the HSRP group 1
the virtual IP address of the HSRP group 1 and the MAC address of R1
the virtual IP address of the HSRP group 1 and the MAC address of R2
the IP address and the MAC address of R1
11. Which statement is correct about how a Layer 2 switch determines how to forward frames?
Frame forwarding decisions are based on MAC address and port mappings in the CAM table.
Only frames with a broadcast destination address are forwarded out all active switch ports.
Unicast frames are always forwarded regardless of the destination MAC address.
Cut-through frame forwarding ensures that invalid frames are always dropped.
12. Which statement describes a result after multiple Cisco LAN switches are interconnected?
The broadcast domain expands to all switches.
One collision domain exists per switch.
There is one broadcast domain and one collision domain per switch.
Frame collisions increase on the segments connecting the switches.
14.Refer to the exhibit. How is a frame sent from PCA forwarded to PCC if the MAC address table on switch SW1 is empty?
SW1 forwards the frame directly to SW2. SW2 floods the frame to all ports connected to SW2, excluding the port through which the frame entered the switch.
SW1 floods the frame on all ports on the switch, excluding the interconnected port to switch SW2 and the port through which the frame entered the switch.
SW1 floods the frame on all ports on SW1, excluding the port through which the frame entered the switch.
SW1 drops the frame because it does not know the destination MAC address.
15. An administrator is trying to remove configurations from a switch. After using the command erase startup-config and reloading the switch, the administrator finds that VLANs 10 and 100 still exist on the switch. Why were these VLANs not removed?
Because these VLANs are stored in a file that is called vlan.dat that is located in flash memory, this file must be manually deleted.
These VLANs cannot be deleted unless the switch is in VTP client mode.
These VLANs are default VLANs that cannot be removed.
These VLANs can only be removed from the switch by using the no vlan 10 and no vlan 100 commands.
17. Refer to the exhibit. A network administrator has connected two switches together using EtherChannel technology. If STP is running, what will be the end result?
STP will block one of the redundant links.
The switches will load balance and utilize both EtherChannels to forward packets.
The resulting loop will create a broadcast storm.
Both port channels will shutdown.
18. What is a secure configuration option for remote access to a network device?
Configure an ACL and apply it to the VTY lines.
Configure 802.1x.
Configure SSH.
Configure Telnet.
19. Which wireless encryption method is the most secure?
WPA2 with AES
WPA2 with TKIP
WEP
WPA
20. After attaching four PCs to the switch ports, configuring the SSID and setting authentication properties for a small office network, a technician successfully tests the connectivity of all PCs that are connected to the switch and WLAN. A firewall is then configured on the device prior to connecting it to the Internet. What type of network device includes all of the described features?
firewall appliance
wireless router
switch
standalone wireless access point

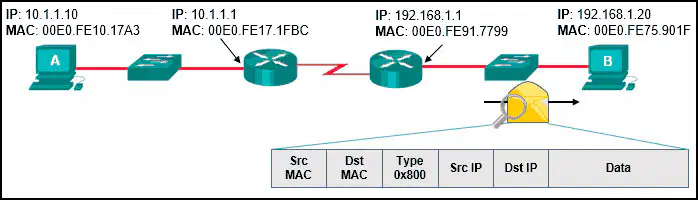

21. Refer to the exhibit. Host A has sent a packet to host B. What will be the source MAC and IP addresses on the packet when it arrives at host B?
Source MAC: 00E0.FE91.7799
Source IP: 10.1.1.10
Source MAC: 00E0.FE10.17A3
Source IP: 10.1.1.10
Source MAC: 00E0.FE10.17A3
Source IP: 192.168.1.1
Source MAC: 00E0.FE91.7799
Source IP: 10.1.1.1
Source MAC: 00E0.FE91.7799
Source IP: 192.168.1.1

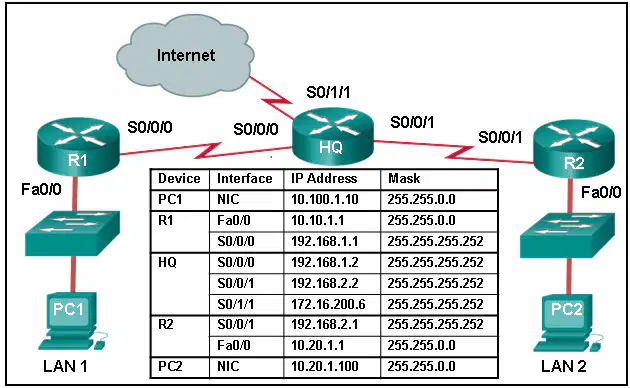

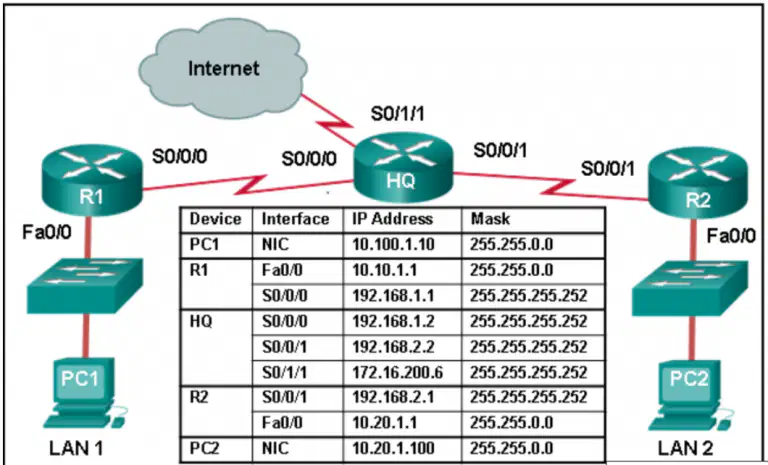

23. Refer to the exhibit. In addition to static routes directing traffic to networks 10.10.0.0/16 and 10.20.0.0/16, Router HQ is also configured with the following command:
ip route 0.0.0.0 0.0.0.0 serial 0/1/1
What is the purpose of this command?
Packets that are received from the Internet will be forwarded to one of the LANs connected to R1 or R2.
Packets with a destination network that is not 10.10.0.0/16 or is not 10.20.0.0/16 or is not a directly connected network will be forwarded to the Internet.
Packets from the 10.10.0.0/16 network will be forwarded to network 10.20.0.0/16, and packets from the 10.20.0.0/16 network will be forwarded to network 10.10.0.0/16.
Packets that are destined for networks that are not in the routing table of HQ will be dropped.
24. What protocol or technology disables redundant paths to eliminate Layer 2 loops?
VTP
STP
EtherChannel
DTP

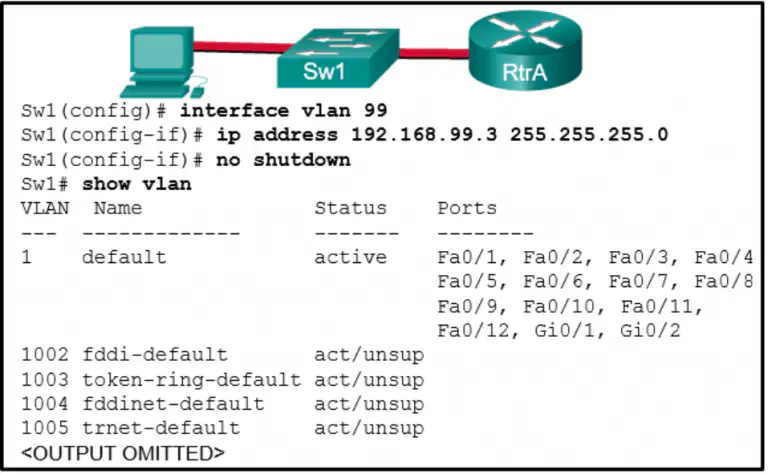

25. Refer to the exhibit. Based on the exhibited configuration and output, why is VLAN 99 missing?
because VLAN 99 is not a valid management VLAN
because there is a cabling problem on VLAN 99
because VLAN 1 is up and there can only be one management VLAN on the switch
because VLAN 99 has not yet been created
26. Which two VTP modes allow for the creation, modification, and deletion of VLANs on the local switch? (Choose two.)
client
master
distribution
server
transparent
27. Which three steps should be taken before moving a Cisco switch to a new VTP management domain? (Choose three.)
Configure the switch with the name of the new management domain.
Reset the VTP counters to allow the switch to synchronize with the other switches in the domain.
Configure the VTP server in the domain to recognize the BID of the new switch.
Select the correct VTP mode and version.
Reboot the switch.
28. A network administrator is preparing the implementation of Rapid PVST+ on a production network. How are the Rapid PVST+ link types determined on the switch interfaces?
Link types can only be configured on access ports configured with a single VLAN.
Link types can only be determined if PortFast has been configured.
Link types are determined automatically.
Link types must be configured with specific port configuration commands.
29. Refer to the exhibit. All the displayed switches are Cisco 2960 switches with the same default priority and operating at the same bandwidth. Which three ports will be STP designated ports? (Choose three.)
fa0/13
fa0/10
fa0/21
fa0/11
30. How will a router handle static routing differently if Cisco Express Forwarding is disabled?
It will not perform recursive lookups.
Ethernet multiaccess interfaces will require fully specified static routes to avoid routing inconsistencies.
Static routes that use an exit interface will be unnecessary.
Serial point-to-point interfaces will require fully specified static routes to avoid routing inconsistencies.
31. Compared with dynamic routes, what are two advantages of using static routes on a router? (Choose two.)
They improve network security.
They take less time to converge when the network topology changes.
They improve the efficiency of discovering neighboring networks.
They use fewer router resources.
32. Refer to the exhibit. Which route was configured as a static route to a specific network using the next-hop address?
S 10.17.2.0/24 [1/0] via 10.16.2.2
S 0.0.0.0/0 [1/0] via 10.16.2.2
S 10.17.2.0/24 is directly connected, Serial 0/0/0
C 10.16.2.0/24 is directly connected, Serial0/0/0
33. What is the effect of entering the spanning-tree portfast configuration command on a switch?
It disables an unused port.
It disables all trunk ports.
It enables portfast on a specific switch interface.
It checks the source L2 address in the Ethernet header against the sender L2 address in the ARP body.
34. What is the IPv6 prefix that is used for link-local addresses?
FF01::/8
2001::/3
FC00::/7
FE80::/10
35. Which two statements are characteristics of routed ports on a multilayer switch? (Choose two.)
In a switched network, they are mostly configured between switches at the core and distribution layers.
They are not associated with a particular VLAN.
They support subinterfaces, like interfaces on the Cisco IOS routers.
The interface vlan command has to be entered to create a VLAN on routed ports.
36. Successful inter-VLAN routing has been operating on a network with multiple VLANs across multiple switches for some time. When an inter-switch trunk link fails and Spanning Tree Protocol brings up a backup trunk link, it is reported that hosts on two VLANs can access some, but not all the network resources that could be accessed previously. Hosts on all other VLANS do not have this problem. What is the most likely cause of this problem?
The protected edge port function on the backup trunk interfaces has been disabled.
The allowed VLANs on the backup link were not configured correctly.
Dynamic Trunking Protocol on the link has failed.
Inter-VLAN routing also failed when the trunk link failed.
37. Which command will start the process to bundle two physical interfaces to create an EtherChannel group via LACP?
interface port-channel 2
channel-group 1 mode desirable
interface range GigabitEthernet 0/4 – 5
channel-group 2 mode auto
38. What action takes place when a frame entering a switch has a multicast destination MAC address?
The switch will forward the frame out all ports except the incoming port.
The switch forwards the frame out of the specified port.
The switch adds a MAC address table entry mapping for the destination MAC address and the ingress port.
The switch replaces the old entry and uses the more current port.
39. A junior technician was adding a route to a LAN router. A traceroute to a device on the new network revealed a wrong path and unreachable status. What should be done or checked?
Verify that there is not a default route in any of the edge router routing tables.
Check the configuration on the floating static route and adjust the AD.
Create a floating static route to that network.
Check the configuration of the exit interface on the new static route.
40. Select the three PAgP channel establishment modes. (Choose three.)
auto
desirable
on
passive
41. A static route has been configured on a router. However, the destination network no longer exists. What should an administrator do to remove the static route from the routing table?
Remove the route using the no ip route command.
Change the administrative distance for that route.
Change the routing metric for that route.
Nothing. The static route will go away on its own.
42. Refer to the exhibit. What can be concluded about the configuration shown on R1?
R1 is configured as a DHCPv4 relay agent.
R1 is operating as a DHCPv4 server.
R1 will broadcast DHCPv4 requests on behalf of local DHCPv4 clients.
R1 will send a message to a local DHCPv4 client to contact a DHCPv4 server at 10.10.10.8.
44. Refer to the exhibit. R1 has been configured as shown. However, PC1 is not able to receive an IPv4 address. What is the problem?
The ip helper-address command was applied on the wrong interface.
R1 is not configured as a DHCPv4 server.
A DHCP server must be installed on the same LAN as the host that is receiving the IP address.
The ip address dhcp command was not issued on the interface Gi0/1.
45. What two default wireless router settings can affect network security? (Choose two.)
The SSID is broadcast.
MAC address filtering is enabled.
WEP encryption is enabled.
A well-known administrator password is set.
46. What is the common term given to SNMP log messages that are generated by network devices and sent to the SNMP server?
traps
acknowledgments
auditing
warnings
47. A network administrator is adding a new WLAN on a Cisco 3500 series WLC. Which tab should the administrator use to create a new VLAN interface to be used for the new WLAN?
WIRELESS
MANAGEMENT
CONTROLLER
WLANs
48. A network administrator is configuring a WLAN. Why would the administrator change the default DHCP IPv4 addresses on an AP?
to restrict access to the WLAN by authorized, authenticated users only
to monitor the operation of the wireless network
to reduce outsiders intercepting data or accessing the wireless network by using a well-known address range
to reduce the risk of interference by external devices such as microwave ovens
49. Which two functions are performed by a WLC when using split media access control (MAC)? (Choose two.)
packet acknowledgments and retransmissions
frame queuing and packet prioritization
beacons and probe responses
frame translation to other protocols
association and re-association of roaming clients
50. On what switch ports should BPDU guard be enabled to enhance STP stability?
all PortFast-enabled ports
only ports that are elected as designated ports
only ports that attach to a neighboring switch
all trunk ports that are not root ports
51. Which network attack is mitigated by enabling BPDU guard?
rogue switches on a network
CAM table overflow attacks
MAC address spoofing
rogue DHCP servers on a network
52. Why is DHCP snooping required when using the Dynamic ARP Inspection feature?
It relies on the settings of trusted and untrusted ports set by DHCP snooping.
It uses the MAC address table to verify the default gateway IP address.
It redirects ARP requests to the DHCP server for verification.
It uses the MAC-address-to-IP-address binding database to validate an ARP packet.
53. Refer to the exhibit. Router R1 has an OSPF neighbor relationship with the ISP router over the 192.168.0.32 network. The 192.168.0.36 network link should serve as a backup when the OSPF link goes down. The floating static route command ip route 0.0.0.0 0.0.0.0 S0/0/1 100 was issued on R1 and now traffic is using the backup link even when the OSPF link is up and functioning. Which change should be made to the static route command so that traffic will only use the OSPF link when it is up?
Change the administrative distance to 120.
Add the next hop neighbor address of 192.168.0.36.
Change the destination network to 192.168.0.34.
Change the administrative distance to 1.
54. Refer to the exhibit. What is the metric to forward a data packet with the IPv6 destination address 2001:DB8:ACAD:E:240:BFF:FED4:9DD2?
2682112
2681856
128
90
55. A network administrator is configuring a new Cisco switch for remote management access. Which three items must be configured on the switch for the task? (Choose three.)
IP address
vty lines
default gateway
default VLAN
56. Refer to the exhibit. Which statement shown in the output allows router R1 to respond to stateless DHCPv6 requests?
ipv6 nd other-config-flag
prefix-delegation 2001:DB8:8::/48 00030001000E84244E70
ipv6 dhcp server LAN1
ipv6 unicast-routing
58. A technician is troubleshooting a slow WLAN and decides to use the split-the-traffic approach. Which two parameters would have to be configured to do this? (Choose two.)
Configure the 5 GHz band for streaming multimedia and time sensitive traffic.
Configure the security mode to WPA Personal TKIP/AES for one network and WPA2 Personal AES for the other network
Configure the security mode to WPA Personal TKIP/AES for both networks.
Configure the 2.4 GHz band for basic internet traffic that is not time sensitive.
59. A company has just switched to a new ISP. The ISP has completed and checked the connection from its site to the company. However, employees at the company are not able to access the internet. What should be done or checked?
Verify that the static route to the server is present in the routing table.
Check the configuration on the floating static route and adjust the AD.
Ensure that the old default route has been removed from the company edge routers.
Create a floating static route to that network.
60. Which information does a switch use to populate the MAC address table?
the destination MAC address and the incoming port
the source MAC address and the incoming port
the source and destination MAC addresses and the incoming port
the source and destination MAC addresses and the outgoing port
61. Refer to the exhibit. A network administrator is reviewing the configuration of switch S1. Which protocol has been implemented to group multiple physical ports into one logical link?
PAgP
DTP
LACP
STP
62. Which type of static route is configured with a greater administrative distance to provide a backup route to a route learned from a dynamic routing protocol?
floating static route
default static route
summary static route
standard static route
63. What action takes place when a frame entering a switch has a unicast destination MAC address appearing in the MAC address table?
The switch updates the refresh timer for the entry.
The switch forwards the frame out of the specified port.
The switch purges the entire MAC address table.
The switch replaces the old entry and uses the more current port.
64. The exhibit shows two PCs called PC A and PC B, two routes called R1 and R2, and two switches. PC A has the address 172.16.1.1/24 and is connected to a switch and into an interface on R1 that has the IP address 172.16.1.254. PC B has the address 172.16.2.1/24 and is connected to a switch that is connected to another interface on R1 with the IP address 172.16.2.254. The serial interface on R1 has the address 172.16.3.1 and is connected to the serial interface on R2 that has the address 172.16.3.2/24. R2 is connected to the internet cloud. Which command will create a static route on R2 in order to reach PC B?
R2(config)# ip route 172.16.2.1 255.255.255.0 172.16.3.1
R2(config)# ip route 172.16.2.0 255.255.255.0 172.16.2.254
R2(config)# ip route 172.16.2.0 255.255.255.0 172.16.3.1
R2(config)# ip route 172.16.3.0 255.255.255.0 172.16.2.254
65. What protocol or technology allows data to transmit over redundant switch links?
EtherChannel
DTP
STP
VTP
67. Refer to the exhibit. The network administrator configures both switches as displayed. However, host C is unable to ping host D and host E is unable to ping host F. What action should the administrator take to enable this communication?
Associate hosts A and B with VLAN 10 instead of VLAN 1.
Configure either trunk port in the dynamic desirable mode.
Include a router in the topology.
Remove the native VLAN from the trunk.
68. What is the effect of entering the shutdown configuration command on a switch?
It enables BPDU guard on a specific port.
It disables an unused port.
It enables portfast on a specific switch interface.
It disables DTP on a non-trunking interface.
69. What would be the primary reason an attacker would launch a MAC address overflow attack?
so that the switch stops forwarding traffic
so that legitimate hosts cannot obtain a MAC address
so that the attacker can see frames that are destined for other hosts
so that the attacker can execute arbitrary code on the switch
70. During the AAA process, when will authorization be implemented?
Immediately after successful authentication against an AAA data source
Immediately after AAA accounting and auditing receives detailed reports
Immediately after an AAA client sends authentication information to a centralized server
Immediately after the determination of which resources a user can access
71. A company security policy requires that all MAC addressing be dynamically learned and added to both the MAC address table and the running configuration on each switch. Which port security configuration will accomplish this?
auto secure MAC addresses
dynamic secure MAC addresses
static secure MAC addresses
sticky secure MAC addresses
72. Which three Wi-Fi standards operate in the 2.4GHz range of frequencies? (Choose three.)
802.11ac
802.11n
802.11g
802.11b
73. To obtain an overview of the spanning tree status of a switched network, a network engineer issues the show spanning-tree command on a switch. Which two items of information will this command display? (Choose two.)
The root bridge BID.
The role of the ports in all VLANs.
The status of native VLAN ports.
The number of broadcasts received on each root port.
74. Refer to the exhibit. Which trunk link will not forward any traffic after the root bridge election process is complete?
Trunk1
Trunk2
Trunk3
Trunk4
75. Which method of IPv6 prefix assignment relies on the prefix contained in RA messages?
EUI-64
SLAAC
static
stateful DHCPv6
76. Which two protocols are used to provide server-based AAA authentication? (Choose two.)
802.1x
SSH
TACACS+
RADIUS
77. A network administrator is configuring a WLAN. Why would the administrator disable the broadcast feature for the SSID?
to eliminate outsiders scanning for available SSIDs in the area
to reduce the risk of interference by external devices such as microwave ovens
to reduce the risk of unauthorized APs being added to the network
to provide privacy and integrity to wireless traffic by using encryption
78. Which mitigation technique would prevent rogue servers from providing false IP configuration parameters to clients?
implementing port security
turning on DHCP snooping
disabling CDP on edge ports
implementing port-security on edge ports
79. A network administrator configures the port security feature on a switch. The security policy specifies that each access port should allow up to two MAC addresses. When the maximum number of MAC addresses is reached, a frame with the unknown source MAC address is dropped and a notification is sent to the syslog server. Which security violation mode should be configured for each access port?
shutdown
restrict
warning
protect
80. What protocol or technology defines a group of routers, one of them defined as active and another one as standby?
EtherChannel
VTP
HSRP
DTP
81. Refer to the exhibit. After attempting to enter the configuration that is shown in router RTA, an administrator receives an error and users on VLAN 20 report that they are unable to reach users on VLAN 30. What is causing the problem?
There is no address on Fa0/0 to use as a default gateway.
RTA is using the same subnet for VLAN 20 and VLAN 30.
Dot1q does not support subinterfaces.
The no shutdown command should have been issued on Fa0/0.20 and Fa0/0.30.
83. A technician is configuring a router for a small company with multiple WLANs and doesn’t need the complexity of a dynamic routing protocol. What should be done or checked?
Verify that there is not a default route in any of the edge router routing tables.
Create static routes to all internal networks and a default route to the internet.
Create extra static routes to the same location with an AD of 1.
Check the statistics on the default route for oversaturation.
84. A company is deploying a wireless network in the distribution facility in a Boston suburb. The warehouse is quite large and it requires multiple access points to be used. Because some of the company devices still operate at 2.4GHz, the network administrator decides to deploy the 802.11g standard. Which channel assignments on the multiple access points will make sure that the wireless channels are not overlapping?
channels 1, 5, and 9
channels 1, 6, and 11
channels 1, 7, and 13
channels 2, 6, and 10
85. A network administrator of a small advertising company is configuring WLAN security by using the WPA2 PSK method. Which credential do office users need in order to connect their laptops to the WLAN?
the company username and password through Active Directory service
a key that matches the key on the AP
a user passphrase
a username and password configured on the AP
86. Refer to the exhibit. What are the possible port roles for ports A, B, C, and D in this RSTP-enabled network?
alternate, designated, root, root
designated, alternate, root, root
alternate, root, designated, root
designated, root, alternate, root
ip route 172.16.1.0 255.255.255.0 s0/0/0
ip route 172.16.1.0 255.255.255.0 s0/0/0 121
ip route 172.16.1.0 255.255.255.0 s0/0/0 111
ip route 172.16.1.0 255.255.255.0 s0/0/0 91
88. What mitigation plan is best for thwarting a DoS attack that is creating a MAC address table overflow?
Disable DTP.
Disable STP.
Enable port security.
Place unused ports in an unused VLAN.
89. A network engineer is troubleshooting a newly deployed wireless network that is using the latest 802.11 standards. When users access high bandwidth services such as streaming video, the wireless network performance is poor. To improve performance the network engineer decides to configure a 5 Ghz frequency band SSID and train users to use that SSID for streaming media services. Why might this solution improve the wireless network performance for that type of service?
Requiring the users to switch to the 5 GHz band for streaming media is inconvenient and will result in fewer users accessing these services.
The 5 GHz band has more channels and is less crowded than the 2.4 GHz band, which makes it more suited to streaming multimedia.
The 5 GHz band has a greater range and is therefore likely to be interference-free.
The only users that can switch to the 5 GHz band will be those with the latest wireless NICs, which will reduce usage.
90. Which DHCPv4 message will a client send to accept an IPv4 address that is offered by a DHCP server?
broadcast DHCPACK
broadcast DHCPREQUEST
unicast DHCPACK
unicast DHCPREQUEST
91. Refer to the exhibit. Which destination MAC address is used when frames are sent from the workstation to the default gateway?
MAC address of the virtual router
MAC address of the standby router
MAC addresses of both the forwarding and standby routers
MAC address of the forwarding router
92. After a host has generated an IPv6 address by using the DHCPv6 or SLAAC process, how does the host verify that the address is unique and therefore usable?
The host sends an ICMPv6 echo request message to the DHCPv6 or SLAAC-learned address and if no reply is returned, the address is considered unique.
The host sends an ICMPv6 neighbor solicitation message to the DHCP or SLAAC-learned address and if no neighbor advertisement is returned, the address is considered unique.
The host checks the local neighbor cache for the learned address and if the address is not cached, it it considered unique.
The host sends an ARP broadcast to the local link and if no hosts send a reply, the address is considered unique.
94. Which protocol adds security to remote connections?
FTP
HTTP
NetBEUI
SSH
95. Refer to the exhibit. A network administrator is verifying the configuration of inter-VLAN routing. Users complain that PC2 cannot communicate with PC1. Based on the output, what is the possible cause of the problem?
Gi0/0 is not configured as a trunk port.
The command interface GigabitEthernet0/0.5 was entered incorrectly.
The encapsulation dot1Q 5 command contains the wrong VLAN.
The no shutdown command is not entered on subinterfaces.
96. Refer to the exhibit. A network administrator is configuring inter-VLAN routing on a network. For now, only one VLAN is being used, but more will be added soon. What is the missing parameter that is shown as the highlighted question mark in the graphic?
It identifies the subinterface.
It identifies the VLAN number.
It identifies the native VLAN number.
It identifies the type of encapsulation that is used.
98. What network attack seeks to create a DoS for clients by preventing them from being able to obtain a DHCP lease?
IP address spoofing
DHCP starvation
CAM table attack
DHCP spoofing
99. Refer to the exhibit. If the IP addresses of the default gateway router and the DNS server are correct, what is the configuration problem?
The DNS server and the default gateway router should be in the same subnet.
The IP address of the default gateway router is not contained in the excluded address list.
The default-router and dns-server commands need to be configured with subnet masks.
The IP address of the DNS server is not contained in the excluded address list.
101. What protocol or technology uses source IP to destination IP as a load-balancing mechanism?
VTP
EtherChannel
DTP
STP
102. What protocol should be disabled to help mitigate VLAN attacks?
CDP
ARP
STP
DTP
103. What protocol or technology requires switches to be in server mode or client mode?
EtherChannel
STP
VTP
DTP
104. What are two reasons a network administrator would segment a network with a Layer 2 switch? (Choose two.)
to create fewer collision domains
to enhance user bandwidth
to isolate traffic between segments
to isolate ARP request messages from the rest of the network
105. What command will enable a router to begin sending messages that allow it to configure a link-local address without using an IPv6 DHCP server?
the ipv6 route ::/0 command
the ipv6 unicast-routing command
the ip routing command
a static route
106. A network administrator is using the router-on-a-stick model to configure a switch and a router for inter-VLAN routing. What configuration should be made on the switch port that connects to the router?
Configure it as a trunk port and allow only untagged traffic.
Configure the port as an access port and a member of VLAN1.
Configure the port as an 802.1q trunk port.
Configure the port as a trunk port and assign it to VLAN1.
107. What are three techniques for mitigating VLAN attacks? (Choose three.)
Use private VLANs.
Enable trunking manually
Disable DTP.
Set the native VLAN to an unused VLAN.
109. In which situation would a technician use the show interfaces switch command?
to determine if remote access is enabled
when packets are being dropped from a particular directly attached host
when an end device can reach local devices, but not remote devices
to determine the MAC address of a directly attached network device on a particular interface
110. What is a drawback of the local database method of securing device access that can be solved by using AAA with centralized servers?
There is no ability to provide accountability.
User accounts must be configured locally on each device, which is an unscalable authentication solution.
It is very susceptible to brute-force attacks because there is no username.
The passwords can only be stored in plain text in the running configuration.
111. What action does a DHCPv4 client take if it receives more than one DHCPOFFER from multiple DHCP servers?
It sends a DHCPREQUEST that identifies which lease offer the client is accepting.
It sends a DHCPNAK and begins the DHCP process over again.
It discards both offers and sends a new DHCPDISCOVER.
It accepts both DHCPOFFER messages and sends a DHCPACK.
113. What method of wireless authentication is dependent on a RADIUS authentication server?
WEP
WPA Personal
WPA2 Personal
WPA2 Enterprise
114. A network administrator has found a user sending a double-tagged 802.1Q frame to a switch. What is the best solution to prevent this type of attack?
The native VLAN number used on any trunk should be one of the active data VLANs.
The VLANs for user access ports should be different VLANs than any native VLANs used on trunk ports.
Trunk ports should be configured with port security.
Trunk ports should use the default VLAN as the native VLAN number.
115. Refer to the exhibit. Which two conclusions can be drawn from the output? (Choose two.)
The EtherChannel is down.
The port channel ID is 2.
The port channel is a Layer 3 channel.
The bundle is fully operational.
117. On a Cisco 3504 WLC Summary page ( Advanced > Summary ), which tab allows a network administrator to configure a particular WLAN with a WPA2 policy?
WLANs
SECURITY
WIRELESS
MANAGEMENT
118. Refer to the exhibit. A network engineer is configuring IPv6 routing on the network. Which command issued on router HQ will configure a default route to the Internet to forward packets to an IPv6 destination network that is not listed in the routing table?
ipv6 route ::/0 serial 0/0/0
ip route 0.0.0.0 0.0.0.0 serial 0/1/1
ipv6 route ::1/0 serial 0/1/1
ipv6 route ::/0 serial 0/1/1
119. Users are complaining of sporadic access to the internet every afternoon. What should be done or checked?
Create static routes to all internal networks and a default route to the internet.
Verify that there is not a default route in any of the edge router routing tables.
Create a floating static route to that network.
Check the statistics on the default route for oversaturation.
120. What action takes place when the source MAC address of a frame entering a switch appears in the MAC address table associated with a different port?
The switch purges the entire MAC address table.
The switch replaces the old entry and uses the more current port.
The switch updates the refresh timer for the entry.
The switch forwards the frame out of the specified port.
121. A network administrator is configuring a WLAN. Why would the administrator use a WLAN controller?
to centralize management of multiple WLANs
to provide privacy and integrity to wireless traffic by using encryption
to facilitate group configuration and management of multiple WLANs through a WLC
to provide prioritized service for time-sensitive applications
124. Refer to the exhibit. A network administrator configures R1 for inter-VLAN routing between VLAN 10 and VLAN 20. However, the devices in VLAN 10 and VLAN 20 cannot communicate. Based on the configuration in the exhibit, what is a possible cause for the problem?
A. The port Gi0/0 should be configured as trunk port.
B. The encapsulation is misconfigured on a subinterface.
C. A no shutdown command should be added in each subinterface configuration.
D. The command interface gigabitEthernet 0/0.1 is wrong.
125. A network administrator uses the spanning-tree portfast bpduguard default global configuration command to enable BPDU guard on a switch. However, BPDU guard is not activated on all access ports. What is the cause of the issue?
BPDU guard needs to be activated in the interface configuration command mode.
Access ports configured with root guard cannot be configured with BPDU guard.
Access ports belong to different VLANs.
PortFast is not configured on all access ports.
126. Which two types of spanning tree protocols can cause suboptimal traffic flows because they assume only one spanning-tree instance for the entire bridged network? (Choose two.)
RSTP
Rapid PVST+
STP
PVST+
127. Refer to the exhibit. A network administrator is configuring the router R1 for IPv6 address assignment. Based on the partial configuration, which IPv6 global unicast address assignment scheme does the administrator intend to implement?
stateful
stateless
manual configuration
SLAAC
128. A WLAN engineer deploys a WLC and five wireless APs using the CAPWAP protocol with the DTLS feature to secure the control plane of the network devices. While testing the wireless network, the WLAN engineer notices that data traffic is being exchanged between the WLC and the APs in plain-text and is not being encrypted. What is the most likely reason for this?
DTLS only provides data security through authentication and does not provide encryption for data moving between a wireless LAN controller (WLC) and an access point (AP).
Although DTLS is enabled by default to secure the CAPWAP control channel, it is disabled by default for the data channel.
DTLS is a protocol that only provides security between the access point (AP) and the wireless client.
Data encryption requires a DTLS license to be installed on each access point (AP) prior to being enabled on the wireless LAN controller (WLC).
