WorksheetsTechnical Committe Quiz-4 Instruments
Total questions: 20
Worksheet time: 12mins
1 bar = -----psig
15
13.8
14.5
13
What is the Input Signal port size of 2625?
3/4
1/4
1/2
1
What is the supply and output port size of 2625 ?
3/4
1/2
1/4
1
Which model have superior resistance to degradation at elevated temperature and radiation levels?
2625
2625SST
2625NS
VBL
What is the supply and output port size of Volume booster?
3/4
1/4
1
1/2
How many diaphragms available in VBL ?
1
2
3
4
Select the correct Asco type mentioned below
2/3
4/3
5/3
3/2
Which two ports are connected, when there is a presence of electrical Supply?
1 & 2
3 & 2
1 & 3
which instrument should be used to increase stroking speed while in operation?
Needle valve
Quick exhaust valve
Pilot valve
Volume booster
Find the correct pilot valve type?
4/3
3/4
5/3
3/5
Are we able to use needle valve to control high flow rate?
YES
NO
which instrument should we use to achieve fail open or close in short time?
Pilot valve
volume booster
solenoid valve
Quick exhaust valve
In 8327 3-way Asco solenoid model, which two ports will be connected in electrical fail condition?
1 & 3
1 & 2
3 & 2
which of the following is 4-way solenoid valve type?
8317
8344
8314
8316
Another name of pilot operator regulator (a)

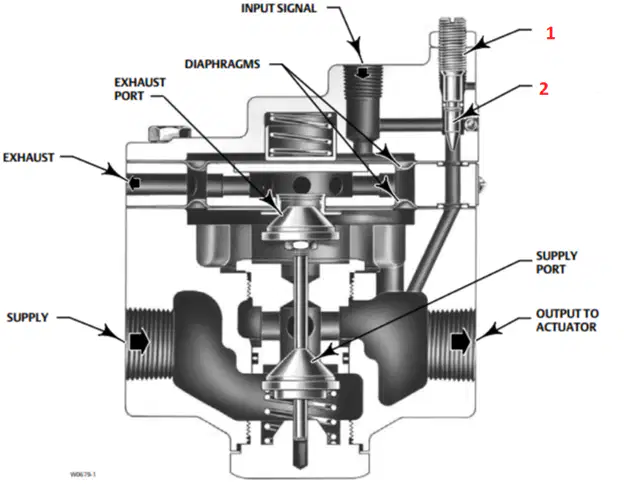

Identify the component 2
(a)
What is the mechanism of the solenoid?
Both can be achieved
Converts Mechanical energy into electrical signal
Converts electrical energy into mechanical work
Volume Booster typically provide ____________ ratio of input and output pressure
1:1
1:2
2:1
2:4
In Solenoid Valve, When the electric current passes through the coil, the (a) field is generated.
What will be the fail actions, when electrical signal lost and pneumatic signal lost respectively?
Fail Open and Lock in last
Fail close and Lock in last
Lock in last and fail close
Fail open and fail close
Lock in last and fail open
