Lembar kerjaTechnical quiz 5
Total soal: 10
Worksheet time: 5mins
Find the correct Trip valve model for the given condition.
377D
377U
377CCW
377CW
Find the fail action for the given hook-up.
Fail open
Fail close
Fail Lock in Last position
Which two ports from 377L Trip valve should connect with DVC?
Port F&C
Port B&E
Port A&D
Port D&B
Which two ports from 377U Trip valve should connect with actuator?
Port A&D
Port D&B
Port F&C
Port B&E
In 377L Trip Valve which two ports should Plug?
Port F&C
Port A&D
Port B&E
Port D&B
Where to connect volume tank in 377U?
Port A
Port F
Port C
Port D
Which switching valve will connect to VOLUME Tank to achieve fail close on-air failure with PDTO configuration?
A
B
Find the valve position for below condition. VALVE CONFIGURATION CW TO CLOSE.
CLOSE
OPEN

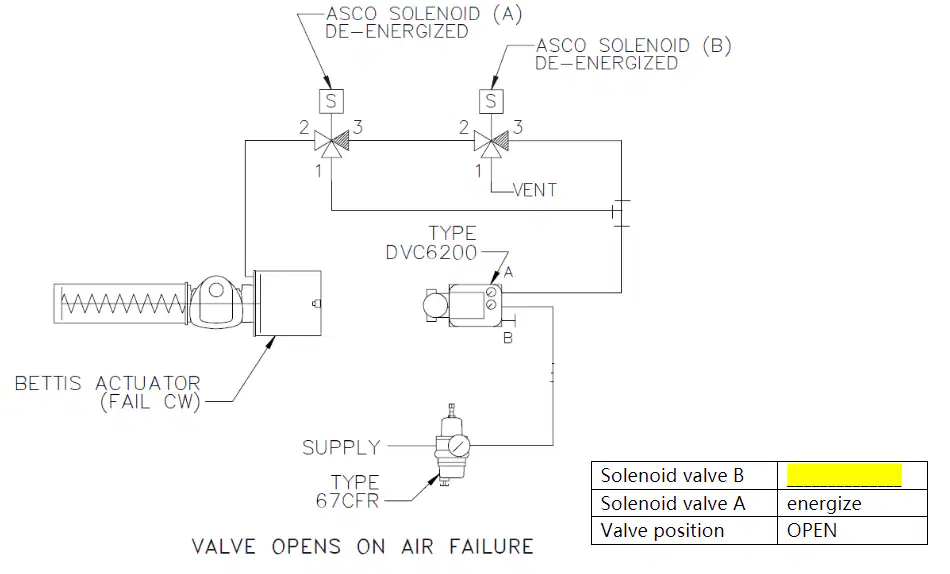

Find the correct solenoid state for the condition below
energize
de-energize

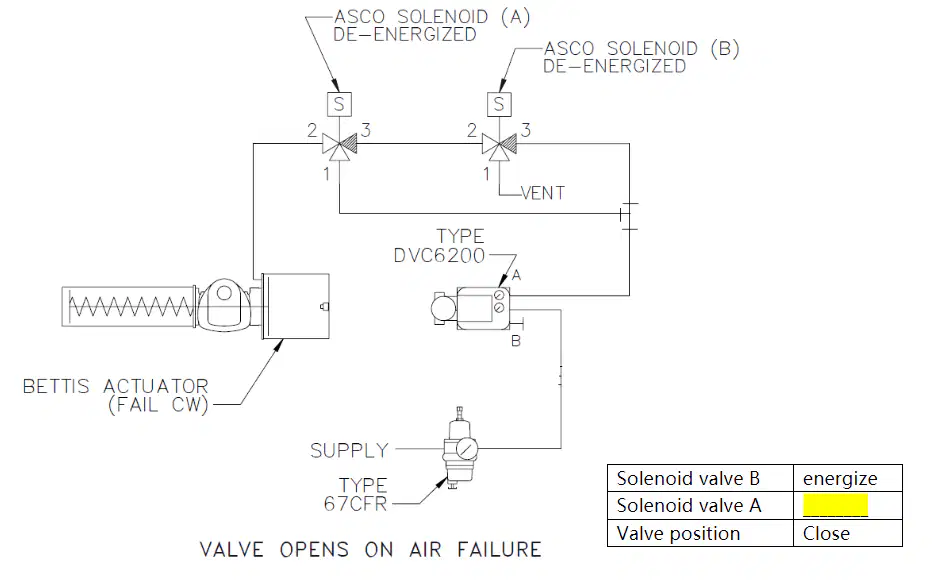

Find the correct solenoid state for the given condition
energize
de-energize
