WorksheetsT28 Ceiling & Int Finishes
Total questions: 11
Worksheet time: 6mins
What is the guideline number mentioned for ensuring lipping is kept within the guidelines?
CT10
CT20
CT30
CT40
Which of the following best describes a ceiling?
It is not a structural element.
It is an overhead interior surface that covers the upper limits of a room.
It is a finished surface concealing the underside of the roof structure or the floor of a story above.
All of the above.
What is used to fix along the sections in accordance with the relevant maximum span tables?
Direct fixing clips
Nails
Screws
Adhesive
How should each Furring Channel be spaced?
According to the builder's preference
As per the manufacturers' recommendations
Based on the length of the wall
According to the type of cladding used
How is the ceiling supported in a suspended ceiling system?
By using a heavy-duty steel frame
By using a lightweight hanging frame (grid system 1200mm x 1200mm)
By attaching directly to the roof
By using wooden beams

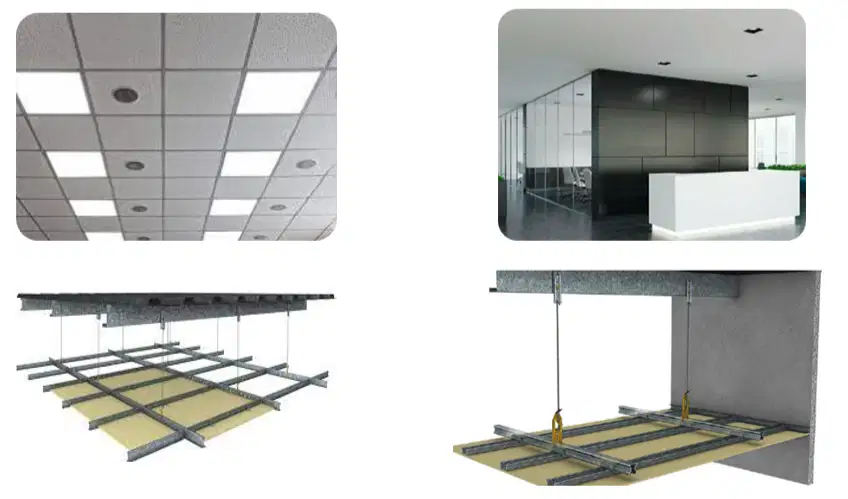

What are the two types of suspended ceiling systems shown in the image?
Exposed Grid System and Hidden Grid System
Exposed Grid System and Concealed Grid System
Visible Grid System and Concealed Grid System
Visible Grid System and Hidden Grid System
Which type of suspended ceiling system is shown on the right side of the image?
Exposed Grid System
Hidden Grid System
Visible Grid System
Concealed Grid System

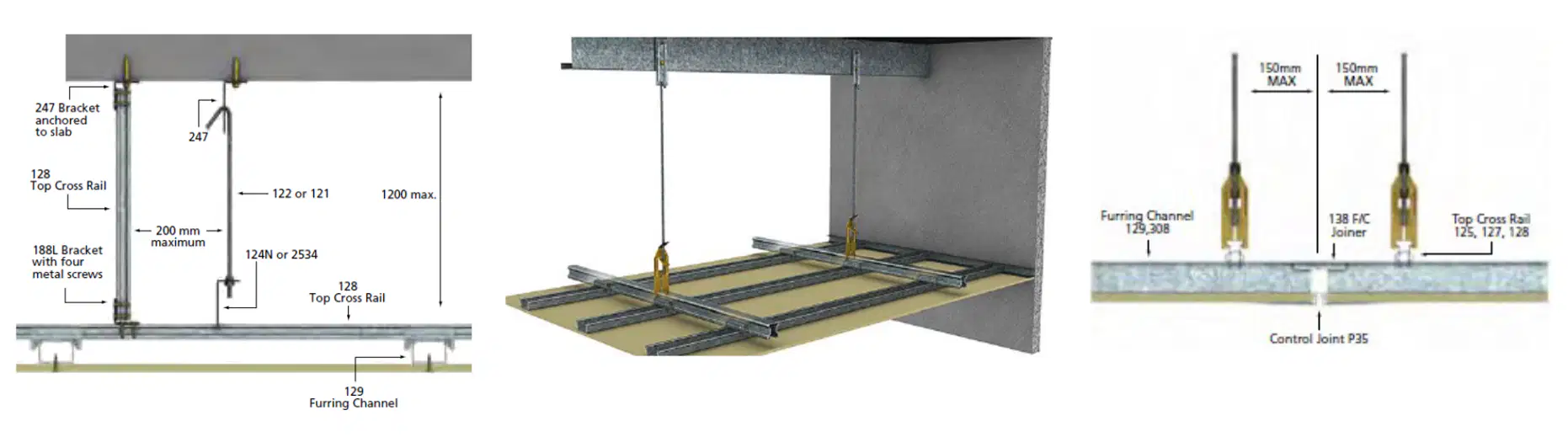

What is the width of the mild steel strap hangers used in the suspended ceiling?
15mm
25mm
30mm
45mm

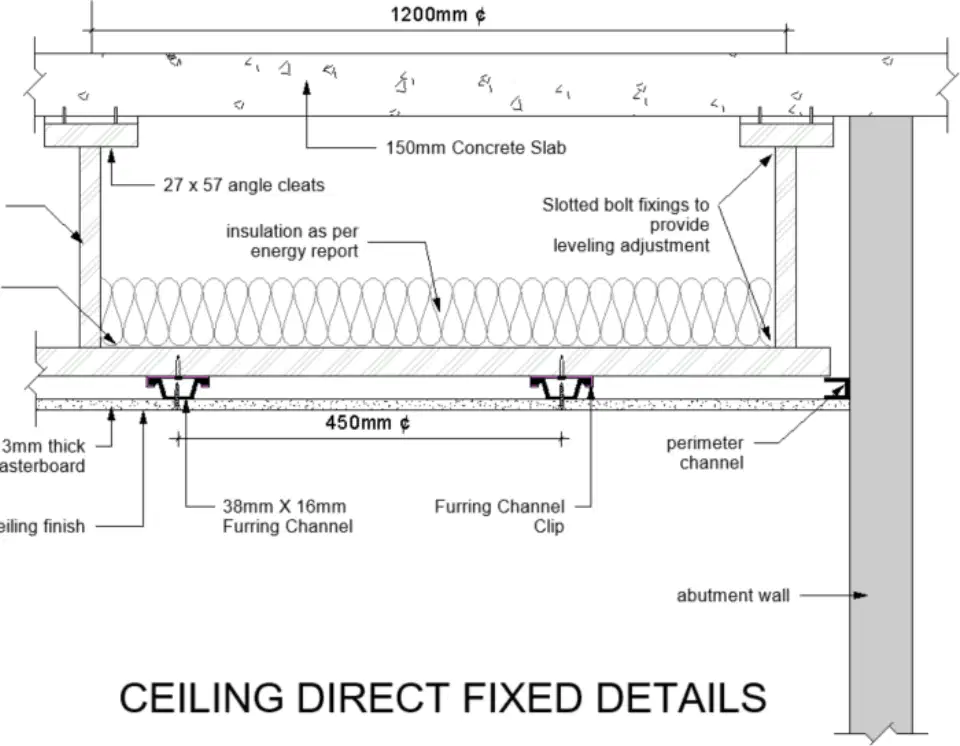

What is the purpose of the slotted bolt fixings in the suspended ceiling?
To provide insulation
To support the plasterboard
To provide leveling adjustment
To attach the furring channel
What is the maximum distance allowed between hanging wires in a suspended ceiling?
101 mm
203 mm
12 mm
50 mm

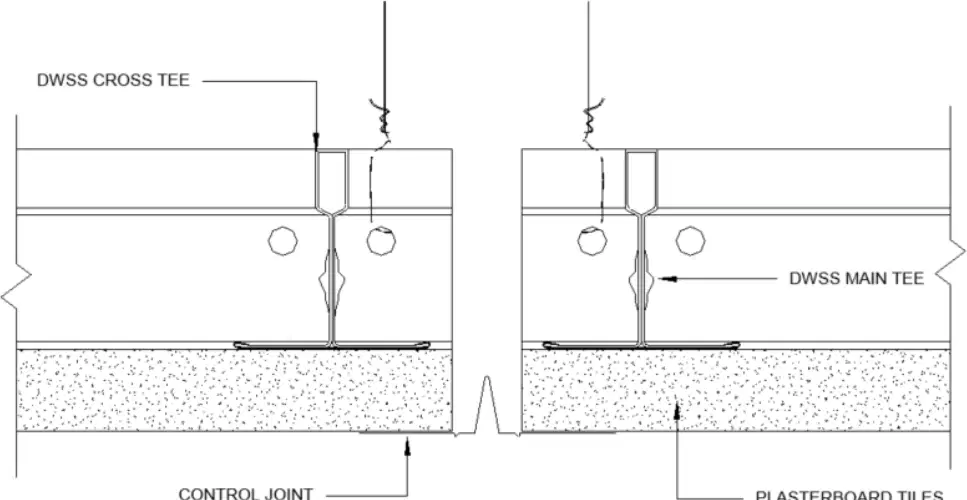

What type of tiles are used in the suspended ceiling as shown in the diagram?
Ceramic tiles
Plasterboard tiles
Wooden tiles
Metal tiles
