Isometric view shows which one of these ?
Front face of an object
Depth of an object
Proportional views of 3 sides of an object
Dimensions
Which VIEW is the FRONT FACE or FRONT ELEVATION of the object ?
1.
2.
3.
4.
Which VIEW is the RIGHT SIDE elevation of the object ?
1.
2.
3.
4.
Which VIEW is the TOP or PLAN VIEW of the object ?
1.
2.
3.
4.
Which VIEW is the ISOMETRIC VIEW of the object ?
1.
2.
3.
4.
Which picture represents the FRONT VIEW (A) or FRONT ELEVATION ?
1.
2.
4.
3.
5.
Which picture represents the TOP VIEW (B) or PLAN ?
3.
2.
6.
4.
5.
Which picture represents the SIDE VIEW (F) or SIDE ELEVATION ?
6.
2.
1.
4.
5.
Which picture represents the SIDE VIEW (D) or other SIDE ELEVATION ?
6.
3.
1.
4.
5.
Which picture represents the BACK VIEW (E) or other BACK ELEVATION ?
3.
6.
1.
2.
5.
Which picture represents the BOTTOM VIEW (C) ?
3.
6.
1.
4.
2.

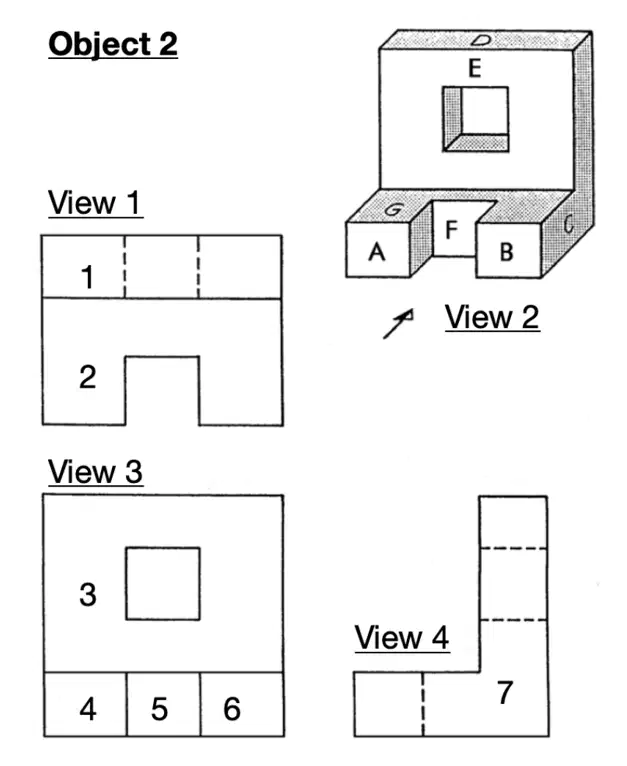

Match the numbers to the letters.
Match the numbered surfaces of the orthogonal drawings to the lettered surfaces of the isometric drawing.
1.
E.
2.
G.
3.
A.
4.
C.
Match the numbers to the letters.
Match the numbered surfaces of the orthogonal drawings to the lettered surfaces of the isometric drawing.
5.
F.
6.
B.
7.
D.
Match the numbers to the letter.
Match the numbered surfaces of the orthogonal drawings to the lettered surfaces of the isometric drawing.
1.
B.
2.
C.
3.
D.
4.
B.
Match the numbers to the letter.
Match the numbered surfaces of the orthogonal drawings to the lettered surfaces of the isometric drawing.
5.
A.
6.
E.
7.
F.
Match the number to the letters.
Match the numbered surfaces of the orthogonal drawings to the lettered surfaces of the isometric drawing.
1.
D.
2.
G.
3.
E.
4.
A.
Match the number to the letters.
Match the numbered surfaces of the orthogonal drawings to the lettered surfaces of the isometric drawing.
5.
F.
6.
B.
7.
C.
