WorksheetsDimensioning Basics Quiz
Total questions: 20
Worksheet time: 10mins
When placing dimensions, you should always place dimensions (a) the views.
When dimensioning an object such as a circular hole, what should you do?
Dimension the radius of the circle.
Dimension the diameter of the circle
Dimension the size AND location of the circle.
Dimension only the size of the circle.
When dimensioning a circular hole, you should always dimension its location from the __ of the circle to a specific __ of the object.
edge of the circle to the edge of the object
center of the circle to the corner of the object
edge of the circle to a corner of the object
tangent point of the circle to the closest corner of the object
You should always place size dimensions closest to the view that shows the most descriptive features of the object in that particular view.
True
False

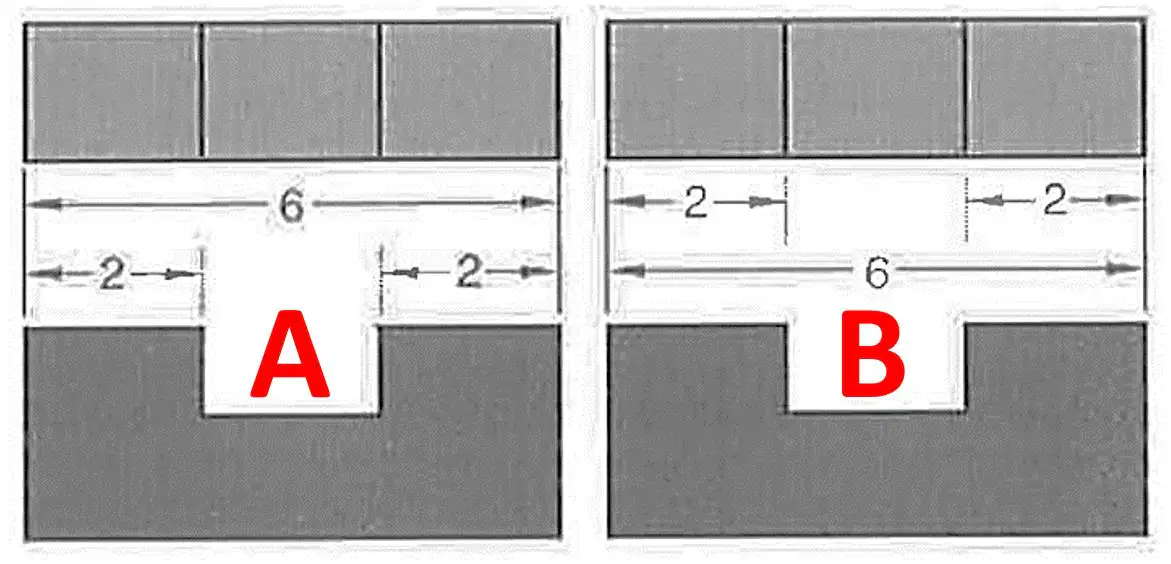

Which is the BEST example of how to place dimensions.
A
B
Neither
When placing dimensions, the (a) dimension should always be placed closest to the object.
The largest dimension should always be placed where?
Top of the page
Closest to the object in a stack of dimensions
Farthest away in a stack of dimensions from the object
To the outside of the views.
You should always stack dimensions in order of smallest to largest, with the smallest dimension placed closest to the object.
TRUE
FALSE
How far away should the dimension be placed that is closest to the object?
1/8th of an inch
3/8ths of an inch
1/4th of an inch
5/8ths of an inch
In this example, how far away should the 2.00 dimension be from the object it is referencing?
1/8th of an inch
3/8ths of an inch
1/4th of an inch
5/8ths of an inch
In this example, how far away should the 5.00 dimension be from the object it is referencing?
1/8th of an inch
3/8ths of an inch
1/4th of an inch
5/8ths of an inch
In this example, what should the distance between the 2.00 dimension and the 5.00 dimension be?
1/8th of an inch
3/8ths of an inch
1/4th of an inch
5/8ths of an inch

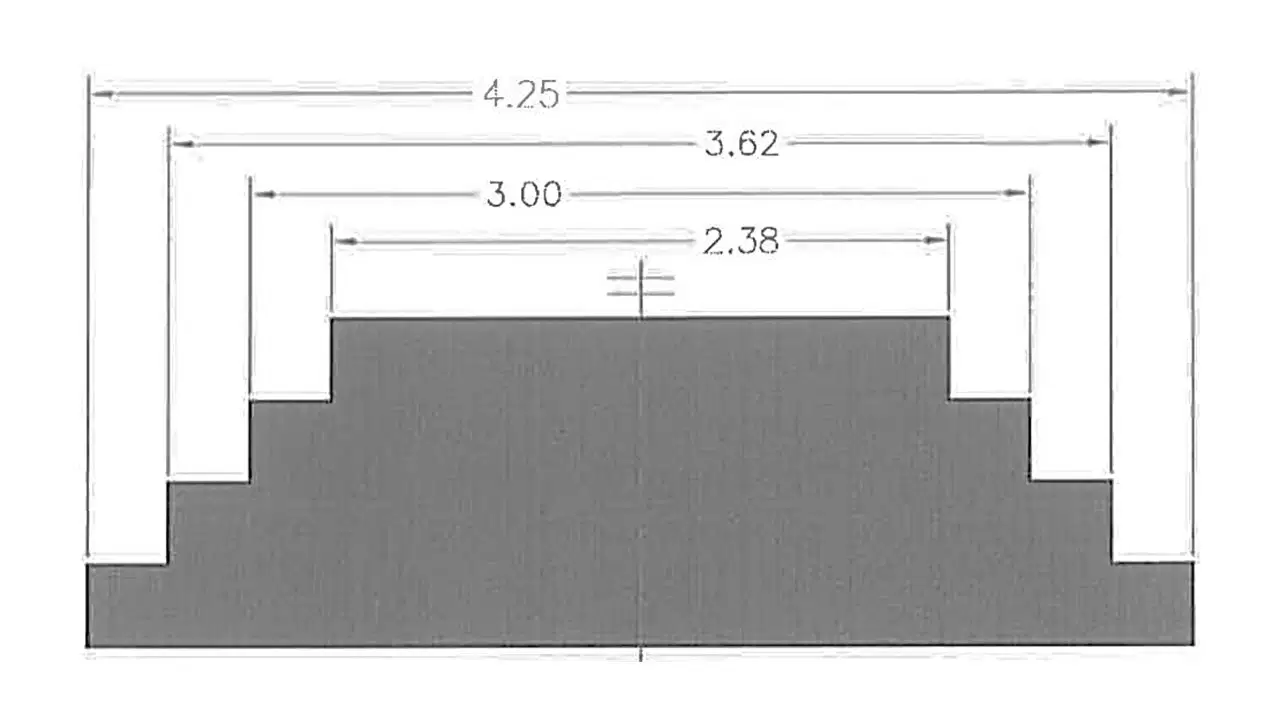

In this example, what should the distance between the 3.00 dimension and the 3.62 dimension be?
1/8th of an inch
5/8ths of an inch
1/4th of an inch
7/8ths of an inch
In this example, what should the distance between the 2.38 dimension and the 3.62 dimension be?
1/2 of an inch
5/8ths of an inch
1/4th of an inch
3/8ths of an inch
In this example, what should the distance between the 2.38 dimension and the 4.25 dimension be?
1/2 of an inch
5/8ths of an inch
3/4ths of an inch
7/8ths of an inch
In this example, how far away from the object should the 3.00 be placed?
1/4th of an inch
5/8ths of an inch
3/8ths of an inch
7/8ths of an inch
In this example, how far away from the object should the 2.38 be placed?
1/4th of an inch
5/8ths of an inch
3/8ths of an inch
7/8ths of an inch
In this example, how far away from the object should the 3.62 be placed?
1/4th of an inch
5/8ths of an inch
3/8ths of an inch
7/8ths of an inch
In this example, how far away from the object should the 4.25 be placed?
1.125 inches away
1.25 inches away
.75 inches away
1 inch away
You should (a) dimension to a hidden line.
