WorksheetsBlueprinting and Measurement L1 Assessment
Total questions: 28
Worksheet time: 31mins
1B-1: A limitation or restriction.
US Customary Standard system
metric system
accurate
criteria
constraint
1B-2: A British-based measuring system that uses units such as inch, yard, mile, gallon, and Fahrenheit.
US Customary Standard system
metric system
accurate
criteria
constraint
1B-3: Desired specifications (elements or features) of a product or system.
US Customary Standard system
metric system
accurate
criteria
constraint
1B-4: An internationally recognized (decimal) measuring system that is based on the meter, liter, gram, and Celsius as units of length, volume, mass, and temperature.
US Customary Standard system
metric system
accurate
criteria
constraint
1B-5: Close to the true value.
US Customary Standard system
metric system
accurate
criteria
constraint
1D-1: Which ancient Egyptian unit of measurement is from the tip of your middle finger to the tip of your elbow?
fathom
cubit
palm
foot
1D-2: Which ancient Egyptian unit of measurement is from the tip of your middle finger on your left hand to the tip of your middle finger on your right hand?
fathom
cubit
palm
foot
1D-3: Which of the following is a major problem with the methods of measurement the ancient Egyptians used to measure?
It was not as fun as using a ruler or tape measure.
The Pharaoh didn't like it so they required a new method.
It was very inconsistent. People will have different size body parts and would get different measurements.
All of the above
1D-4: When measuring something small like your chromebook it made the most sense to use which ancient Egyptian unit of measurement?
palm
cubit
fathom
none of these are small or appropriate
1D-5: When measuring something large like the GTT Room it makes the most sense to use which ancient Egyptian unit of measurement?
palm
cubit
fathom
none are large or appropriate
1E-1: What are the two main systems of measurement in the world?
U.S. Customary Unit of Measure & Metric System are the 2 main systems of measurement in the world.
Canadian Customary Unit of Measure & Metric System are the 2 main systems of measurement in the world.
Hispanic Customary Unit of Measure & Metric System are the 2 main systems of measurement in the world.
Global Customary Unit of Measure & Metric System are the 2 main systems of measurement in the world.
1E-2 Which system of measurement is commonly used in the United States, but NOT in many other countries?
metric
customary
1E-3: The length of the hatch mark on the inch ruler tells you the segment or fraction of the inch?
True
False
1E-4: When writing our measurement from a metric ruler we use fractions.
True
False
1E-5: What are the two units of measurement on the rulers reviewed in 1E?
foot
inch
kilometer
mile
centimeter
1E-6: How many segments are there in one inch on a US Customary ruler?
5
8
10
16
30
1E-7: How many segments are there in one centimeter on a Metric ruler?
5
8
10
16
30
1E-8 What is the metric system of measurement based on?
Powers of 2
Powers of 5
Powers of 10
Powers of 20

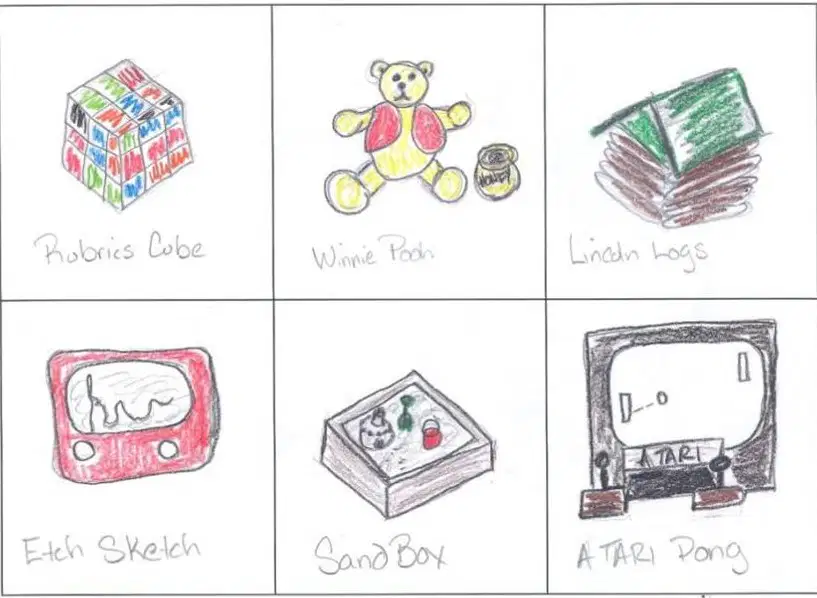

1F-1: The attached image most clearly shows which type of sketch.
(a)
1F-2: The attached image most clearly shows which type of sketch.
(a)
1F-3: The attached image most clearly shows which type of sketch.
(a)
1F-4: The attached image most clearly shows which type of sketch.
(a)
1F-5: Thumbnail sketching should be a very detailed sketch.
True
False
1F-6: Orthographic sketches are flat and 2D.
True
False
1F-7: Multiview sketches have both 2D and 3D views.
True
False
1F-8: Thumbnail sketches should be bigger than the size of your fist but smaller than the size of your hand spread out.
True
False
1F-9: Isometric sketches are 3D at what angle?
15
30
45
60
90
1F-10: What are the three 2D views that are on a multiview drawing?
left, right, front
top, middle, bottom
top, front, right
front, bottom, right
top, front, left
