Worksheets1.1.6 Component Identification - Digital
Total questions: 20
Worksheet time: 10mins
Explain the relationship between transistors, logic gates, and integrated circuits (ICs).
Transistors are used to build logic gates, which are then used to create integrated circuits.
Logic gates are used to build transistors, which are then used to create integrated circuits.
Integrated circuits are used to build transistors, which are then used to create logic gates.
Transistors, logic gates, and integrated circuits are unrelated components.
Transistor-Transistor Logic (TTL) is a type of digital circuit used in electronics. Which of the following best describes its primary characteristic?
It uses bipolar junction transistors.
It is based on field-effect transistors.
It operates at very low power levels.
It is primarily used in analog circuits.
The TTL logic gate numbering system is used to:
Identify the type and function of TTL logic gates
Measure the speed of TTL circuits
Determine the power consumption of TTL devices
Calculate the cost of TTL components
A truth table shows what for each input combination?
The output result
The input variables
The logic gates used
The circuit diagram
In the context of truth tables, how many possible outputs are there for 2 inputs?
2
4
8
16
ICs are categorized in how many different ways?
By function, technology, and application
By size, color, and weight
By brand, price, and availability
By age, origin, and material
What does VLSI stand for?
Very Large Scale Integration
Very Low Scale Integration
Variable Logic System Interface
Virtual Linear System Integration
What does TTL stand for in electronics?
Transistor-Transistor Logic
Transistor-Transistor Level
Transistor-Transistor Link
Transistor-Transistor Line
Fill in the blank: TTL is _______ than CMOS.
Faster
Slower
Equal
More complex
Fill in the blank: CMOS uses _______ power than TTL.
More
Equal
Greater
Less
What does SSI stand for in IC Density of Integration?
Small-Scale Integration
Super-Scale Integration
Simple-Scale Integration
Single-Scale Integration
What does DIP stand for in IC package styles?
Dual In-line Package
Direct Input Package
Digital Interface Package
Dynamic Integrated Package
What does SMT stand for in IC package styles?
Surface Mount Technology
Standard Mount Technology
Simple Mount Technique
Soldering Mount Type
Through-Hole Technology (THT) is:
A method of mounting components by inserting leads through holes in a PCB
A wireless communication technology
A type of software development methodology
A technique for data encryption
Which of the following is an advantage of Through-Hole Technology (THT) components?
Easier to hand-assemble than SMT-based designs
Smaller than SMT-based designs
Available in all microprocessor package styles
What is one advantage of Surface Mount Technology (SMT)?
Reduced size and weight of components
Increased power consumption
Higher cost of production
Limited component availability
What does 'LS' indicate in the TTL Logic Gate Numbering System?
Low Speed
Low Signal
Low Scale
Low Power Schottky

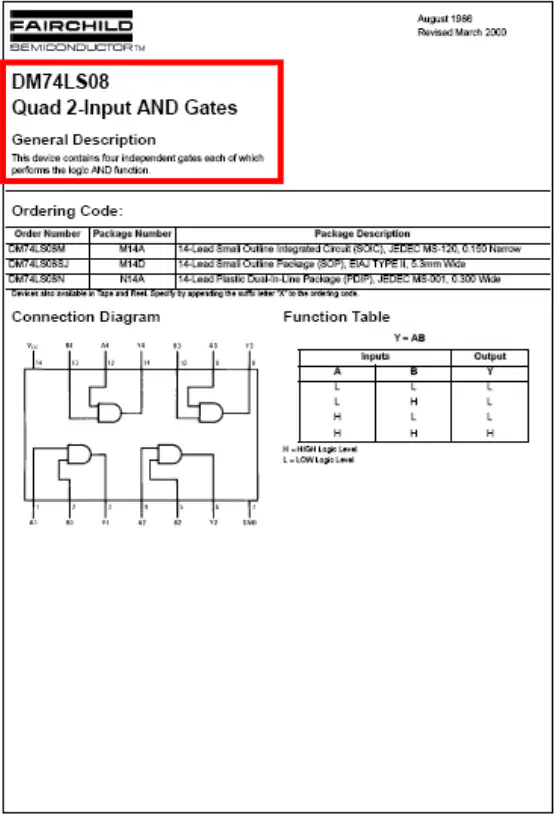

What is included in the General Description of a manufacturer datasheet for a logic gate?
Electrical characteristics
Pin configuration
Functional description
All of the above
Fill in the blank: The DM74LS08 device contains four independent gates, each of which performs the logic ___ function.
AND
OR
NAND
NOR
What is the output when both inputs A and B are at a HIGH logic level in a Quad 2-Input AND Gate?
LOW
HIGH
Undefined
Error
