WorksheetsTopic 2 Test
Total questions: 16
Worksheet time: 14mins
Look at the distance-time graph. What is the average speed of the object during the first 5 seconds?
0 m/s
1 m/s
5 m/s
10 m/s
Velocity is a measure of both ______. Speed is a measure of only ______ something moves. Which terms best complete the sentences?
(a) (b)
Six friends are playing a game of tug-of-war. They are split evenly into two teams so the same number of people can hold on to each side. A flag is tied to the center of a rope. Each team pulls on one side of the rope and tries to move the flag to their side. As the game of tug-of-war begins, the teams begin to tug, and the flag starts moving toward the team on the right. Which statement best describes what is occurring in relation to Newton’s First Law?
The team on the right is applying less force to make the forces balanced.
The team on the right is applying less force to make the forces unbalanced.
The team on the right is applying more force to make the forces unbalanced.
The team on the right is applying more force to make the forces balanced.
If both teams pull with equal force, the forces are _______ and the flag will _______. Which terms best complete the sentence?
(a) (b)
After 7 minutes of playing, a member from the right side gets tired and stops pulling on the rope. Predict what is likely to happen at this point in the game.
The right team will win because the left team is applying more force, making the forces balanced.
The left team will win, because they are applying more force, making the forces unbalanced.
The right team will win because the left team is applying more force, making the forces unbalanced.
The left team will win because they are applying more force, making the forces balanced.
What is the speed of a car that travels 30 km in 25 minutes?
0.05 km/min
0.5 km/min
1.2 km/min
2.1 km/min
Use the diagram to answer the next three questions. According to the graph, what can you conclude about both Runner 1 and Runner 2?
The runners began the race at different times.
The runners took the same time to finish the race.
The runners ran the race on different tracks.
The runners returned to the starting point at the end of the race.
Which event would best explain Runners 2’s motion from 1 second to 5 seconds?
Runner 2 had to go back to the starting line.
Runner 2 slowed to avoid hitting the other runner.
Runner 2 sped up to move around an obstacle on the track.
Runner 2 stopped to shake out a muscle cramp.
Based on the evidence in the graph, which statements are accurate? Select all correct answers.
Runner 1 won the race.
Runner 2 ran at different speeds during the race.
Runner 1 ran at the same speed during the entire race.
At time 4 s, Runner 1 had run 5.0 m.
Runner 2 reached a higher speed than Runner 1.

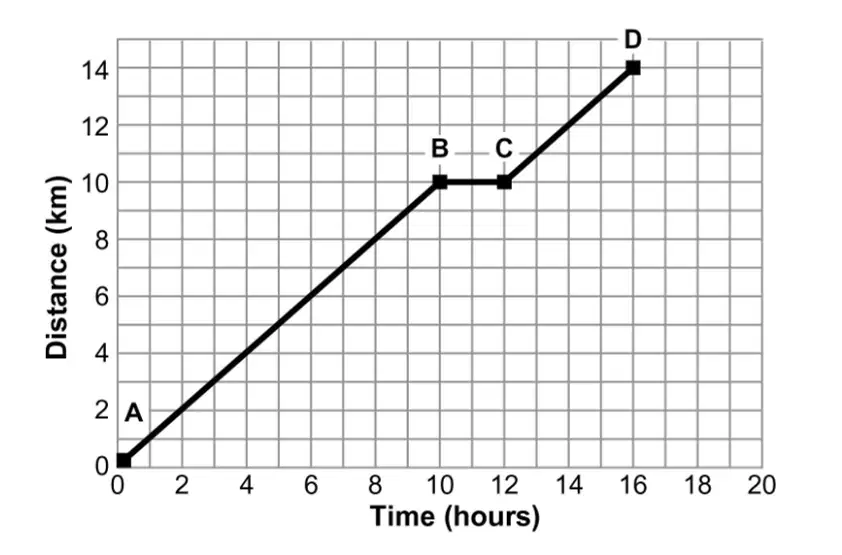

A turtle travels 1 km/hour for 10 hours. The turtle then stops to rest for 2 hours. After that, it continues to travel at 1 km/hour for 4 hours. The graph shows the motion of the turtle. The graph has four points that mark a change in the speed of the turtle. Four points on the graph are listed in no particular order. Which is the correct order of the points from left to right on the graph?
0 km, 0 hr
10 km, 10 hr
10 km, 12 hr
14 km, 16 hr
The motion of a particle of water in a wave is shown in the distance-time graph in the image. The particle moves in a cycle of up and down motion. How far does the particle travel from its highest point to its lowest point?
1.0 m
2.0 m
3.0 m
4.0 m
A plane is traveling in a straight line as it flies through the air. The plane’s engine uses force to push the plane forward in a straight line through the air. Air resistance is a force that pushes the plane in a direction opposite its path. If the force of the engine equals the force of air resistance, the plane _________. If the force of the engine is greater than the force of air resistance, the plane _____. If the force of the engine is less than the force of air resistance, the plane _______. Which words, in order of appearance, best complete the sentences?
(a) (b) (c)
Which examples demonstrate the effect of unbalanced forces on a train? Select two answers.
The train is slowing down as it pulls into the station.
The train is moving at constant speed around a curve in the track.
The train is moving at constant speed in a straight line along the track.
The train is stopped, and passengers are getting on and off.
Team 1 and Team 2 are playing a game. They want to find out which team can push a box the hardest. The players on the teams start pushing on opposite sides of the box. Both teams push with the same amount of force. What will happen?
The box may move in either direction.
The box will move towards Team 1.
The box will move towards Team 2.
The box will not move.
The car in the picture is moving at constant speed in one direction. The forces on the car and their directions are shown. The forces on the car are _______ because the car has _______ motion. Force 1 is _______. Together, the magnitude of Forces 4 and 5 equal the magnitude of Force _______. Which terms best complete the sentences?
(a) (b) (c) (d)
Imagine you are wearing your seatbelt in a car that stops suddenly. Your body is thrown forward but does not keep moving at the same speed the car was traveling. Your seatbelt is connected to the car. The seat belt provides _______ that causes you to ______________. Which terms best complete the sentences?
(a) (b)
