WorksheetsDrawing Instrument
Total questions: 13
Worksheet time: 7mins
Which paper size is larger?
A5
A3
They are the same size
It depends on the orientation
Which drawing instrument is primarily used for creating circles?
Ruler
What is the standard angle used in isometric cube drawing?
Which of the following is a type of oblique drawing projection?
What is a key difference between 2D and 3D drawings?
2D uses color, 3D doesn't
How much is the length for boarder for A4 paper
1.5 Cm
1 mm
1 cm
1.5 mm
Which of the following is an important work environment procedure to avoid pain while drawing?
What is the primary purpose of a title block in a sketch?
To provide information about the sketch.
Which information is typically NOT included in a title block?
Date of sketch
drawer name
darwing name
Which of these is NOT a common hazard in a drawing environment?
high noise
paper cuts
What is the purpose of a T-square in technical drawing?
To draw straight horizontal lines and assist in aligning other drawing tools.

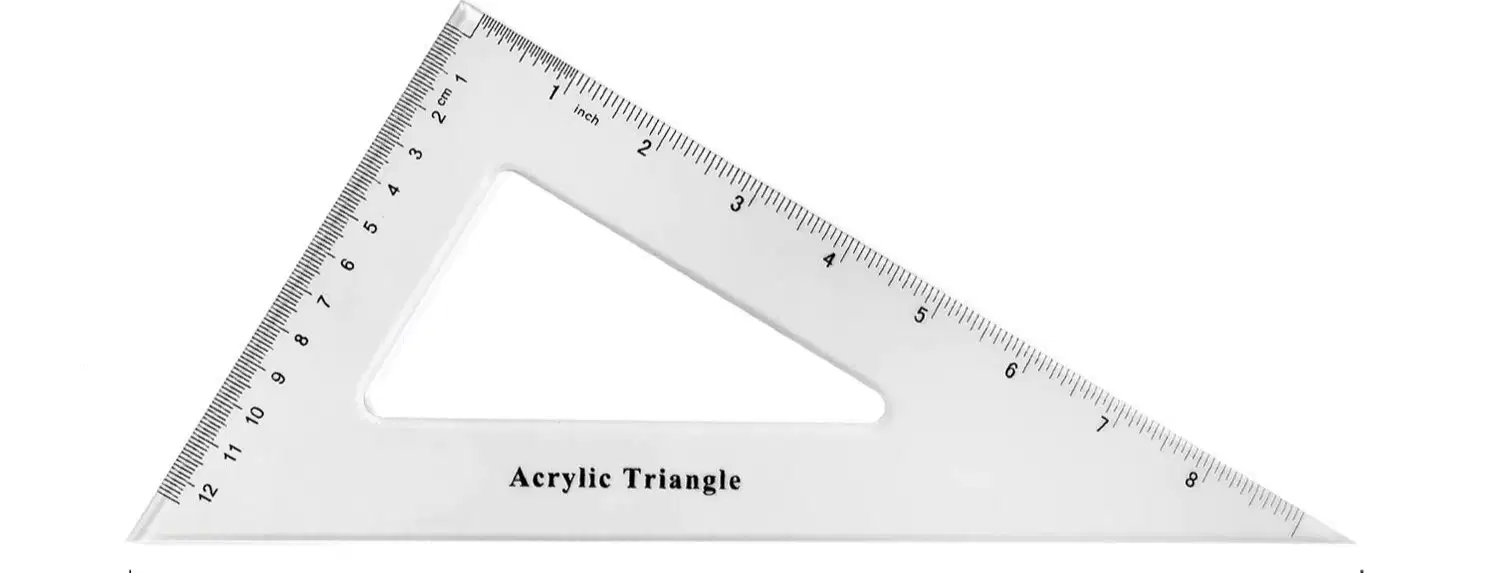

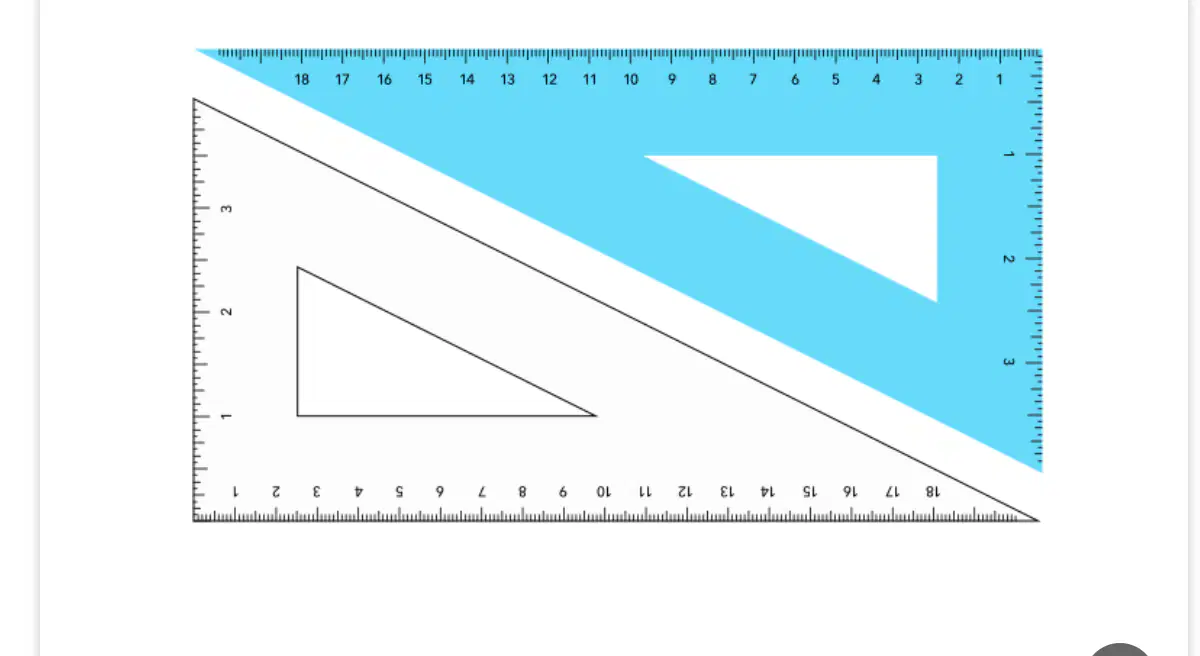

What is this called ?
Triangle ruler
Ruler
Compass
pencile
Which angle we are using when we draw isometric cube?
