WorksheetsWorking in Engineering: Learning Objectives
Total questions: 16
Worksheet time: 8mins
Technical drawings and specifications are primarily used to convey which product characteristics?
Color, cost, and warranty length
Shape, size, and material
Packaging, shipping method, and barcode
Brand name, logo, and slogan

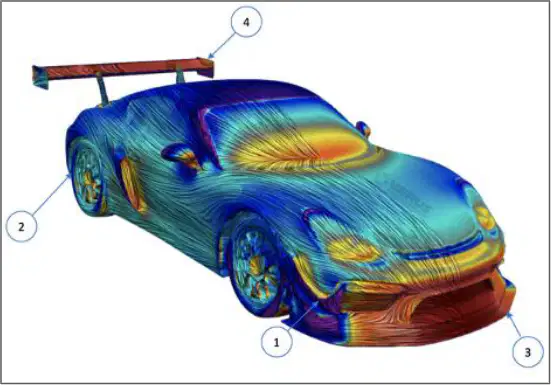

According to the material, why is shape an important product characteristic?
It determines the product’s battery life.
It affects appearance (aesthetics) and can influence aerodynamics or wind resistance.
It guarantees the product is recyclable.
It eliminates the need for materials testing.

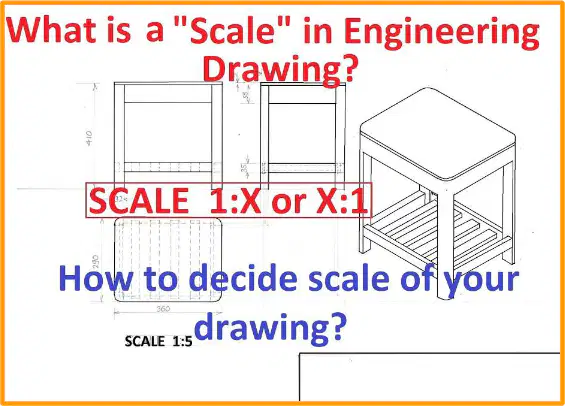

A drawing is at scale 1:5. A part measures 20 mm on the drawing. What is the actual size of the part?
4 mm
20 mm
100 mm
120 mm
The office chair image is used to prompt the term ergonomics. In engineering specifications, what does ergonomics primarily relate to?
Optimising human comfort, safety, and usability when interacting with products.
Maximising the speed of machine operation.
Reducing manufacturing steps by simplifying parts.
Choosing materials solely based on lowest cost.

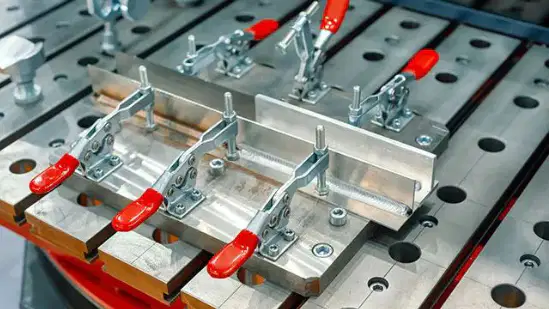

Based on the listed uses of technical drawings, which item is specifically included to make manufacture or installation easier and more reliable?
Bill of materials showing total project cost
Specialist jigs or templates
Packaging specifications for finished goods
Marketing notes for product launch

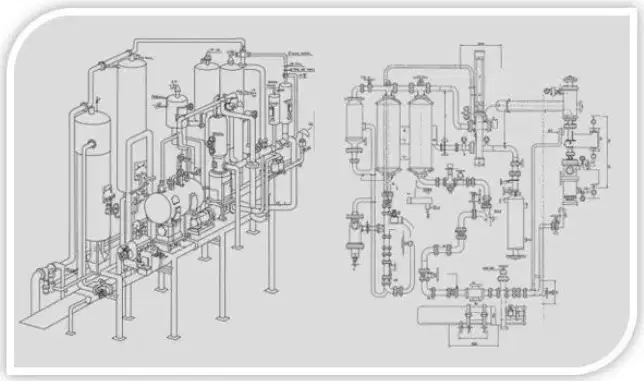

In an isometric drawing, how are the principal axes and lines represented?
Horizontal lines on X and Y are at 30°; vertical lines are drawn vertically, all at constant scale
All axes are drawn at 45°; circles become true circles on each face
Horizontal lines are at 0° and 90°; vertical lines slant at 30°
X, Y, and Z axes are all drawn vertically to emphasize height
Which feature is NOT typical of a General Arrangement (GA) drawing?
Providing overall dimensions for reference purposes
Including detailed dimensions for manufacturing each part
Showing all components correctly assembled
Listing relevant detail drawing numbers for in-house manufactured parts
Exploded (assembly) drawings in service manuals primarily help technicians by:
Showing abstract symbols of system functions without physical resemblance
Displaying the component parts in the correct relationship and including part numbers for ordering spares
Providing GA-level overviews of entire plants without individual components
Recording exact electrical values used in circuits
A team needs to quickly communicate an early concept for a product before formal drawings are made. Based on the characteristics described, which method is most appropriate and why?
Produce a full-scale orthographic drawing to ensure exact dimensions
Create a freehand sketch to rapidly share the idea despite lower accuracy
Build a detailed 3D printed prototype to verify tolerances
Use a to-scale schematic map to avoid any symbolic simplifications
What is the primary purpose of technical drawings in engineering communication?
To decorate engineering documents
To create artistic representations
To replace written instructions
To graphically(visually) show product characteristics
In technical drawings, what does 'size' primarily help engineers understand?
Material quantity required
Design creativity
Product aesthetics
Manufacturing complexity
What is orthographic projection used for in engineering?
Designing decorative objects
Creating artistic renderings
Generating marketing materials
Setting out multiple views of components for manufacture
In first angle projection (NON-UK), views are laid out on which side relative to viewing?
Same side
Below the object
Opposite side
Above the object
A schematic diagram represents systems using what?
Photographic representations
Graphic symbols
Exact scale models
Realistic pictures
In third angle projection (UK), views are laid out on which side relative to viewing?
Below the object
Same side
Above the object
Opposite side
In engineering, what does 'features' (or 'function') typically describe about a product?
Manufacturing process
Physical dimensions
Material composition
What a product can do
