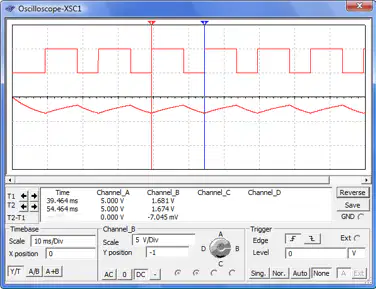

What is the period of the waveform shown in the oscilloscope?

10 mSec

15 mSec

20 mSec

25 mSec

Which component is responsible for slowing and eventually stopping the oscillation in the Board Game Counter?

100uF capacitor

1.2 kΩ resistor

555 timer

10kΩ resistor

What happens to the frequency of the 555 Timer OUTPUT when the push button is released?

It increases

It decreases

It remains the same

It stops.

The frequency of the waveform is ______.

40.28Hz

64.36 Hz

24.78 Hz

15.36 Hz

Explain the relationship between period and frequency.
