WorksheetsModule 6: Operations and Motion
Total questions: 15
Worksheet time: 23mins
What programming concepts are covered in the Programming module?
What is the focus of the Palletizing module?
What are singularities in the context of this module?
In which axes does the TCP move when using the MoveL command?
X, Y, and Z Axes
X and Y Axes only
Y and Z Axes only
X and Z Axes only

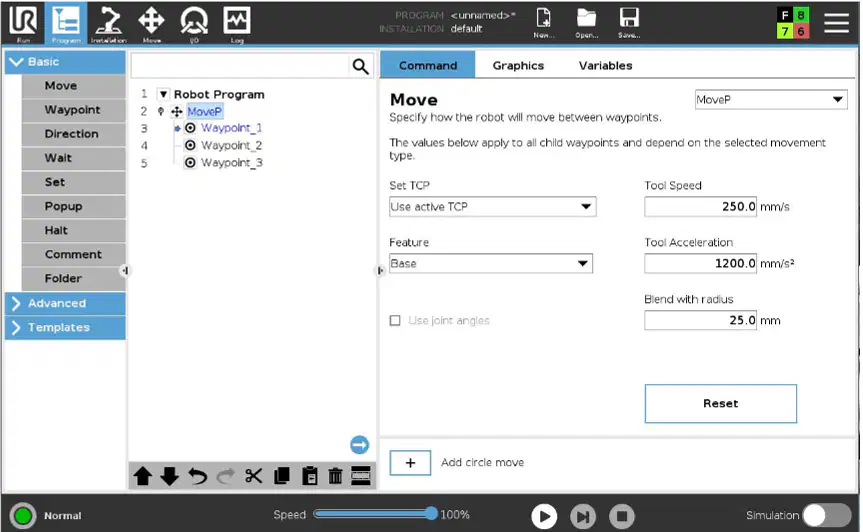

In the MoveP process, what is the tool acceleration set to?
(a)
What are the three points used in a Circle Move?
A) Starting Point, Mid Point, End Point
B) Starting Point, Via Point, End Point
C) Initial Point, Middle Point, Final Point.

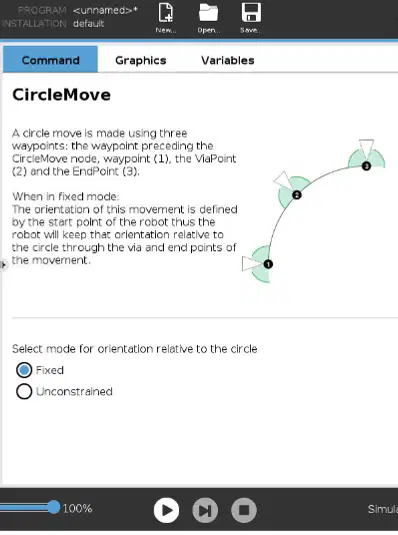

In the CircleMove command, what is the orientation of the movement defined by?
A) The end point of the robot
B) The start point of the robot
C) The via point of the robot

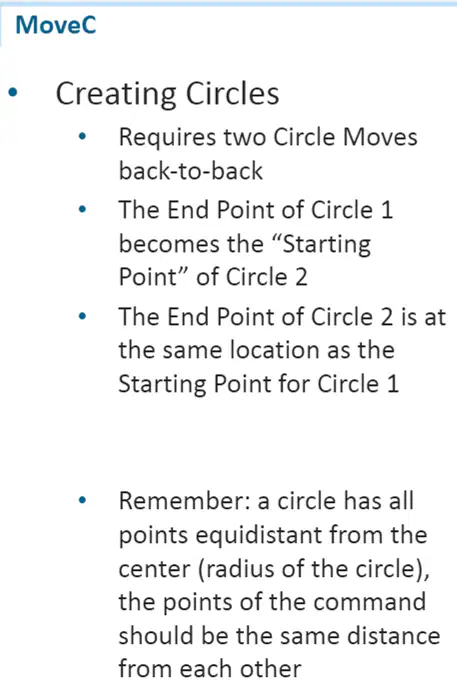

What is required to create circles in robot programming?
One Circle Move
Two Circle Moves back-to-back
Three Circle Moves
In creating circles, the End Point of Circle 1 becomes the (a) of Circle 2.

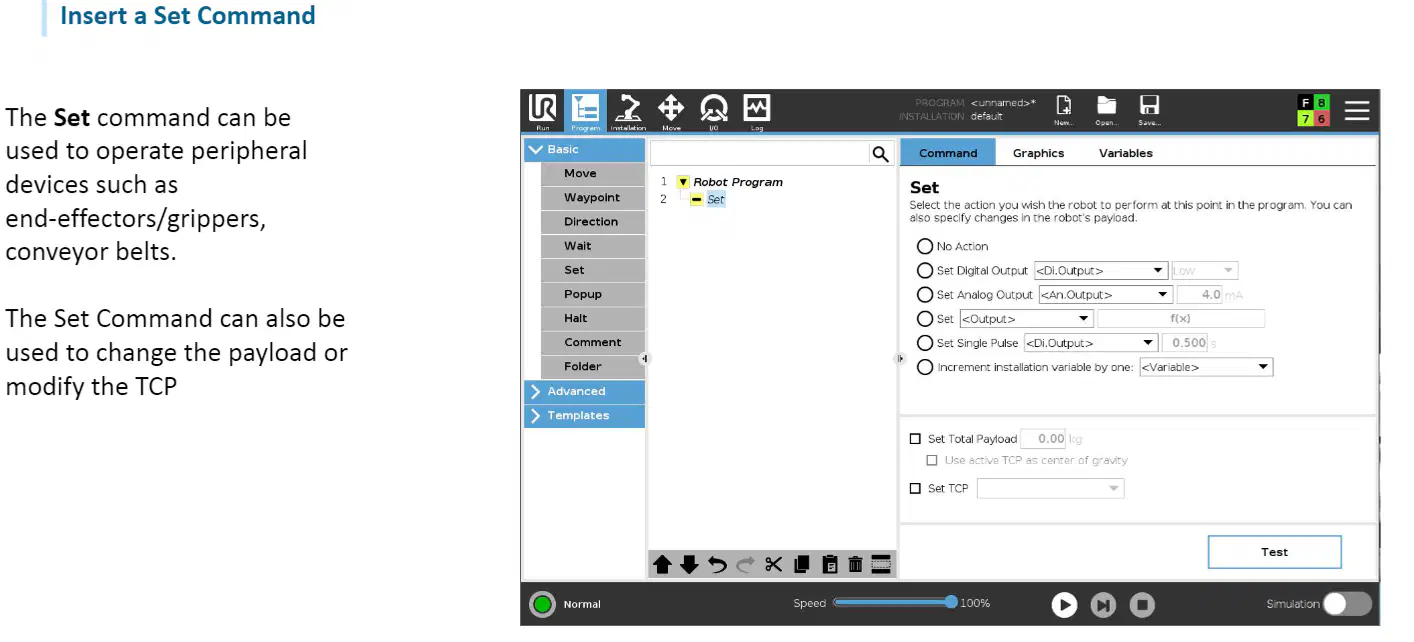

What can the Set command be used to operate?
What is a Popup in the context of a robot program?

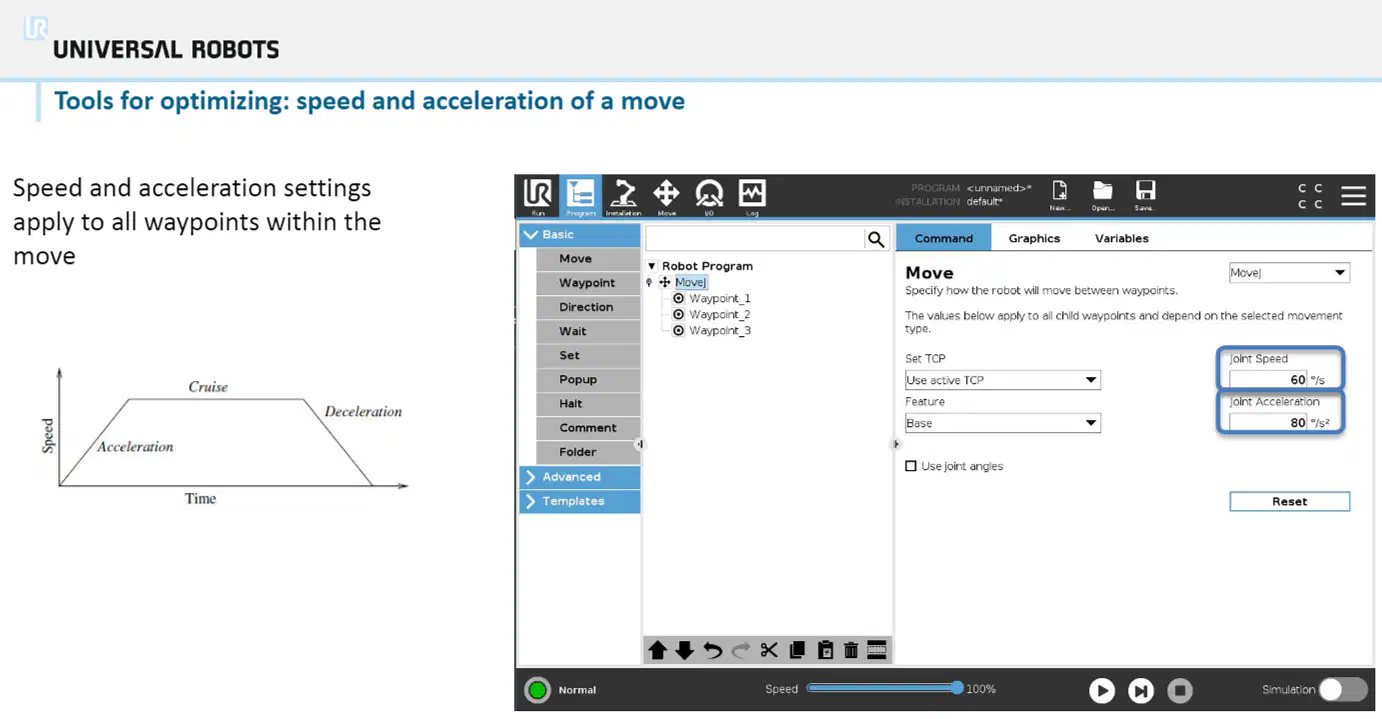

What do speed and acceleration settings apply to within a move?

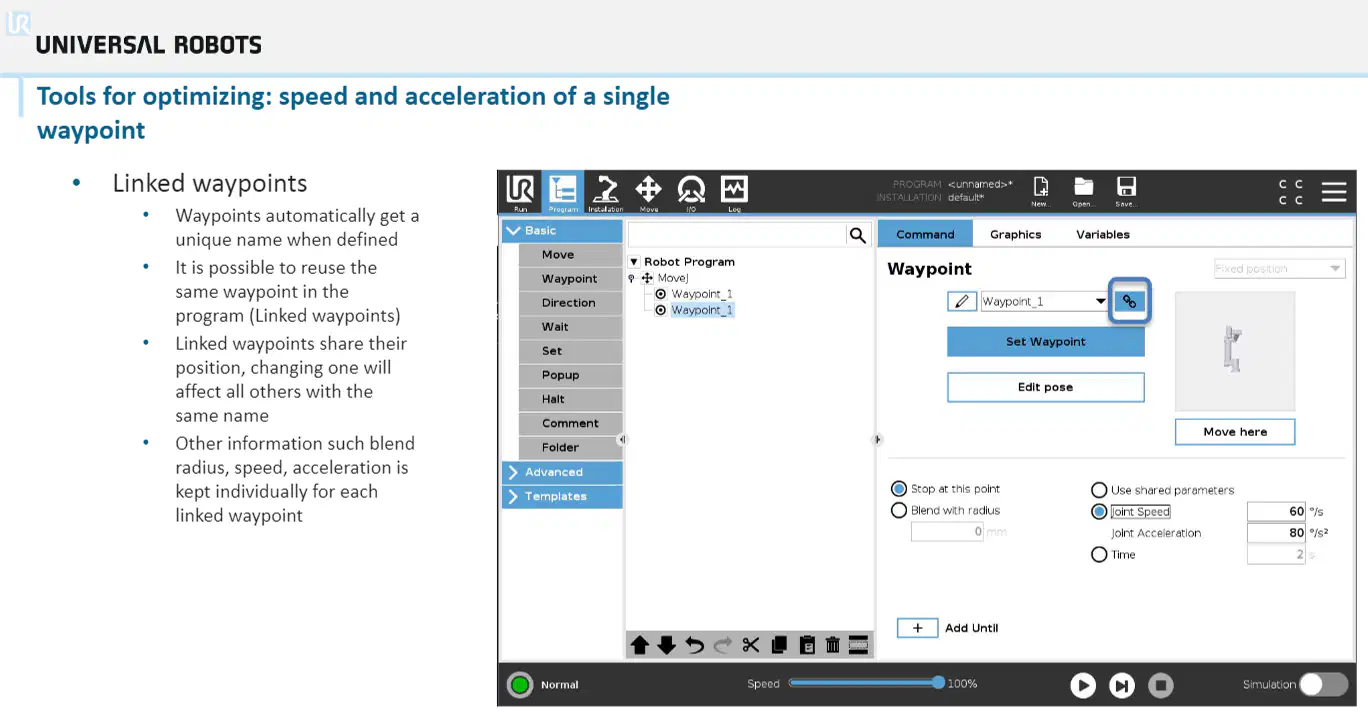

What happens to waypoints when they are defined?
They get a unique name
They remain unnamed
They are deleted
They are duplicated
Is it possible to reuse the same waypoint in the program?
Yes, as linked waypoints
No, each waypoint must be unique
Only if they are renamed
Only in different programs

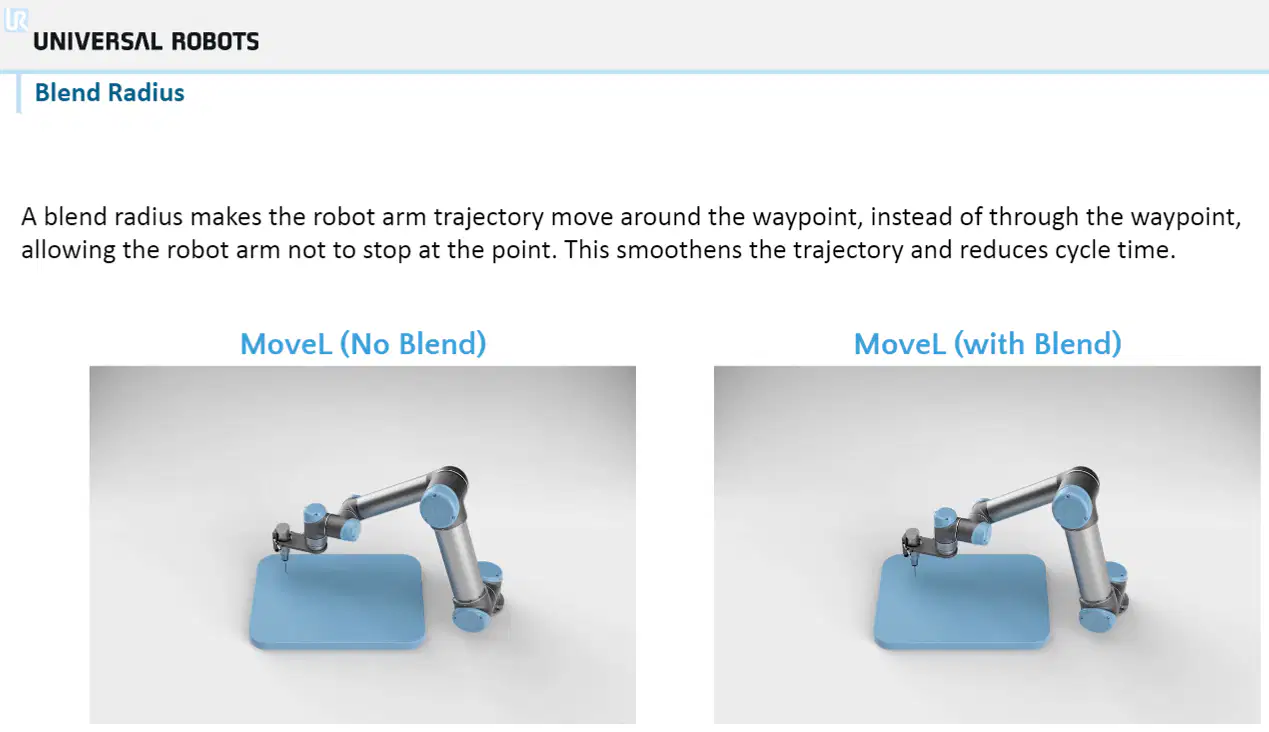

What is the purpose of a blend radius in a robot arm trajectory?
To make the robot arm stop at the waypoint.
To smoothen the trajectory and reduce cycle time.
To increase the cycle time.
To make the robot arm move through the waypoint.
