WorksheetsUnit 204 mock test
Total questions: 20
Worksheet time: 10mins
Which one of the following types of drawing indicates the bonding arrangement for a solid brick wall?
General location Drawing
Sectional drawing
Orthographic projection
Isometric projection
What scale should be used to draw the bonding arrangement for a solid brick wall in orthographic projection?
1:200
1:50
1:20
1:5
What action should be taken if the dimensions (measurements) on a working drawing are unclear?
Report it to your surveyor
Report it to your supervisor
Report to the health & safety officer
Report to the building inspector

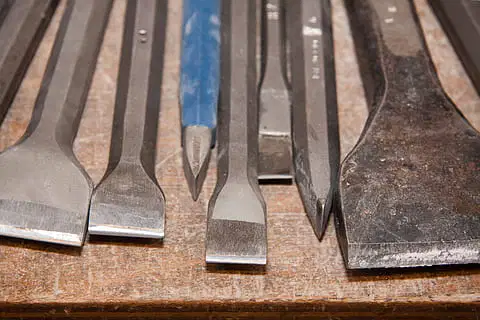

What tool would you use to remove existing joints?
Cold chisel
Plugging chisel
Bolster chisel
Comb chisel
What tool prevents the line sagging?
Wall plate
Line pin
Corner block
Tingle plate
What would you use to check the face plane of brickwork?
Tape measure
Storey rod
Straight edge
Tingle plate
What material would provide a DPC for a garden wall?
Concrete bricks
Lightweight blocks
Dense concrete blocks
Engineering bricks
In a mortar mix of 1:4, what does the 4 represent?
Cement
Lime
Aggregate
Sand
How would you calculate the number of bricks needed for a one brick thick wall?
Area x120
Area / 120
Volume x 120
Volume /120
Why is it important to check the datum height of brickwork at corner positions?
To ensure that the wall works bricks
To ensure level and length
To ensure level and height
To ensure that the foundation is square

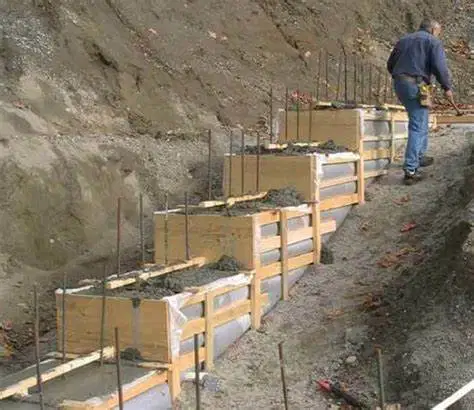

If the ground is sloping what type of foundation would you use?
Wide strip
Narrow strip
Stepped
Raft
How should you position your bricks?
600mm from the face
600mm from the rear
1500mm from the face
1500mm from the rear
What is the gauge for four course of bricks?
320mm
300mm
280mm
265mm
Broken bond is used where a wall is?
Not plumb
Does not work gauge
Is not square
Does not work full bricks
A queen closer is used to establish?
Broken bond
Quarter bond
Half bond
Stretcher Bond
What jointer is used to create a recessed finish?
Jointer
Pointing trowel
Brick trowel
Chariot
Why would we build expanding metal into solid walling?
Improves thermal value
Reduces mortar use
Decorative finish
Increases wall strength
Which of the following would identify hazards when building solid walls?
Risk assessment
Schedule
Programme
Job specification
What is the best material to protect newly built brickwork from frost?
Scaffold plank
DPC
Hessian
Plastic sheeting
In order to maintain industrial standards, what should be followed?
Programme of work
Schedule
Bill of quantities
Specifications
