WorksheetsProject 4: Fundamentals of Circuit and Light Diffusion-KC
Total questions: 10
Worksheet time: 5mins
What is "polarity" in an LED circuit?
The direction of the electrical current
The brightness of the LED
The strength of the battery
The type of switch used
What is the function of an LED in an electrical circuit?
It converts electrical energy into light energy
It stores electrical energy like a capacitor
It increases voltage in the circuit
It controls the speed of electrical flow
What happens when an LED is connected in reverse polarity?
It will emit brighter light
It will not work because current cannot flow in the wrong direction
It will start to heat up but still function
It will store energy and release it later
What role does the coin cell battery play in the lightsaber circuit?
It generates electricity through a chemical reaction
It stores electricity like a capacitor
It acts as a resistor to control current flow
It converts mechanical energy into electrical energy
How does the translucency of the straw affect the brightness of the lightsaber blade?
A more translucent straw diffuses light better, making it brighter.
A more translucent straw blocks light, making it dimmer.
A translucent straw does not affect brightness but changes color.
The translucency of the straw does not impact the brightness at all.

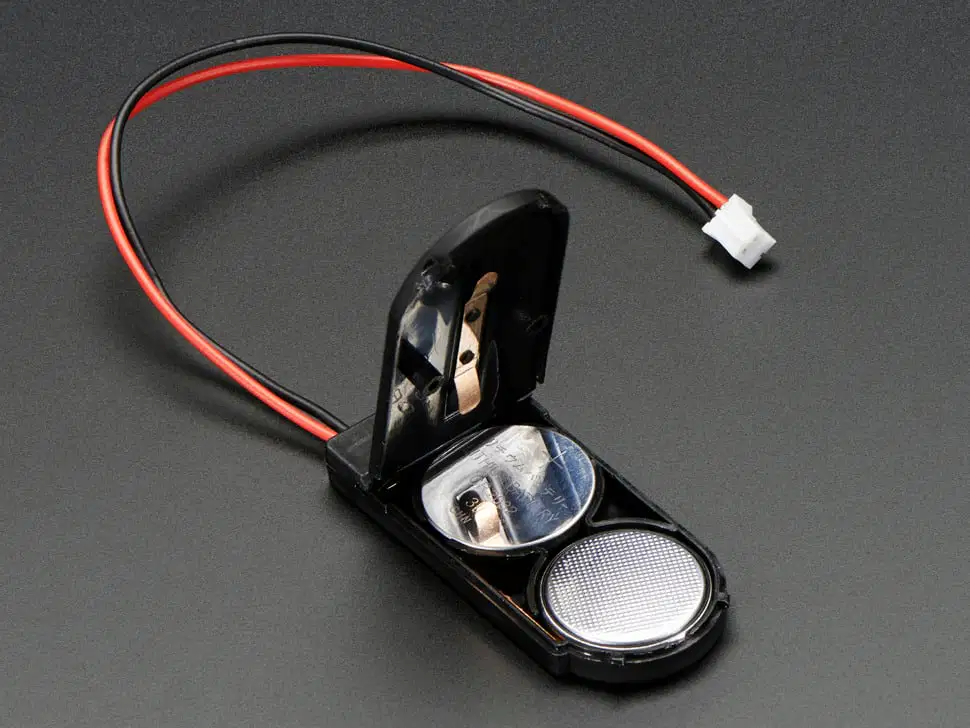

What is the purpose of using a battery holder in the circuit?
It increases the battery’s voltage output
It safely connects the battery to the LED and allows for easy replacement
It controls the amount of current reaching the LED
It changes the color of the LED

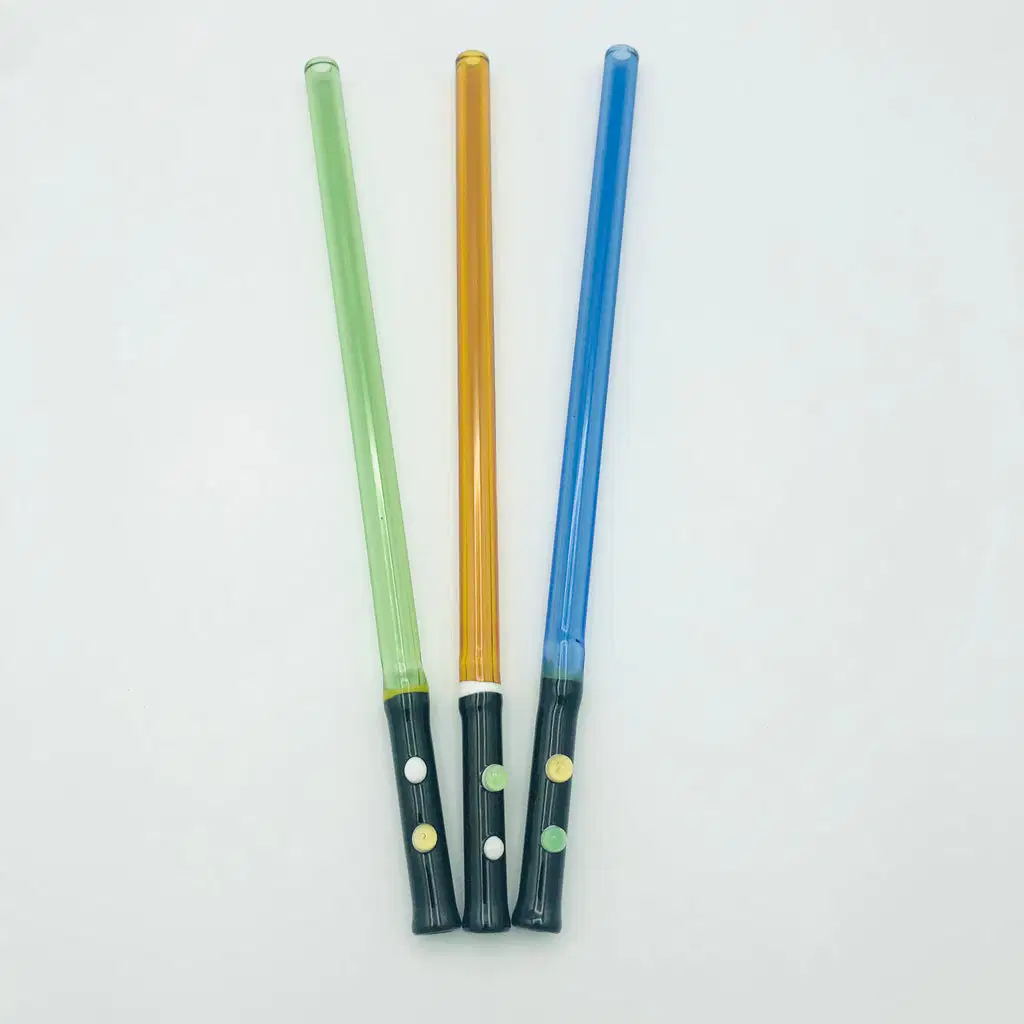

Why do we use a straw over the LED in the DIY lightsaber?
To help spread and diffuse the light evenly
To conduct electricity to the LED
To protect the LED from overheating
To reflect all the light in one direction
Why do LEDs require a specific voltage and current to function correctly?
Too much voltage can burn out the LED, while too little won’t light it up
LEDs can function at any voltage and current
Higher voltage makes the LED last longer
The LED generates its own electricity and does not need a power source
What is the best way to test if an LED is working before assembling the full circuit?
Submerge it in water
Place the LED directly on the battery with the correct polarity
Hit it gently to see if it lights up
Wrap it in aluminum foil to conduct electricity
Why is electrical tape used over the copper tape connection in the circuit?
To enhance electrical conductivity between components
To insulate and protect the connection, preventing short circuits
To increase the voltage supplied to the LED
To cool down the battery and prevent overheating
