Tualatin Aerospace

Total questions: 15

Worksheet time: 8mins

Name
Class
Date
1.

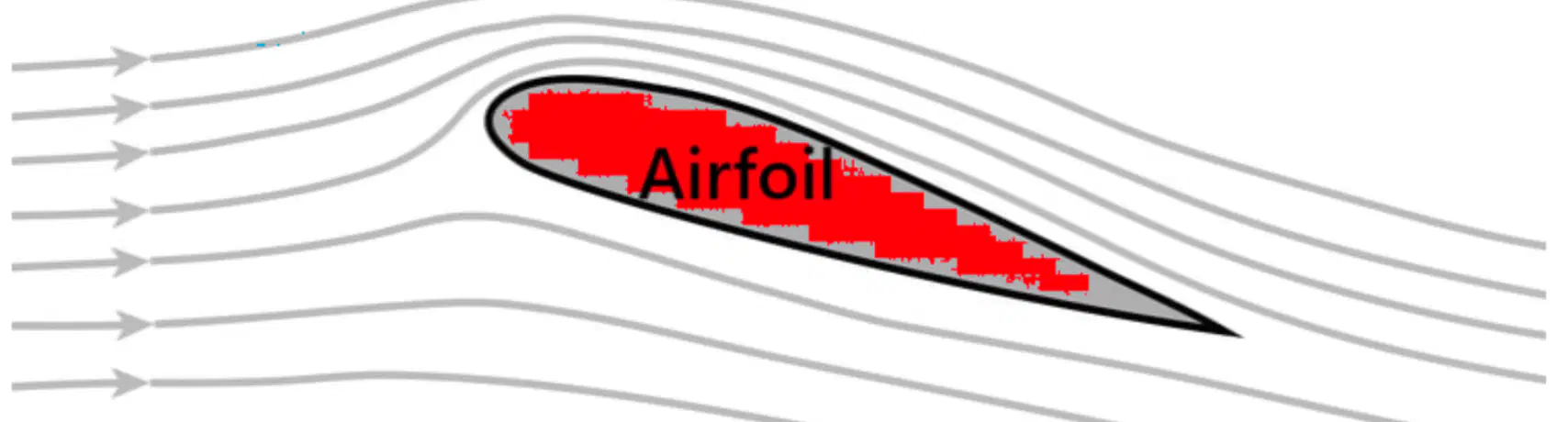

An airfoil is designed to make air move ______ over the top surface of the wing to help create Lift.

a)

Slower

b)

Faster

c)

The Same Speed

2.

Faster moving air creates _______ pressure.

a)

Lower

b)

Higher

c)

Equal

3.

Air always moves from ________ to ________ pressure

a)

Low to High

b)

High to Low

4.

In order for flight to occur ______ must overcome Weight

a)

Drag

b)

Thrust

c)

Speed

d)

Lift

5.

In order for flight to occur ______ must overcome Drag

a)

Lift

b)

Weight

c)

Thrust

d)

Pressure

6.

If an airplane rotates on the Longitudinal axis shown, it is performing a ______ motion.

a)

Roll

b)

Pitch

c)

Yaw

d)

Turn

7.

If an airplane rotates on the Vertical axis shown, it is performing a ______ motion.

a)

Roll

b)

Pitch

c)

Yaw

d)

Turn

8.

If an airplane rotates on the Lateral axis shown, it is performing a ______ motion.

a)

Roll

b)

Pitch

c)

Yaw

d)

Turn

9.

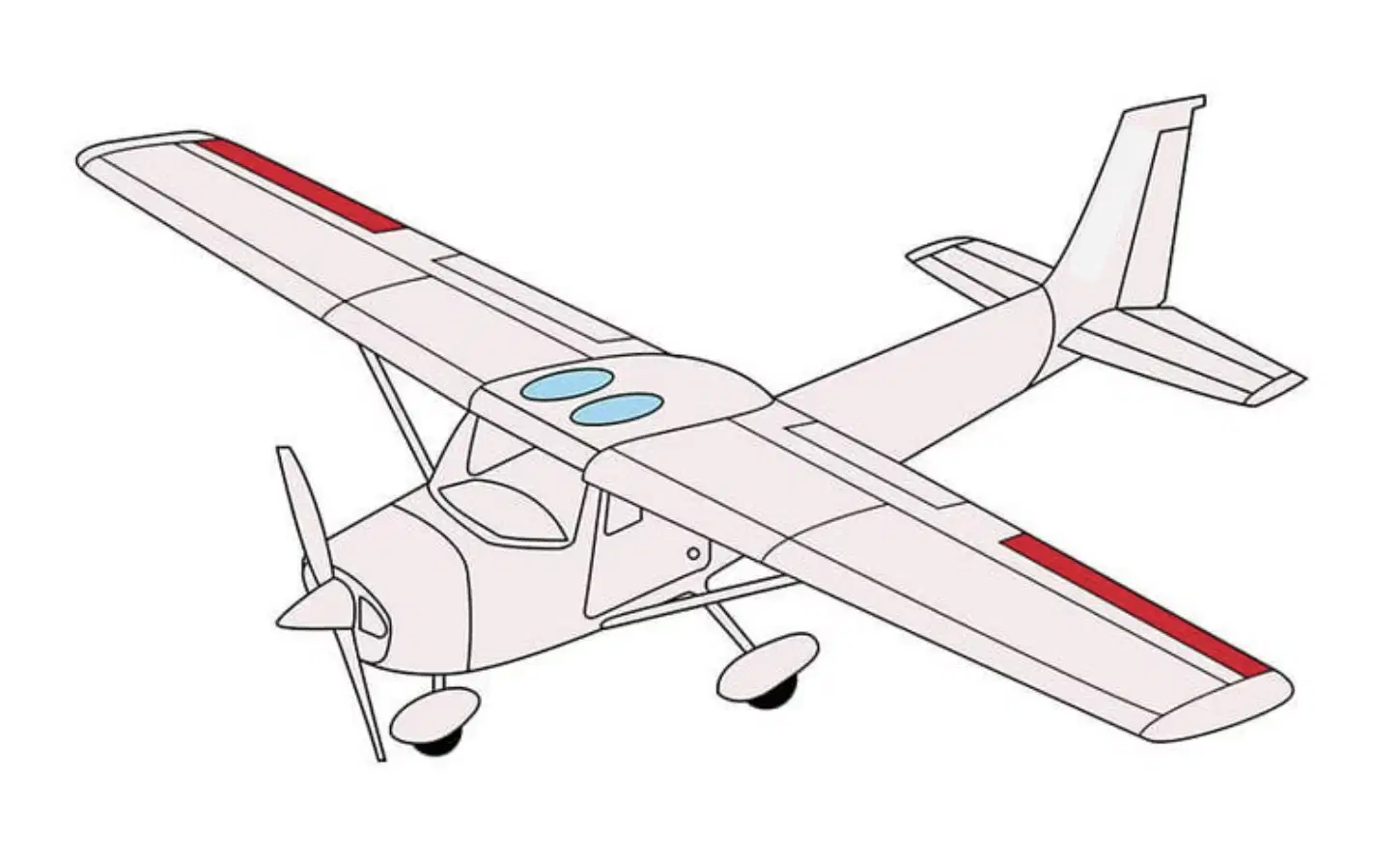

The control surfaces highlighted in Red are called

a)

Rudder

b)

Ailerons

c)

Elevator

d)

Flaps

10.

The control surface highlighted in Blue is called

a)

Rudder

b)

Ailerons

c)

Elevator

d)

Flaps

11.

The control surface highlighted in Yellow is called

a)

Rudder

b)

Ailerons

c)

Elevator

d)

Flaps

12.

The tail assembly of a plane is called the ______.

a)

Empennage

b)

Wings

c)

Enginer

d)

Fuselage

13.

Moving the Rudder of a plane causes the plane to ________.

a)

Pitch

b)

Roll

c)

Yaw

d)

Rizz

14.

Moving the Elevator of a plane causes the plane to ________.

a)

Pitch

b)

Roll

c)

Yaw

15.

Moving the Ailerons of a plane causes the plane to ________.

a)

Pitch

b)

Roll

c)

Yaw
