WorksheetsBathroom quiz
Total questions: 58
Worksheet time: 29mins
What material are bidets typically made of?
Stainless steel
Vitreous china
Plastic
Porcelain
Which of the following is a design type of bidet?
Over-the-rim bidet
Under-the-rim bidet
Side-spray bidet
Downward-spray bidet
What is a bidet often described as?
A sit-on wash basin
A stand-up shower
A hand wash sink
A foot bath
What might wall-hung bidets require?
Additional support brackets
Extra water supply
Special cleaning agents
Larger drainage pipes
How many types of bidets are mentioned in the learning material?
One type
Two types
Three types
Four types
What should be maintained over the rim of a bidet?
AUK2 air gap
Water seal
Pressure valve
Overflow pipe
What is the minimum waste size required for bidets?
15mm
25mm
32mm
50mm
Bidet taps have which size BSP connections?
1/4"
1/2"
3/4"
1"
What type of feed is required for bidets?
10mm hot and cold feed
12mm hot and cold feed
15mm hot and cold feed
20mm hot and cold feed
What is the most common style of bidet mentioned in the document?
Over-the-rim bidet
Wall-mounted bidet
Floor-standing bidet
Portable bidet
What is required to maintain when connecting an over-the-rim bidet to a mains-fed system?
AUK2 air gap
Pressure valve
Water filter
Backflow preventer
What type of tap design is available for an over-the-rim bidet?
One- or two-hole design
Three-hole design
Single-hole design
Four-hole design
Why does a hand spray with hose need special treatment when used with an over-the-rim bidet?
It could drop into contaminated water
It requires more water pressure
It is difficult to install
It is more expensive
What is important to maintain between the spillover level of the sanitary appliance and the outlet of the tap in an over-the-rim bidet?
AUK2 air gap
Water pressure
Temperature control
Flow rate

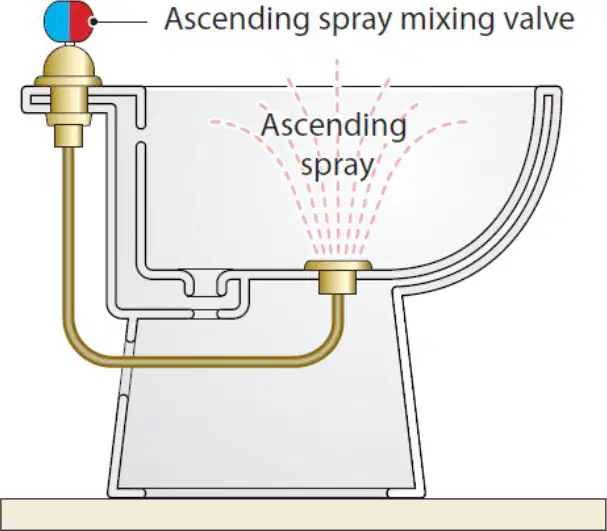

What is a unique feature of the ascending-spray bidet?
It sprays water downwards from the rim.
It uses a special mixer tap to spray upwards from the base.
It is commonly used in the UK.
It can be connected to mains-fed systems.
Why are special installation considerations needed for ascending-spray bidets?
They have an air gap between the spill over level and the outlet.
They are commonly used in the UK.
There is no air gap between the spill over level and the outlet.
They can be connected to mains-fed systems.
Why can't ascending-spray bidets be connected to mains-fed systems?
They are too expensive.
They are not commonly used in the UK.
The outlet is in direct contact with foul water.
They require a special type of water.

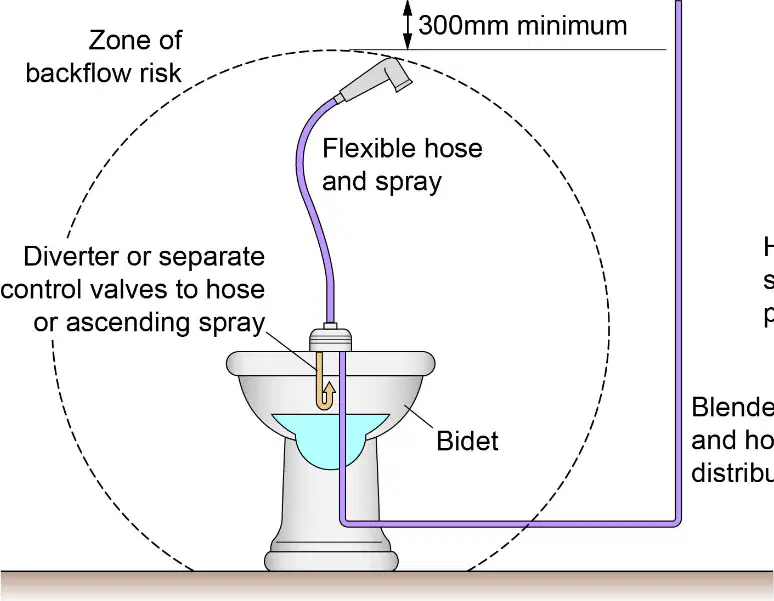

What is the minimum height required for the air gap in a flexible-hose bidet to prevent backflow?
200mm
300mm
400mm
500mm
Which type of backflow prevention device is mentioned for use with a flexible-hose bidet?
Type AA
Type BB
Type CC
Type DD
What is the purpose of the diverter or separate control valves in a flexible-hose bidet?
To control water temperature
To direct water to the hose or ascending spray
To increase water pressure
To filter the water
What fluid category risk is associated with bidets with flexible hose and spray handset fittings below the spillover level?
Fluid category 1
Fluid category 3
Fluid category 5
Fluid category 2
What type of backflow prevention arrangements are used for bidets supplied with cold and/or hot water?
Type AA, AB, or AD
Type BA, BB, or BD
Type CA, CB, or CD
Type DA, DB, or DD
What is the minimum elevation required for the spray outlet of a bidet above the spillover level?
100mm
200mm
300mm
400mm
What is the typical worktop height for most common sinks?
800mm
850mm
900mm
950mm
According to Water Regulations, what type of air gap is required between the spillover level of the appliance and the outlet of the tap?
AUK1
AUK2
AUK3
AUK4
Which of the following is a type of kitchen sink design?
Triple bowl and drainer
Single bowl and drainer
Quadruple bowl and drainer
Circular bowl and drainer
What material is mentioned as being easily chipped?
Stainless steel
Polycarbonate
Vitreous china
Granite
Which material used for kitchen sinks is associated with electrical earth bonding?
Granite
Stainless steel
Polycarbonate
Vitreous china
Which type of kitchen sink may allow the installation of a waste disposal unit?
Double bowl and double drainer
Single bowl and drainer
Bowl and a half
Polycarbonate
What is the first step in the installation method for a kitchen sink?
Place the manufacturer's rubber washer in the top of the waste body.
Push the overflow tube onto each spigot.
Remove only enough protective wrapping to allow for the fitting of the taps and waste.
Place the manufacturer's washer in position on the underside of the waste grate.
What size combined waste and overflow is required for the installation?
1.0 inch
1.5 inch
2.0 inch
2.5 inch
Where should the manufacturer's washer be placed during the installation?
On the top of the waste body
On the underside of the waste grate
Inside the overflow tube
On the spigot
What should be removed from the tap(s) during the installation of kitchen sinks?
The top nut
The back nut
The side nut
The front nut
What should be applied to the base of the taps during installation?
A large amount of glue
A small amount of non-setting compound/silicon or a self-adhesive washer
A small amount of paint
A large amount of oil
What tool might be required to tighten the back nut during tap installation?
Hammer
Screwdriver
Tap spanner, box spanner, or basin wrench
Pliers
What additional component may be required for a pressed-steel sink?
Rubber gasket
Top hat spacer/washer
Metal clamp
Plastic seal
What material is a Belfast sink typically made of?
Stainless steel
Fire clay
Porcelain
Granite
Where are Belfast sinks commonly installed?
Modern apartments
Period houses
Office buildings
Outdoor kitchens
What type of overflow does a Belfast sink have?
Circular overflow
Integral weir type overflow
Linear overflow
No overflow
How are taps typically mounted for a Belfast sink?
Directly on the sink
Above the appliance or from the worktop
On the side of the sink
Under the sink
What is a key difference between a London sink and a Belfast sink?
The London sink has an overflow.
The London sink cannot have a plug.
The London sink is smaller in size.
The London sink is made of metal.
What is the primary reason Butler’s sinks are installed at a much lower level?
To allow a bucket to be mounted on the grate
To save space in the kitchen
To improve water drainage
To enhance aesthetic appeal
What feature do Butler’s sinks have to prevent water from splashing out?
Integral splashback
Removable cover
Adjustable height
Built-in filter
What additional support do Butler’s sinks require when installed?
Support legs
Extra plumbing
Reinforced walls
Additional lighting
What is another name for Butler’s sinks?
Cleaners sinks
Farmhouse sinks
Utility sinks
Kitchen sinks
What is the minimum waste size required for standard kitchen sinks?
30mm
40mm
50mm
60mm
What size is the hot and cold feed for standard kitchen sinks?
10mm
15mm
20mm
25mm
What type of connection do taps have in standard kitchen sinks?
1/4" BSP
1/2" BSP
3/4" BSP
1" BSP
What must be maintained to ensure proper installation of sinks?
AUK 1 air gap
AUK 2 air gap
AUK 3 air gap
AUK 4 air gap
What are the two styles of shower cubicles mentioned in the text?
Free standing and corner style
Wall mounted and ceiling mounted
Round and square
Sliding and fixed
What is a 'wet room' in the context of modern building installations?
A room with a pool
A bathroom where the shower is not enclosed
A room with a humidifier
A room with a sauna
What is the primary function of shower trays in a bathroom?
To retain water inside the cubicle
To provide a decorative element
To heat the water
To store toiletries
What feature of shower trays allows tiles to drain water into the tray?
A smooth surface
A raised lip
A built-in heater
A sloped base
What materials can shower trays be made from?
Wood and metal
Glass and stone
Acrylic and fireclay
Plastic and rubber
What type of waste do showers use due to the absence of an overflow?
Slotted waste with a plug
Unslotted waste with no plug
Slotted waste with no plug
Unslotted waste with a plug
What feature does the trap for a shower often have for cleaning purposes?
A fixed filter
A removable filter
A permanent plug
A slotted waste
What is the minimum waste size for a shower?
30mm
35mm
40mm
45mm
What is the typical feed size to a shower before it reduces within 1m of the shower?
10mm
15mm
20mm
22mm
