WorksheetsPlumbing Quiz
Total questions: 15
Worksheet time: 8mins

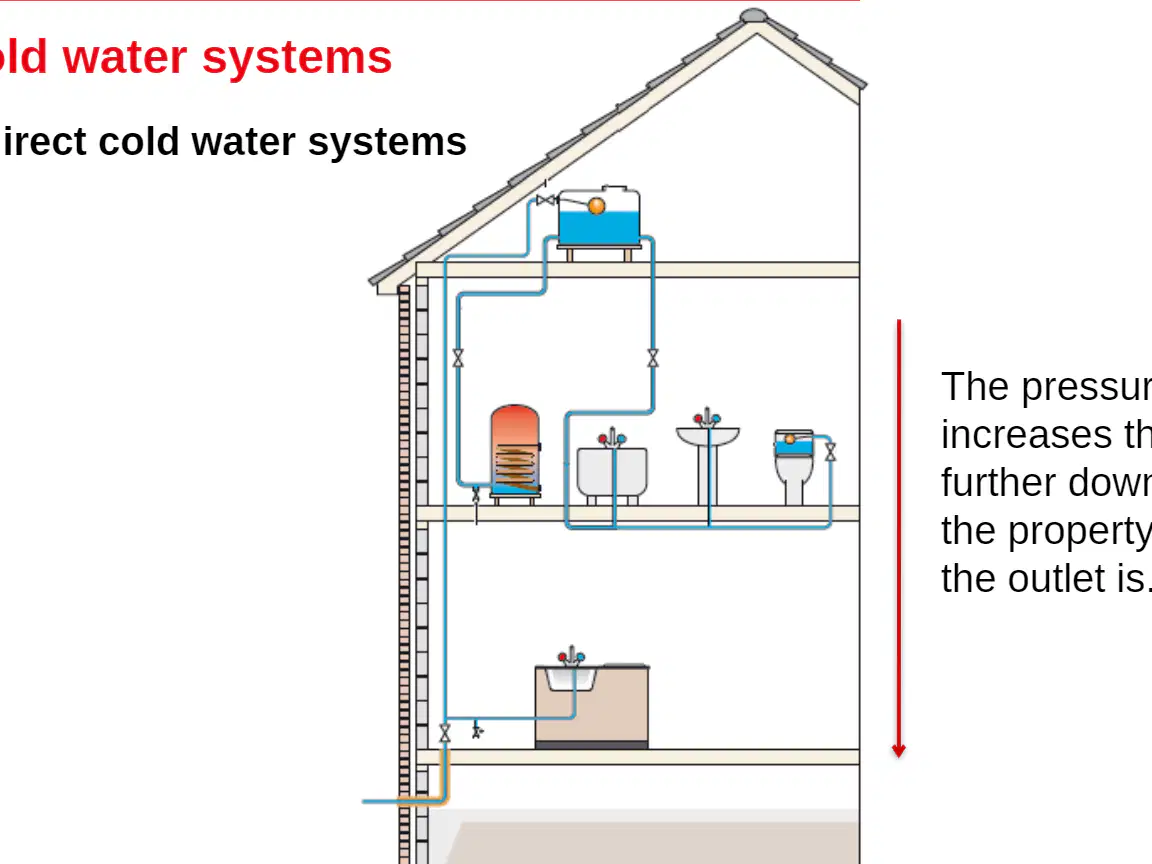

How does a direct cold water system supply water?
Through a storage tank
Directly under mains pressure
Using a pump
Through a reservoir
What is reduced in a direct cold water system compared to other systems?
Water quality
Pipework
Water pressure
Installation time

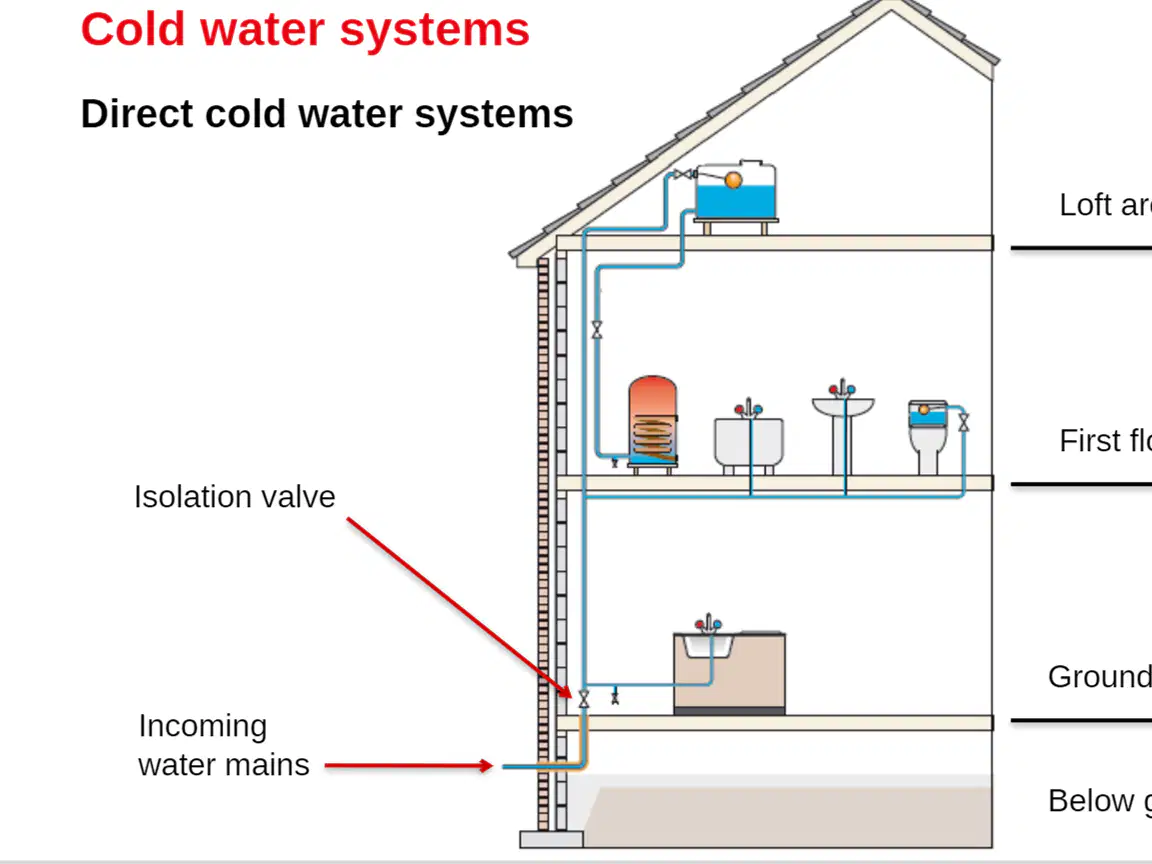

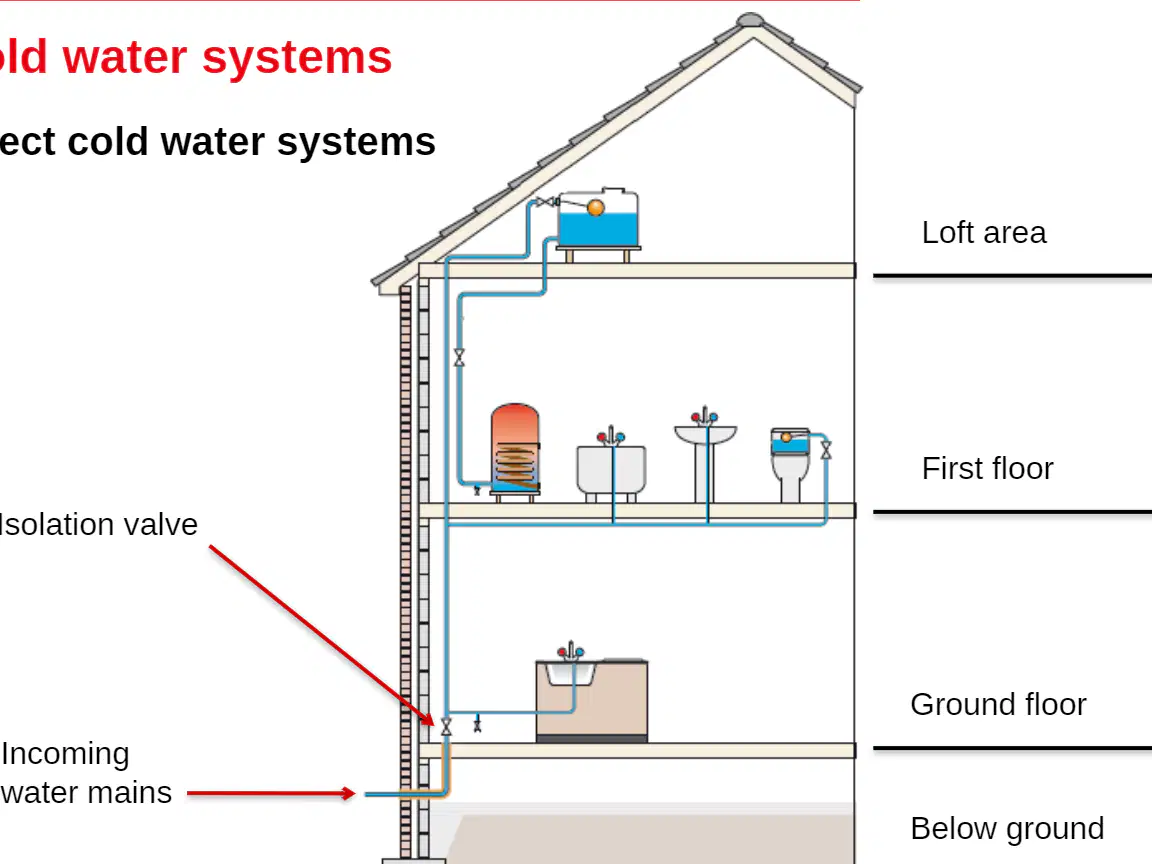

Which area of the house is not shown to have any plumbing fixtures in the diagram?
Loft area
First floor
Ground floor
Below ground
Which component is essential for shutting off water supply in emergencies?
Water heater
Storage tank
Isolation valve
Water filter
What happens if the isolation valve is open in a direct cold water system?
Water is stopped from feeding any appliance.
Water is allowed to feed any connected appliance.
Water is only allowed to feed appliances on the ground floor.
Water is only allowed to feed appliances in the loft area.
What is the main topic of the document?
Direct cold water systems
Indirect heating systems
Electrical safety
Ventilation techniques
What is the function of the loft area appliances in the system?
To provide lighting
To feed the hot water system
To cool the house
To store food
What is a key feature of the combination boiler system mentioned?
Requires stored water in the loft
Does not require stored water in the loft
Needs a separate water tank
Uses solar energy
What role does gravity play in an indirect cold water system?
It increases water temperature.
It pushes cold water down from the cistern.
It filters the water.
It reduces water flow.
Which level of education is the learning material designed for?
Level 1 Diploma
Level 2 Diploma
Level 3 Diploma
Level 4 Diploma
Which organization is associated with the learning material?
City and Guilds of London Institute
London School of Plumbing
British Plumbing Association
National Institute of Plumbing
In an indirect cold water system, what happens when the service valve is closed?
Water pressure increases
Water exits the cistern
The cistern refills faster
The cistern becomes empty
What is the main benefit of isolating the feed to the cistern in an indirect cold water system?
It reduces water usage
It allows maintenance work
It increases water flow
It prevents water contamination
Which component in the indirect cold water system stops the cistern from refilling?
Float-operated valve
Service valve
Overflow pipe
Pressure gauge
What is the consequence of not closing the service valve during maintenance?
Increased water pressure
Water wastage
Overflow of the cistern
Contaminated water
