WorksheetsOSM Force, Motion and Energy 3 SOL Review
Total questions: 25
Worksheet time: 13mins
When a space shuttle was launched, the astronauts onboard experienced an acceleration of 29.0 m/s². If one of the astronauts had a mass of 60.0 kg, what net force in newtons did the astronaut experience?
1740 N
1800 N
1500 N
2000 N
A student uses a magnet to move a 0.025 kg metal ball. The magnet exerts a force of 5 N, which causes the ball to begin moving. What is the acceleration of the ball when it begins to move?
200 m/s²
0.125 m/s²
5 m/s²
5.025 m/s²
In which sections of the track will the sled experience an unbalanced force?
Sections 1 and 3
Sections 2 and 3
Sections 2 and 4
Sections 3 and 4

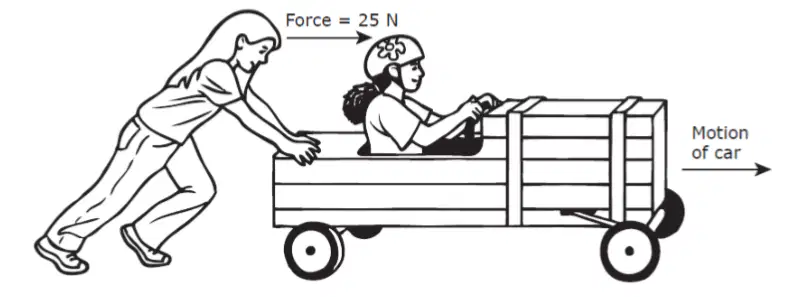

The diagram shows a homemade car being pushed with a force of 25 N. The force causes the car to move at a constant speed of 3 m/s. What will happen if the force is changed to 35 N?
The car will move at a constant speed of 13 m/s.
The speed of the car will not change.
The speed of the car will increase.
The speed of the car will decrease to 1 m/s.

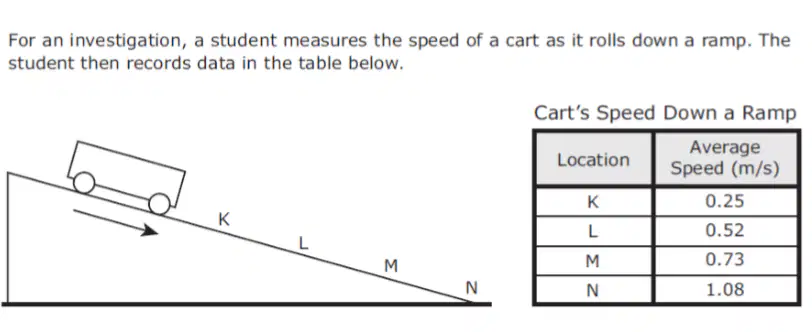

For an investigation, a student measures the speed of a cart as it rolls down a ramp. The student then records data in the table below. Which of these best explains the student’s data?
The speed of the cart decreases as the cart rolls down the ramp because of friction between the cart and the ramp.
The speed of the cart increases as the cart rolls down the ramp because the force acting on the cart is greater than the force of gravity.
The speed of the cart increases as the cart rolls down the ramp because the forces acting on the cart are unbalanced.
The speed of the cart decreases as the cart rolls down the ramp because the forces acting on the cart are balanced.

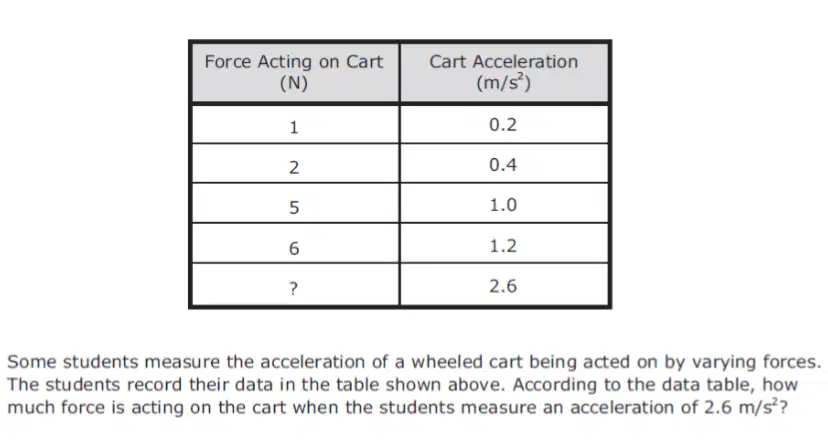

According to the data table, how much force is acting on the cart when the students measure an acceleration of 2.6 m/s²?
13 N
7 N
8 N
12 N
The diagram below shows a boat moving north in a river at 3 m/s while the current in the river moves south at 1 m/s. How will the boat be affected if it enters a part of the river where the current is moving south at 2 m/s?
The boat will move slower.
The boat will move faster.
The boat will stop.
The boat will move to the west.
A motorcycle travels 8.9 meters per second around a track. The dotted line shows the path of the motorcycle. The arrow shows the direction of the motorcycle at position 1. Which comparison of the motorcycle’s motion is correct?
At positions 1 and 3, the velocities are the same, but the accelerations are different.
At positions 1 and 4, the speeds are the same, but the velocities are different.
At positions 2 and 3, the accelerations are the same, but the velocities are different.
At positions 2 and 4, the velocities are the same, but the speeds are different.
A car initially traveling at 8.0 meters per second doubles its speed while traveling in a northeast direction. Students used a table to record the initial and final conditions for speed and velocity. Which table is correct?
Initial: Speed 8.0 m/s, Velocity 8.0 m/s northeast; Final: Speed 16.0 m/s, Velocity 16.0 m/s northeast.
Initial: Speed 8.0 m/s northeast, Velocity 8.0 m/s; Final: Speed 16.0 m/s northeast, Velocity 16.0 m/s.
Initial: Speed 8.0 m/s, Velocity 0.0 m/s² northeast; Final: Speed 16.0 m/s, Velocity 0.5 m/s² northeast.
Initial: Speed 8.0 m/s northeast, Velocity 8.0 m/s northeast; Final: Speed 16.0 m/s northeast, Velocity 16.0 m/s northeast.
A student investigates the motion of a toy vehicle. The student graphs 40 seconds of data from the investigation. Which statement best describes the motion of the toy vehicle during the first 30 seconds of the investigation?
The vehicle was traveling at a constant speed.
The vehicle was accelerating at a constant rate.
The speed of the vehicle was increasing.
The acceleration of the vehicle was increasing.
Which statement describes the meteor’s motion?
Its velocity was 7.8 km/s northward.
Its acceleration was 468 km/s².
Its speed was 468 km/s northward.
Its acceleration was 7.8 km/s².
Which statement best describes the cart?
The cart was stationary with a velocity of 0 m/s for the entire 7 seconds.
The cart was stationary except for a short burst of acceleration of 0.5 m/s².
The cart moved at a constant velocity of 0.5 m/s for the entire 7 seconds.
The cart accelerated at a constant rate of approximately 0.8 m/s².
Which of the following best describes the velocity of an object?
30 m/s
30 m east
30 m/s east
30 m/s²
What is the difference between the velocity and the speed of an object?
Velocity is the change in distance over time, while speed is the change in velocity over time.
Velocity has a direction associated with it, while speed has no specific direction.
Velocity has no direction associated with it, while speed has a specific direction.
Velocity is the change in speed over time, while speed is the change in distance over time.
The three vehicles shown below are all traveling at a speed of 15 m/s, but only the pickup truck has a changing velocity. The pickup truck has a changing velocity because the pickup truck —
can accelerate faster than the other two vehicles
is traveling in the opposite direction from the other two vehicles
is traveling on a curve in the road
needs a large amount of force to move
Which diagram shows where the sphere will go first when it leaves the tube?
Option A
Option B
Option C
Option D
A 1.5-kilogram block is pushed rapidly and released. The block continues to slide some distance until it comes to a stop. The figure shows the block after it has been released and before it comes to a stop. Which forces directly affect the block’s motion both before and after the block has been released?
Gravity and friction
Gravity and air resistance
Friction and air resistance
Only gravity
A photograph of a bird perched on a fence post is shown. Which description best identifies the action-reaction pair between the bird and the fence post?
Action: The force of the bird on the wires, Reaction: The force of the wires on the fence post
Action: The force of the wires on the fence post, Reaction: The force of the fence post on the bird
Action: The force of the fence post on the bird, Reaction: The force of the bird on the wires
Action: The force of the bird on the fence post, Reaction: The force of the fence post on the bird.
When a coin is tossed in the air, it travels upward, gradually slows down, momentarily reaches zero speed, then moves back downward with increasing speed. Which statement best explains this change in the coin’s motion?
The force of gravity causes the coin to change its velocity.
The coin’s inertia decreases on the way up and increases on the way down.
The action-reaction force pair of gravity and the applied force cancel each other.
The coin remains in its state of upward motion until the force of friction acts upon it.
According to Newton’s first law, what happens to the steel ball just after the box stops?
Because of friction, the ball continues rolling forward at the same speed.
Because of friction, the ball rolls forward at an increased speed.
Because of inertia, the ball continues rolling forward at the same speed.
Because of inertia, the ball rolls forward at an increased speed.
A skater pushes off a wall and skates backward for a few meters before stopping. Which statement best describes an action-reaction force pair in this situation?
The wall pushes on the skater when the skater pushes on the wall.
The wheels slow down, and the skater stops.
The skater exerts a force on the wall, and the wheels exert a force on the floor and begin to turn.
The friction of the floor decreases when the wheels roll on the floor.
A large rock is motionless on a flat sidewalk. Which statement best explains why the rock remains motionless?
There are no forces acting on the rock.
The only force acting on the rock is directed toward the sidewalk.
The forces acting on the rock are all balanced.
The sidewalk exerts an unbalanced force on the rock.
Which statement correctly describes the reaction force between the bat and ball?
The reaction force is the force that causes the ball to move toward the bat.
The reaction force is the force applied to the bat by the player holding the bat.
The reaction force is the force that pulls the ball toward the ground.
The reaction force is the force of the ball on the bat.
The picture shows an aerialist walking on a tightrope and holding a balancing bar. An action-reaction pair of forces exists between: (A) the aerialist’s feet and the rope (B) the rope and the balancing bar (C) the two ends of the rope (D) the aerialist’s arms and legs.
the aerialist’s feet and the rope
the rope and the balancing bar
the two ends of the rope
the aerialist’s arms and legs
Part 1 only
Parts 1 and 2 only
Part 3 only
Parts 2 and 3 only
