You are designing a treasure map, but you can only draw on a flat piece of paper. Which AutoCAD mode should you use?
Space Mode
Isometric Mode
3D Mode
2D Mode
Your little cousin asks you to draw a cool-looking robot, and they want it to look kinda 3D but still on paper. Which mode should you pick?
AI Mode
3D Mode
Isometric Mode
2D Mode
Bob is designing River, but he wants it to have smooth curves and different lane widths. Which command should he use?
COPY PASTE
RIVER MAP
Line + arc + HACTH
Polyline + arc+ width
Circle + TRIM
John is designing a giant pizza and only knows the distance between two opposite crust edges. What’s the best method?
Center, Diameter
Center, Radius
3-Point
2-Point
Tom wants to make sure his donut of R30 fits perfectly between two coffee mugs. Which method should he use?
2 POINT
TTT
TTR
RRR
Lisa is designing a swimming pool and she needs smooth curved edges. Which method should she use?
Fill the entire page with blue color
Area
CHAMFER
Fillet
Michael is designing a billboard and knows the exact width and height needed and at 20 mtr hieght. What’s the best rectangle method?
Draw it by hand with a ruler
Elevation + Dimensions
Ask ChatGPT to do it for him
Area
Ethan wants to draw a rainbow but he knows only specific points where the colors should pass through. What Method fits best?
Waiting for a real rainbow and tracing it
3 -Point
Start, End, Radius
Start, End, length
Ryan is setting up 10 park benches along a walking path and wants them placed at equal intervals. Which command should he use?
Measure
Copy
Let people bring their own chairs
Divide
Lina baked a giant birthday cake and wants to cut it into exactly 8 equal slices. Which AutoCAD command would help if the cake were a straight line?
Just smash the cake and let everyone grab a piece
Trim
Divide
Measure
Victer is placing streetlights along a long road. he wants a lamp post every 10 meters, no matter how long the road is. What command should she use?
Offset
Divide
Let drivers use flashlights instead
Measure
Emma is designing a potato-shaped racetrack. She only has two key distances: the longest and the shortest width. What’s her best method?
Let the potato decide
Spin in circles until it looks right
Axis, End
Center
Alex wants to design a pentagon-shaped pizza that fits inside a circular plate. Which method helps him?
Circumscribed
Just order a round pizza instead
Edge
Inscribed
Mia is designing a café floor and wants to fill it with a brick pattern. What should she use?
Gradient
Manually draw each brick
Hatch
Tell customers the floor is "abstract art"
JOHN is designing a 2D flower Vase, but he stuck at drawing bottle bottom curve. What command should she use?
Just close her eyes and freehand it
Arc
Ellipse
Elliptical Arc
Mia is designing a 7-edged bangle that must fit perfectly around her wrist. Which command should she use?
Explode
Circumscribed
Inscribed
Tell her to just buy a round bangle instead
Noah just opened AutoCAD for his New Project. What’s the very first thing he should do?
ask Alexa to open Autocad
Ask Chat GPT to do his Work
set up the AutoCAD Settings
continue in yesterday work
What is the purpose of the Command Line in AutoCAD?
To input commands, see outputs, and store history
To display random error messages and scare users
To look fancy with some scrolling text
To remind you that shortcuts exist, but you’ll still type full commands
SANA wants to move 100 meter long at 60 degrees inclination to reach her home, How will you command her in AutoCAD?
(a)
Krish is playing a board game and starts at the bottom-left corner. He rolls the dice and needs to move exactly to (5,5). Which coordinate method should he use?
Polar
Just flip the board and declare himself the winner
Relative
Absolute
Janu is traveling to Bangalore, and she stops for a break. Now, she continues her journey by moving 200m forward and 500m left. Which coordinate method is she using?
Google Maps Mode
Absolute
Relative
Polar
Jaanu is designing a sunset scene in AutoCAD and wants to create a smooth color transition in the background. Which hatch type should she use?
Ask nature to do it instead
Pattern Hatch
Solid Hatch
Gradient Hatch

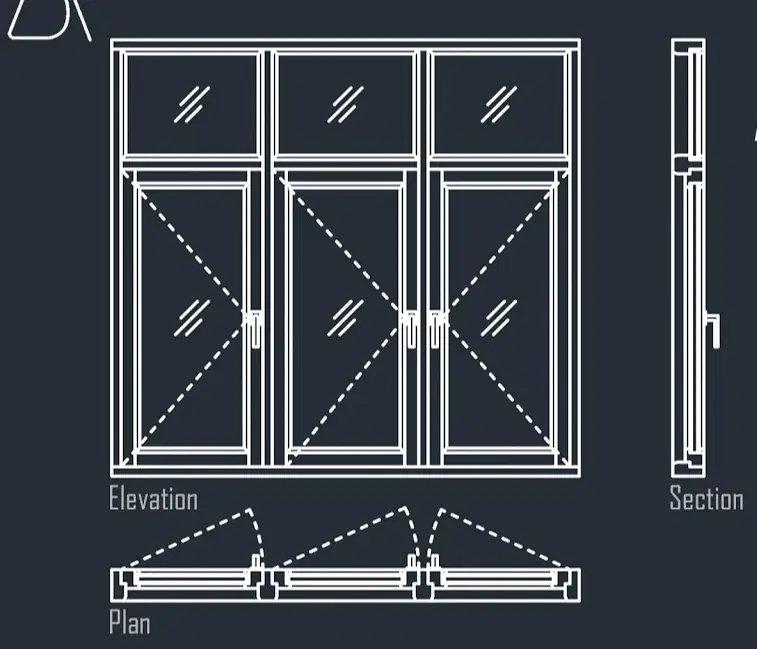

Krish is drawing a window with Rectangle command. What should he set to make the rectangle’s lines thicker?
Hatch
Just zoom in and pretend it’s thick
Width
Height
Jake is working on AutoCAD late at night, and suddenly his drawing disappears. What should he do first
Stare at the screen and hope it magically comes back
Call the police because the drawing was stolen
zoom all with shortcuts
Throw his computer out the window
Janu wants to draw a perfect circle in AutoCAD. What is the best way?
Make a 999-sided polygon and pretend it’s round
Use the Circle command
Try drawing by hand like a caveman
Close AutoCAD, grab a compass, and do it on paper instead
