WorksheetsUnderstanding Motion and Mechanical Systems
Total questions: 15
Worksheet time: 8mins

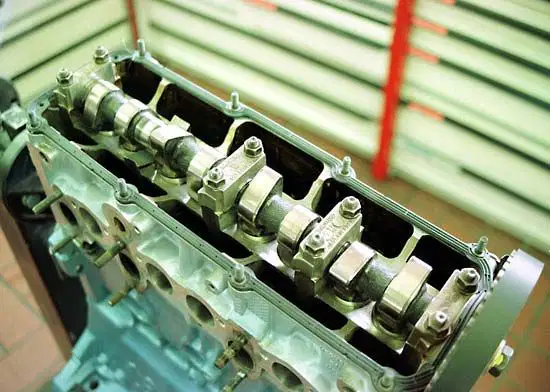

What is the primary function of a camshaft in an engine?
To increase fuel efficiency
To open and close engine valves
To cool the engine
To provide electrical power
Which type of lever is a seesaw an example of?
1st order lever
2nd order lever
3rd order lever
None of the above
In a block and tackle pulley system, what is the main advantage?
It increases speed
It reduces the effort needed to lift a load
It increases the weight of the load
It decreases the distance the load is moved
What type of motion does a pendulum exhibit?
Linear motion
Rotary motion
Oscillating motion
Random motion
Which of the following is an example of linear motion?
A spinning top
A car driving down a straight road
A swinging pendulum
A rotating fan
What is the primary difference between linear speed and rotary speed?
Linear speed is measured in revolutions per minute
Rotary speed is measured in metres per second
Linear speed refers to straight-line motion, while rotary speed refers to circular motion
Rotary speed is always faster than linear speed
Which of the following is a characteristic of a 2nd order lever?
The fulcrum is between the effort and the load
The load is between the fulcrum and the effort
The effort is between the fulcrum and the load
The load and effort are on the same side of the fulcrum
What is the main purpose of a drop cam in machinery?
To increase the speed of the machine
To convert rotary motion into linear motion
To decrease the noise of the machine
To provide electrical power
Which of the following is an example of a 3rd order lever?
A pair of scissors
A wheelbarrow
A fishing rod
A crowbar
What is the primary function of a pear cam in a mechanical system?
To provide constant speed
To create a variable speed
To convert electrical energy into mechanical energy
To maintain a constant force
In which unit is linear speed typically measured?
Revolutions per minute
Metres per second
Degrees per second
Pounds per square inch
What type of motion does a wheel exhibit when it rolls down a hill?
Linear motion
Rotary motion
Oscillating motion
Random motion
Which of the following is NOT a type of lever?
1st order lever
2nd order lever
3rd order lever
4th order lever
What is the main advantage of using a cam in a mechanical system?
It reduces friction
It allows for precise control of motion
It increases the weight of the system
It decreases the speed of the system
Which of the following best describes rotary speed?
The speed at which an object moves in a straight line
The speed at which an object rotates around an axis
The speed at which an object oscillates back and forth
The speed at which an object falls under gravity
