WorksheetsArduino Exam
Total questions: 33
Worksheet time: 18mins
What are these?
RESISTORS
CAPACITORS
What is this component?
LED
LCD
Microcontroller
Resistor
What is this component?
Breadboard
Microcontroller
Resistor
Ultrasonic Range Finder
What is this component?
USB Cable
Microcontroller
Jumper Wire
Ultrasonic
What is this component?
Jumper Wires
Resister
USB Cable
Speaker
Name the component.
USB connector
TX RX LEDs
Analog input pins
Power port
Name the component.
TX RX LEDs
USB interface chip
Analog input pins
Digital pins
What is this?
kitchen tool
arduino board
microcontroller
capacitor
How many digital pins does the Arduino Mega have?
54
14
16
8
What is the maximum number of analog inputs available on an Arduino Uno?
6
8
10
12
Identify the component name in the picture shown above
Push Button Switch
Potentiometer
Tilt Ball Switch
IR Sensor
What is this?
Push Button Switch
Potentiometer
Tilt Ball Switch
IR Sensor
What does a push button do?
Turn the energy on and off in circuit
Upload the code
In this senariou digital pin 6 is connectd to button 1.
True
False
In this senariou digital pin 7 is connectd to led 1.
True
False
In this senario digital pin 7 is connectd to led 1.
True
False
What does this line of code do?
This block marks the beginning of your Arduino program.
This block marks the ending of your Arduino program.
What does this line of code do?
This block marks the beginning of your Arduino program.
This block marks the ending of your Arduino program.
What does this line of code do?
This block repeats the blocks inside it endlessly
This block ends the blocks inside
What does this line of code do?
Turn on the digital pin
Turn of digital pin
What does this line of code do?
Turn on the digital pin
Turn of digital pin
This block of code will make Arduino wait for 2 second?
True
False
This block of code will make digital pin 10 to go on then wait 1 second then go off and wait 1 second again, and will repeat forever.
True
False
This block of code will make digital pin 9 to go on then wait 1 second then go off and wait 1 second again, and will repeat forever.
True
False
This block allows the program to make decisions based on a condition.
True
False
If the condition (the diamond-shaped input) is true, the blocks inside the "then" section will run.
Else, if the condition is false, the blocks inside the "else" section will run.
True
False
This are operator that are used for comparison.
True
False

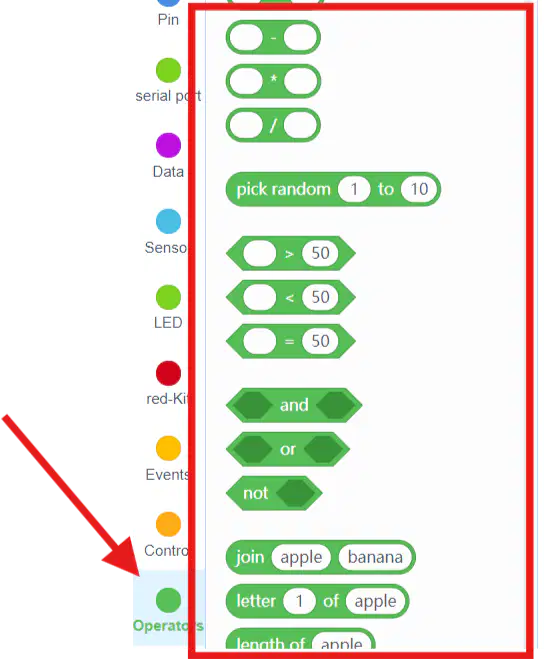

What are operator in mblcok?
In mBlock, operators are special blocks that perform math and comparisons.
In mBlock, operators are special blocks that are used for loops.
Leds are used to produce light?
True
False
What is the highlighted part
Power Regular
Drums
Voltage Regulator
Microcontroller
Name of this kind of lightbulb
(a)
How is this called?
(a)
Name the component.
USB connector
Power port
