WorksheetsDisc Brake Overview
Total questions: 15
Worksheet time: 9mins

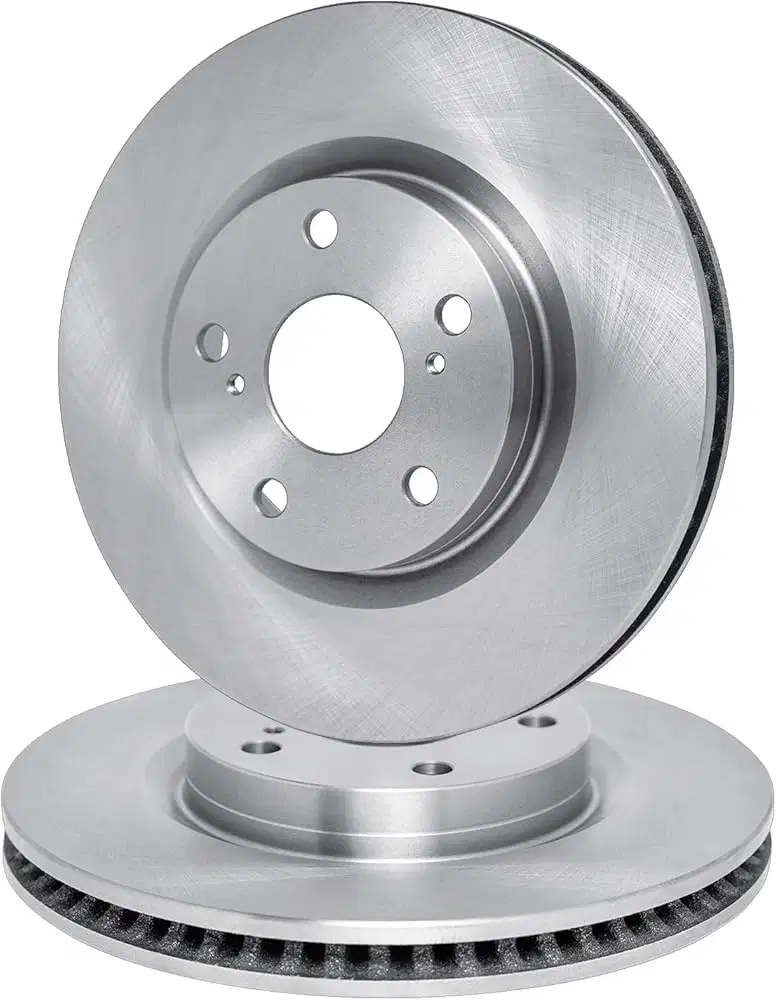

Identify the Part
Caliper
Rotor
Disc
Bracket

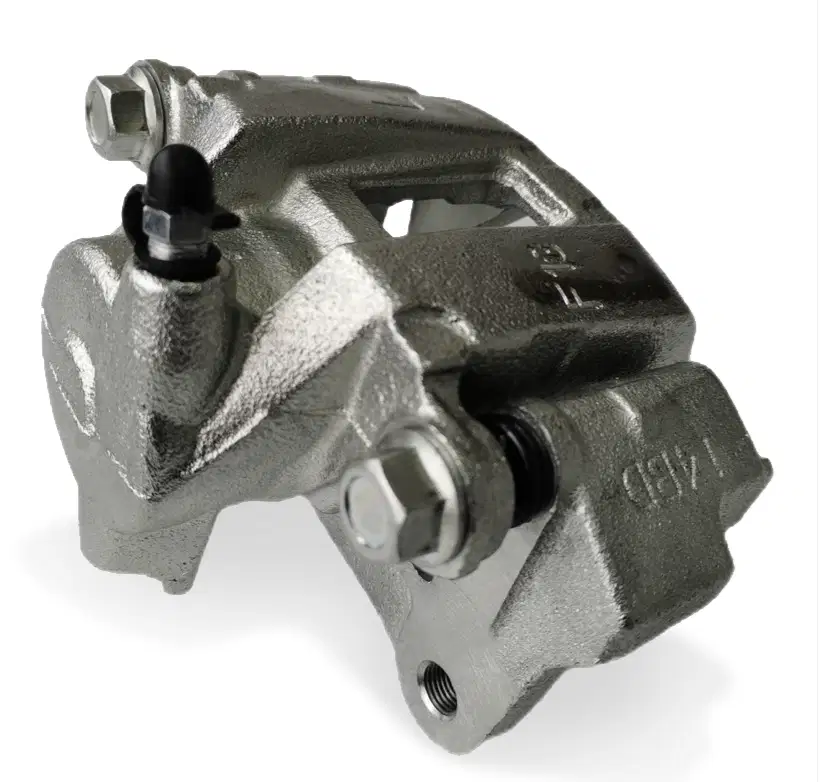

Identify the Part
Bracket
Caliper
Rotor
Pad
What part converts the mechanical force of the brake pedal into hydraulic pressure?
Piston
Brake Booster
Caliper
Master Cylinder

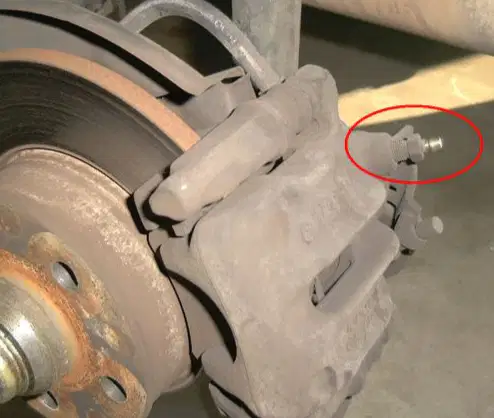

Identify the part circled?
Bleeder Valve
Slide Pin
Bracket Bolt
Hose Adapter
What is the purpose of brake pads?
To Convert the Heat into Kinetic Energy
To Convert Kinetic Energy into Heat
To Convert Kinetic Energy into Voltage
What is the process of removing air from hydraulic brake lines called?
Griding
Bleeding
Aerating
Hydrating
Which of these is a common sign of worn brake pads?
A smooth rotor surface
A firm brake pedal
A squealing or grinding noise
A high brake fluid level
What is being inspected based on the image?
Piston
Backing Plate
Rotor Thickness
Brake Lining

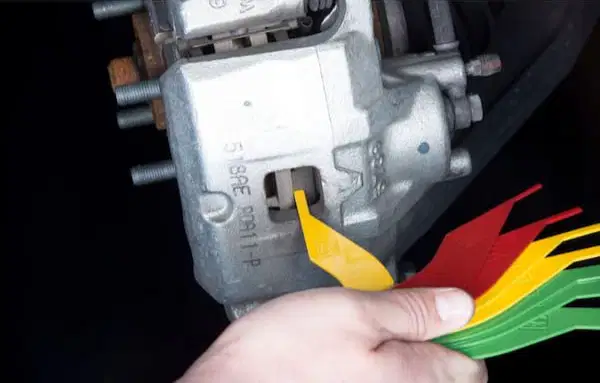

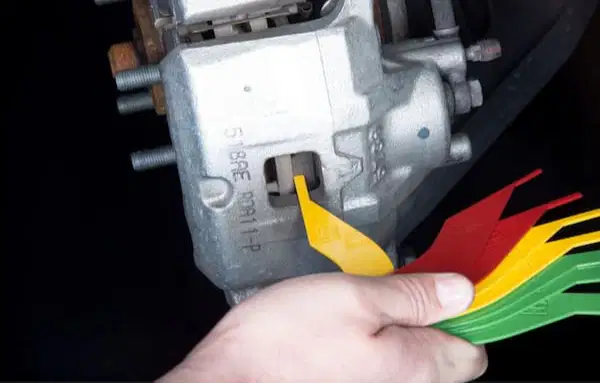

Based on the gauge, whats the wear on this brake pad?
Moderate
Good
Bad

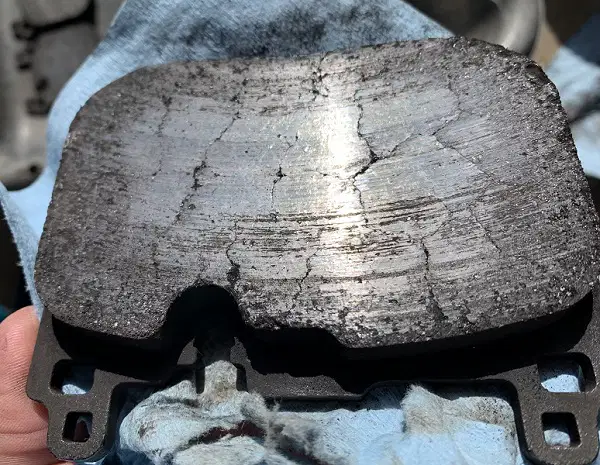

This is an example of brake pad...
Glazing
Runout
Taper
even wear
What is the front rotor discard value?
0.83 in
0.315 in
0.905 in
0.394 in
What Brake Fluid does this car use?
4.5
5W-20
DOT 3
0

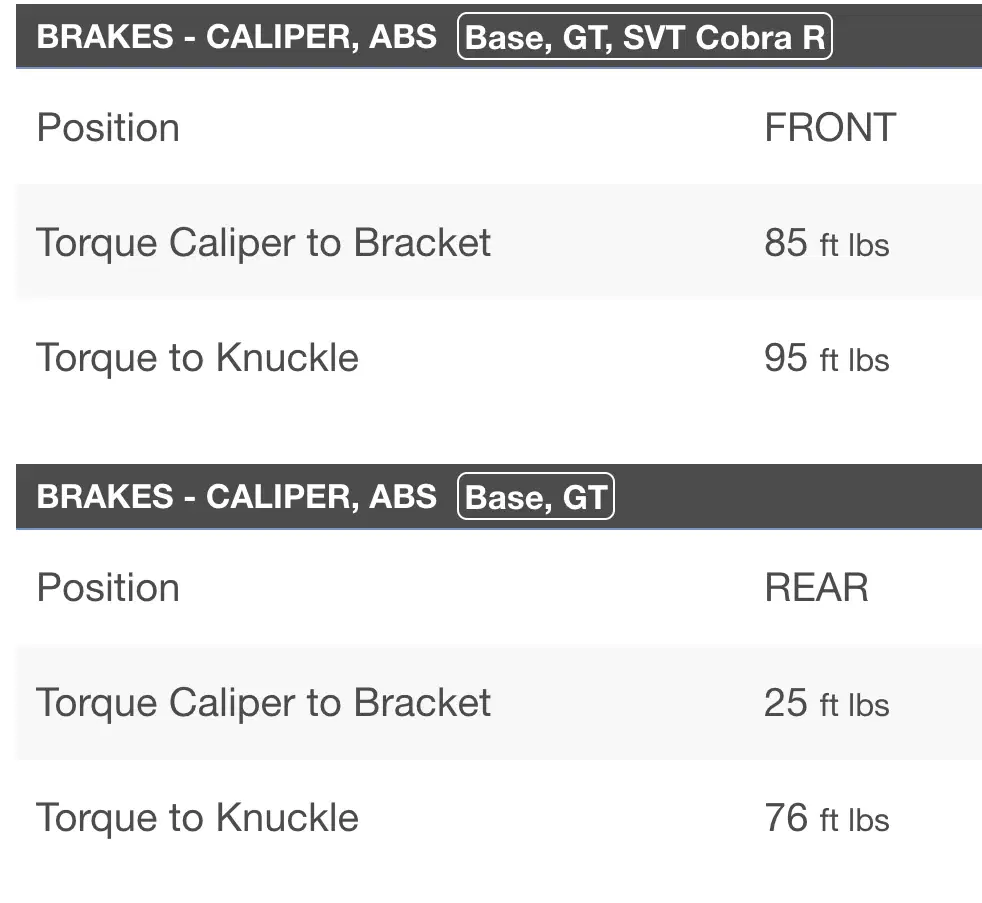

What is the Torque Spec for the Front Bracket Bolt?
95 ft lbs
76 ft lbs
25 ft lbs
85 ft lbs
What is the order of operations from Pedal to Caliper
Brake Pedal
Brake Booster
Master Cylinder
Brake Lines
Brake Hose

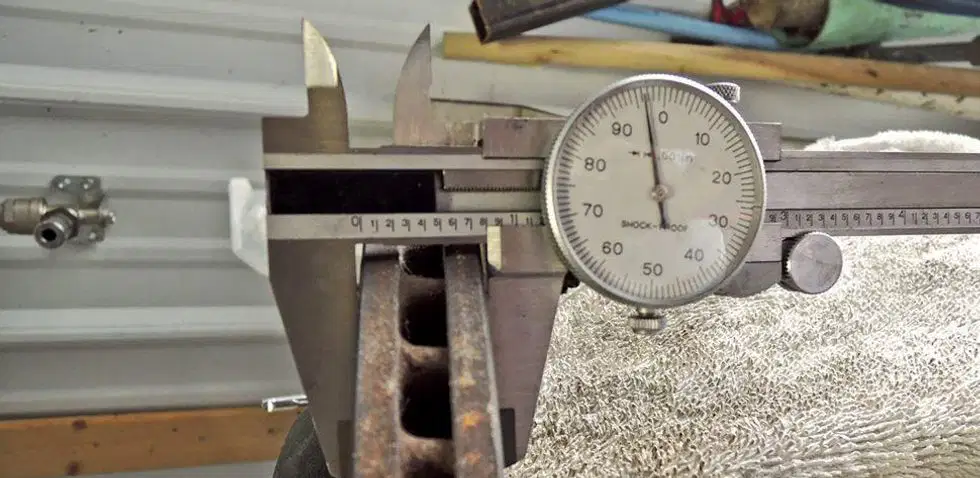

What is the reading on the Dial Caliper
0.896 in
0.796 in
8.960 in
7.960 in
