True or False: Centerlines indicate symmetry for features such as holes.

True or False: Hold the shift key and select the midpoint of the lines when the X icon appear can be used to dimension the overall width of the rectangle.

True or False: Centerlines require two selections for creation.

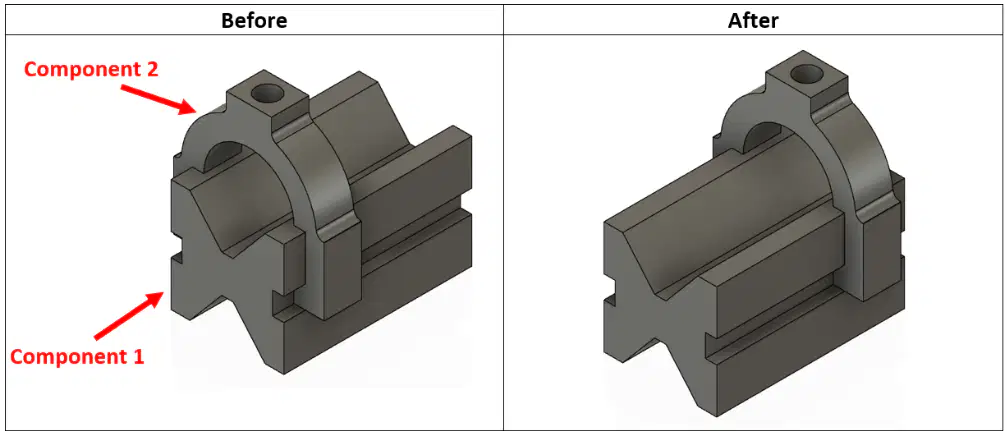

A designer would like the arm bar (Component 2) to translate along the Z-axis within the grooves of the base (Component 1). Which joint type would be best for achieving this motion?

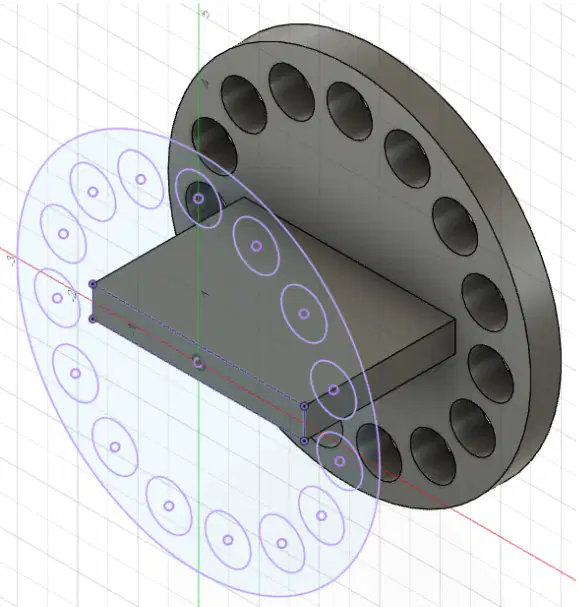

A designer wants to reuse the geometry from a previous modeling operation on a new sketch plane. Which tool allows this?

Multiple Section Analysis instances can be shown on a model at the same time.

What is the sketch element name for the image?

What is the sketch element name for the image?

Which panel contains the Fillet feature?

True or False: Center marks can be placed only on circles.

True or False: Selecting the top or bottom horizontal lines and place the dimension can be used to dimension the overall width of the rectangle.

A designer creates an assembly and is needing to check if all parts are free of collision with one another. Which tool would provide a report of the components and if there are any overlapping elements in the assembly?

True or False: The Section Analysis can be turned off from the Browser.

What Boolean operation found in the Extrude menu would generate the result shown? (a set of operations that manipulate 3D models, combining or subtracting them based on their overlapping volumes.

A construction axis needs to be added to the model as shown. Which work feature allows for the creation of this axis with a single selection?

You need to change the visual style of Model 1 to Model 2. From the Visual Style menu, which setting should be selected?

Once a design is modeled, a designer needs to create engineering drawings of a proposed design so it can be manufactured. Which workspace should the designer complete this task?

You need to make Sketch 1 look like Sketch 2. Which sketch editing tool should you use?

Section Analysis can show the different colors for multiple components in a design.
