WorksheetsUnit 01. Technology and Design. Sample Assessment. 1
Total questions: 44
Worksheet time: 1hrs 27mins
Name the type of symbol
(a)
Name the symbol
(a)
Name the type of symbol
(a)
Name the type of symbol
(a)
Name the type of symbol
(a)
Name the of symbol
(a)
Correctly select the pneumatic exhaust port symbol
What do the letters CAD stand for?
(a)
What does CNC stand for?
(a)

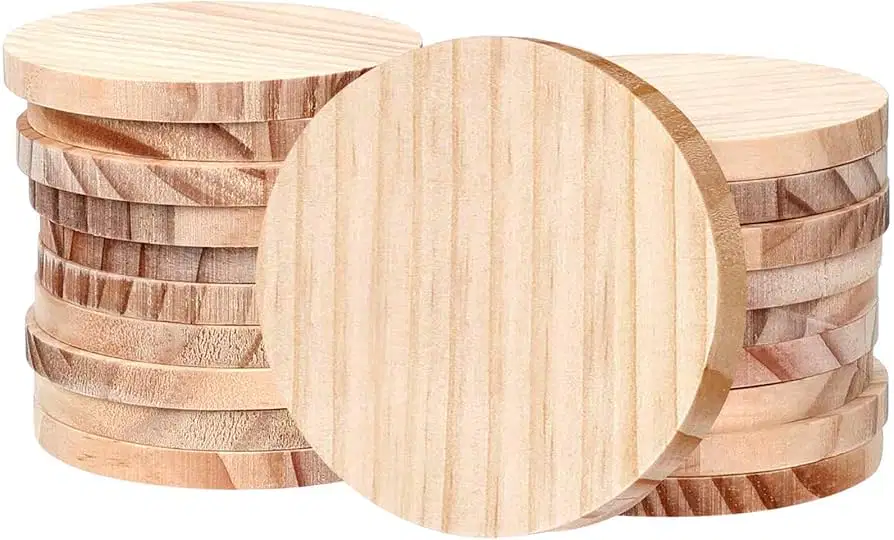

State two advantages of using CNC to manufacture a number of circular discs compared with using a coping saw for the same purpose.
Mechanical systems make use of different types of motion.
For an oscillating motion, give a brief description;
Mechanical systems make use of different types of motion.
For an oscillating motion, give a practical example;
Mechanical systems make use of different types of motion. For an oscillating motion, give a simple line drawing to show the motion
Two first class levers labelled X and Y are shown in Fig. 2. The levers are the same length and have the same loads attached.
Select the lever which requires the greatest effort to lift the load .
Explain why this lever requires the greatest effort

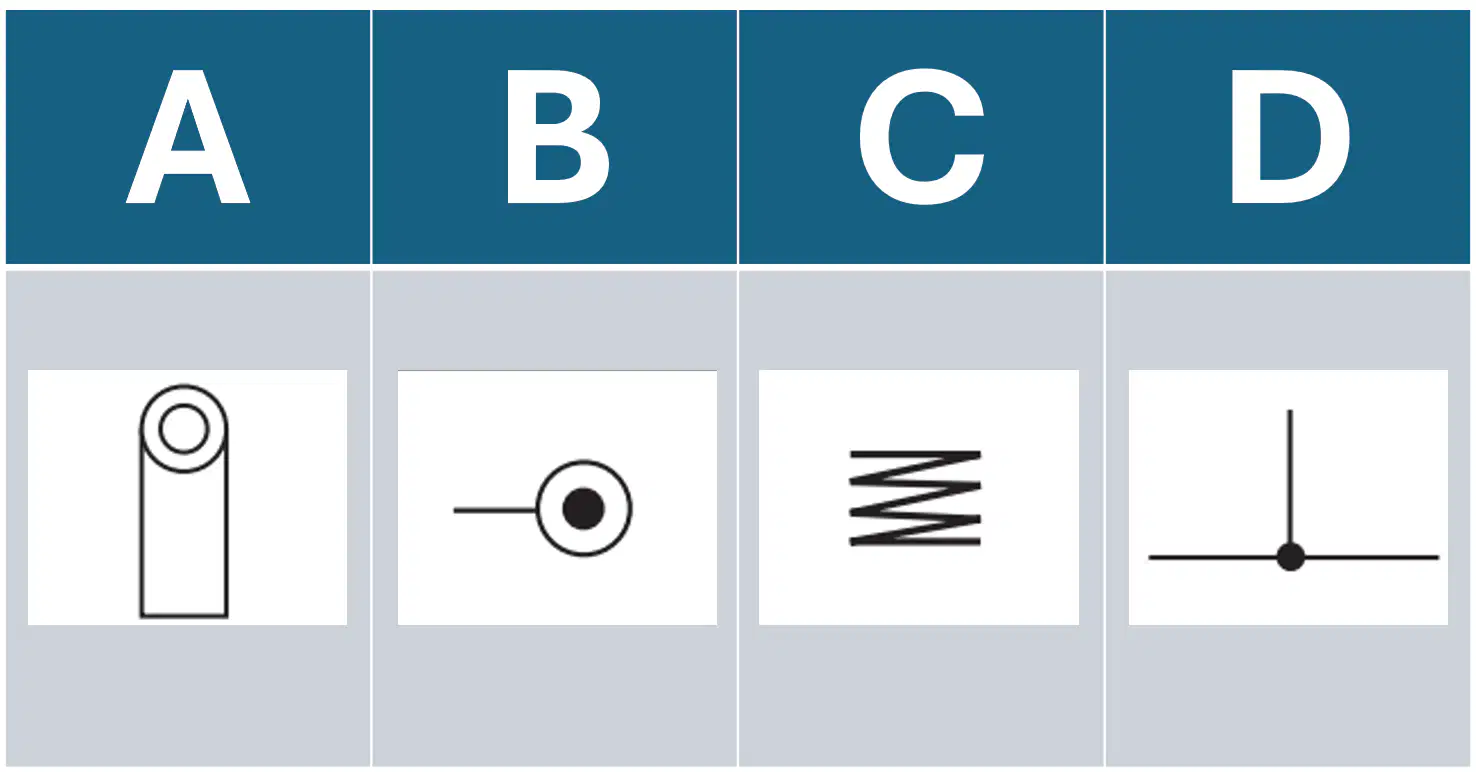

Organize these options into the right categories
Roller trip
Pressure source
Spring return
Pipeline junction
State two reasons for using a pneumatic system in a food processing factory
Fig. 3 shows a pneumatic circuit used in a food processing factory to lift food containers from conveyor belt X to conveyor belt Y.
State the logic of the circuit shown in Fig. 3
Describe how the circuit in Fig. 3 operates. Your answer should refer to the function of each component.

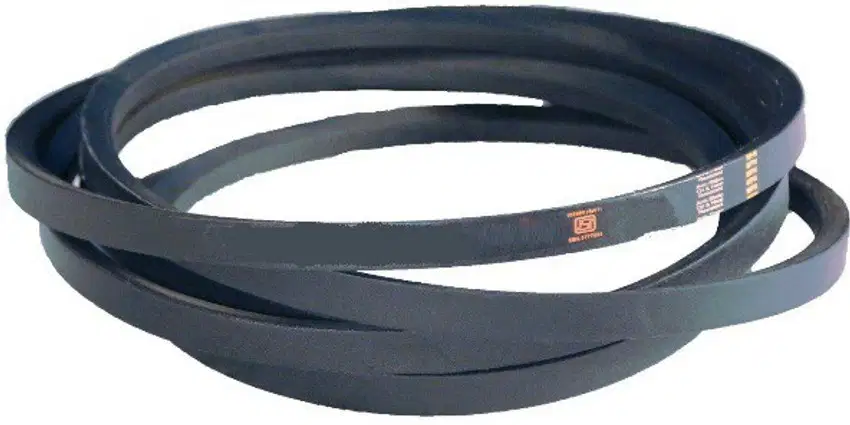

A V belt is
used with a gear wheel
used with a pulley wheel
A Tenon saw is
used to cut curved lines
used to cut straight lines
A scriber is:
used to mark lines on metal
used to mark lines on wood
Acrylic is:
a thermosetting plastic
a thermoplastic
Graphene is:
not as strong as steel
stronger than steel

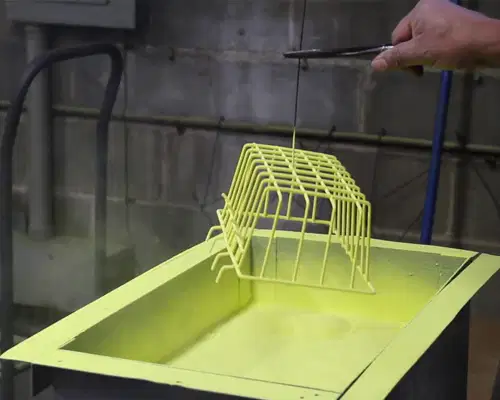

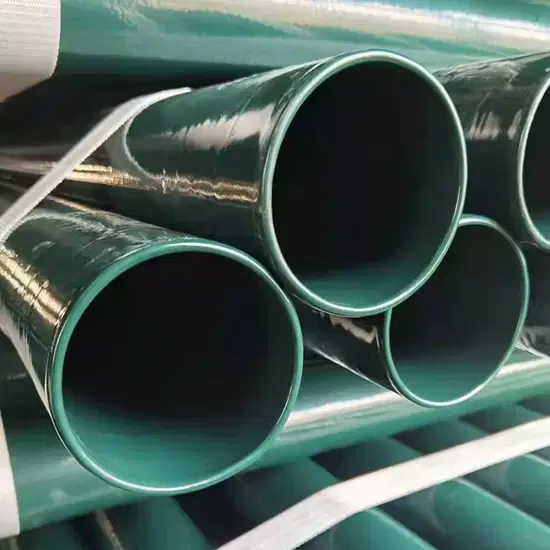

A student has used some mild steel tubing in a project and has decided to apply a dip coating to its surface.
State two reasons for dip coating the mild steel tubing
Outline how the mild steel tubing should be prepared prior to dip coating
Three electronic symbols are shown in Fig. 4.
The symbol labelled A in Fig. 4 is an SPST switch. State what the letter P in SPST stands for.
(a)
Name the component labeled B
(a)
Name the component labeled C
(a)
Symbol P in Fig. 5 represents a multi cell battery. State the number of 1.5 volt cells required for a 6 volt multi cell battery.
Complete the circuit in Fig. 5 by adding the Labels for the corresponding symbols for components A, B and C from Fig. 4 in the appropriate spaces.
When the circuit is completed it should enable component C to operate when the switch Sw is pressed for a short time. Assume that component A (the SPST switch) is in the closed position.
Explain the purpose of component B in your completed circuit in Fig. 5
Another partially completed circuit is shown in Fig. 6. When the circuit is complete it should consist of the battery, a bulb and two switches. The bulb should light up when either of the two switches is operated. Add the appropriate symbols and connections to Fig. 6 to enable this to happen.
Fig. 9 shows a greenhouse manufactured from aluminum alloy
Aluminium alloy is a non-ferrous metal. State one other property of aluminum alloy that makes it a suitable material for the greenhouse frame.
Define the term non-ferrous
An alternative design uses softwood to produce greenhouse frames. Name a suitable softwood with appropriate weather resistant properties for the construction of the frame.
Suggest two advantages of the metal-framed greenhouse compared to a wooden-framed greenhouse.
The manufacturer is going to make use of thermochromic pigments in their new greenhouses. Explain the action of thermochromic pigments and state why they would be suitable for use in a greenhouse.
Fig. 10 shows a pneumatic component.
Name the pneumatic component shown in Fig. 10
Which one of the following is used to actuate the component shown in Fig. 10?
Roller
Push Button
Lever
Plunger
Fig. 11 shows a pneumatic circuit used to crush aluminum cans for recycling.
Name component B in Fig. 11
Fig. 11 shows a pneumatic circuit used to crush aluminum cans for recycling.
Name component C in Fig. 11
Currently, the circuit in Fig. 11 can be actuated with one hand. Explain how the circuit could be modified to require two hands to actuate.
Give a reason for this modification.
(a)
