What is a circuit that limits the peaks of both half cycles of an AC signal called?
Single-end clipper
Double-end clipper
Half-wave rectifier
Full-wave rectifier
In a double-end clipper circuit, what happens when the positive input voltage is greater than the value of VB1?
Diode D2 conducts
Diode D1 conducts
Both diodes conduct
Both diodes are reverse-biased
What do the battery symbols in the double-end clipper circuit indicate?
Actual batteries are used
VB1 and VB2 are AC voltages
VB1 and VB2 are DC voltages
The circuit is powered by batteries

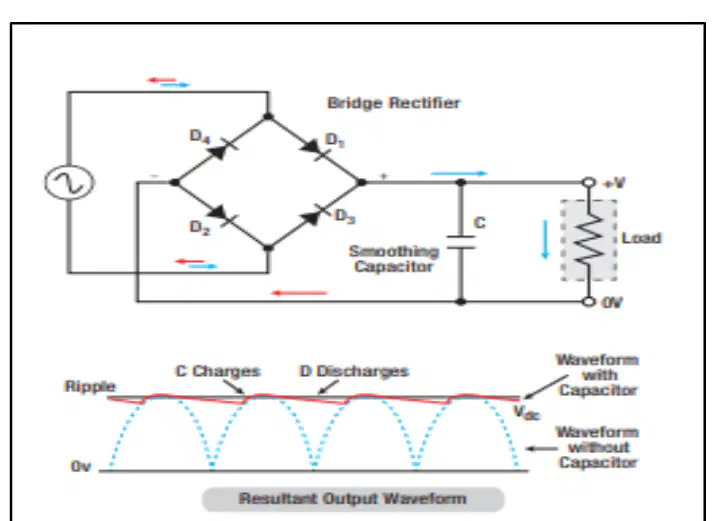

What is the main advantage of a bridge rectifier compared to a half-wave rectifier?
It uses only the positive cycle of the AC wave.
It produces a non-interrupted DC pulse voltage.
It requires no transformer.
It reduces the AC voltage by half.
What role does a smoothing capacitor play in a rectifier circuit?
It increases the AC voltage.
It filters out the pulses from the output waveform.
It decreases the resistance.
It amplifies the DC voltage.
How is the time constant (T) in a smoothing circuit determined?
By multiplying the resistance by the voltage.
By dividing the capacitance by the resistance.
By multiplying the capacitance by the resistance.
By adding the capacitance and resistance.
What is the main advantage of using a full-wave rectifier circuit compared to a series circuit?
It separates DC pulses.
It converts DC to AC.
It improves efficiency.
It increases AC voltage.

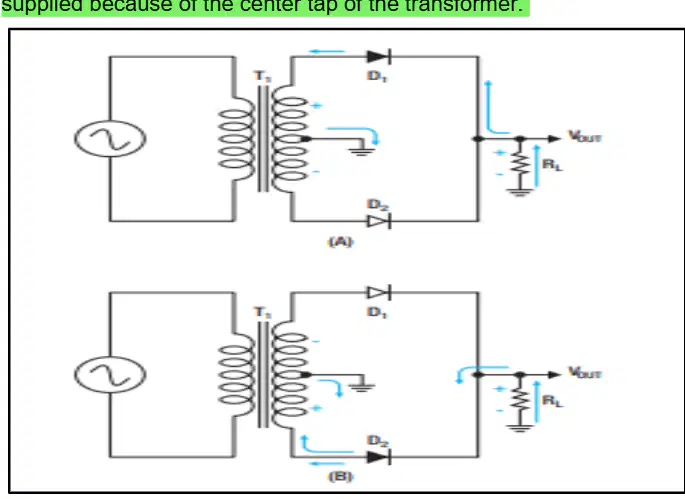

In a center-tapped full-wave rectifier circuit, what happens to the AC voltage?
It doubles.
It is halved.
It remains the same.
It is quartered.
What is the role of the diodes in the full-wave rectifier circuit?
To increase AC voltage.
To convert AC to DC.
To separate DC pulses.
To ground the transformer coil.
What is the primary function of a diode in a half-wave rectifier circuit?
To allow current to flow in both directions
To supply unidirectional current to the load
To increase the AC voltage
To decrease the DC voltage
What happens to the diode when the AC sine wave input is positive?
It acts as an open circuit
It becomes reverse biased
It acts as a closed circuit
It blocks the current flow
What is a limitation of the half-wave rectifier?
It rectifies the entire AC voltage
It wastes half of the AC voltage
It increases the AC voltage
It allows current to flow in both directions
What is the main difference between a clamper circuit and a single-ended clipper?
A clamper circuit uses a resistor instead of a capacitor.
A clamper circuit uses a capacitor instead of a resistor.
A clamper circuit uses a diode instead of a capacitor.
A clamper circuit uses a resistor instead of a diode.
What is the purpose of a clamper circuit in electronic voltmeters?
To amplify the input signal.
To add a DC component to the output without changing the input AC signal.
To decrease the amplitude of the input signal.
To convert AC to DC.
During which part of the AC input cycle is the diode in a clamper circuit forward biased?
Positive half
Negative half
Both halves
Neither half
What happens to the output waveform in a clamper circuit?
It is inverted.
It is amplified.
It is shifted by an amount equal to the negative peak value of the input voltage.
It is reduced to zero.
What does a voltage doubler consist of according to Figure 38?
A clamper circuit and a peak rectifier circuit
Two peak rectifier circuits
A single diode and a capacitor
A transformer and a rectifier
Why is a full-wave voltage doubler more efficient than a half-wave doubler?
It uses fewer components
It has a higher output voltage
It is more efficient for the same reason a full-wave rectifier is more efficient than a half-wave rectifier
It requires less input voltage
During the positive half of the input cycle in a voltage doubler, which diode conducts?
D2
D1
Both D1 and D2
Neither D1 nor D2
What is the output voltage of a full-wave voltage doubler as shown in Figure 39?
Vm
2Vm
3Vm
4Vm
What is the purpose of circuits like voltage triplers and voltage quadruplers?
To reduce power consumption in electronic devices
To develop very high voltage power supplies for microwave and radar equipment
To increase the speed of electronic signals
To decrease the size of electronic components
What is the basic idea extended in the design of voltage triplers?
Voltage reduction
Voltage doubling
Current amplification
Signal modulation
What is the primary function of a Silicon Controlled Rectifier (SCR)?
To amplify signals
To store electrical energy
To act as a switching device
To convert AC to DC
How many junctions are forward biased in a four-layer semiconductor construction of an SCR?
One
Two
Three
Four
What happens when voltage is applied to the gate of an SCR?
The SCR becomes non-conductive
The SCR becomes latched or locked on
The SCR decreases its resistance
The SCR increases its capacitance
In which applications are SCRs commonly used?
Low voltage lighting
Power switching, phase controls, battery chargers
Audio amplifiers
Digital signal processing

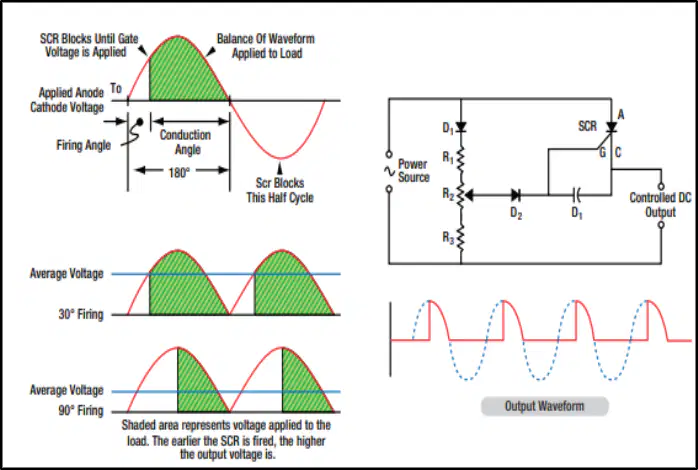

What is the purpose of using SCRs in lighting dimmer systems?
To increase the brightness
To reduce the average voltage applied to the lights
To convert AC to DC
To stabilize the power supply
How is the average voltage reduced in an SCR circuit?
By increasing the current flow
By controlling the pulses to the SCR gate
By using larger resistors
By shortening the AC cycle
What is a Schottky diode designed to have on one side of the junction?
Metal, such as gold, silver, or platinum
Pure semiconductor material
Insulating material
Magnetic material
What is the typical switching time for a Schottky diode?
300 MHz
100 MHz
500 MHz
50 MHz
What is the reverse recovery time of a Schottky diode compared to a typical PN semiconductor?
Much shorter
Much longer
The same
Slightly longer
What is the voltage drop of a Schottky diode compared to a silicon diode?
0.15 volts versus 0.7 volts
0.7 volts versus 0.15 volts
1.0 volts versus 0.5 volts
0.5 volts versus 1.0 volts
What happens when a diode is forward biased?
The energy is absorbed and not visible.
The energy is visible in the form of heat.
The energy is visible in the form of light with a color characteristic of the material.
The diode stops functioning.
What is a common use of LEDs in electronic devices?
As a source of heat.
As "power on" indicators and displays.
As a replacement for batteries.
As a cooling mechanism.
How are LEDs typically arranged in devices like calculators?
In a circular pattern.
In a single line.
In seven-segment displays.
In a random arrangement.
What happens when a negative voltage is applied to all cathodes except LED "E" in a seven-segment display?
The number "0" is displayed.
The number "9" is displayed.
The number "6" is displayed.
The display turns off.
What is the wavelength range for red light according to the table?
610 < λ < 760 nm
570 < λ < 590 nm
500 < λ < 570 nm
λ > 760 nm
Which semiconductor material is associated with infrared light?
Gallium arsenide (GaAs)
Zinc selenide (ZnSe)
Indium gallium nitride (InGaN)
Silicon carbide (SiC)
What is the voltage range for blue light?
2.48 < ΔV < 3.7 V
1.63 < ΔV < 2.03 V
2.76 < ΔV < 4.0 V
ΔV < 1.9 V
What is the primary advantage of LEDs over incandescent lamps?
Higher energy consumption
Longer life
More heat generation
Slower on and off operations
In a forward biased diode, what happens to electrons?
They remain stationary
They cross the junction and fall into holes
They emit sound
They change color
What type of light can LEDs be designed to radiate?
Ultraviolet light
X-rays
Red, green, yellow, blue, and infrared light
Gamma rays
What is dissipated as light in a light-emitting diode?
Sound
Heat
Energy
Water
What is the role of photons in light-sensitive diodes?
They decrease the energy level of electrons.
They increase the energy level of electrons above what is needed to hold them in orbit.
They have no effect on the energy level of electrons.
They convert electrons into protons.
What happens in the depletion area of a reversed biased PN junction in photodiodes?
The device turns "off" and stops the current flow.
The device turns "on" and allows current to flow.
The device remains neutral with no current flow.
The device explodes due to excess energy.
What effect does thermal energy have on a diode?
It decreases the number of minority carriers.
It produces minority carriers.
It has no effect on minority carriers.
It destroys minority carriers.
What is one application of photodiodes mentioned in the text?
Solar panels
Light detecting circuits
Battery chargers
Electric motors
What is a varactor diode also known as?
Varicap
Zener
Schottky
Tunnel
What does the capacitance of a varactor diode depend on?
Applied voltage
Temperature
Frequency
Current
In a varactor diode, what do the N and P materials function like?
Plates of a common capacitor
Resistors
Inductors
Transistors
What is the area surrounding the junction of the P and N materials in a PN junction called?
Depletion region
Conduction band
Valence band
Insulation layer
What effect does forward biasing have on the depletion region of a varactor diode?
It increases the size of the depletion region.
It decreases the size of the depletion region.
It has no effect on the depletion region.
It completely eliminates the depletion region.
What is the relationship between the capacitance of a varactor and the applied reverse bias?
Directly proportional
Inversely proportional
Unrelated
Exponentially proportional
What happens to the depletion region when reverse-bias voltage is applied to a PN junction?
The depletion region decreases in size.
The depletion region remains the same.
The depletion region increases in size.
The depletion region disappears.
What is the typical ratio of varactor capacitance to reverse-bias voltage change?
1 to 1
5 to 1
10 to 1
20 to 1
What happens to the capacitance of a varactor when the reverse bias is increased from 3 volts to 6 volts?
It increases to 20 picofarads
It decreases to 5 picofarads
It remains the same
It increases to 10 picofarads
What is one advantage of using a varactor in tuning circuits?
It requires no power
It allows a DC voltage to tune a circuit
It increases the frequency range
It decreases the circuit size
What is the function of the radio-frequency choke in the circuit shown in Figure 59?
To increase the capacitance
To provide high inductive reactance
To decrease the voltage
To block DC from the tank
What is one of the greatest dangers to a diode?
Excessive voltage
Heat
Low current
Cold temperatures
What is the term used when a diode draws excessive current due to increased heat?
Thermal expansion
Thermal runaway
Thermal contraction
Thermal equilibrium
Which of the following should be avoided when working with diodes?
Inserting a diode with voltage applied
Using a direct replacement diode
Ensuring correct diode direction
Testing with allowable voltage
What should be ensured when testing a diode?
Test voltage exceeds maximum
Test voltage is below maximum
Test voltage is irrelevant
Test voltage is doubled
What type of diodes are heavily doped silicon diodes that exhibit an abrupt reverse breakdown at relatively low voltages?
Zener diodes
Schottky diodes
Light-emitting diodes
Tunnel diodes
What is the typical voltage range for Zener diodes with reverse breakdown?
1.5 V to 50 V
2.4 V to 91 V
5 V to 100 V
10 V to 200 V
What makes Zener diodes ideal for use as a voltage regulator?
Their ability to emit light
Their high forward current capacity
Their constant voltage during reverse breakdown
Their low power consumption
What is the purpose of the series resistor (RS) in a simple voltage regulator using a Zener diode?
To increase the voltage
To limit the Zener current
To decrease the current
To amplify the signal
What are transistors commonly used for in electronic circuits?
Constructing true control valves
Generating electrical power
Storing data
Cooling electronic devices
What is the most commonly used form of transistor?
Field Effect Transistor (FET)
Bipolar Junction Transistor (BJT)
Metal-Oxide-Semiconductor (MOS)
Light Emitting Diode (LED)
What are the three electrodes of a transistor called?
Anode, Cathode, Gate
Source, Drain, Gate
Emitter, Base, Collector
Positive, Negative, Neutral
What happens when a small voltage is applied to the base of a transistor?
It stops the flow of current
It allows a large amount of current to flow from collector to emitter
It reverses the current flow
It decreases the current flow
In a round transistor case, how can the collector be identified?
By a color dot on the emitter
By the middle lead with a color dot
By the longest lead
By the base lead
What does a color dot on a transistor typically indicate?
The emitter lead
The base lead
The collector lead
The mounting base
In a TO-5 case, which lead is part of the mounting base?
Emitter
Collector
Base
All leads
What is the primary application of rectifier diodes?
Low voltage applications
High current applications
Signal processing
Data storage
What does the "1N" in the part numbers 1N4001 to 1N4007 indicate?
The diode's color
The diode's size
There is only one PN junction
The diode's temperature rating
What is the peak inverse voltage range for rectifier diodes?
10 to 100 volts
50 to 1,000 volts
100 to 500 volts
1,000 to 2,000 volts
What is a recognizable feature of larger rectifier diodes?
They are transparent
They are encased in metal
They have multiple colors
They are flexible
What is the desirable ratio between the reverse and forward resistance of a diode?
1 to 1
10 to 1
Several hundred to one
5 to 1
Why might two ohmmeters give different readings on the same diode?
Different diode materials
Different internal resistances and states of charge
Different diode sizes
Different ambient temperatures
What is the substitution method for checking a diode?
Replacing a good diode with a questionable one
Using two ohmmeters simultaneously
Substituting a questionable diode with a good one
Measuring the diode's temperature
What is considered the only valid check of a diode?
Ohmmeter test
Substitution method
Dynamic electrical test
Visual inspection
What is the most convenient and quickest way to test a diode?
Using a voltmeter
Using an ohmmeter
Using a multimeter
Using a frequency counter

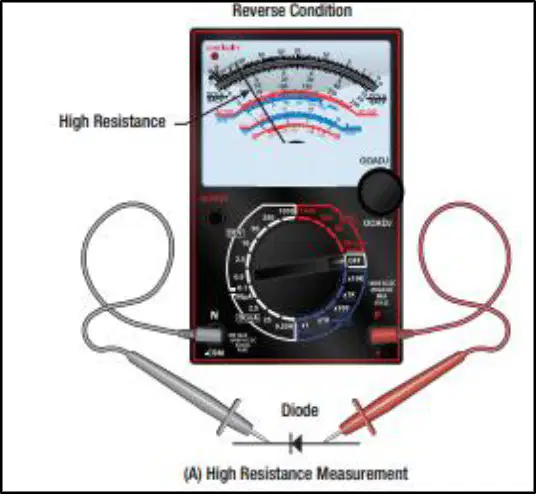

What does a high resistance measurement in a diode indicate?
The diode is shorted
The diode is open or has a high forward resistance
The diode is functioning normally
The diode has a low reverse resistance
What does a low resistance measurement in a diode indicate?
The diode is open
The diode has a high forward resistance
The diode is shorted or has a low reverse resistance
The diode is functioning normally
How many resistance measurements should be taken when testing a diode with an ohmmeter?
One
Two
Three
Four
What is a varistor typically made of?
Silicon
Ceramic mass of zinc oxide grains
Copper
Plastic
How does the current-voltage relationship of a varistor behave?
Linear
Exponential
Non-linear
Logarithmic
What is the resistance behavior of a varistor at low and high voltages?
Low resistance at low voltage, high resistance at high voltage
High resistance at low voltage, low resistance at high voltage
Constant resistance at all voltages
No resistance at any voltage
What is the primary use of a varistor in circuits?
To amplify signals
To store energy
To protect circuits against excessive transient voltages
To convert AC to DC

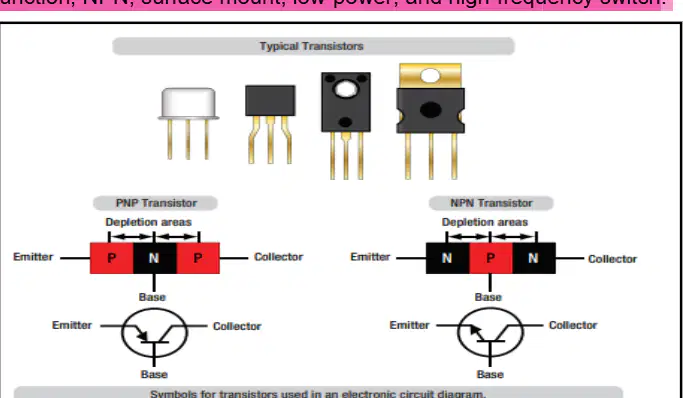

What is the primary function of a transistor in electronic devices?
Amplify or switch electronic signals and electrical power
Store electrical energy
Convert AC to DC
Measure electrical resistance
Which material is generally used for the base region in an NPN transistor?
P-type material
N-type material
Silicon carbide
Germanium
What is the role of the emitter in a bipolar junction transistor (BJT)?
Heavily doped to ensure high emitter current flow
Lightly doped to control transistor behavior
Moderately doped to collect charge
Acts as an insulator
In a BJT, what is the function of the collector?
Collecting the majority of charge
Ensuring high emitter current flow
Controlling the transistor's behavior
Acting as an insulator
What is the primary function of a transistor in electronic circuits?
To store data
To amplify or switch electrical signals
To convert AC to DC
To measure temperature
How many terminals does a transistor have?
Two
Three
Four
Five

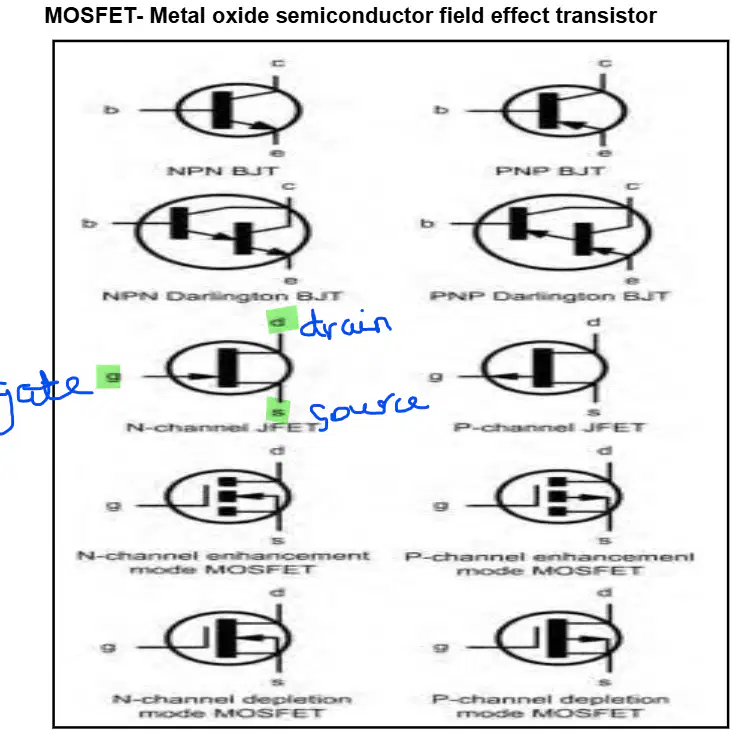

What is the Darlington configuration?
A single transistor with a high current gain
A circuit with two bipolar transistors connected to amplify current
A type of MOSFET with enhanced voltage control
A configuration of diodes for rectification
Which of the following is NOT a type of transistor mentioned in the document?
BJT
JFET
MOSFET
SCR
What type of semiconductor material is the emitter made of in an NPN transistor?
P-type
N-type
Z-type
Q-type
In a PNP transistor, what is the majority charge carrier in the emitter?
Electrons
Neutrons
Holes
Protons
