WorksheetsConstruction Quiz
Total questions: 29
Worksheet time: 14mins

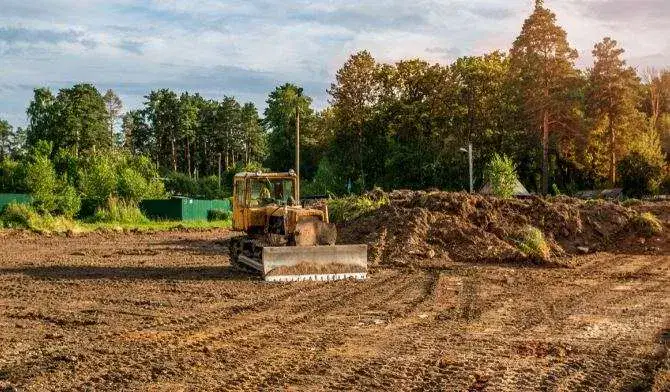

What does the image represent?
Excavation
Site clearance
Soil compaction
Grading

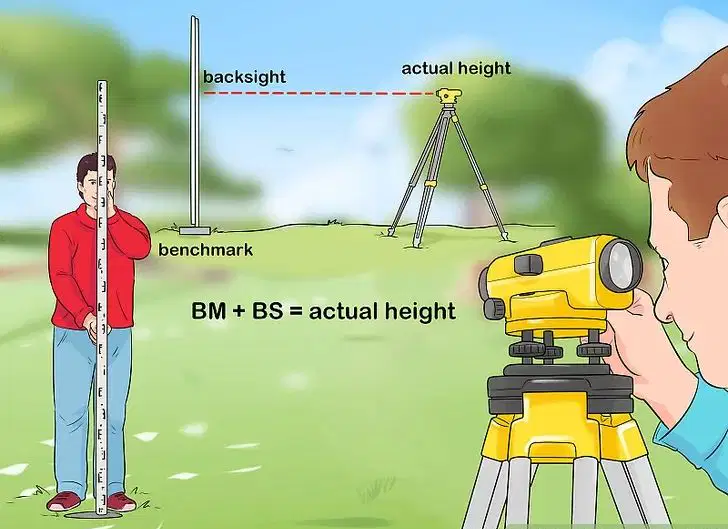

Identify the equipment shown.
Compass
Dumpy level
Theodolite
Plumb bob
What type of boring method is shown?
Rotary drilling
Percussion drilling
Auger boring
Wash boring
The structure shown is an example of:
Raft foundation
Isolated footing
Strip footing
Pile foundation

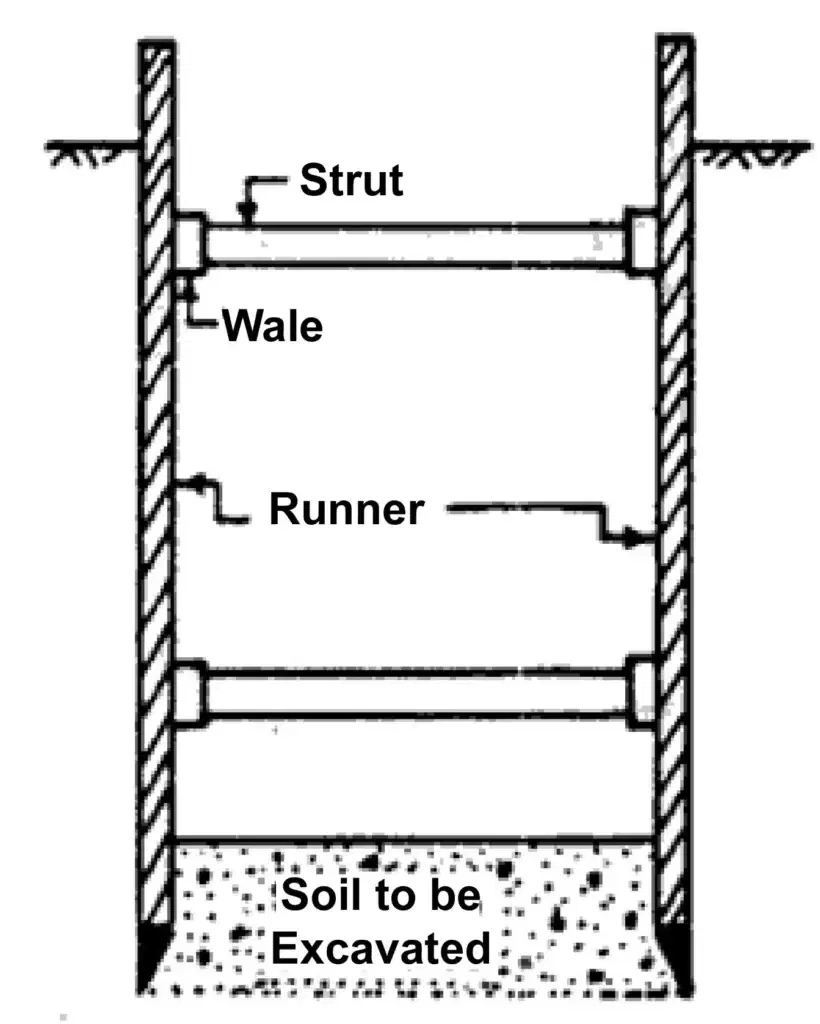

Which method of trench support is shown?
Soldier piling
Timbering
Grouting
Underpinning

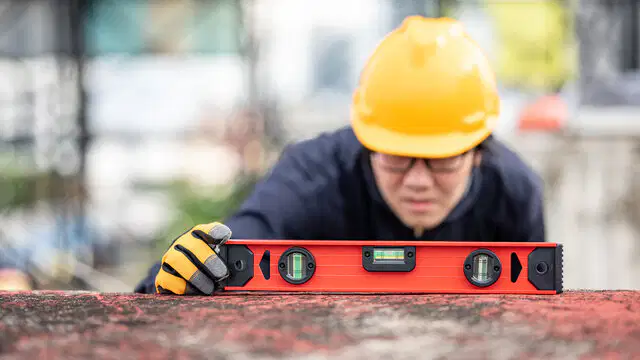

What tool is shown being used for leveling?
Plumb bob
Theodolite
Dumpy level
Spirit level
What is the purpose of this foundation type?
Used for dry soil
To carry load deep into hard strata
For temporary structures
For clay soil only

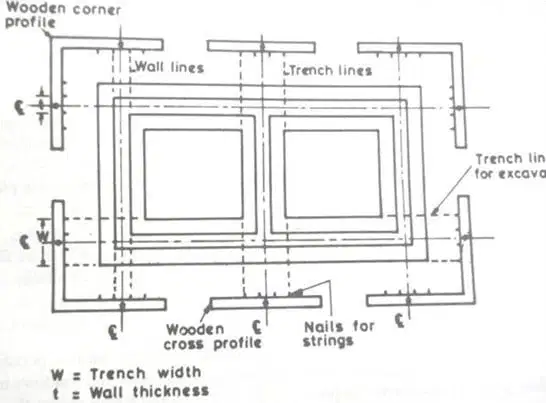

This image shows which method of setting out?
Radial method
Centerline method
Compass method
Bearing method
Which type of soil is this?
Sandy soil
Gravel
Black cotton soil
Loam

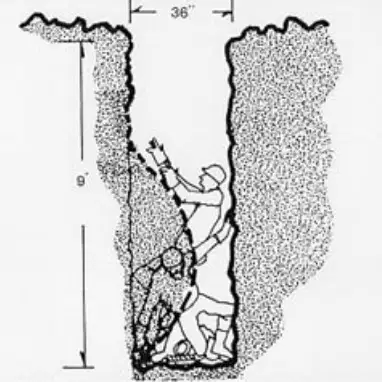

This image shows what kind of trench issue?
Over-excavation
Settlement
Trench failure
Waterlogging
What foundation is shown here?
Combined footing
Pad foundation
Raft foundation
Isolated footing

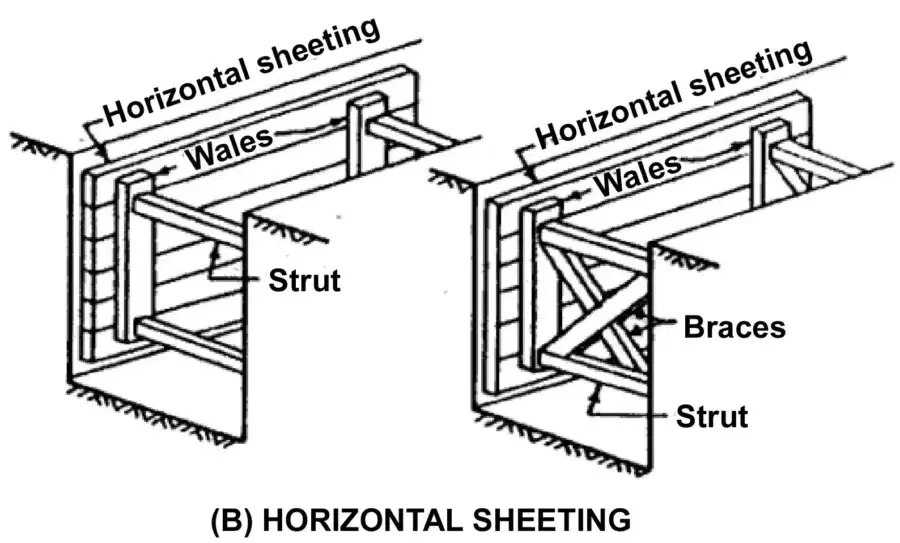

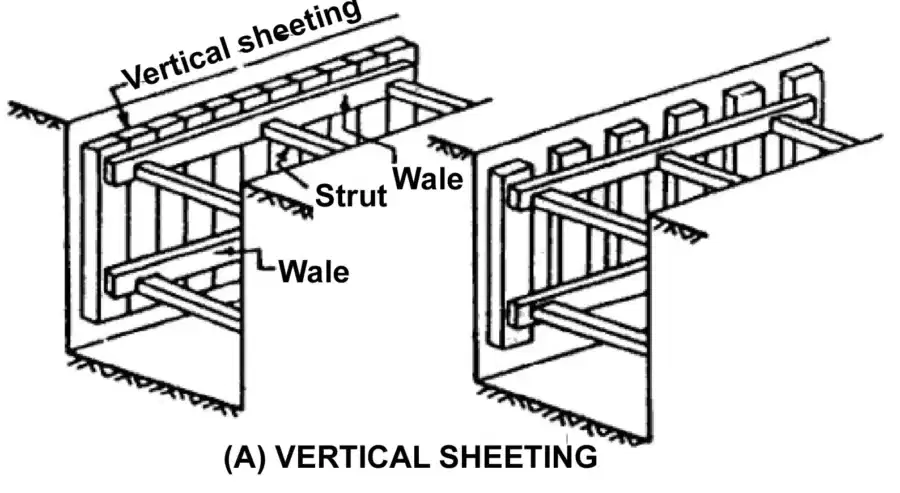

Which one is an example of Box Sheeting?

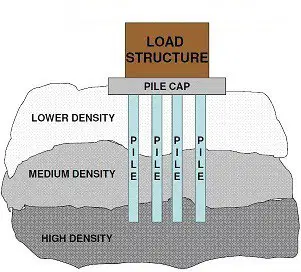

Multiple piles connected by a single concrete slab. What is it?
Strip foundation
Raft footing
Pile cap
Grade beam
What type of pile foundation is this?
Friction Pile
Tension Pile
End Bearing Pile
Anchor Pile
Which structure type does the image show?
Load-bearing
Timber frame
Arch
Frame structure
This load transfer method is typical of:
Frame structure
Load-bearing structure
Post tension
Hybrid structure
The instrument in the image is used for:
Measuring weight
Level checking
Measuring slope
Soil testing

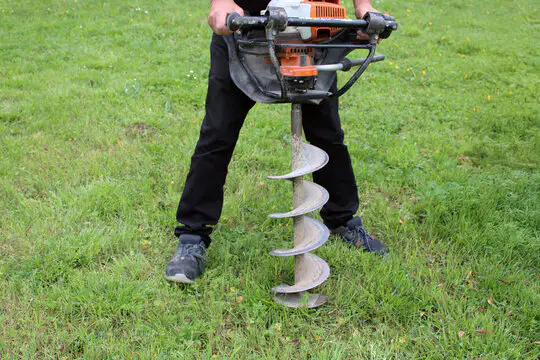

This image shows:
Auger boring
Soil sampling
Core cutting
Percussion test
The horizontal lines marked here are called:
Grid lines
Datum lines
Elevation
Contour lines
What type of foundation does the image show?
Combined footing
Strip foundation with DPC
Grillage foundation
Pad footing
What type of footing is depicted in the image?
Cantilever
Strap
Combined
Eccentric

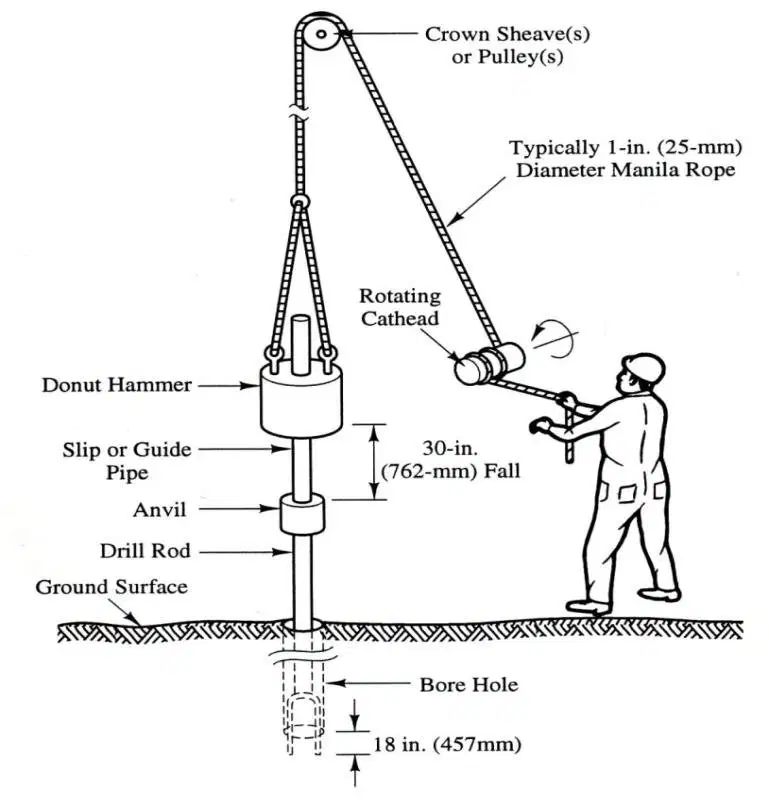

Which type of soil test is represented in the image?
Proctor Compaction Test
Standard Penetration Test
Atterberg Limits Test
California Bearing Ratio Test
What is the main purpose of this pile?
To increase the bearing capacity
To anchor the building.
To improve lateral stability.
To move the building.
Name the Face coulmns in the building plan?
A2, A3, B1, D1, D3
B3, C1, C3, D2
C2,A1,B2,A2
C1,C2,C3,D1
Which type of TRENCH is shown in the figure?
Stepped Trench
Bell- Bottom Pier Hole
Sloped Trench
Straight Trench
What are the types of excavation according to the purpose of excavation?
Cut and Fill
Basement
Dredging
All of them
What type of foundation is typically used in areas with high water tables?
Raft foundation
Deep foundation
Shallow foundation
Strip foundation
Which test is commonly used to determine the shear strength of soil?
Unconfined Compression Test
Standard Penetration Test
Triaxial Test
California Bearing Ratio Test
What is the primary function of a retaining wall?
To provide aesthetic value
To prevent soil erosion
To hold back soil and water
To support vertical loads
