WorksheetsEngineering Concepts Quiz
Total questions: 50
Worksheet time: 25mins

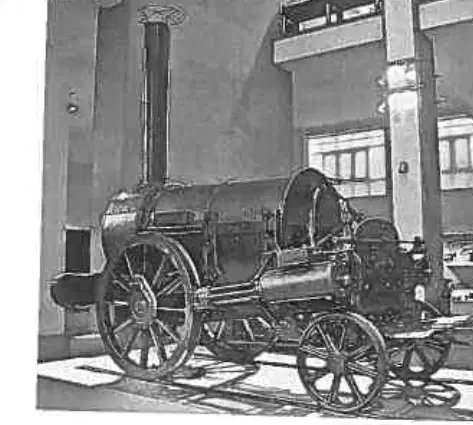

What was the name of the locomotive entered by George Stephenson in a public competition in 1829?
The Comet
The Rocket
The Meteor
The Lightning
What was a major issue that restricted rail commerce in Australia for over 100 years?
Lack of rail technology
Incompatibility between state rail gauges
Insufficient funding
Poor train design
What is the primary propulsion method for maglev trains?
Diesel engines
Magnetic repulsion
Electric traction
Steam engines
What is the metabolic cost in the context of bicycle efficiency?
The cost of manufacturing a bicycle
The energy expenditure of a rider at various speeds
The price of a modern bicycle
The weight of the bicycle

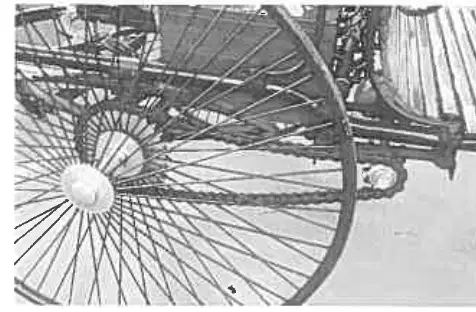

Which feature was NOT part of the Benz Patent Motorwagen?
Rear wheel drive
Four-stroke engine
Evaporative cooling
Electric ignition system
What is a characteristic of High Strength Low Alloy steels?
High carbon content
Micro-additions of elements
Heavy weight
Low corrosion resistance
What was a significant concern in cities due to the increased number of horses?
Noise pollution
Increased animal waste
Traffic congestion
Air pollution
Which property is important for vehicle frames to resist corrosion?
Weldability
Fatigue strength
Corrosion resistance
Impact resistance
What was the original color of early tyres due to zinc oxide?
Black
Off-white
Grey
Brown
What is the formula for calculating mechanical advantage (MA)?
MA = Load / Effort
MA = Effort / Load
MA = Load + Effort
MA = Load - Effort
What does a velocity ratio (VR) greater than 1 indicate?
Diminution of effort
Magnification of effort
No change in effort
Decrease in load
How is efficiency (η) of a machine calculated?
η = Work input / Work output × 100
η = Work output / Work input × 100
η = Load / Effort × 100
η = Effort / Load × 100
What is the mechanical advantage (MA) of a first-class lever with a load arm (L) of 25 and an effort arm (E) of 5?
0.2
1
5
6
What is the theoretical velocity ratio (VR) of a screw represented by?
VR = p / D
VR = D / p
VR = D + p
VR = D - p
What is the function of the throttle lever in the Model T Ford?
To control the brake system
To regulate the speed of the engine
To adjust the steering wheel
To change the gear shift
How is the velocity ratio (VR) calculated for a screw jack?
VR = Load / Effort
VR = πD / p
VR = Effort / Load
VR = p / πD
In the context of a scissor jack, what is typically used to draw the folding support members together?
Hydraulic fluid
A screw mechanism
A pulley system
A lever
What is the primary function of pulleys?
To increase speed
To transmit power and change the direction of a force
To generate electricity
To reduce weight
What is the mechanical advantage (MA) of a simple, single fixed pulley system?
MA = 2
MA = 0
MA = 1
MA = 3
What is a wedge primarily used for?
Lifting heavy objects
Holding or separating objects
Measuring angles
Transmitting power
What is the formula for the mechanical advantage (MA) of a wedge?
Effort / Load
Load / Effort
1 / tan θ
tan θ
How is the velocity ratio (VR) of an inclined plane expressed?
distance moved by Load / distance moved by Effort
distance moved by Effort / distance moved by Load
1 / tan θ
tan θ
What does the coefficient of friction represent in the context of static objects?
The speed of the object
The weight of the object
The constant of proportionality between surfaces
The color of the object
What happens when the applied force overcomes the surface resistance?
The object remains stationary
The object starts moving
The object changes color
The object decreases in size
When there is an inclination between the applied force and the direction of motion, which component of the force is used to calculate work?
F sin θ
F cos θ
F tan θ
F cot θ
What is the expression for work performed in decelerating and the work performed by friction?
½ m (v² - u²) = - μₖ m g s
½ m (v² + u²) = μₖ m g s
m (v² - u²) = μₖ m g s
½ m (v² - u²) = μₖ m g s
Which hardness test uses a hardened steel or tungsten carbide ball to produce an indentation?
Brinell test
Rockwell test
Vickers test
Knoop test
Which of the following best describes the function of a lever?
To measure temperature
To change the direction or magnitude of a force
To store energy
To generate electricity
What is the main purpose of using ball bearings in machines?
To add weight
To increase friction
To reduce friction between moving parts
To generate heat
Which property is most important for materials used in making gears?
Low melting point
Transparency
High hardness and wear resistance
High electrical conductivity
Which simple machine is used to change the direction of an applied force?
Wedge
Wheel and axle
Pulley
Inclined plane
What is the main advantage of using a compound pulley system over a single fixed pulley?
It reduces the effort needed to lift a load
It increases the speed of lifting
It increases friction
It changes the color of the rope
Which factor most affects the efficiency of a screw jack?
The length of the handle
The coefficient of friction between threads
The color of the screw
The material of the load
Which simple machine is commonly used to lift heavy loads in garages and workshops?
Inclined plane
Lever
Screw jack
Pulley
What is the main advantage of using ball bearings in rotating machinery?
They increase the speed of rotation
They generate more heat
They reduce friction and wear
They add weight for stability
Which of the following best describes the function of a wedge?
To hold objects together
To split or cut materials
To measure force
To change electrical energy to mechanical energy
Which simple machine is used to increase the force applied to lift a load with less effort?
Wedge
Lever
Pulley
Inclined plane
What is the main purpose of using a pulley system in lifting heavy objects?
To measure the load
To increase the weight of the object
To change the direction of force and make lifting easier
To reduce friction
Which formula correctly represents the work done when a force is applied at an angle θ to the direction of motion?
Work = F × s × cot θ
Work = F × s × sin θ
Work = F × s × cos θ
Work = F × s × tan θ
Which simple machine is primarily used to hold two objects tightly together?
Pulley
Screw
Lever
Wedge
What is the main function of an inclined plane?
To increase speed
To reduce the effort needed to lift a load
To change the direction of a force
To generate electricity
Which of the following is NOT a type of simple machine?
Inclined plane
Pulley
Lever
Gear
Which simple machine is used to fasten two pieces of wood together securely?
Wedge
Lever
Screw
Pulley
What is the main function of a wheel and axle in machines?
To generate electricity
To measure distance
To reduce the effort needed to move objects
To increase friction
Which of the following best describes the purpose of using lubricants in mechanical systems?
To reduce friction and wear between moving parts
To increase the weight of the system
To slow down the movement
To change the color of the machine
Which simple machine is commonly used to lift water from a well?
Inclined plane
Wedge
Pulley
Lever
What is the main reason for using an inclined plane to move heavy objects?
To increase friction
To change the color of the object
To reduce the amount of effort required
To increase the distance traveled
Which of the following best describes the function of a screw in mechanical systems?
To generate electricity
To measure temperature
To hold objects together or lift materials
To reduce speed
Which of the following is an example of a lever in everyday use?
Bottle opener
Scissors
Wheelbarrow
All of the above
Which property is essential for materials used in making vehicle brake pads?
High wear resistance
Transparency
Low density
High electrical conductivity
