WorksheetsBuilding Technology and Services (Elements)Quiz
Total questions: 35
Worksheet time: 18mins
What is the primary function of a wall in a building?
To allow for ventilation
To enclose and protect a building
To provide aesthetic appeal
To support the roof only
Which type of wall is constructed from a frame of small sections of timber, reinforced concrete, or metal?
Masonry Wall
Solid Wall
Frame Wall
Load Bearing Wall
What is one of the functional requirements of a wall?
Transparency
Aesthetic appeal
Resistance to weather and ground moisture
Flexibility
Which type of brick is used for general building work and has a poor appearance?
Engineering bricks
Facings
Specialty bricks
Commons
What is the main purpose of mortar in brickwork?
To provide insulation
To bond the bricks together
To enhance appearance
To prevent moisture
What is a characteristic of a solid ground floor?
It is not load-bearing
It is always made of timber
It is constructed above ground level
It includes a damp-proof membrane
Which type of roof is suitable for large buildings like shopping complexes?
Gabled roof
Pitched roof
Shed roof
Flat roof
What is a key advantage of a concrete flat roof?
Better insulation
Recreation area for children
Lower construction cost
Easier maintenance
What is the maximum height for each riser in a flight of stairs?
250 mm
200 mm
190 mm
150 mm
Which type of door is framed with stiles and rails around a panel?
Sliding door
Matchboarded door
Panelled door
Flush door
What is the primary function of a window in a building?
To enhance aesthetics
To provide security
To admit daylight
To support the roof
What is the purpose of a damp-proof membrane (DPM) in a solid ground floor?
To support the structure
To enhance appearance
To resist the passage of moisture
To provide insulation
Which type of bonding consists of all stretchers in every course?
Flemish Bond
English Bond
Stretcher Bond
Header Bond
What is a common defect in wood windows?
Wet rot
Low cost
High durability
High natural resistance
What is the minimum headroom required for a staircase?
2.5 m
2 m
1.5 m
3 m
Which type of window is designed to pivot around a central point?
Pivoted window
Hinged window
Louvre window
Sliding window
What is the main purpose of a handrail in a staircase?
To reduce sound
To provide support and safety
To increase load capacity
To enhance aesthetics
What is the primary function of a roof in a building?
To provide insulation
To exclude rain and weather
To support the walls
To enhance aesthetics
What is the main characteristic of engineering bricks?
They are lightweight
They are solid and hard
They are soft and porous
They are used for decorative purposes
What is the purpose of a fire safety door?
To reduce sound
To provide access
To limit the spread of smoke and fire
To enhance aesthetics
What is the function of a landing in a staircase?
To provide a resting place
To increase the number of steps
To support the roof
To enhance aesthetics
What is the main purpose of a window's opening mechanism?
To support the wall
To provide security
To enhance aesthetics
To allow for ventilation
What is a common material used for a damp-proof membrane?
Glass
Steel
Wood
Polythene sheeting
What is the maximum number of steps allowed in a flight of stairs without a landing?
12
20
10
16
What is the primary function of a wall opening?
To provide structural support
To reduce sound
To allow for windows and doors
To enhance aesthetics
What is the main characteristic of a flush door?
It is made of solid wood
It has a plain face
It has multiple panels
It is always used externally
What is the purpose of a skirting in a staircase?
To cover gaps
To prevent slipping
To provide support
To enhance aesthetics
What is the main function of a baluster in a staircase?
To reduce sound
To prevent falls
To enhance aesthetics
To provide support
What is the primary purpose of a window frame?
To support the window
To enhance aesthetics
To provide insulation
To resist weather
What is the main characteristic of a quarter turn staircase?
It has one flight
It has two flights making a right angle
It is spiral in shape
It has no landing
Identify the type of door as in photo above.
Side hung double leaf single swing door
Side hung single leaf single swing door
Top hung double leaf single swing door
Side hung single leaf double swing door
Identify the types of door as in photo above.
Single leaf straight sliding door
Single leaf double sliding door
Double leaf single sliding door
Single double leaf sliding door

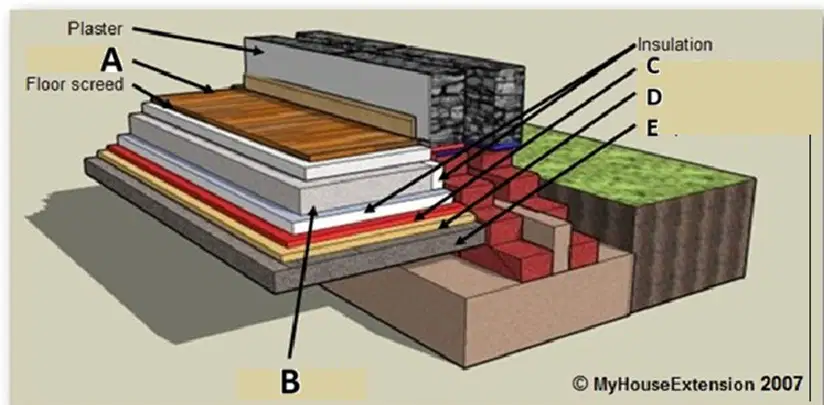

Identify A to E
A - Floor skirting
B - Floor slab
C - DPM
D - Blinding
E - Hardcore
A - Floor finishes
B - Concrete slab
C - Blinding
D - Concrete
E - Hardcore
A - Floor finishes
B - Concrete slab
C - DPM
D - Blinding
E - Hardcore
A - Floor finishes
B - DPM
C - Floor slab
D - Blinding
E - Hardcore

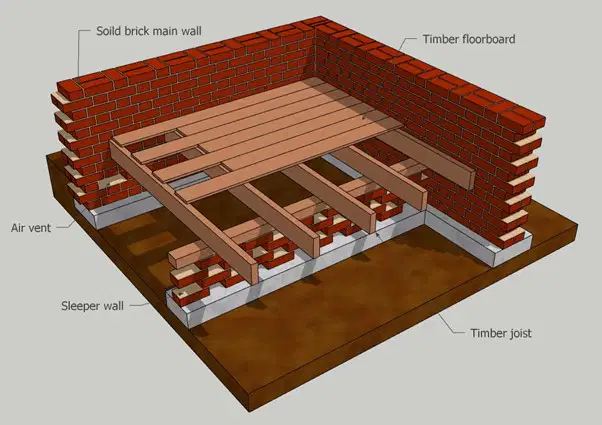

Name the image of the photo above
Suspended ceiling timber floor
Solid ground timber floor
Suspended timber upper floor
Suspended timber ground floor
Provision of daylight means ..................
Receive amount of daylight entering the room
provide ventilation by openable panels
Provide good heat insulation
Suitable to prevent from outside weather
