Worksheets6035 Folder Questions
Total questions: 42
Worksheet time: 21mins
What does Sign 1 represent?
(Warning)
Flammable material
Corrosive material
No running
First aid station
What does Sign 2 represent?
(Warning)
Flammable material
Corrosive material
No drinking water
Emergency exit
What does Sign 3 represent?
(Prohibited)
No running
Wear safety boots
Emergency exit
First aid station
What does Sign 4 represent?
(Prohibited)
No drinking water
Wear safety goggles
Flammable material
Emergency exit
What does Sign 5 represent?
(Mandatory)
Wear safety boots
Wear safety goggles
Emergency exit
First aid station
What does Sign 6 represent?
(Mandatory)
Wear safety goggles
Wear safety boots
No running
First aid station
What does Sign 7 represent?
(Information)
Emergency exit
No running
Flammable material
Wear safety boots
What does Sign 8 represent?
(Information)
First aid station
No drinking water
Wear safety goggles
Corrosive material
Identify the component shown in the image labeled 'Component 1'.
Lock-off padlock
Circuit breaker
Toggle switch
Fuse
Identify the component shown in the image labeled 'Component 2'.
Temporary earth bonding
Jumper cables
Nipple clamps
Crocodile clips

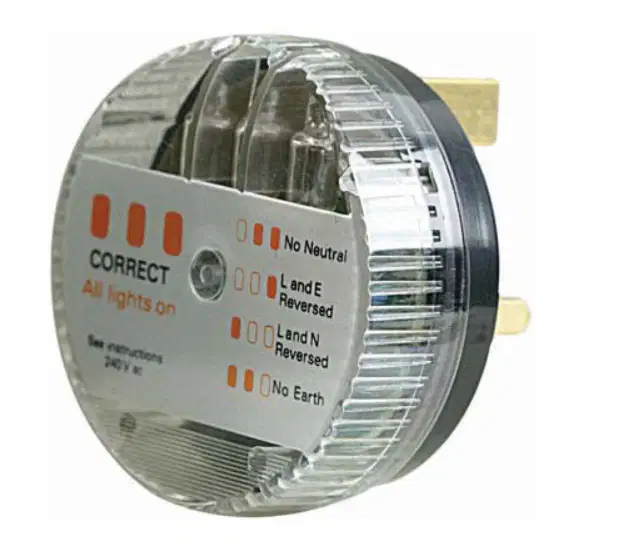

Identify the component shown in the image labeled 'Component 3'.
Socket tester
Multimeter
Fuse
Circuit breaker

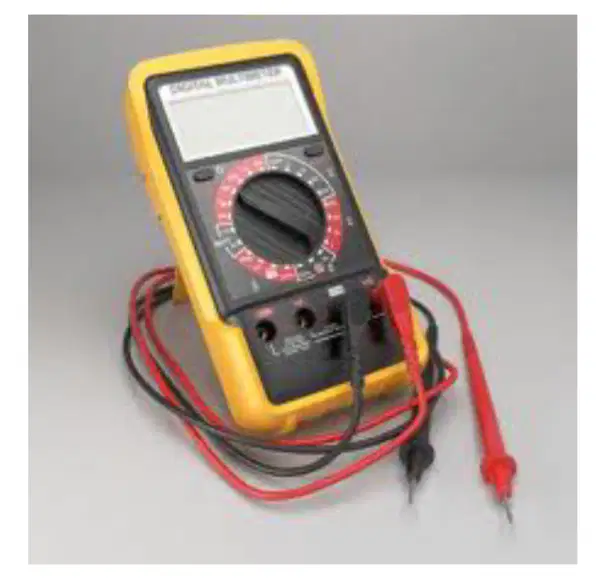

Identify the component shown in the image labeled 'Component 4'.
Multimeter
Oscilloscope
Function Generator
Soldering Iron
Identify the fitting shown in Component 1.
A) End feed elbow
B) Compression elbow
C) Solvent elbow
D) Push fit elbow
Identify the fitting shown in Component 2.
A) End feed tee
B) Solder ring tee
C) Compression tee
D) Push fit tee
Identify the fitting shown in Component 3.
A) Compression coupler
B) Push fit coupler
C) Solder ring coupler
D) Golden coupler
Identify the fitting shown in Component 4.
A) Brass push fit 45 elbow
B) Brass end feed 45 elbow
C) Brass compression 45 elbow
D) Brass solvent weld 45 elbow
Identify the fitting shown in Component 5.
Solder ring tap connector
Solvent weld tap connector
Push fit tap connector
LCS tap connector
Identify the fitting shown in Component 6.
A) Snap in clip
B) School board clip
C) Nail clip
D) Munson clip
Identify the fitting shown in Component 7.
A) LCS elbow (female)
B) LCS elbow (male)
C) Compression elbow
D) Solder ring elbow

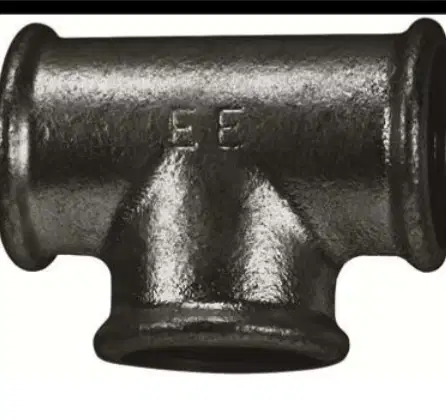

Identify the fitting shown in Component 8.
A) LCS tee (female)
B) LCS tee (male)
C) Copper tee
D) Brass tee
Identify the fitting shown in Component 9.
110mm branch with boss adaptor
110mm branch with access cap
100mm Branch with boss adaptor
100mm branch with access cap
Identify the fitting shown in Component 10.
A) Vent terminal
(bird cage)
B) Vent cap
(bird house)
C) Jet engine
(bird destroyer)
D) Vent end
(bird window)
Identify the fitting shown in Component 11.
A) Waste pipe elbow (push fit)
B) Waste pipe elbow (solvent weld)
C) Waste pipe elbow (compression)
D) Waste pipe elbow (rubber with jubilee clips)
Identify the fitting shown in Component 12.
A) Push fit coupler
B) Compression coupler
C) Solvent weld coupler
D) Solder ring coupler
Look at the image labeled 'Item 1'. What type of rainwater guttering is shown in the image?
Ogee
Half round
Square
Deep seal
Look at the image labeled 'Item 2'. What type of rainwater guttering is shown in the image?
Half round
Square
Deep seal
Ogee
What type of rainwater guttering is shown in the image?
Deep seal
Half round
Square
Ogee
Which type of guttering in drawn in the image?
Deep seal
Half round
Ogee
Square
Identify the appliance shown in Item 1.
Urinal
Bathtub
Washing Machine
Dishwasher
Identify the appliance shown in Item 2.
Trough urinal
Wash basin
Bathtub
Kitchen sink
Identify the appliance shown in Item 3.
Basin and pedestal
Wall-mounted urinal
Kitchen sink
Bathtub
Identify the appliance shown in Item 4.
Countertop wash basin
Electric kettle
Microwave oven
Toaster
Identify the appliance shown in Item 5.
London sink
(no overflow)
Belfast sink
(built in overflow)
Big square sink
Big rectangle sink
Identify the appliance shown in Item 6.
Bowl and a half sink with drainer
Double bowl sink with drainer
Bowl sink and drainer
Triple bowl sink
Identify the appliance shown in Item 7.
Free standing bath
Bath and panels
Sunken bath
Corner bath
Identify the appliance shown in Item 8.
Corner bath
Triangle bath
90 degree bath
Free standing bath
What is the name of this plumbing fixture?
Low level toilet
High level toilet
Close couple toilet
Concealed toilet
Look at the image labeled Item 10. What is the name of this plumbing fixture?
High level toilet
Low level toilet
Close couple toilet
Wall hung toilet
What is the name of this plumbing fixture?
Wall-mounted bidet
Wall-mounted foot washer
Wall-mounted basin
Wall-mounted sink
Look at the image labeled Item 12. What is the name of this plumbing fixture?
Bidet
Foot wash
Bum wash
Drinking fountain
What is the name of this plumbing appliance?
Toilet & bathroom macerator
Washing machine pump
Put your hand in here for a lucky dip
Shower pump
Look at the image labeled Item 14. What is the name of this plumbing appliance?
Waste disposal unit
(kitchen sink)
Waste disposal unit
(washing machine)
Waste disposal unit
(bathroom suit)
Waste disposal unit
(rain water)
