WorksheetsDrill Press Exam
Total questions: 28
Worksheet time: 27mins

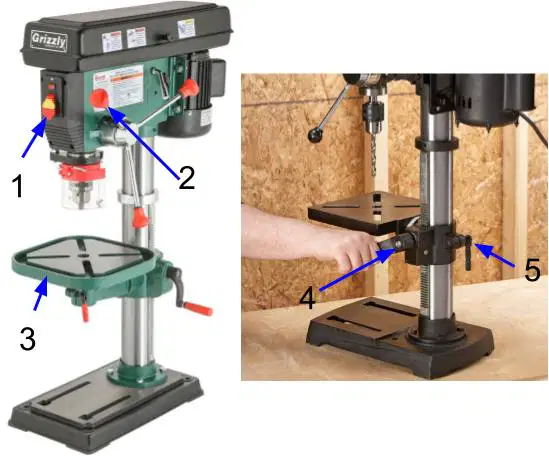

Using the picture, identify the on/off switch
Using the picture, identify the hand feed lever.
Using the picture, identify the table.
Using the picture, identify the table adjustment handle.
Using the picture, identify the table clamp.
Match the parts with their descriptions.
On/off switch
Turns the machine on and off
Table
Supports the material being cut
Hand feed lever
Lowers the bit into the material
Table adjustment handle
Adjusts the table's height up and down
Table clamp
Allows adjustment of the table's height
The drill press's (a) turns the machine on and off.
The drill press's (a) lowers the bit into the material.
The drill press's (a) supports the material while it is being cut.
The part that does the cutting on a drill press is called the...
Which of the following items does not need to be reviewed when completing a safety check?
Sun glasses are on
Sleeves are rolled up
Jewelry is tucked in
Loose clothing is restrained
The wood should be checked for foreign material before drilling. Which of the following is not an item that we need to worry about?
Masking tape
Staples

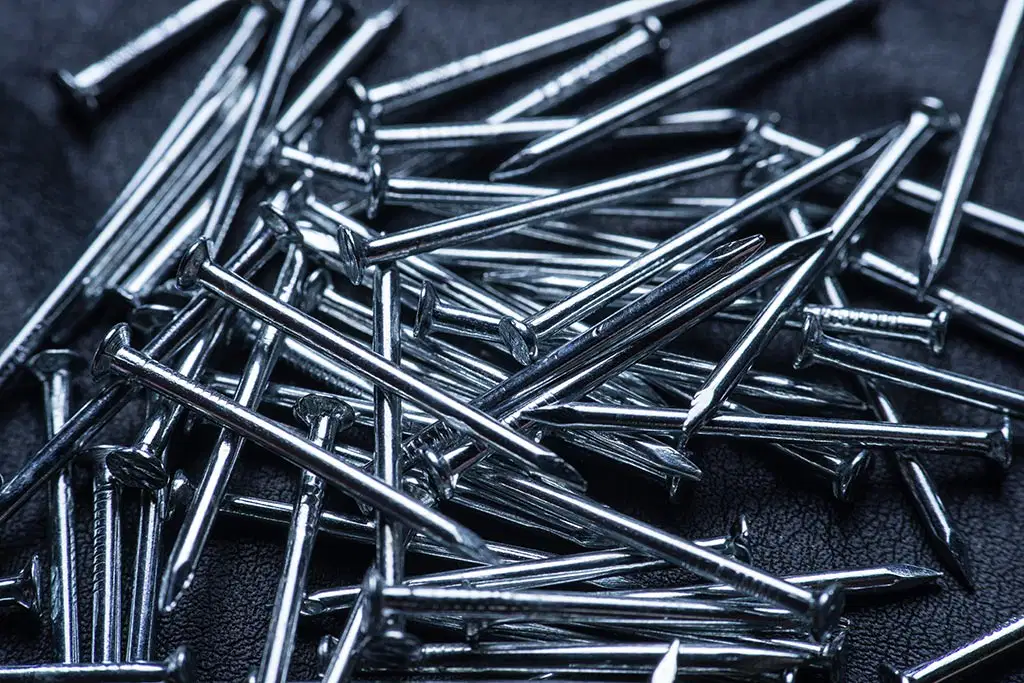

Nails
Screws
Why do we check the wood for foreign material?
To mark where a hole will be placed, we use a...
X
Dotted line
Solid line
Solid and dotted line
When drilling a long piece of material, the long end should go...
Long end of a piece of wood should go on the (a) side of the drill press.
When something small needs to be drilled, you cannot use the following to hold onto that small piece
Your fingers

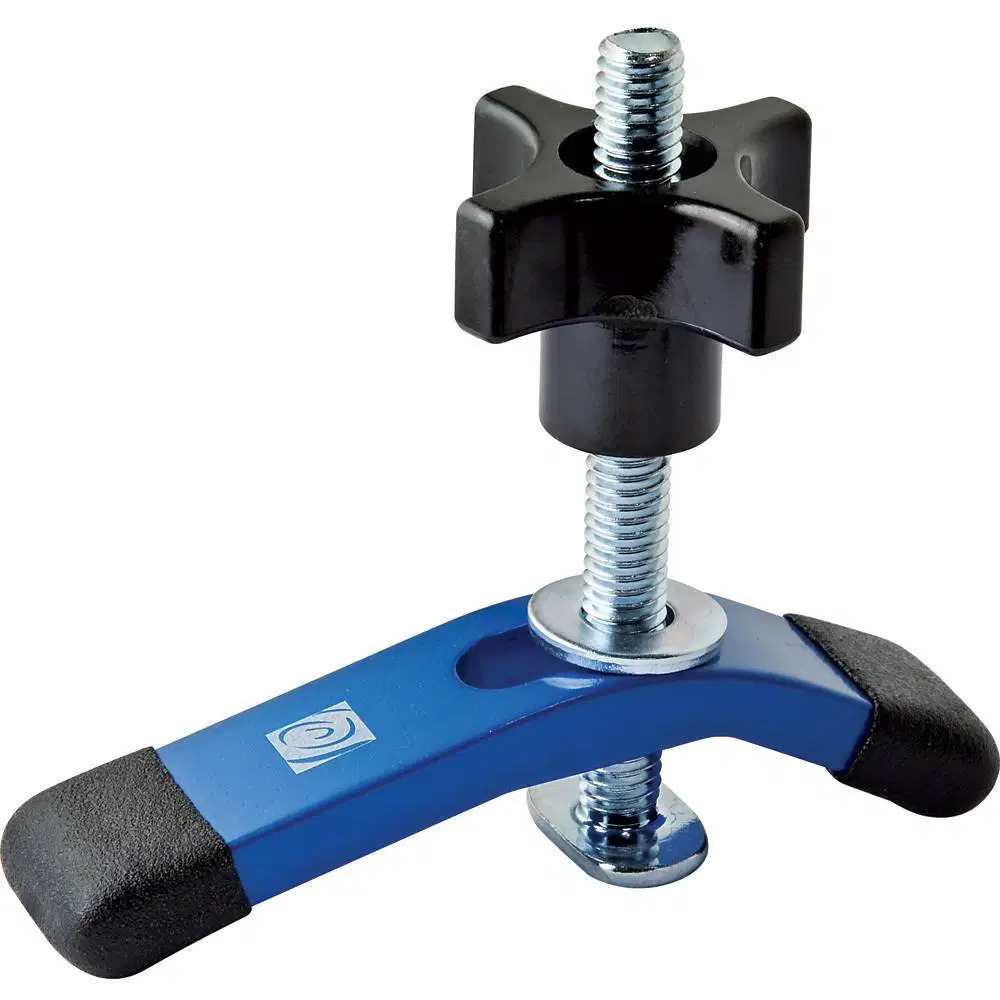

Clamps
Pliers
Drill vice
When something small needs to be drilled, you should
To make sure the bit is lined up with the X, we ...
Reorder the following steps to adjust the table on the drill press.
Loosen table clamp
Spin table adjustment lever
Tighten table clamp
When drilling, where should your fingers be?
When drilling, you should
Why do we drill into the hole and back out several times, getting deeper every time? (Check all that apply)
Keeps the wood from moving
Reorder these steps to remove a piece of material that is stuck on the drill bit.
When can you walk away from the machine?
When you are done drilling, how should you clean the machine for the next person? (Check all that apply)
Brush
A big puff of air
Your hand
Vacuum system
Notify the teacher immediately if a machine has which of these problems.
Use a clamp to secure material on the table.
True
False
