WorksheetsTEST Unit 3: Forces and Motion
Total questions: 23
Worksheet time: 12mins

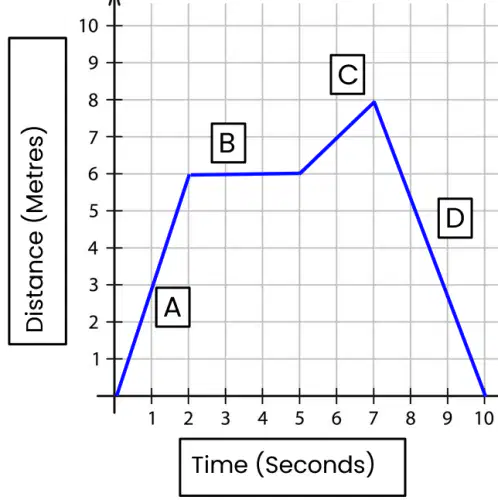

What is the total distance traveled in this graph?
6 m
6 s
30 m
30 s
How much time has passed according to the graph?
30 m
30 s
6 m
6 s
What is the average speed of the object in this graph?
0.2 s/m
5 s/m
5 m/s
0.2 m/s
First, she jogged 0.2 kilometers to a park, which took her 0.1 hour. Then, she walked to an ice cream shop 1.8 km from the park, which took her 0.4 hours. Then she ran 2.5 km back to her house in 0.5 hours. What was her total distance?
2.0 km
4.5 km
4.0 km
1 km
First, she jogged 0.2 kilometers to a park, which took her 0.1 hour. Then, she walked to an ice cream shop 1.8 km from the park, which took her 0.4 hours. Then she ran 2.5 km back to her house in 0.5 hour. What is Lilly’s total time?
2.0 hr
4.5 hr
4.0 hr
1 hr
Lilly calculated the average speed she jogged. First, she jogged 0.2 kilometers to a park, which took her 0.1 hour. Then, she walked to an ice cream shop 1.8 km from the park, which took her 0.4 hours. Then she ran 2.5 km back to her house in 0.5 hours. What is Lilly’s average speed for the entire trip?
4.5 km/hr

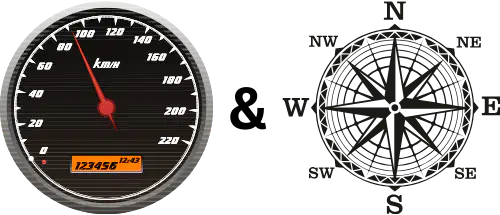

It takes 3 hours for a car to drive south at 60 m/hr to Austin TX. What is the cars velocity?
60 m north
60 m/hr
60 m south
60 m/hr south
Cart A is traveling north at 30 km/h and Cart B is traveling south at 30 km/h. Which statement correctly compares the speed and velocity of the two carts?
The velocities are different because the carts are moving in different directions but at the same speed.
The velocities are different because the carts are moving in different directions and at different speeds.
The velocities are the same because both carts have the same mass and are moving at the same speed.
The velocities are the same because both carts are moving on the same road and with the same speed.

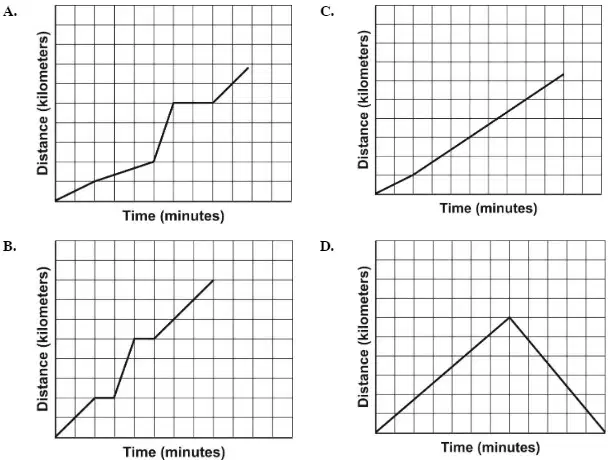

Which graph best matches the scenario?
Skier takes a ski lift 6 km up the bunny hills in 7 mins. They then ski down the hill in 5 min. The end up back at the start.
Which statements correctly describe the speed and motion of this trip? Select TWO correct answers.
Their speed along segment B was
5 km/h
Their speed along segment A was
3 m/s
Which statement correctly describes how the forces acting on the hot air balloon affect its motion?
The forces are balanced so the hot air balloon is slowing down.
The forces are unbalanced so the hot air balloon if floating up.
The forces are balanced so the hot air balloon is moving at a constant speed.
The forces are unbalanced so the hot air balloon is slowing down and sinking.
Which diagram indicates no motion (balanced forces)?
Tina and her family drive to the grocery store. They first travel 1 kilometer in 2 minutes. They STOP at a stoplight for 2 minutes Then travel 9 kilometers in 8 minutes
D
Solve for the average speed.
0.9 m/s
1.111 m/s
0.9 s/m
1.111 s/m
