WorksheetsSnap on DMM Quiz #2
Total questions: 10
Worksheet time: 6mins
What are the 4 main sections of the DMM?
Display
Function Buttons
Endoplasmic Reticulum
Rotary Dial
Test Lead Terminals

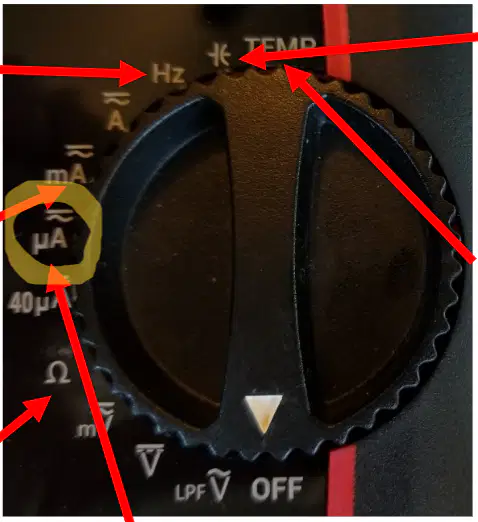

What rotary dial selection is circled in yellow in the picture?
Ohms
Microamps
Volts
Hertz
Capacitance
Select all of the functions that expand the meter's capabilities when pushing the 'Function Buttons'.
Converts to manual ranging
Records min and max values
Provide frequency and duty cycle
Provide relative readings
Converts from AC to DC signals
What is the function of the rotary dial on the meter?
To adjust the functions and expand the capabilities of the meter
To select the desired test measurement
To make a phone call
To change the colors of the leads
To check the time of day

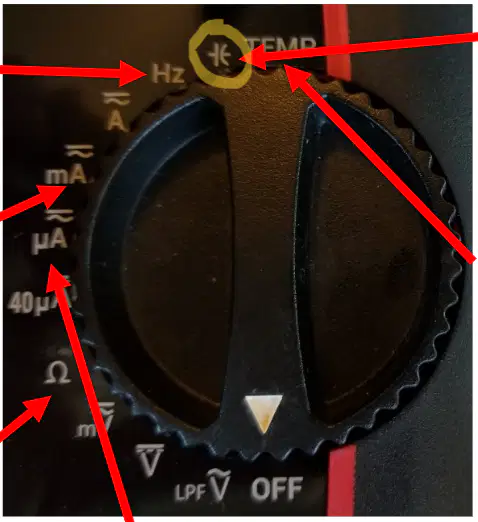

What rotary dial selection is circled in yellow in the picture?
Ohms
Microamps
Volts
Hertz
Capacitance
The __________ function button freezes (pauses) a value on the display - a second press removes the hold going back to a live value.
Capacitance
Voltage
LPF (Low Pass Filter)
Hold
How many test lead terminal ports are there?
1
2
3
4
Select the names of the Lead Terminal Ports
Capacitance
Amps
Milliamps & Micro amps
Com or Ground
Volts, Ohms and Hertz

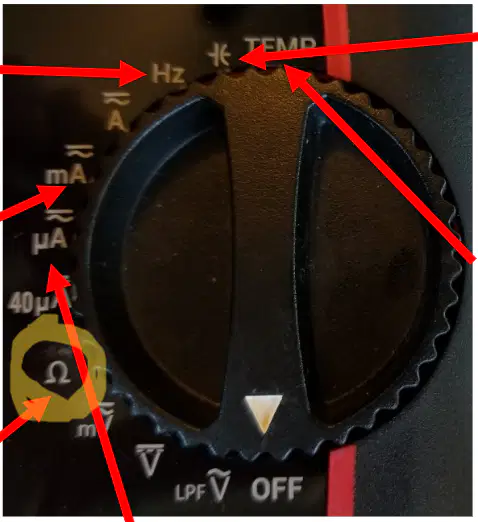

What rotary dial selection is circled in yellow in the picture?
Ohms
Microamps
Volts
Hertz
Capacitance
The ___________ function removes excessive "noise" on AC & DC Voltage Signals.
Capacitance
Voltage
LPF (Low Pass Filter)
Hold
