Which statement best defines a beam in structural engineering?
A member that primarily resists axial loads along its length
A structural element that primarily resists loads applied laterally to its axis
A device that transfers torsion through its cross-section
A connector used to join columns
According to the material, what is the primary mode of deflection for a beam under lateral loads?
Axial elongation
Torsional twist
Bending
Buckling
Beams are characterized by several attributes. Which set aligns with the material’s description?
Load type, color, and cost
Support manner, profile (shape of cross-section), length, and material
Installation date, contractor, and finish
Number of bolts, weld type, and paint system
Which statement best describes a simply supported beam?
It is fixed at one end and free at the other.
It is supported at both ends, one by a hinge and the other by a roller, allowing horizontal movement.
It uses more than two supports along its length.
It is only supported by rollers between the ends.
In a continuous beam, what distinguishes it from a simply supported beam?
It has no supports at the ends.
It uses more than two supports, with intermediate supports between the ends.
It always has an overhanging portion beyond the end supports.
It is only suitable for short spans.
Which combination of supports is typical at the ends of both simply supported and continuous beams in this context?
Two fixed supports
One hinged support at one end and one roller support at the other
Two roller supports only
One cantilever end and one fixed end
Which statement best describes a cantilever beam as shown, with one end embedded in a wall and the other end extending outward?
A structural member fixed at one end and free at the other, carrying load over its span with shear stress and bending moment
A beam supported by simple pins at both ends, allowing rotation
A beam fixed at both ends, disallowing vertical movement or rotation
A beam composed of multiple triangular units connected by pins
In the fixed beam diagram with both ends restrained, what movement is prevented at the supports according to the description?
Vertical movement only
Rotation only
Both vertical movement and rotation
Horizontal movement only
Which load effect combination is characteristic of a cantilever beam carrying load over its span?
Shear stress only
Bending moment only
Both shear stress and bending moment
Neither shear stress nor bending moment
Given a span that must resist rotation at both ends and is used in trusses and other structures, which beam type is most appropriate?
Cantilever beam
Fixed beam
Simply supported beam
Overhanging beam
Which beam type is characterized by an I-shaped cross section and noted for high resistance to bending?
T-beam
C-beam
I-beam
Box beam

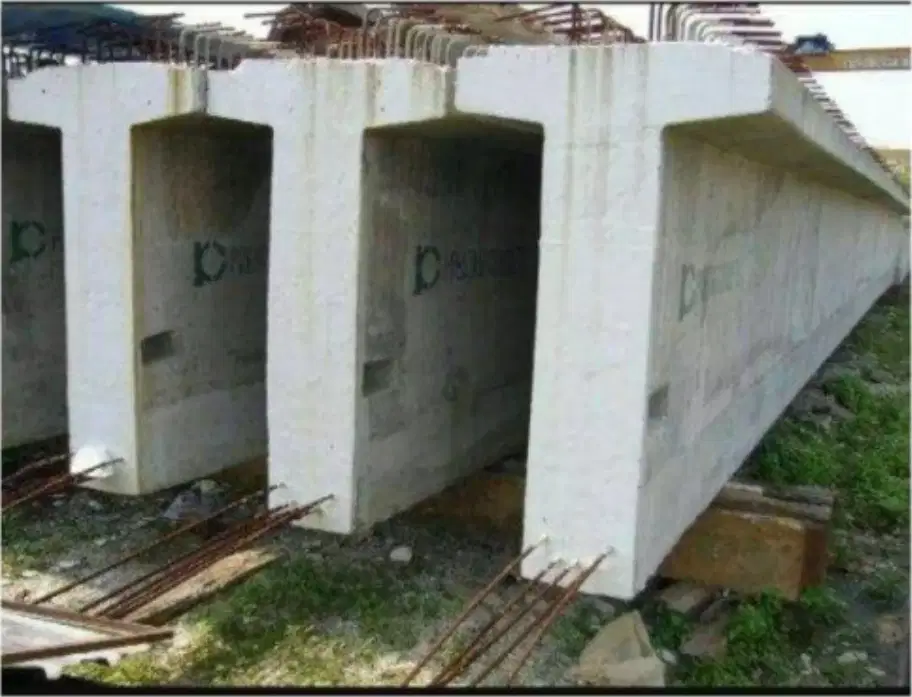

A structural member with a cross section that looks like the letter T is best identified as which beam type?
I-beam
T-beam
C-beam
Angle beam

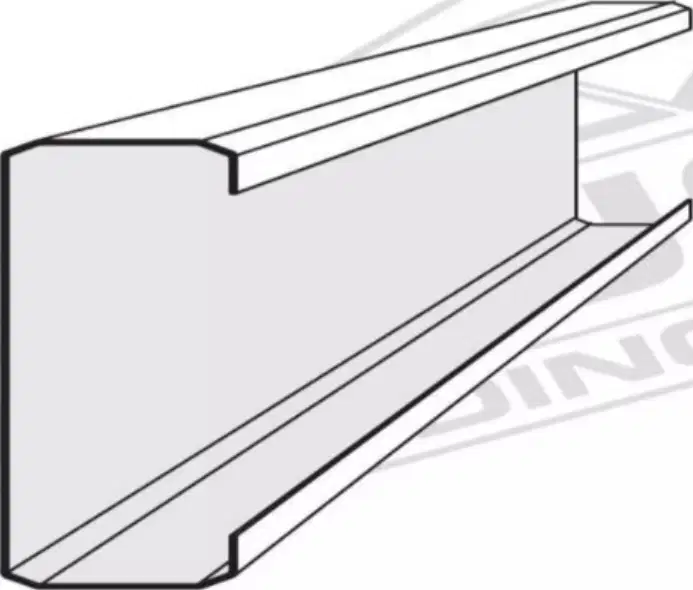

An engineer wants a beam with a C-shaped cross section. Which option correctly matches the description?
I-beam
T-beam
C-beam
Box girder
Which statement best defines a statically determinate beam according to equilibrium conditions?
A beam analyzed using compatibility conditions and material properties only
A beam whose support reactions can be found using only the basic equilibrium equations
A beam requiring strain energy and virtual work methods for all reactions
A beam with zero internal forces regardless of loading
A continuous beam requires methods beyond basic equilibrium to find end reactions. Which combination of approaches aligns with the instructional material?
Use only ΣV = 0 and ignore other effects
Apply strain energy or virtual work methods together with basic equilibrium
Rely solely on experimental measurements
Use compatibility with thermal analysis only
Which description correctly defines a tapered beam according to geometry classifications?
Beam with straight profile
Beam with curved profile
Beam with tapered cross section
Beam with variable span

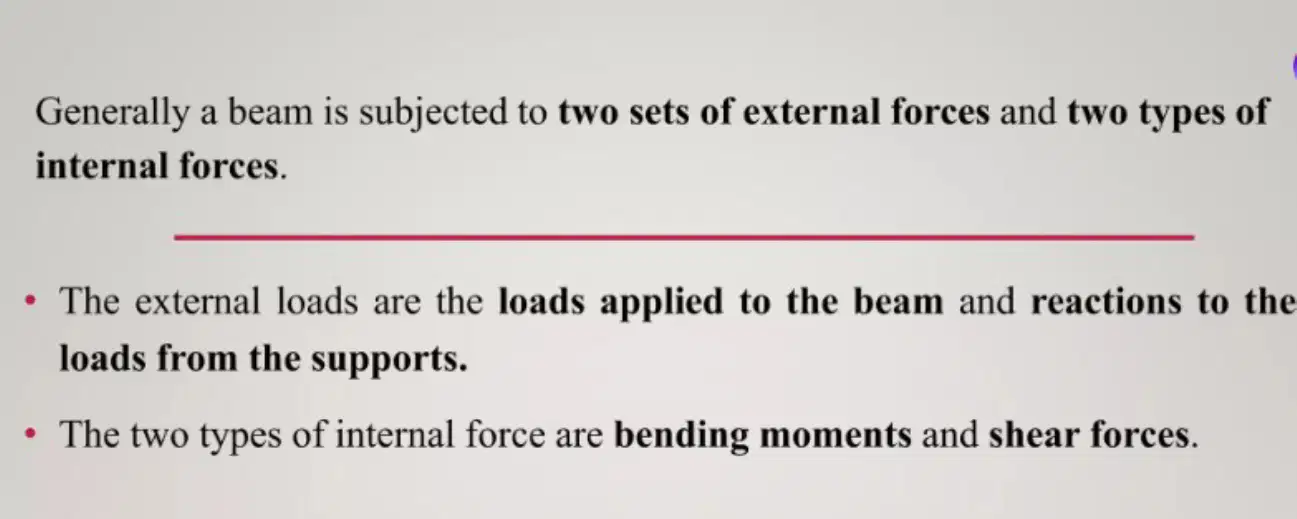

A beam is subjected to two sets of external forces and two types of internal forces. Which pairing best matches the external forces described?
Bending moments and shear forces
Loads applied to the beam and reactions from the supports
Axial tension and compression within the beam
Distributed loads and point loads within the material
Which beam type is supported at both ends without fixity, allowing rotation at the supports?
Simply supported beam
Fixed beam
Cantilever beam
Overhanging beam
Truss beam
Which beam type has both ends restrained against rotation, creating fixed moments at the supports?
Continuous beam
Fixed beam
Truss beam
Overhanging beam
Simply supported beam
Which beam type extends over more than two supports in a series?
Fixed beam
Cantilever beam
Continuous beam
Overhanging beam
Truss beam
Which beam type has supports near the ends but includes a portion that extends beyond one or both supports?
Truss beam
Overhanging beam
Fixed beam
Cantilever beam
Continuous beam
Which structural element is composed of interconnected members forming triangular units to act as a beam?
Continuous beam
Truss beam
Fixed beam
Simply supported beam
Cantilever beam
Select the option that lists only beam types classified by support conditions from the provided set.
Simply supported, Fixed, Continuous, Cantilever, Overhanging, Truss
Simply supported, Fixed, Composite, Cantilever, Overhanging, Box
Fixed, Continuous, Cantilever, Portal, Overhanging, Space frame
Simply supported, Fixed, Continuous, Cantilever, Arch, Truss
Girder, Fixed, Continuous, Cantilever, Overhanging, Truss
Which option best distinguishes an overhanging beam from a cantilever beam?
Overhanging has no supports; cantilever has two
Overhanging has intermediate supports with end projection; cantilever has a single fixed support
Overhanging is fixed at both ends; cantilever is simply supported
Overhanging is truss-based; cantilever is composite
They are identical
Which beam classification inherently implies at least one fixed end condition?
Simply supported beam
Continuous beam
Overhanging beam
Cantilever beam
Truss beam
Which classification would best suit a roof structure made of interconnected bars forming triangles, acting to carry loads across a span?
Simply supported beam
Fixed beam
Continuous beam
Truss beam
Overhanging beam
In the listed classifications, which beam is most sensitive to end rotational restraint at both supports?
Truss beam
Simply supported beam
Fixed beam
Overhanging beam
Continuous beam
Which classification would a beam fall under if it has one free end and one end rigidly connected to a support?
Fixed beam
Overhanging beam
Cantilever beam
Continuous beam
Simply supported beam
Which beam type is explicitly listed among support-based classifications and is constructed of members rather than a solid web?
Continuous beam
Truss beam
Fixed beam
Overhanging beam
Cantilever beam
Which beam classification includes a projection beyond a support while still being supported at more than one location?
Cantilever beam
Overhanging beam
Fixed beam
Truss beam
Simply supported beam
