WorksheetsStatics Support and reaction
Total questions: 10
Worksheet time: 10mins
This force represents support ...................
The type of support that have force and a couple.
What is the reaction for this support?

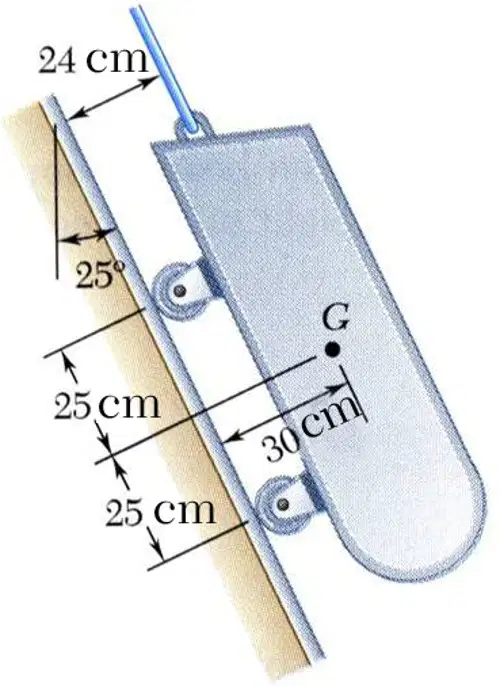

A loading car is at rest on an inclined track. The gross weight of the car and its load is 5500 N, and it is applied at G. The cart is held in position by the cable.
Choose the suitable free body diagram.
Which support reactions does this 2-D support have?
1 force
1 moment
2 forces
2 force and 1 moment
Which support reactions does this 2-D support have?
1 force
1 moment
2 forces
1 force and 1 moment
Which support reactions does this 2-D support have?
1 force
1 moment
2 forces
2 force and 1 moment
Which support reactions does this 2-D support have?
1 force
1 moment
2 forces
2 force and 1 moment
The moment is zero at which type of support
Roller support
Hinged support
Fixed support
Cable
The number support reaction for this support
2
1
3
4
