Total questions: 16
Worksheet time: 9mins
Refer to the exhibit. If Host1 were to transfer a file to the server, what layers of the TCP/IP model would be used?
only application and Internet layers
only Internet and network access layers
only application, Internet, and network access layers
application, transport, Internet, and network access layers
only application, transport, network, data link, and physical layers

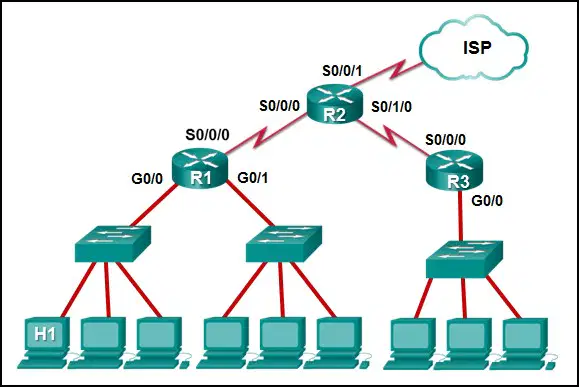

Refer to the exhibit. The IP address of which device interface should be used as the default gateway setting of host H1?
R1: S0/0/0
R2: S0/0/1
R1: G0/0
R2: S0/0/0

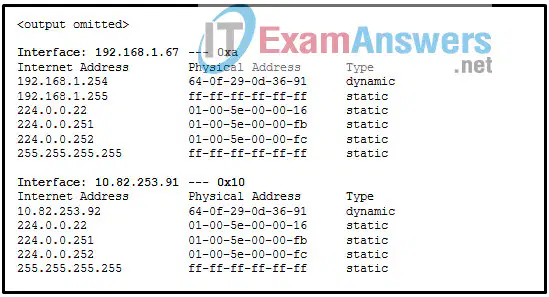

Refer to the exhibit. Which protocol was responsible for building the table that is shown?
DHCP
ARP
DNS
ICMP
Refer to the exhibit. An administrator is trying to configure the switch but receives the error message that is displayed in the exhibit. What is the problem?
The entire command, configure terminal, must be used.
The administrator is already in global configuration mode.
The administrator must first enter privileged EXEC mode before issuing the command.
The administrator must connect via the console port to access global configuration mode.
Refer to the exhibit. On the basis of the output, which two statements about network connectivity are correct? (Choose two.)
This host does not have a default gateway configured.
There are 4 hops between this device and the device at 192.168.100.1.
There is connectivity between this device and the device at 192.168.100.1.
The connectivity between these two hosts allows for videoconferencing calls.
Refer to the exhibit. If PC1 is sending a packet to PC2 and routing has been configured between the two routers, what will R1 do with the Ethernet frame header attached by PC1?
nothing, because the router has a route to the destination network
open the header and use it to determine whether the data is to be sent out S0/0/0
open the header and replace the destination MAC address with a new one
remove the Ethernet header and configure a new Layer 2 header before sending it out S0/0/0
Refer to the exhibit. PC1 issues an ARP request because it needs to send a packet to PC2. In this scenario, what will happen next?
SW1 will send an ARP reply with the SW1 Fa0/1 MAC address.
SW1 will send an ARP reply with the PC2 MAC address.
PC2 will send an ARP reply with the PC2 MAC address.
RT1 will send an ARP reply with the RT1 Fa0/0 MAC address.
Refer to the exhibit. What is wrong with the displayed termination?
The woven copper braid should not have been removed.
The wrong type of connector is being used.
The untwisted length of each wire is too long.
The wires are too thick for the connector that is used.
Refer to the exhibit. Which two network addresses can be assigned to the network containing 10 hosts? Your answers should waste the fewest addresses, not reuse addresses that are already assigned, and stay within the 10.18.10.0/24 range of addresses. (Choose two.)
10.18.10.200/28
10.18.10.208/28
10.18.10.240/27
10.18.10.200/27
10.18.10.224/28
Refer to the exhibit. The network administrator has assigned the LAN of LBMISS an address range of 192.168.10.0. This address range has been subnetted using a /29 prefix. In order to accommodate a new building, the technician has decided to use the fifth subnet for configuring the new network (subnet zero is the first subnet). By company policies, the router interface is always assigned the first usable host address and the workgroup server is given the last usable host address. Which configuration should be entered into the properties of the workgroup server to allow connectivity to the Internet?
IP address: 192.168.10.65 subnet mask: 255.255.255.240, default gateway: 192.168.10.76
IP address: 192.168.10.38 subnet mask: 255.255.255.240, default gateway: 192.168.10.33
IP address: 192.168.10.38 subnet mask: 255.255.255.248, default gateway: 192.168.10.33
IP address: 192.168.10.65 subnet mask: 255.255.255.240, default gateway: 192.168.10.76
IP address: 192.168.10.41 subnet mask: 255.255.255.248, default gateway: 192.168.10.46
Refer to the exhibit. The switches are in their default configuration. Host A needs to communicate with host D, but host A does not have the MAC address for its default gateway. Which network hosts will receive the ARP request sent by host A?
only host D
only router R1
only hosts A, B, and C
only hosts B, C, and router R1
Refer to the exhibit. A network engineer has been given the network address of 192.168.99.0 and a subnet mask of 255.255.255.192 to subnet across the four networks shown. How many total host addresses are unused across all four subnets?
88
200
72
224
Refer to the exhibit. The switches have a default configuration. Host A needs to communicate with host D, but host A does not have the MAC address for the default gateway. Which network devices will receive the ARP request sent by host A?
only host D
only hosts A, B, C, and D
only hosts B, C, and router R1
only hosts A, B, and C

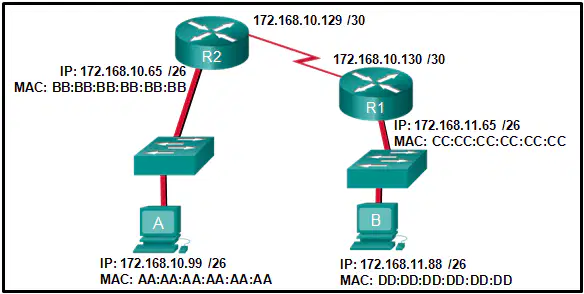

Refer to the exhibit. If host A sends an IP packet to host B, what will the destination address be in the frame when it leaves host A?
DD:DD:DD:DD:DD:DD
172.168.10.99
CC:CC:CC:CC:CC:CC
BB:BB:BB:BB:BB:BB

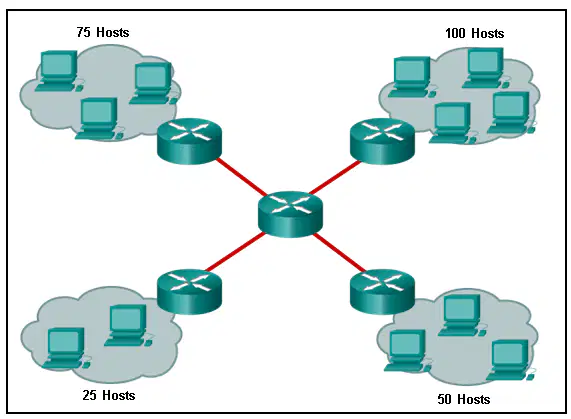

Refer to the exhibit. A company uses the address block of 128.107.0.0/16 for its network. What subnet mask would provide the maximum number of equal size subnets while providing enough host addresses for each subnet in the exhibit?
255.255.255.192
255.255.255.0
255.255.255.128
255.255.255.240
A network administrator wants to have the same subnet mask for three subnetworks at a small site. The site has the following networks and numbers of devices:
Subnetwork A: IP phones – 10 addresses Subnetwork B: PCs – 8 addresses Subnetwork C: Printers – 2 addresses
255.255.255.0
255.255.255.240
255.255.255.248
255.255.255.252
