WorksheetsUnit 102 Traditional Skills Required
Total questions: 32
Worksheet time: 16mins
Which combination best represents core traditional hand skills for tradespeople to achieve a professional result?
Measuring accurately and cutting precisely for neat finishes
Estimating roughly and trimming quickly for fast results
Guessing dimensions and sanding extensively to hide gaps
Freehand marking and heavy filling to correct mistakes
A door frame is specified as 900 mm wide with a tolerance of ±2 mm. Which widths fall within this tolerance?
897 mm and 903 mm
898 mm and 902 mm
899 mm and 901 mm
900 mm and 904 mm
896 mm and 900 mm
What does tolerance most closely mean in construction measurements?
Allowed small variation from the exact size
Exact size must always be achieved
Any size is acceptable if it fits
Only larger sizes are permitted
Variation only allowed in imperial units
A rule shows 59 mm for a component length. If the job tolerance is ±1 mm, which action is most appropriate?
Accept if required length is 60 mm
Reject because any error is unsafe
Round to 60 mm for convenience
Convert to inches before deciding
Increase tolerance to save time
Which metric unit is commonly used for small length measurements on site plans?
millimetre (mm)
metre (m)
kilometre (km)
pint (pt)
For liquid volumes of admixtures, which pair lists one metric and one imperial unit?
millilitre and pint
kilometre and inch
tonne and foot
gramme and litre
Which unit is NOT a length unit in the provided reference?
kilometre (km)
inch (in)
pint (pt)
metre (m)
Select all imperial units listed for measuring length in construction tasks.
inch (in)
foot (ft)
pint (pt)
pound (lb)
When ordering aggregate by mass, which imperial unit is suitable?
pound (lb)
pint (pt)
inch (in)
metre (m)
A site note reads 6" for a trim piece. What does this unit indicate?
six inches length
six feet length
six litres volume
six pounds weight
Which formula correctly gives the area of a rectangle with sides a and b?
a × b
2a + 2b
a × a × b
(a × b)/2
pi × a × b
A brick has dimensions a, b, and c. What is its volume?
a × b × c
a + b + c
(a × b)/c
pi × a × b
2a × 2b × 2c
Which formula gives the volume of a cylinder with radius r and height h?
π×r2×h
(pi×r2)/h
2 × pi × r × h
(4/3)×π×r3
(pi×r2×h)/3
On a site, you must choose cabling and fuses. Which combination of skills is most directly required?
Calculating electrical loads and resistance
Sketching decorative elevations
Estimating paint colour variation
Memorising brick types only
Only reading vendor brochures
Four skirting boards each measure 3.3 m. What is the total linear metres required?
9.9 m total length
12.6 m total length
13.2 m total length
16.3 m total length
Which best describes linear metres in construction measurement?
Total end‑to‑end length of items
Sum of item surface areas
Height times depth of components
Number of pieces multiplied
A wall is 4.2 m long and 2.6 m high with no openings. What is its area?
6.8 m² surface area
9.2 m² surface area
10.8 m² surface area
10.92 m² surface area
Area is measured in which units for construction surfaces?
Linear metres (m)
Square units like m²
Cubic units like m³
Centimetres only (cm)
To calculate the area of a rectangular floor you should:
Add length and width together
Multiply length by width
Divide length by width
Square the longest side only
You need 18 m of DPC. Rolls come in 4.5 m lengths. How many full rolls must be ordered?
Three full rolls total
Four full rolls total
Five full rolls total
Six full rolls total
A square patio is 3.3 m by 3.3 m. Which statement is correct?
Its area equals 10.08 m²
Its area equals 10.89 m²
Its perimeter equals 10.89 m
Its area equals 6.6 m²
To calculate the volume of a rectangular concrete footing, which formula should you use?
length × width × height
length + width + height
2 × (length + width) × height
length × height ÷ width

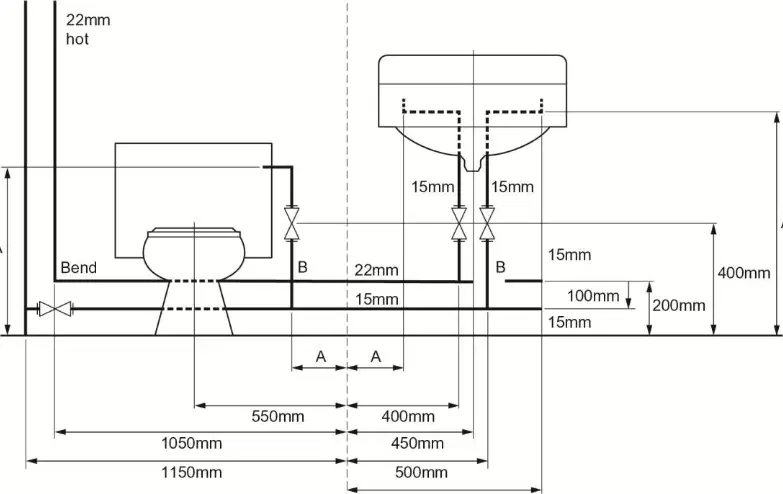

Refer to the plumbing diagram. Two supply lines feed a basin: hot and cold. Which pipe size pairing is most consistent with typical labeling in the diagram?
Hot 22 mm, Cold 15 mm
Hot 15 mm, Cold 22 mm
Hot 22 mm, Cold 22 mm
Hot 15 mm, Cold 15 mm
In site levelling, what is the primary role of an ordnance benchmark (OBM) shown in the top-right diagram symbol?
Permanent reference point for elevation transfer
Temporary point for a single day’s measurements
Marker used to align walls and corners only
Indicator for underground services location
A crew must establish working heights across a large site. Which approach is most appropriate given the tools shown?
Use a laser level to project a consistent datum line
Rely only on a single set mark near one corner
Create multiple OBMs around the site each day
Skip benchmarks and measure from floor finish level
In bricklaying, which step ensures walls start straight and to size as shown in the diagram?
Measuring and setting out with profiles
Cutting bricks with a bolster chisel
Installing masonry by buttering bricks
Finishing joints by tooling mortar

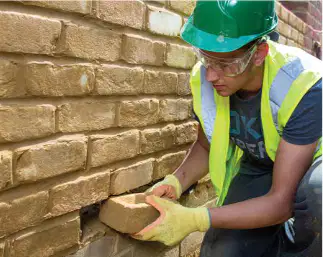

Which action is primarily for adjusting brick size to fit around openings in the diagram?
Cutting bricks with hammer and bolster
Measuring wall length with tape
Laying bricks to a string line
Pointing joints with a jointer
When installing masonry as pictured, which practice best maintains bond and level?
Use a string line and consistent mortar beds
Skip mortar on perp joints for speed
Set out irregular courses randomly
Cut bricks after each full course
The finishing process shown for brickwork is mainly intended to:
Weatherproof joints and improve appearance
Increase wall thickness significantly
Reduce need for damp proofing
Replace defective bricks entirely
Which tools are most appropriate for finishing floor screeds and plaster as shown?
Steel trowel or float
Notched trowel only
Straightedge or darby
Paint roller only
A bolster is most appropriately used for which task?
Cutting masonry with a hammer
Applying paint to a surface
Joining edges of mortar joints
Smoothing wet plaster surfaces
Which combination best reflects safe tool management for hand tools?
Maintain and store tools correctly
Use goggles suited to the task
Select any tool that is nearby
Rely on speed instead of accuracy
