WorksheetsDomestic Electrics: Regulations and Basic Principles
Total questions: 20
Worksheet time: 10mins
Which statement best describes alternating current in household mains?
Voltage changes only when load is disconnected
Current flows one way at a constant magnitude
Frequency varies randomly with appliance use
Current reverses direction in a sinusoidal cycle
In the lighting circuit diagram, what is the role of the consumer unit in relation to the lights shown?
Connects only the earth wires for ceiling roses
Acts as a switch directly controlling individual lamps
Provides protection and distribution to lighting circuits
Supplies power solely to fused spurs and sockets

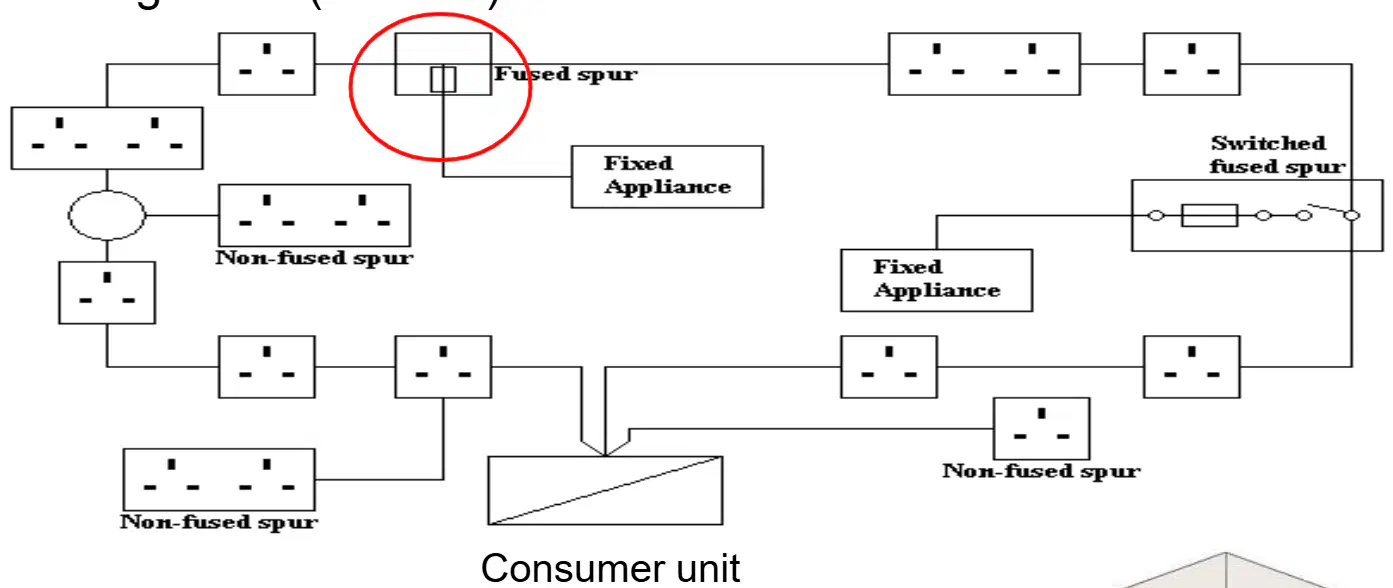

When adding a socket for a fixed appliance on a ring main, which connection method is correct to avoid overloading?
Create a radial branch with multiple unfused spurs
Add the appliance directly in parallel without a fuse
Disconnect one side of the ring to make it radial
Use a fused spur from the ring to the appliance
An electrician must replace a faulty MCB in a domestic installation. What is the correct basic safety step before removal?
Isolate the main isolator in the consumer unit
Pull the supplier’s service fuse only
Trip the nearest RCD and leave others on
Disconnect the meter tails from the meter
Up to which point is the mains electrical installation typically the supplier’s responsibility, before the homeowner’s responsibility begins?
Only the main earth bar connections
From meter tails into the consumer unit
Up to and including the meter equipment
From the earth bar to the consumer unit

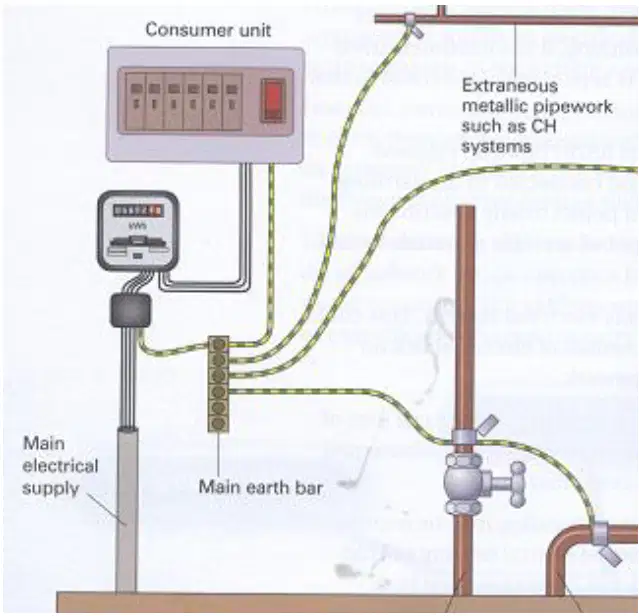

Which list correctly orders the primary mains supply components feeding domestic circuits, starting upstream?
Meter, consumer unit, earth bar
Earth bar, supplier’s fuse, consumer unit
Supplier’s fuse, meter, consumer unit
Consumer unit, meter, supplier’s fuse
In a Y plan, which valve arrangement is used?
Manual bypass valve only
Four-port zonal manifold
Two-port for heating only
Three-port serving two circuits
When the room reaches set temperature, the room thermostat will:
Increase boiler firing rate automatically
Open the heating valve further
Reduce demand and turn heating off
Switch system to hot water only
In a TNS earthing system shown, where is the main earthing conductor derived from?
Metal gas pipe bonding clamp
Armour of the supply cable sheath
Neutral at the service head terminal
Dedicated earth rod near meter box
In the TNS diagram, which cable characteristic provides the earth path?
Metallic sheath or armour
PEN combined conductor
Overhead neutral drop wire
Plastic insulation around cores

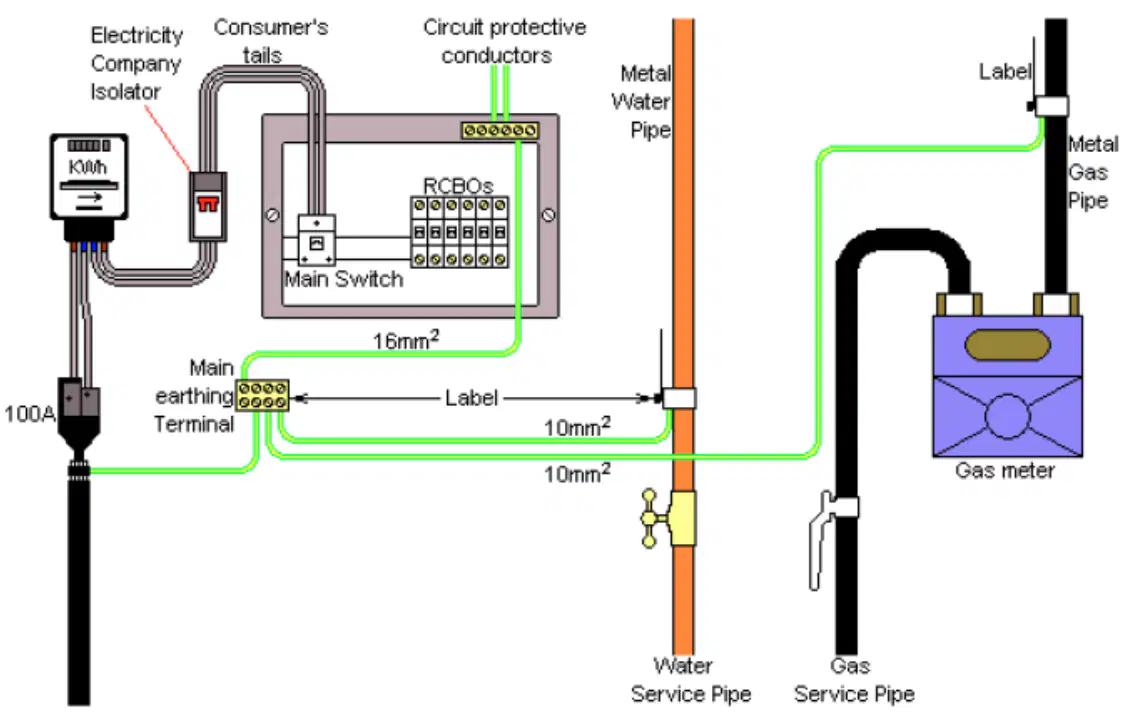

When bonding the gas service pipe, where should the clamp be fitted?
On the plastic section after the meter
Inside the RCBO enclosure panel
On the flexible appliance connector
On the pipe before the gas meter
Which conductor size is commonly shown for main bonding in TNS/TNCS diagrams?
35 mm² for line tails
0.75 mm² for flex cords
1 mm² for lighting circuits
10 mm² for bonding conductors

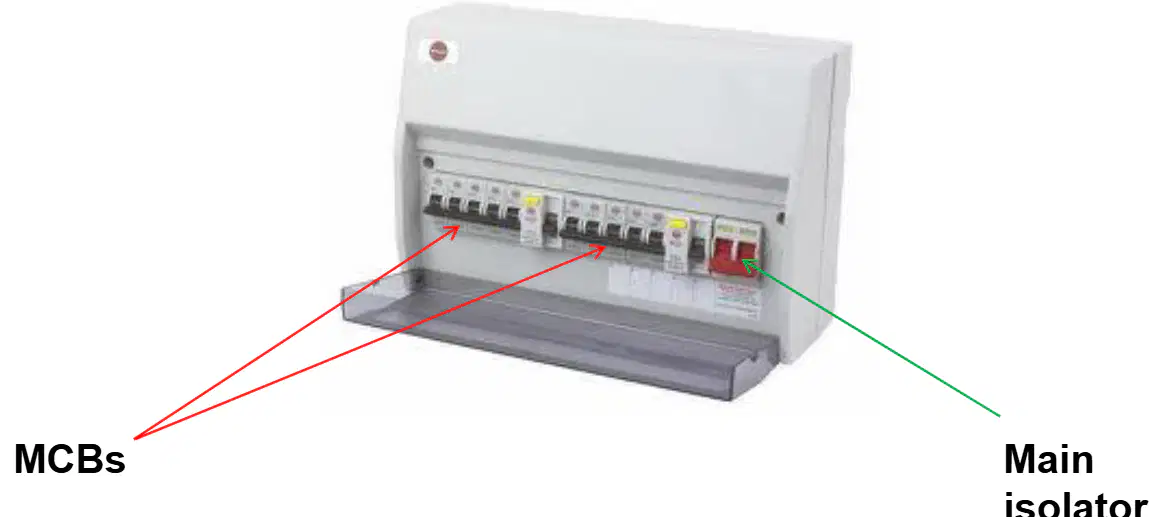

Which device primarily protects a single circuit from overload current in a consumer unit?
RCBO monitoring leakage and short circuits
Main isolator switching whole installation
Residual current device detecting earth faults
Miniature circuit breaker protecting overloads
Which statement best describes an RCBO’s combined function?
Provides overload and earth fault protection
Controls only switching and isolation
Detects short circuits but not leakage
Measures voltage to balance phases
To provide both overload and residual protection without separate modules, installers often choose which component?
Plug-in adapter for tools
Main switch with test lever
Separate MCB plus RCD pair
RCBO unit installed per circuit
During inspection, you note no earth continuity to a bathroom light. What should you do first?
Report the earthing problem immediately
Reset the nearest breaker handle
Ignore until scheduled maintenance
Increase the circuit breaker rating
Which protective element is found inside many UK plug tops for appliance protection?
RCD test module
Thermal cutout relay
Miniature circuit breaker
Cartridge fuse BS 1362
Which situation most likely requires de-commissioning an appliance temporarily?
Routine cleaning with no risks
Detected insulation damage on cable
Lack of user manual availability
Appliance is under manufacturer warranty
What is a key advantage of using RCBOs on older circuits?
They bring circuits up to current standards
They increase conductor cross-sectional area
They eliminate all nuisance tripping always
They remove need for earthing conductors
Which device is re-wireable in some older installations?
MCB with typed trip curve
RCBO module assembly
BS 1362 plug fuse
Rewireable cartridge fuse carrier
