WorksheetsNetwork Tools, Equipment and Testing Devices - Hubs
Total questions: 62
Worksheet time: 31mins
What is the primary function of a hub in a computer network?
To identify the source and destination of data
To enable computers on a network to communicate
To store information permanently
To act as the most complex network device
After reading the INFORMATION SHEET, fill in the blank: Hubs are the _______ complex and the _______ expensive of network devices.
least, least
most, most
most, least
least, most
After reading the INFORMATION SHEET, answer the following: True or False: A hub can identify the source or intended destination of the information it receives.
True
False
What type of network device is shown in the image?
Ethernet Hub
Wireless Router
Network Switch
Firewall
What is an Active Hub?
A device that only provides a point contact for wires
A device that regenerates, concentrates, and strengthens data signals before sending pipeline to their destinations
A device that does not modify signals
A device that only receives information
What is a Passive Hub?
A device that modifies signals
A device that acts as a repeater
A device that provides point contact for wires in the physical network and does not modify signals
A device that sends information faster than hubs
Switches work the same way as hubs, but they can identify the intended destination of the information they receive.
True
False
Name one advantage of using a switch instead of a hub in a home network.
Switches can send and receive information at the same time, so they can send information faster than hubs can.
Switches are only used for wireless connections, while hubs are for wired connections.
Switches require more power than hubs to operate.
Switches can only connect two devices at a time.
What device is shown in the image above?
Switch
Router
Modem
Hub
What is a bridge in computer networking?
A bridge is a computer networking device that builds the connection with other bridge networks which use the same protocol. It works at the Data Link layer of the OSI Model and connects the different networks together and develops communication between them.
A bridge is a device that amplifies signals to extend the range of a network.
A bridge is a device that stores and forwards emails between servers.
A bridge is a computer networking device that encrypts data for secure transmission over the internet.
At which layer of the OSI Model does a bridge operate?
Data Link layer
Network layer
Transport layer
Application layer
A bridge connects two local-area networks (LANs) or two segments of the same LAN that use the same protocol.
True
False
Which device is responsible for connecting Hub 1 and Hub 2?
Bridge
Router
Switch
Repeater
How does a bridge forward data between network segments?
A bridge forwards data after inspecting the MAC address of the devices connected to every segment and forwards the data if the destination address resides on another interface.
A bridge forwards data by broadcasting all incoming packets to every segment regardless of the destination address.
A bridge forwards data only to devices with IP addresses matching its own segment.
A bridge forwards data by converting all packets to broadcast messages before sending them to all segments.
What is the main advantage of learning bridges over traditional bridges?
Learning bridges build a list of the MAC addresses on the interface by observing the traffic on the network, which is a leap in the development of manually recording MAC addresses.
Learning bridges require manual configuration of MAC addresses for each interface.
Learning bridges only work with wireless networks.
Learning bridges increase network congestion by broadcasting all packets.
Ethernet switches are gaining trend compared to bridges due to their ability to provide logical divisions and segments in the network.
True
False
What is the main function of a router as described in the passage?
To store files
To enable computers to communicate and pass information between two networks
To print documents
To provide electricity
According to the passage, routers can be ________ (using Ethernet cables) or wireless.
wired
portable
digital
manual
Routers typically provide built-in security, such as a firewall.
True
False
If you want to give all of your computers access to the Internet using one modem, what device should you use according to the passage?
A router or a modem with a built-in router
A printer
A scanner
A monitor
What do wireless access points (APs or WAPs) provide access to?
Wireless signals only
Wired Ethernet network
Cellular networks
Bluetooth devices
Fill in the blank: Access points act a lot like ________ towers; you can move from one location to another and continue to have wireless access to a network.
cellular phone
radio
television
satellite
Access points have built-in technology for sharing Internet connections.
True
False
To share an Internet connection, you must plug an access point into a ________ or a modem with a built-in router.
router
switch
printer
monitor
When you connect to the Internet wirelessly in a public place like an airport, coffee shop, or hotel, you are usually connecting through:
A) A cellular tower
B) An access point
C) A Bluetooth device
D) A wired router
What is a gateway?
A device that stores data
A device used to connect multiple networks and pass packets from one network to another
A device that prints documents
A device that powers the computer
Fill in the blank: A modem is a device which converts the computer-generated digital signals of a computer into ______ signals to enable their travelling via phone lines.
analog
digital
binary
optical
Which device allows computer programs, either on the same computer or on different computers, to share information across the network through protocols?
Printer
Gateway
Monitor
Mouse
Identify the device shown in the image. Is it a modem or a gateway?
Modem
Router
Switch
Access Point
A router is also a gateway, since it interprets data from one network protocol to another.
True
False
Fill in the blank: A ________ allows multiple devices to be connected and managed in a more efficient manner and is used in computer networks, sound studios, and television stations.
Patch Panel
Router
Amplifier
Switch
Fill in the blank: ________ is a popular type of cable that consists of two unshielded wires twisted around each other and is used for LANs and telephone connections due to its low cost.
UTP cable
Coaxial cable
Fiber optic cable
Shielded twisted pair cable
What is the name of the device that is used to cover a portion of a wall where there is an opening for networking outlets, usually rectangular in shape, and allows the cable(s) to come through the wall while still covering the larger opening?
Modular box
Patch panel
Junction box
Faceplate
What is the name of the network device used to regenerate or replicate a signal, often used in transmission systems to regenerate analog or digital signals distorted by transmission loss?
Repeater
Router
Switch
Hub
In a data network, what is the main function of a repeater?
To route messages intelligently between networks
To relay messages between subnetworks that use different protocols or cable types
To connect computers to the internet
To encrypt network traffic
What does RJ in RJ-45 stand for?
Registered Jack
Remote Junction
Routed Jack
Registered Junction
The picture below shows a connector that is most commonly connected to the end of Cat5 cable. What is the name of this connector?
RJ-45
RJ-11
USB Type-A
HDMI
This connector is most commonly connected to the end of Cat5 cable, which is connected between a computer network card and a ________ such as a network router.
network device
printer
monitor
keyboard
What is the primary function of a cable tester?
To connect network wires to a patch panel
To test the strength and connectivity of cables or wires
To cut off excess wire
To provide internet access
What is a punch down tool used for?
To test cable strength
To connect telecommunications and network wires to a patch panel, punch down block, keystone module, or surface mount box
To measure internet speed
To install routers
What is the primary function of a crimping tool?
To remove the protective covering off a cable
To conjoin two pieces of metal by deforming one or both of them
To test network connectivity
To cut wires
What is a wire stripper used for?
To join connectors to cables
To remove the protective covering (jacket) off of a cable to expose the inner wires
To solder wires together
To test cable speed

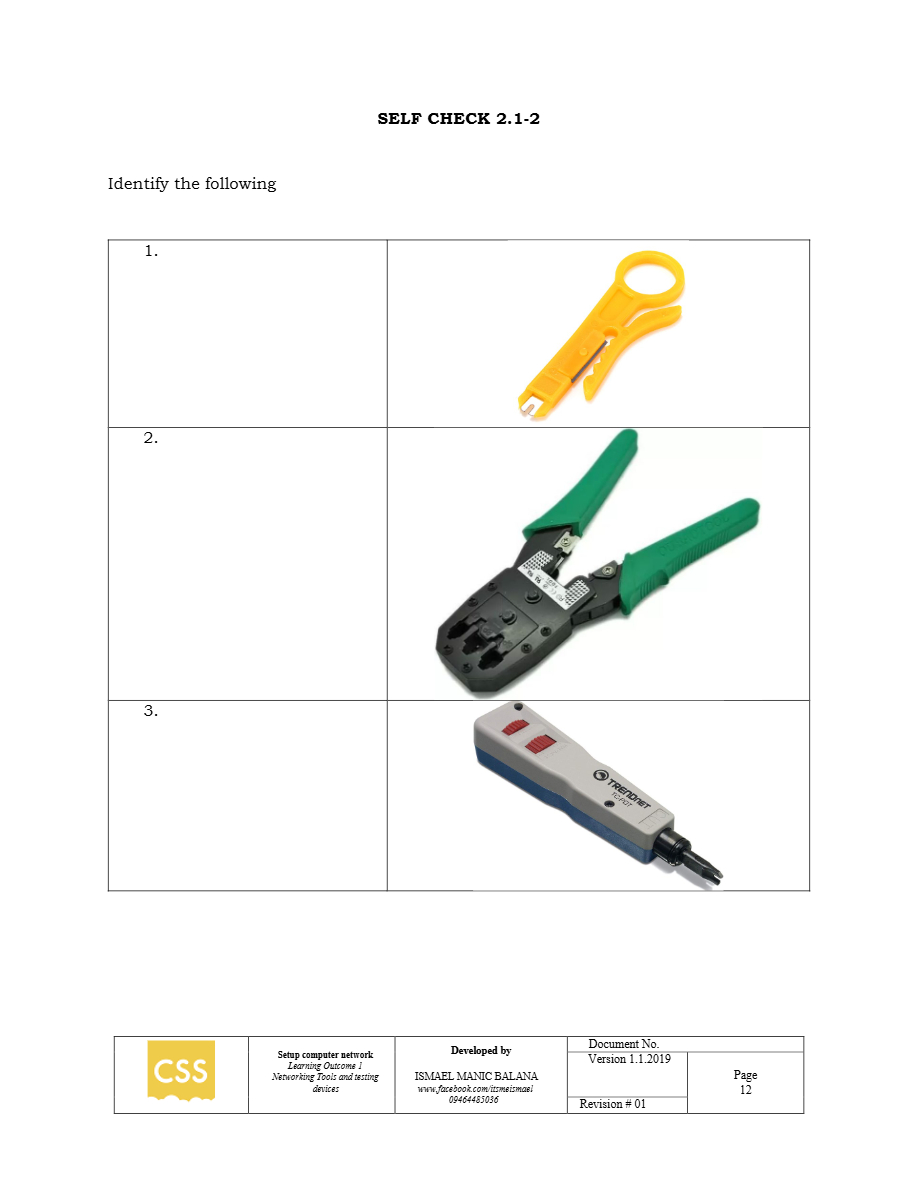

Identify the following: 1. (Image of a yellow cable stripper)
Cable stripper
Wire cutter
Screwdriver
Pliers
Identify the following: 2. (Image of a crimping tool with green handles)
Crimping tool
Wire stripper
Soldering iron
Multimeter
Identify the following: 3.
Punch down tool
Crimping tool
Wire stripper
Soldering iron
Identify the networking device shown in the image for number 4.
RJ45 connector
USB connector
HDMI port
VGA connector
Identify the networking device shown in the image for number 5.
Cable tester
Router
Switch
Patch panel
Identify the networking device shown in the image for number 6.
Network switch
Router
Hub
Firewall
Identify the networking device shown in the image for number 7.
Wireless router
Switch
Hub
Modem
Identify the networking device shown in the image.
Router
Switch
Hub
Modem
Identify the networking device shown in the image.
Ethernet Hub
Wireless Router
Network Switch
Firewall
Identify the networking device shown in the image.
DSL Modem
Wireless Router
Network Switch
Firewall
Fill in the blank: The tool used to remove insulation from electrical wires is called a _________.
wire stripper
screwdriver
pliers
hammer
Fill in the blank: The tool used to attach connectors to the ends of cables is called a _________.
crimping tool
soldering iron
wire stripper
multimeter
Fill in the blank: The tool used to insert wires into insulation-displacement connectors is called a _________
punch down tool
crimping tool
soldering iron
wire stripper
Fill in the blank: The standard connector used for Ethernet networking cables is called _________.
RJ45
USB-C
HDMI
VGA
Fill in the blank: The device used to test the integrity of network cables is called a _________
network cable tester
multimeter
oscilloscope
router
Fill in the blank: The device that connects multiple devices within a network and forwards data based on MAC addresses is called a _________.
switch
router
hub
modem
Fill in the blank: The device that allows wireless devices to connect to a wired network is called a _________
wireless access point
router
modem
switch
Fill in the blank: The device that forwards data packets between computer networks is called a _________.
router
modem
switch
firewall
Fill in the blank: The device that connects multiple computers in a network and operates at the physical layer is called a _________.
hub
switch
router
bridge
Fill in the blank: The device that provides access to the internet by converting digital data to analog signals and vice versa is called a _________.
modem
router
switch
hub
