Intro to STS Final Exam

Total questions: 58

Worksheet time: 29mins

Name
Class
Date
1.

Which action best demonstrates basic shop safety before using any tool?

a)

Put on required personal protective equipment first

b)

Ask a classmate to hold the material tightly

c)

Start the machine to check if it sounds normal

d)

Remove guards to see the blade clearly

2.

You should not handle any tools before receiving proper what?

a)

Training

b)

Instruction

c)

All of the above

d)

Permission

3.

What should be worn at all times while in the shop?

a)

Gloves

b)

Facemask

c)

Safety Glasses

d)

Long Pants

4.

Who should check your setup before you begin working with tools?

a)

Principal

b)

Instructor

c)

Custodian

d)

Your friend

5.

All adjustments should be made to machines before you turn on the power.

a)

True

b)

False

6.

What should you always ensure are in place in order to keep a tool safe?

a)

Guards

b)

Blades

c)

Fences

d)

Controls

7.

It is okay to leave a power tool while it is running if you're only going to be gone for a few seconds.

a)

True

b)

False

8.

What is the margin of safety while using power tools?

a)

1/2"

b)

1"

c)

5"

d)

2"

9.

If a tool breaks at any point during use, what is the first thing you should do?

a)

Continue using the tool

b)

Inform a teacher

c)

Throw to tool away

d)

Return the tool to where it is stored

10.

Long hair can be left down while using power tools.

a)

True

b)

False

11.

What should be done around the shop at the end of every day?

a)

All of the above

b)

Scraps thrown away

c)

Tables swept off

d)

Floor swept

12.

You should remove watches, bracelets, and rings before using machinery.

a)

False

b)

True

13.

What should be done with sweatshirts with strings while using power tools?

a)

All of the above are acceptable

b)

Strings tucked in

c)

Sweatshirt removed

d)

Strings tied in a tight knot by neck

14.

You can check the sharpness of blades by running your fingers or hands over the teeth.

a)

False

b)

True

15.

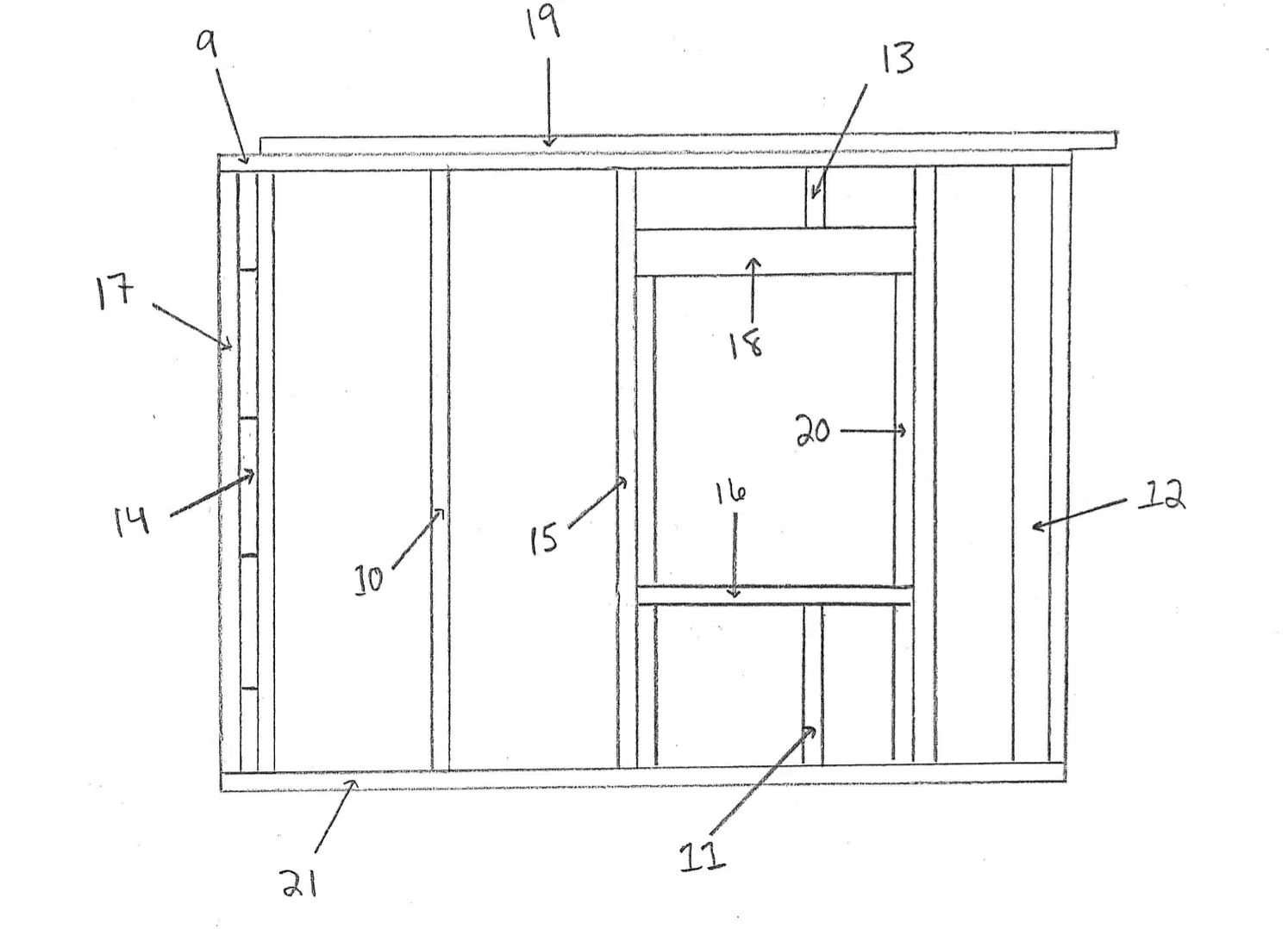

In the wall framing diagram, which labeled member acts as the continuous horizontal top plate tying the studs together?

a)

Member 21 at the base of wall

b)

Member 16 below window opening

c)

Member 19 along the top edge

d)

Member 11 under the mid stud

16.

Identify framing member #11. Mark only one oval.

a)

Sill

b)

Cripple Stud

c)

Common Stud

d)

King Stud

17.

Identify framing member #12. Mark only one oval.

a)

Jack Stud

b)

King Stud

c)

Block Corner

d)

Cali Corner

18.

Identify framing member #13. Mark only one oval.

a)

Jack Stud

b)

Header

c)

Cripple Stud

d)

Top Plate

19.

Identify framing member #14. Mark only one oval.

a)

Jack Stud

b)

Blocking

c)

Cali Corner

d)

Sill

20.

Identify framing member #15. Mark only one oval.

a)

Common Stud

b)

Jack Stud

c)

Cripple Stud

d)

King Stud

21.

Identify framing member #16. Mark only one oval.

a)

Sill

b)

Top Plate

c)

Bottom Plate

d)

Header

22.

Identify framing member #17. Mark only one oval.

a)

Common Stud

b)

Jack Stud

c)

Cali Corner

d)

Block Corner

23.

Identify framing member #18. Mark only one oval.

a)

Header

b)

Top Plate

c)

Bottom Plate

d)

Sill

24.

Identify framing member #19. Mark only one oval.

a)

Double Top Plate

b)

Top Plate

c)

Sill

d)

Header

25.

Identify framing member #20. Mark only one oval.

a)

Cripple Stud

b)

King Stud

c)

Jack Stud

d)

Common Stud

26.

Identify framing member #21 in the wall diagram.

a)

Sill

b)

Bottom Plate

c)

Header

d)

Top Plate

27.

Identify framing member #9 in the wall diagram.

a)

Sill

b)

Header

c)

Top Plate

d)

Double Top Plate

28.

Identify framing member #10 in the wall diagram.

a)

Blocking

b)

King Stud

c)

Common Stud

d)

Jack Stud

29.

What is the standard spacing for studs in a wall?

a)

48 inches

b)

24 inches

c)

12 inches

d)

16 inches

30.

What is the name for the angle of a roof?

a)

Roll

b)

Pitch

c)

Bank

d)

Yaw

31.

Which way should water be stepping on a building to keep it from seeping inside?

a)

Left

b)

Right

c)

Up

d)

Down

32.

What are the two major types of foundations?

a)

Metal and Cinder Block (CMU)

b)

Poured Concrete and Cinder Block (CMU)

c)

Metal and Wooden

d)

Poured Concrete and Wooden

33.

In modern construction, brick/stone veneer is so important that walls will collapse without it.

a)

False

b)

True

34.

What is the wooden (OSB) covering that goes on the outside of walls and roofs called?

a)

Shingling

b)

Siding

c)

Plywood

d)

Sheathing

35.

Under a microscope, wood pattern looks like a bundle of straws. What is this pattern called?

a)

Burn

b)

Design

c)

Grain

d)

Line

36.

What are the two major types of saws?

a)

Wide/Narrow Blade

b)

Think/Thick Blade

c)

Circle/Straight Blade

d)

Angle/Straight Tooth

37.

What is the material that gets chewed up and turned to sawdust called when making a cut?

a)

Gauge

b)

Rip

c)

Kerf

d)

Set

38.

When making a rip cut, which way are you cutting in regards to the grain pattern?

a)

Across the grain

b)

With the grain

39.

When making a cross cut, which way are you cutting in regards to the grain pattern?

a)

Across the grain

b)

With the grain

40.

A combination saw is good for making which kind of cut?

a)

Both A and B

b)

Flush Cut

c)

Cross Cut

d)

Rip Cut

41.

What is the unit of measurement for the coarseness of sandpaper?

a)

Grab

b)

Grit

c)

File

d)

Grain

42.

What is a courser grit of sandpaper between a high and low number grit?

a)

Higher grit

b)

Lower grit

43.

When sanding wood which kind of sandpaper should you start with?

a)

Lowest, coarsest grit (80 grit)

b)

Higher, finest grit (220 grit)

c)

A medium grit (120 grit)

d)

No sandpaper

44.

When staining wood, what pattern should you apply the stain in?

a)

Straight lines

b)

Squares

c)

Triangles

d)

Circles

45.

About how long does it take for wood stain to dry?

a)

24 hours

b)

1 hour

c)

30 minutes

d)

12 hours

46.

What is the water based clear coat finish for wood called?

a)

Polycrylic

b)

Polysyllabic

c)

Epoxy

d)

Polyurethane

47.

What is the oil based clear coat finish for wood called?

a)

Resin

b)

Polyurethane

c)

Polycrylic

d)

Epoxy

48.

The tool used to cut sheet metal to rough size is called what?

a)

Metal Shear

b)

Rivet Gun

c)

Metal Punch

d)

Metal Brake

49.

The tool used to bend sheet metal into angles is called what?

a)

Metal Brake

b)

Metal Shear

c)

Metal Punch

d)

Rivet Gun

50.

What kind of shoes would be the best for a welder to wear?

a)

Crocs

b)

Sneakers

c)

Slides

d)

Boots

51.

What type of industrial cutting process uses oxygen and a flammable gas to make cuts?

a)

Shearing

b)

Brazing

c)

Plasma Cutting

d)

Oxy-Fuel Cutting

52.

What type of industrial cutting process uses compressed air and electricity to make cuts?

a)

Brazing

b)

Oxy-Fuel Cutting

c)

Shearing

d)

Plasma Cutting

53.

Arc welding uses a metal rod to strike an electrical arc to heat metal. What is that metal rod called?

a)

Conductor Rod

b)

Magneton

c)

Filler

d)

Electrode

54.

What is MIG an acronym for?

a)

Managed Intensive Grazing

b)

Member Interest Group

c)

Made in Guam

d)

Metal Inert Gas

55.

What is TIG an acronym for?

a)

Time in Grade

b)

Terminal Internet Gateway

c)

Tungsten Inert Gas

d)

Technology Initiative Grant

56.

What type of welding uses gas and a self-feeding electrode wire to make welds?

a)

MIG

b)

TIG

c)

Oxy-Fuel

d)

Stick

57.

What type of welding uses a flux coated rod electrode and electricity to make welds?

a)

MIG

b)

TIG

c)

Stick

d)

Oxy-Fuel

58.

Which sheet metal tool is best suited for creating straight, clean cuts across large panels?

a)

Metal Shear

b)

Rivet Gun

c)

Metal Punch

d)

Metal Brake
