WorksheetsFormative Quiz A: Precision, Measurement & Dial Calipers
Total questions: 17
Worksheet time: 9mins

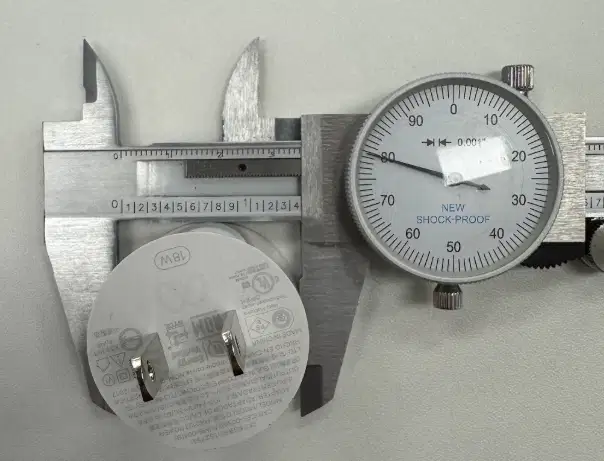

What is the correct measurement shown?
9.26
0.926
8.26
0.827
Why is 1.55 an incorrect reading for this image?
The main scale is incorrect
The dial was not added correctly
The units are missing
The caliper is broken
Which tool would give the most precise measurement?
Ruler
Tape measure
Dial caliper
Estimation
These measurements are:
Accurate but not precise
Precise but not accurate
Both accurate and precise
Neither accurate nor precise
If a dial caliper reading is 4.85. What does the decimal value (.85) represent?
A guess
Measurement error
Increased precision
Units conversion

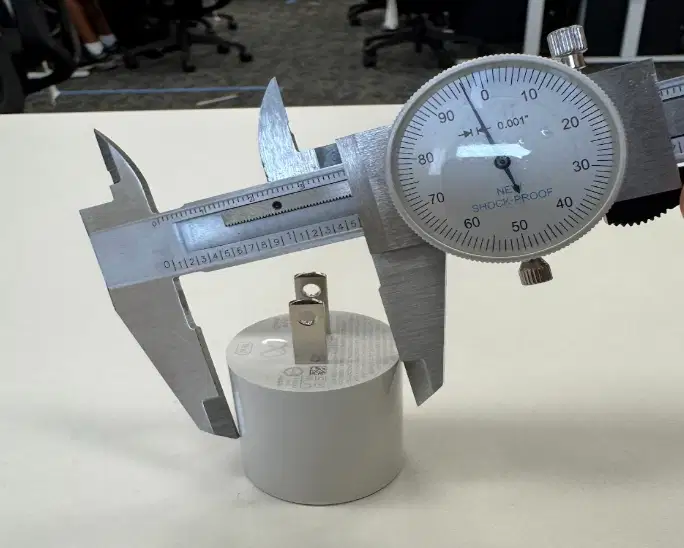

What is the most likely issue with this measurement?
Units were wrong
Caliper was not aligned properly
The object is too small
The dial is broken
IWhich measurement is MOST critical to take precisely?
Overall height
Color
Width of the connecting tab
Label placement
True or False: This measurement could be accurately taken with a ruler alone.
True
False
Your partner built an object slightly larger than intended. What is the most likely cause?
Poor materials
Insufficient measurement precision
Poor teamwork
Incorrect problem choice

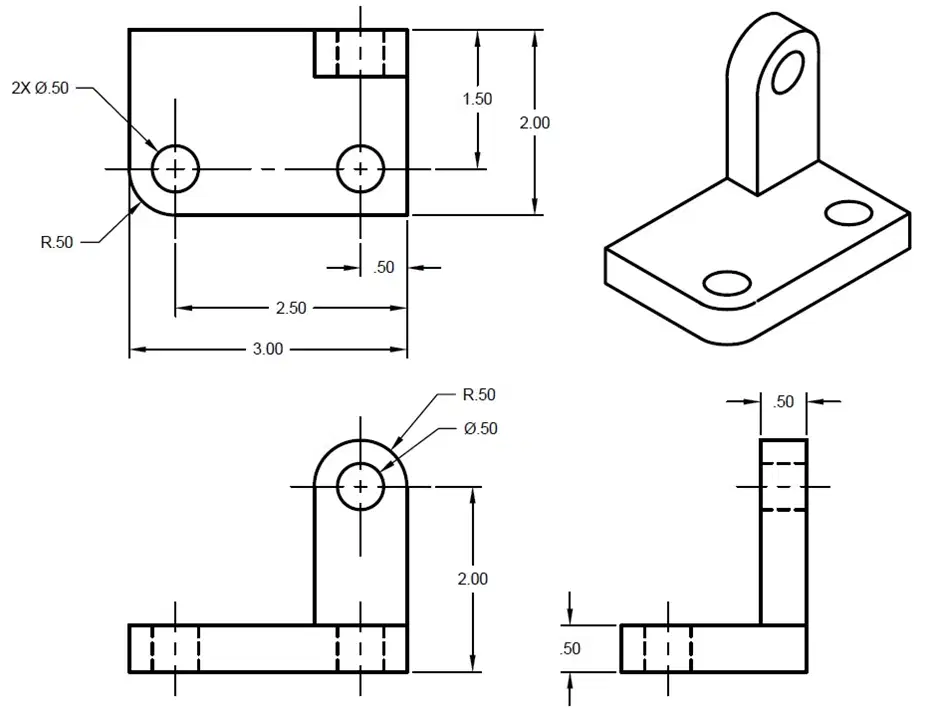

What type of drawing is shown?
Orthographic
Isometric
Perspective
Blueprint
Which view is the "front view"?
TOP
TOP
What is missing that would prevent someone from building this?
Shading
Measurements
Labels
Which drawing type is MOST useful for construction?
Isometric
Orthographic
Either
Neither

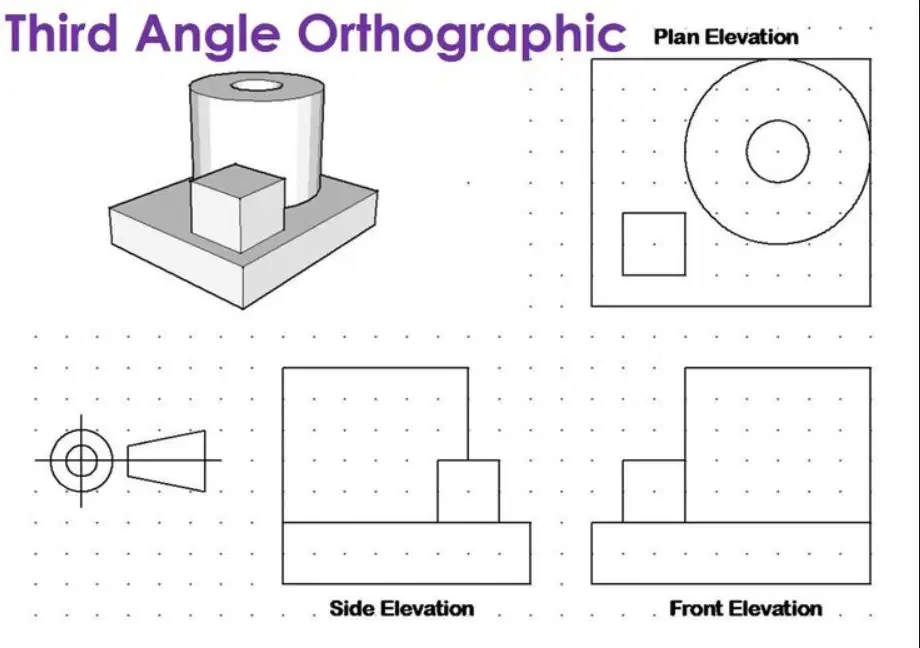

Which orthographic view matches the object shown?
True or False: This drawing provides enough information to build the object accurately.
True
False
What is the correct line-type for lines on the inside of an object?
Construction Lines
Object Lines
Hidden Lines
Select all that apply: If a product was constructed differently than the engineer intended, what could be the probable cause(s)?
Plans are incorrectly made
Not enough information is given
Builder could not, or did not, read the plans correctly
