Worksheets3D Printing Unit Questionnaire
Total questions: 49
Worksheet time: 2hrs 38mins
Name
Class
Date
1.
1a) What is the arrow pointing to in this diagram?
a)
Build Platform/Plate
b)
Cooling Fan
c)
Extruder/Nozzle
d)
LCD Screen
e)
Filament
2.
1b) What function does this part have in the process of a 3D print?
4 lines
3.
1c) Does this part get hot?
a)
Yes
b)
No
4.
2a) What is the arrow pointing to in this diagram?
a)
Filament
b)
Cooling Fan
c)
Extruder/Nozzle
d)
LCD Screen
e)
Build Platform/Plate
5.
2b) What function does this part have in the process of a 3D print?
4 lines
6.
2c) What type will we be using in class?
a)
PLA 1.75 mm
b)
ABS 1.75 mm
c)
PLA 2.85 mm
d)
ABS 2.85
7.
3a) What is the arrow pointing to in this diagram?
a)
Gantry
b)
Cooling Fan
c)
Extruder/Nozzle
d)
LCD Screen
e)
Filament
8.
3b) What function does this part have in the process of a 3D print?
4 lines
9.
3c) Should you ever touch this part of a 3D printer?
a)
Yes
b)
No
10.
4a) What is the arrow pointing to in this diagram?
a)
LCD Screen
b)
Cooling Fan
c)
Extruder/Nozzle
d)
Filament
e)
Build Platform/Plate
11.
4b) What function does this part have in the process of a 3D print?
4 lines
12.
5a) What is the arrow pointing to in this diagram?
a)
USB Port
b)
Cooling Fan
c)
Extruder/Nozzle
d)
LCD Screen
e)
Filament
13.
5b) What function does this part have in the process of a 3D print?
4 lines
14.
6a) What is the arrow pointing to in this diagram?
a)
Extruder/Nozzle
b)
Cooling Fan
c)
LCD Screen
d)
Filament
e)
Build Platform/Plate
15.
6b) What function does this part have in the process of a 3D print?
4 lines
16.
6c) Why should you never touch this part of a 3D printer?
4 lines
17.
7a) What is the arrow pointing to in this diagram?
a)
Cooling Fan
b)
Extruder/Nozzle
c)
LCD Screen
d)
Filament
e)
Build Platform/Plate
18.
7b) What function does this part have in the process of a 3D print?
4 lines
19.
8a) Should you ever open the door while the 3D printer is running?
a)
Yes
b)
No
20.
8b) Explain your answer to 8a.
Why should you never open the door while the 3D printer is running?
4 lines
21.
9) Do you need the teacher's approval for making a 3D print?
a)
Yes
b)
No
c)
Maybe
22.
10) If you want to use a specific color filament for your print that is currently not loaded in the printer, should you open the door and replace it yourself?
a)
Yes, just pull out the old one and put the spool you want in the machine
b)
No, there is more involved besides just pulling out the old filament and putting the new one on the spool holder
23.
11a) True or False: When the print job is complete, you can immediately remove your design from the build plate.
a)
True
b)
False
24.
11b) Why or why not?
When the print job is complete, you can immediately remove your design from the build plate.
4 lines
25.
12) True or False: You are allowed to use Tinkercad on your own time, such as at home, without the teacher's permission?
a)
True
b)
False
26.
13) True or False: You are allowed to put your own flash drive in the USB port of the printer.
a)
True
b)
False
27.
14) What arrow represents the z-axis?
a)
1. Red
b)
2. Blue
c)
3. Green
28.
15) There are three parts to the 3D printing process. What is the first part of the 3D printing process?
a)
CAM
b)
Slicing
c)
CAD
29.
16) There are three parts to the 3D printing process. What is the second part of the 3D printing process?
a)
CAM
b)
Slicing
c)
CAD
30.
17) There are three parts to the 3D printing process. What is the third part of the 3D printing process?
a)
CAM
b)
Slicing
c)
CAD
31.
18) What does CAD stand for?
4 lines
32.
19) Describe what "slicing" is:
4 lines
33.
20) What sustainable vegetation is used in producing PLA?
a)
Potatoes
b)
Trees
c)
Cotton
d)
Corn
34.
21) List TWO advantages of using the answer from question 20 to make plastic instead of oil.
4 lines
35.
22) Describe TWO ways that 3D printing is improving peoples lives.
4 lines
36.
23) What is the honeycomb/hexagon shaped part of this print called?
a)
Infill
b)
Perimeter
c)
Volume
d)
Support
37.
24) 3D printing is considered to be a(n)
a)
Additive manufacturing
b)
Subtractive process
38.
25) What does this Tinkercad icon mean?
a)
Delete
b)
Duplicate
c)
Undo
d)
View Cube
e)
Merge/Group
39.
26) What does this Tinkercad icon mean?
a)
Share to Google Classroom
b)
Duplicate
c)
Undo
d)
Delete
e)
View Cube
40.
27) What does this Tinkercad icon mean?
a)
Undo
b)
Duplicate
c)
Delete
d)
View Cube
e)
Merge/Group
41.
28) What does this Tinkercad icon mean?
a)
Duplicate
b)
Undo
c)
Delete
d)
View Cube
e)
Merge/Group
42.
29) What does this Tinkercad icon mean?
a)
Home View
b)
Duplicate
c)
Undo
d)
Delete
e)
View Cube
43.
30) What does this Tinkercad icon mean?
a)
Merge/Group
b)
Duplicate
c)
Undo
d)
Delete
e)
View Cube
44.
31) What does this Tinkercad icon mean?
a)
Align
b)
Duplicate
c)
Undo
d)
Delete
e)
View Cube
45.
32) What does this Tinkercad icon mean?
a)
Ungroup
b)
Duplicate
c)
Undo
d)
Delete
e)
View Cube
46.
33) What does this Tinkercad icon mean?
a)
View Cube
b)
Duplicate
c)
Undo
d)
Delete
e)
Merge/Group
47.
34) What does this Tinkercad icon mean?
a)
Mirror
b)
Duplicate
c)
Undo
d)
Delete
e)
View Cube
48.

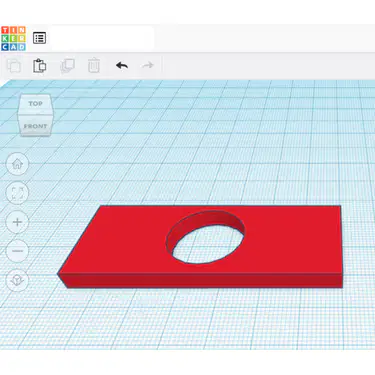

35) How describe you would cut a piece of your design out, such as making a hole in the middle of rectangular prism?
4 lines
49.
What type of clicker design do you think you may want to make once you are done with this questionnaire?
4 lines
